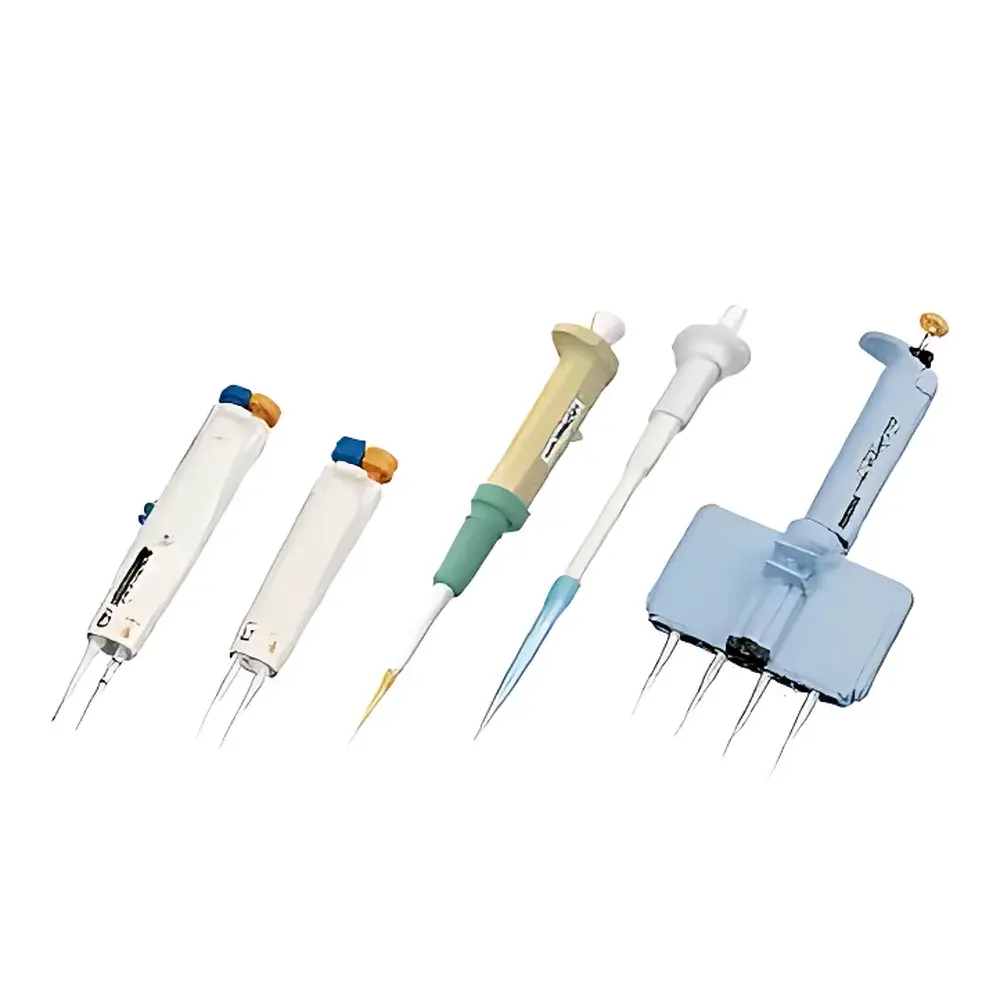

Nichiryo Custom-Made Manual Pipettes
| Brand | Nichiryo |
|---|---|
| Origin | Japan |
| Manufacturer Type | Authorized Distributor |
| Product Category | Imported |
| Model | Custom-Made Pipettes |
| Instrument Type | Single-Channel Manual Pipette |
| Automation Level | Manual |
| Channel Count | Single |
| Volume Range | Custom-Defined (Typically 0.1–10,000 µL) |
| Accuracy & Precision | Compliant with ISO 8655 (per customer-specified calibration range) |
| Regulatory Compliance | Designed to support GLP/GMP workflows and FDA 21 CFR Part 11–aligned documentation protocols |
Overview
Nichiryo Custom-Made Manual Pipettes are precision-engineered liquid handling instruments developed in collaboration with end-users to meet exacting application requirements that cannot be fulfilled by off-the-shelf models. Built upon Nichiryo’s decades-long heritage in high-tolerance microfluidic component manufacturing in Japan, these pipettes utilize a robust air-displacement mechanism with corrosion-resistant stainless-steel internals, optimized spring dynamics, and low-dead-volume sealing technology. Unlike standard catalog products, each unit undergoes specification-driven design iteration — from ergonomic handle geometry and tip-ejection force profiling to material selection for chemical resistance (e.g., PTFE-coated plungers for organic solvent compatibility). The platform supports both fixed-volume and adjustable-volume configurations, with volume setting mechanisms calibrated to ISO 8655 traceable standards. These instruments are intended for laboratories requiring repeatable, operator-independent performance in regulated environments including QC release testing, reference standard preparation, and method development under ICH Q2(R2) and USP guidelines.
Key Features
- Full custom engineering workflow: From functional specification and 3D CAD modeling to prototype validation, regulatory documentation support, and serial production.
- Ergonomic customization: Handle diameter, grip texture, thumb rest angle, and weight distribution tailored to user anthropometry and repetitive-use fatigue thresholds.
- Chemical compatibility optimization: Selection of wetted materials (e.g., ETFE seals, Hastelloy plunger components, or quartz-glass barrels) based on exposure profiles to aggressive solvents, acids, or biological matrices.
- Tip interface adaptation: Support for non-standard conical geometries (e.g., extended-length, ultra-low retention, or sterile-filtered tips), including OEM-compatible luer-lock or positive-displacement interfaces.
- Calibration-ready architecture: Integrated adjustment screws and traceable calibration ports enabling in-house verification per ISO/IEC 17025-accredited procedures.
- Documentation package: Includes Design History File (DHF)-structured technical files, material declarations (RoHS/REACH), and calibration certificate templates aligned with GxP audit expectations.
Sample Compatibility & Compliance
These custom pipettes accommodate aqueous buffers, viscous glycerol-based reagents (up to 1,000 cP), volatile organic solvents (e.g., acetonitrile, chloroform), and protein-rich biological samples — contingent upon selected wetted materials and seal formulations. All designs comply with ISO 8655-1 through -5 for performance evaluation, and optional factory calibration certificates are issued against NIST-traceable gravimetric standards. Units intended for pharmaceutical use may be supplied with IQ/OQ documentation packages and change control records suitable for FDA pre-approval inspections or MHRA GMP audits. Sterilization compatibility (autoclave, gamma, or ethylene oxide) is validated per customer-defined cycle parameters.
Software & Data Management
While the pipettes themselves are manual, Nichiryo provides complementary digital tools to support compliance-critical workflows. Optional accessories include barcode-scannable serialized identification tags linked to cloud-hosted device history records, and electronic logbook templates compatible with LabVantage, Thermo Fisher SampleManager, and Agilent OpenLab ECM. Calibration event tracking, maintenance scheduling, and deviation reporting modules follow ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Audit trail functionality satisfies FDA 21 CFR Part 11 requirements when deployed with validated electronic signature controls.
Applications
- High-value assay development where tip leakage or carryover compromises detection limits (e.g., single-cell RNA-seq library prep).
- Regulated environmental testing requiring documented volumetric accuracy across heterogeneous sample viscosities (e.g., wastewater extract analysis per EPA Method 1694).
- Cell therapy manufacturing processes demanding sterile, pyrogen-free liquid transfer with zero silicone leachables.
- Reference material dilution series in metrology labs accredited to ISO/IEC 17034.
- Customized dispensing of cryoprotectants or hydrogels in bioprinting R&D setups with non-standard tip engagement forces.
FAQ
What is the typical lead time for a fully customized pipette design?
Lead time ranges from 12–20 weeks, depending on complexity — including 3–5 weeks for specification finalization, 4–6 weeks for prototype fabrication and functional testing, and 5–9 weeks for production-scale validation and documentation release.
Can Nichiryo support integration with existing LIMS or ELN systems?
Yes — via standardized CSV/Excel export templates and REST API-enabled metadata exchange for device ID, calibration status, and maintenance logs.
Are custom disposable tips developed alongside the pipette?
Yes — tip development is included in the scope, covering mold tooling, material certification (USP Class VI, ISO 10993), and compatibility validation against the final pipette actuation profile.
Is post-delivery technical support available globally?
Nichiryo partners with ISO 13485-certified service providers in North America, EMEA, and APAC regions to deliver on-site verification, recalibration, and design modification support under formal Service Level Agreements.
