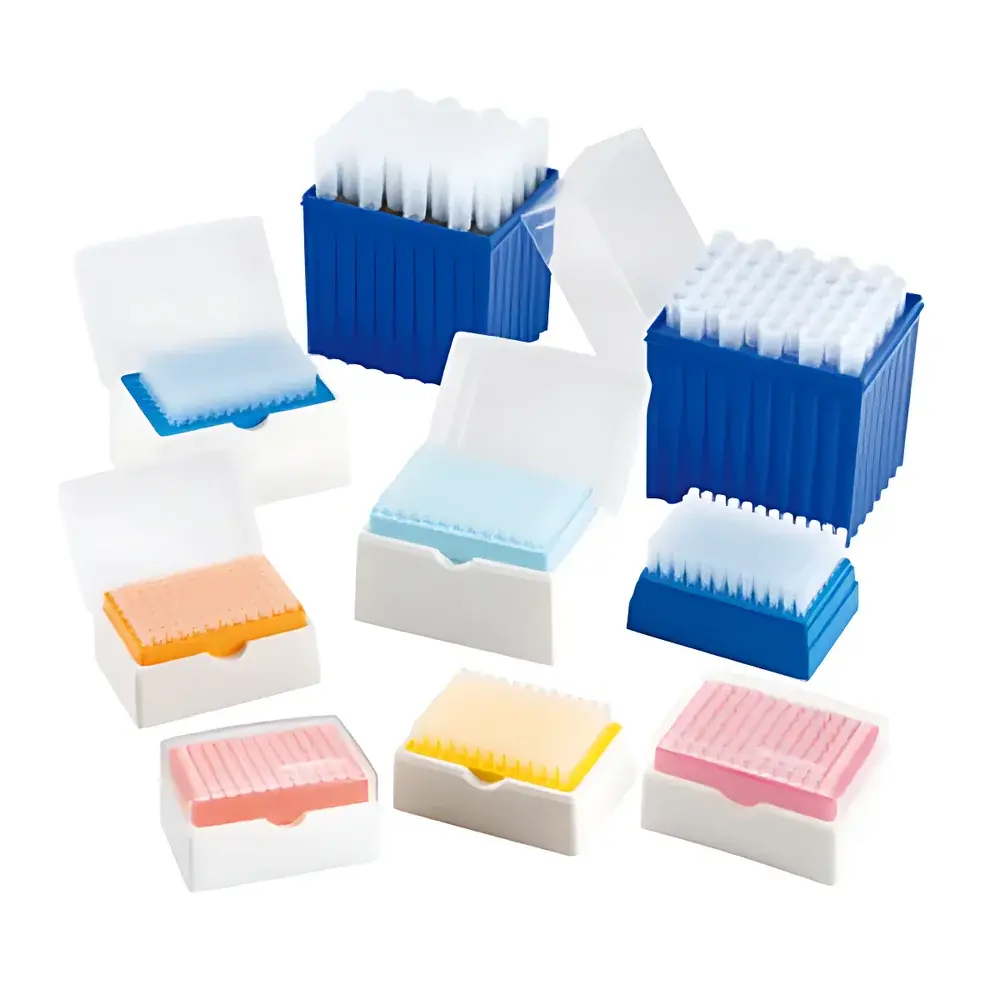

Nichiryo Sterilizable Disposable Pipette Tips

Overview

Nichiryo Sterilizable Disposable Pipette Tips are precision-engineered consumables designed for high-fidelity liquid handling in molecular biology, clinical diagnostics, pharmaceutical QC, and academic research laboratories. Manufactured in Japan under stringent ISO 9001-certified production protocols, these tips utilize medical-grade polypropylene with tightly controlled melt flow index and low extractables profile—ensuring minimal interference in sensitive assays such as qPCR, NGS library preparation, ELISA, and cell culture workflows. The tips operate on the principle of positive displacement via air-cushion pipetting; their geometry is optimized to minimize capillary retention, surface tension hysteresis, and aerosol carryover—critical parameters affecting reproducibility in low-volume transfers (<10 µL). Each tip undergoes rigorous dimensional validation (±0.02 mm tolerance on inner/outer diameters) and leak testing prior to release, guaranteeing consistent plunger engagement and seal integrity across compatible Nichiryo pipettors (e.g., NPP-, NPX-, NPLO-, NPM-series) and third-party ISO 8655-compliant instruments.

Key Features

• Autoclave-compatible design validated for 20-minute cycles at 121 °C and 103 kPa (15 psi), including tip racks—enabling full-lab sterility assurance without component segregation.
• Tapered nozzle geometry with ultra-smooth internal surface finish (Ra < 0.4 µm) reduces residual volume by up to 35% compared to standard conical tips, especially critical for viscous or surfactant-containing samples.
• Uniform inner diameter tolerance (±2.5 µm) along the entire shaft ensures stable air cushion formation and repeatable aspiration/dispense dynamics—essential for achieving ≤1.5% CV at 2 µL (per ISO 8655-6).
• DNase/RNase-free certification confirmed by fluorometric enzymatic assay (detection limit: <0.01 pg/µL), applicable to all models except X and Z series (intended for high-volume industrial dispensing where nuclease sensitivity is not a priority).
• UV-transparent polypropylene formulation permits optional pre-use decontamination under 254 nm germicidal irradiation (up to 120 mJ/cm²) without polymer degradation or leachate generation.

Sample Compatibility & Compliance

These tips demonstrate broad chemical compatibility with aqueous buffers (including Tris-EDTA, PBS, RIPA), organic solvents (≤30% methanol, acetonitrile, DMSO), and chaotropic agents (guanidine HCl, urea). They are certified free of endotoxins (<0.03 EU/mL, LAL test), heavy metals (Pb, Cd, Hg < 1 ppb per ICP-MS), and PCR inhibitors (verified via spike-recovery qPCR using human β-globin gene). Compliant with ISO 13485:2016 for in vitro diagnostic manufacturing environments and aligned with FDA 21 CFR Part 11 requirements for electronic record integrity when used with audit-trail-enabled pipetting workstations. Rack-packaged sterile variants include lot-specific CoA with bioburden data (≤1 CFU/unit) and sterility test results per USP .

Software & Data Management

While inherently passive consumables, Nichiryo tips integrate seamlessly into digital lab ecosystems: rack barcodes (GS1-128 compliant) support LIMS traceability; sterilization lot numbers are embedded in QR codes on secondary packaging for automated inventory reconciliation. When deployed with smart pipettes (e.g., Eppendorf Xplorer+, Rainin LiteTouch), tip recognition algorithms auto-configure volume calibration offsets based on batch-specific performance profiles stored in cloud-hosted calibration databases. All documentation—including CoA, sterilization validation reports (IQ/OQ/PQ summaries), and extractables testing data—is accessible via Nichiryo’s secure customer portal with role-based access control (RBAC) and 21 CFR Part 11-compliant electronic signatures.

Applications

• High-sensitivity nucleic acid quantification (digital PCR, single-cell RNA-seq)
• GMP-compliant assay development and stability testing
• Automated liquid handlers (Tecan Freedom EVO, Hamilton STAR) requiring autoclavable tip decks
• Clinical microbiology workflows involving biosafety level 2 (BSL-2) pathogens
• Quality control of biologics (mAbs, ADCs) where silicone-free surfaces prevent protein adsorption artifacts

FAQ

Can these tips be reused after autoclaving?
No. These are single-use, disposable tips. Reuse compromises dimensional stability, increases risk of cross-contamination, and voids regulatory compliance for GLP/GMP applications.
Do sterilized racked tips require additional validation before use in aseptic processing?
Yes. End-users must perform media fill simulations and environmental monitoring per ISO 14644-1 Class 5 requirements; Nichiryo provides VHP-compatible rack materials but does not certify final cleanroom suitability.
Why are X and Z series not DNase/RNase-free?
These high-capacity tips (1–10 mL) utilize a modified PP copolymer with enhanced rigidity for mechanical durability during robotic arm handling; residual catalyst traces from polymerization necessitate separate nuclease removal validation not currently performed.
Is rack deformation during autoclaving a quality defect?
Minor warping (<2° angular deviation) within specified thermal limits is acceptable per JIS K 6721 and does not affect tip ejection force or sealing performance—validated via ASTM D638 tensile testing post-sterilization.
