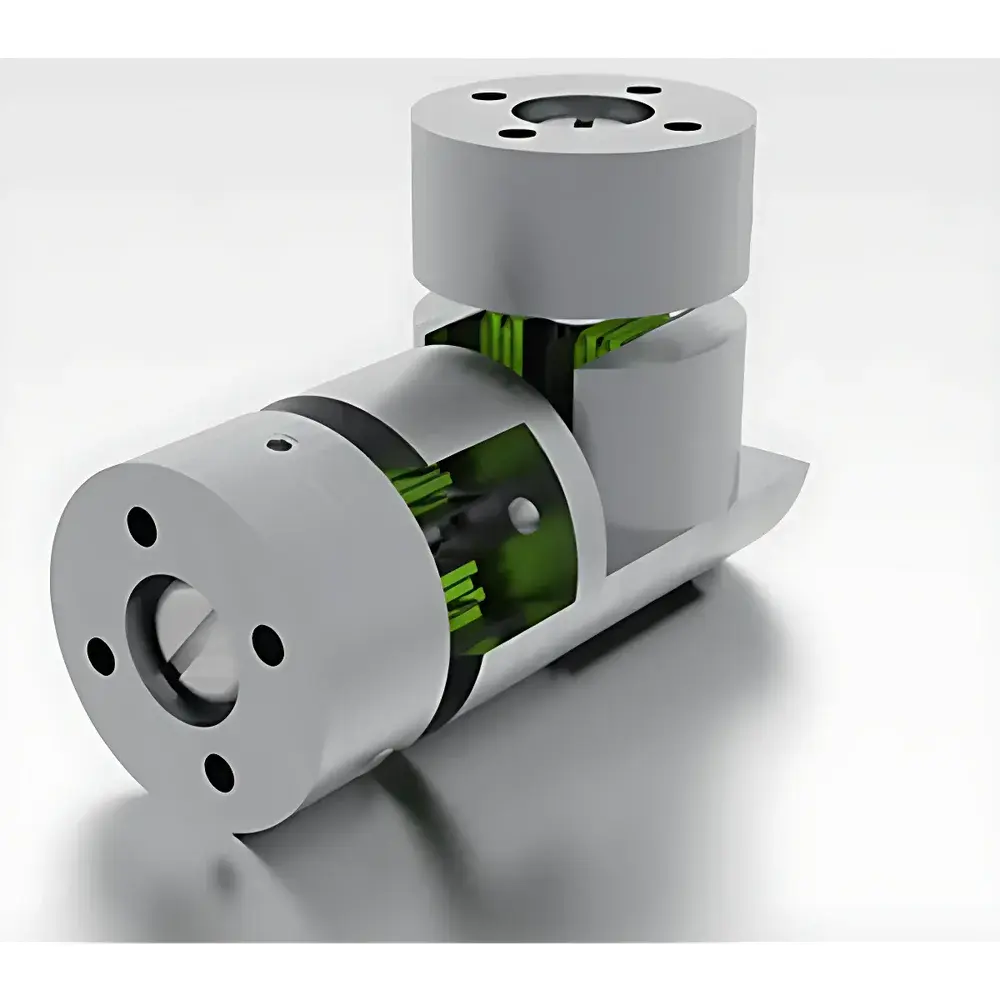

NM-2 AXIS PIEZO ROTATOR by 3i

Overview

The NM-2 AXIS PIEZO ROTATOR by 3i is a cryogenic-compatible, ultra-high-precision dual-axis rotational stage engineered for demanding low-temperature and high-magnetic-field experimental environments. Designed around piezoelectric stepping motor technology, it enables independent, nanoradian-level angular positioning in two orthogonal axes—typically defined as azimuthal (horizontal) and polar (vertical) rotation—without mechanical backlash or hysteresis-induced drift. Its core functionality supports precise sample orientation control in quantum transport, magneto-optical spectroscopy, scanning probe microscopy (SPM), and angle-resolved photoemission spectroscopy (ARPES) setups. The device operates across an extreme thermal envelope—from dilution refrigerator base temperatures (10 mK) up to room temperature (300 K)—and maintains structural integrity and positional fidelity under static magnetic fields up to 15 tesla. This makes it uniquely suited for integration into hybrid cryo-magnet systems, including split-pair superconducting magnets and vertical-field cryostats.

Key Features

• True dual-axis architecture with independent ±90° mechanical rotation per axis, enabling full hemispherical sample access
• Sub-microradian angular resolution of 1 µdeg (0.000001°), achieved via closed-loop piezoelectric actuation with integrated capacitive position feedback
• Cryogenically optimized mechanical design using titanium alloy and ceramic insulators to minimize thermal contraction mismatch and eddy current generation
• Direct compatibility with standard 20-pin leadless chip carriers (LCC-20), facilitating rapid sample exchange without realignment
• Integrated vacuum feedthrough-rated controller with USB 2.0 interface, supporting deterministic command latency (< 5 ms) and real-time position reporting
• No internal ferromagnetic components—ensuring negligible perturbation to local magnetic field homogeneity and compliance with high-field magnet safety protocols

Sample Compatibility & Compliance

The NM-2 AXIS PIEZO ROTATOR accommodates samples mounted on industry-standard LCC-20 packages, with optional custom adapters available for quartz tuning forks, MEMS cantilevers, or miniature Hall bar geometries. All wetted materials—including stage body, mounting flange, and electrical feedthroughs—meet ISO 8502-3 cleanliness standards for ultra-high-vacuum (UHV) and inert-gas glovebox environments. The system complies with IEC 61000-6-3 (EMC emission limits) and IEC 61000-6-2 (immunity to electrostatic discharge and magnetic fields). When operated within certified cryogenic systems, it supports GLP-compliant experimental documentation through synchronized timestamped position logs traceable to NIST-traceable time sources.

Software & Data Management

The included 3i PiezoControl Suite provides cross-platform (Windows/Linux/macOS) support for low-level command scripting (ASCII protocol over USB), GUI-based multi-axis trajectory planning, and automated sequence execution. Position data are recorded in HDF5 format with embedded metadata—including temperature (via optional PT100 input), magnetic field setpoint (via analog voltage input), and synchronization pulse triggers. Audit trails meet FDA 21 CFR Part 11 requirements when configured with user authentication, electronic signatures, and immutable log archiving. API bindings (Python/C++/LabVIEW) enable seamless integration into larger experiment orchestration frameworks such as EPICS or QCoDeS.

Applications

• Angle-dependent magnetotransport measurements in 2D materials (e.g., graphene, transition metal dichalcogenides)
• Polarization-resolved magneto-photoluminescence mapping under high magnetic fields
• In-situ alignment of microfabricated devices inside scanning tunneling microscope (STM) heads
• Calibration of vector magnetic field sensors using known crystallographic orientations
• Multi-angle reflectance and ellipsometry in variable-temperature cryostats
• Orientation-dependent microwave absorption studies in topological insulator heterostructures

FAQ

Is the rotator compatible with ultra-high-vacuum (UHV) systems?
Yes—the entire stage assembly is UHV-compatible (≤1×10⁻⁹ mbar), with all seals rated for bake-out at 150°C and outgassing rates below 1×10⁻¹² Pa·m³/s·cm².
Can both axes rotate simultaneously while maintaining positional accuracy?
Yes—simultaneous biaxial motion is supported with coordinated trajectory interpolation; angular cross-coupling remains below ±0.5 µdeg across the full range.
Does the controller support external triggering for synchronization with pulsed lasers or RF sources?
Yes—the USB controller features two TTL-compatible trigger inputs and one output, configurable for start/stop, step advance, or position latch events.
What calibration documentation is provided with the system?
Each unit ships with a factory calibration certificate covering angular repeatability (±0.000003°, 3σ), thermal drift (< 0.00001°/K between 10–50 K), and magnetic field-induced offset (< 0.000002° at 15 T).
Is remote operation possible over Ethernet or GPIB?
Native support is USB 2.0 only; however, third-party USB-to-Ethernet extenders compliant with USB 2.0 isochronous transfer mode may be deployed—subject to latency validation per application requirements.
