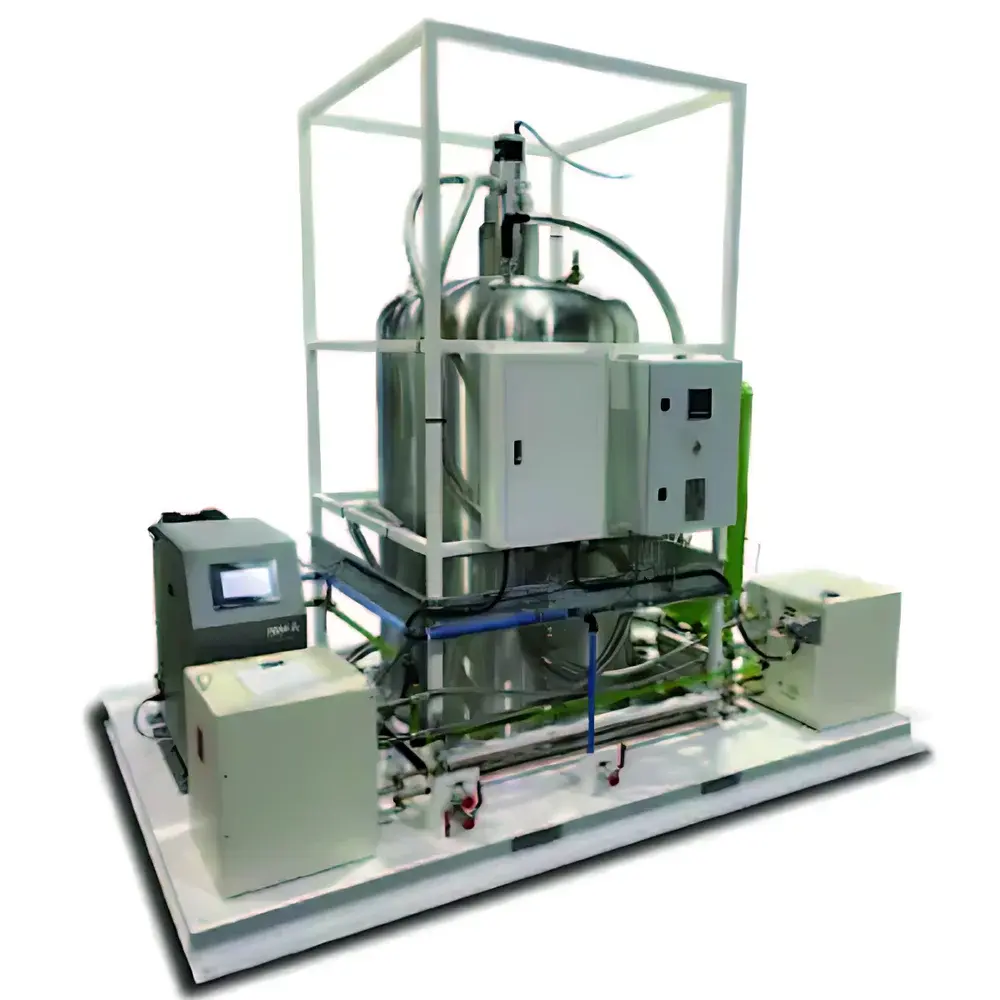

Noblegen Titan LN480-LN960 Large-Flow On-Site Liquid Nitrogen Generator

Overview

The Noblegen Titan LN480–LN960 is an industrial-grade, skid-mounted on-site liquid nitrogen generator engineered for continuous, high-volume production of ultra-pure liquid nitrogen (LN₂) directly within laboratory, clinical, and research facilities. Unlike cryogenic delivery systems reliant on bulk transport and dewar storage, the Titan series employs a two-stage pressure-swing adsorption (PSA) nitrogen generation module coupled with a high-efficiency cascade refrigeration system operating at cryogenic temperatures (< –196 °C). This integrated architecture enables direct liquefaction of compressed air-derived nitrogen gas—eliminating dependency on third-party supply chains while ensuring consistent purity (>99.999% N₂), low oxygen content (<1 ppmv), and full sterility compliance per ISO 8573-1 Class 1:1:1 for particulates, water, and oil. Designed for uninterrupted operation in controlled environments—including ISO Class 5 cleanrooms—the Titan LN480–LN960 delivers stable output across its rated flow range (480–960 L/day), making it suitable for mission-critical applications where supply continuity, traceability, and regulatory audit readiness are non-negotiable.

Key Features

• Modular skid-mounted configuration with integrated PSA nitrogen separation, purification, and cryogenic liquefaction—enabling rapid site commissioning without civil works or external chillers.
• NPFS™ (Nitrogen Pulse Flow System): Patented pulsed refrigerant injection technology that enhances heat exchange efficiency and stabilizes liquefaction rate under variable load conditions.
• “Boost” pressure augmentation mode: Dynamically increases discharge pressure (up to 12 bar(g)) and volumetric output without increasing compressor power consumption—optimized via real-time thermal load feedback.
• Intelligent vacuum-insulated storage tank with capacitive level sensing; automatically transitions to energy-saving standby upon reaching user-defined fill threshold.
• Color TFT touchscreen HMI with multilingual interface (EN/DE/FR/ES), displaying real-time parameters including O₂ concentration (via built-in paramagnetic oxygen analyzer), tank level, refrigerant pressure, and system health diagnostics.
• Water-cooled condenser assembly with ASME-certified heat exchangers and redundant coolant flow monitoring—ensuring stable thermal performance in ambient temperatures up to 40 °C.
• Comprehensive safety architecture: Dual-pressure relief valves, automatic nitrogen purge interlocks, oxygen deficiency hazard (ODH) alarms per ANSI/ASSP Z9.5, and emergency shutdown triggered by vacuum loss or dew point excursion.

Sample Compatibility & Compliance

The Titan LN480–LN960 produces liquid nitrogen meeting USP <645> and Ph. Eur. 2.2.42 specifications for pharmaceutical-grade cryogens. Its sterile, particle-free output is validated for use in human embryo cryopreservation (IVF), GMP-compliant biobanking, and aseptic cell therapy manufacturing. All wetted components comply with FDA 21 CFR Part 11 requirements for electronic records and signatures when paired with optional audit-trail-enabled software. The system conforms to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), carries UKCA marking, and meets CE Machinery Directive 2006/42/EC and Pressure Equipment Directive 2014/68/EU. Full traceability documentation—including FAT/SAT reports, material certificates (EN 10204 3.1), and IQ/OQ protocols—is provided as standard.

Software & Data Management

The embedded control system supports local data logging (≥12 months of 1-second interval readings) and exports CSV/Excel-compatible datasets via USB or Ethernet. Optional Ethernet/IP and Modbus TCP interfaces enable integration into centralized BMS or LIMS platforms. Remote monitoring and predictive maintenance alerts are available through Noblegen’s cloud-based Sentinel Connect platform—supporting TLS 1.2 encryption, role-based access control, and automated report generation aligned with GLP and 21 CFR Part 11 Annex 11 requirements. Audit trails capture all operator actions, parameter changes, alarm events, and calibration activities with immutable timestamps.

Applications

• In vitro fertilization (IVF) laboratories requiring continuous, contamination-free LN₂ for oocyte and embryo vitrification.
• Pharmaceutical R&D and QC labs performing stability testing, lyophilization support, and cold-chain validation studies.
• Academic and government research institutions engaged in superconductivity, quantum computing, and cryo-EM sample preparation.
• Veterinary and agricultural biobanks preserving genetic material from livestock, poultry, and aquaculture species.
• Semiconductor fabrication facilities utilizing LN₂ for thermal shock testing, wafer cooling, and vacuum chamber purging.
• Hospital-based dermatology and cryosurgery units maintaining on-site LN₂ supply for outpatient lesion ablation.

FAQ

What is the typical lead time for factory acceptance testing (FAT)?
Standard FAT duration is 5 business days following final configuration approval; expedited scheduling is available upon request.
Does the system require external liquid nitrogen for startup?
No—cold start is fully autonomous using ambient air feed; no external LN₂ or cryogenic precooling is needed.
Can the Titan LN480–LN960 be integrated with existing liquid nitrogen distribution piping?
Yes—standardized 3/4″ VCR or CGA-630 connections allow seamless integration with existing stainless-steel distribution manifolds and phase separators.
Is routine maintenance covered under warranty?
The 24-month comprehensive warranty includes labor and parts for scheduled service intervals; extended coverage plans include preventive maintenance visits and spare parts kits.
How is oxygen content monitored and verified during operation?
An in-line paramagnetic oxygen analyzer continuously measures residual O₂ downstream of the purification stage, with real-time display and configurable alarm thresholds (default: <0.5 ppmv).
