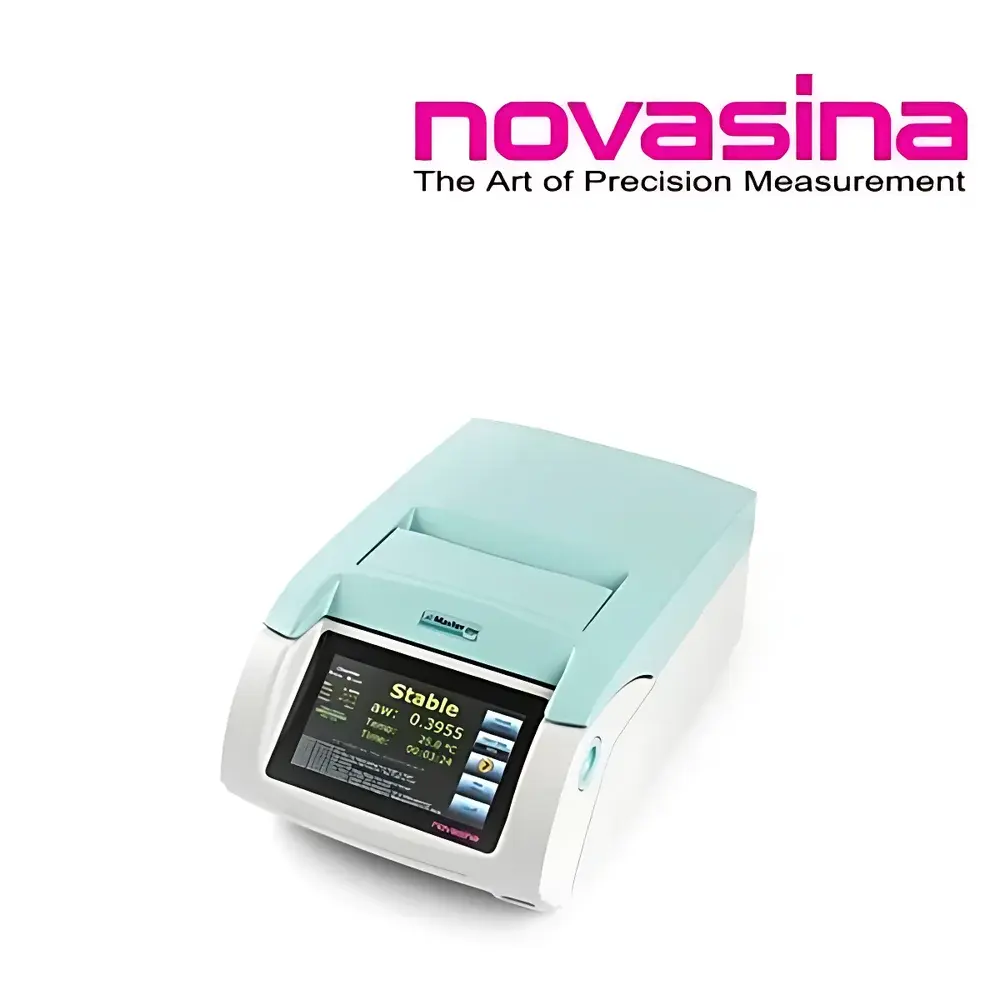

Novasina LabMaster-aw neo Temperature-Controlled High-Precision Water Activity Analyzer

Overview

The Novasina LabMaster-aw neo is a benchtop, temperature-controlled water activity (a_w) analyzer engineered for high-precision, traceable, and thermodynamically rigorous measurement of equilibrium relative humidity (ERH) in solid and semi-solid samples. It operates on the principle of electrolytic conductivity detection—NOVASINA’s patented NOVALYTE® sensor technology—which measures the ionic current generated by water vapor interacting with a thin-film electrolyte layer. This method provides direct, contactless, and drift-free quantification of a_w without requiring optical alignment or hygroscopic film replacement. Unlike dew-point or capacitance-based systems, the NOVALYTE® sensor delivers inherently linear response across the full 0.0300–1.000 a_w range and is insensitive to non-condensable gases, CO₂, or inert carrier streams—critical for pharmaceutical lyophilization validation, food stability modeling, and excipient hygroscopicity profiling. The instrument maintains thermal equilibrium between sample and measurement chamber via dual-zone Peltier control: a primary measurement chamber and an auxiliary pre-conditioning chamber that accelerates equilibration—reducing typical analysis time by up to 40% compared to single-chamber instruments.

Key Features

• NOVALYTE® contactless electrolytic sensor: lifetime calibration stability, zero mechanical wear, no recalibration required under routine use
• Active temperature control from 0 °C to 60 °C with ±0.01 °C setpoint accuracy and <±0.02 °C short-term stability (measured over 30 min at constant load)
• Dual-chamber thermal architecture: independent pre-conditioning chamber minimizes thermal lag and improves repeatability for low-moisture or high-thermal-mass samples
• 240 × 480-pixel high-contrast LCD with intuitive 20-key waterproof membrane keypad—designed for glove-compatible operation in QC labs and cleanrooms
• User-level and administrator-level password protection supporting multi-user environments compliant with 21 CFR Part 11 requirements (audit trail enabled via Novalog MC software)
• Integrated saturation reference system: includes certified NaCl, KCl, and MgCl₂ standard solutions traceable to NIST SRMs for two-point verification per ISO 21807:2022
• Optional chemical filtration kits (activated carbon + hydrophobic membrane) for volatile organic compound (VOC)-rich matrices including flavorings, essential oils, and solvent-based coatings
• Expandable isotherm module (optional): enables automated generation of sorption/desorption isotherms per ICH Q5C and USP <1151> guidelines for crystalline hydrate characterization

Sample Compatibility & Compliance

The LabMaster-aw neo accommodates heterogeneous solid-phase samples—including powders, granules, gels, pastes, tablets, and dried botanicals—within standardized 35 mm or 55 mm stainless-steel sample cups. Its sealed measurement chamber (volume: 120 mL) ensures rapid vapor-phase equilibration while preventing cross-contamination. The instrument complies with international standards governing a_w measurement methodology: ISO 21807:2022 (Foodstuffs — Determination of water activity), ASTM F1985-21 (Standard Test Method for Water Activity of Pharmaceutical Powders), and USP <1151> (Pharmaceutical Dosage Forms). All firmware and software versions are validated per GAMP 5 principles, and raw data files generated by Novalog MC include embedded metadata (operator ID, timestamp, environmental conditions, calibration history) required for GLP and GDP audits. Instrument qualification documentation (IQ/OQ/PQ protocols) is provided upon request for regulated environments.

Software & Data Management

Novalog MC is a Windows-based professional application supporting method development, batch reporting, statistical process control (SPC), and full electronic record retention. It captures real-time sensor output, chamber temperature profiles, and convergence kinetics—enabling users to verify equilibrium attainment via slope-threshold algorithms (e.g., Δa_w/min < 0.0002 over 5 min). Export formats include CSV, PDF, and XML (compatible with LIMS integration via ODBC). Audit trails log all user actions—including parameter edits, calibration events, and report generation—with immutable timestamps and digital signatures. The software supports FDA 21 CFR Part 11 compliance through role-based access control, electronic signatures, and encrypted database storage. Optional cloud synchronization enables remote monitoring of instrument status and historical trend analysis across multiple sites.

Applications

• Pharmaceutical R&D: mapping moisture-induced phase transitions in amorphous dispersions, determining critical relative humidity (CRH) of APIs and excipients, validating desiccant packaging efficacy
• Food science: predicting microbial shelf life per ICMSF models, optimizing drying and intermediate moisture formulations, assessing sugar crystallization risk in confectionery
• Biologics & diagnostics: monitoring lyophilized vaccine cake integrity, evaluating stabilizer performance under accelerated aging protocols
• Tobacco & agrochemicals: correlating a_w with enzymatic browning in cured leaf, quantifying hygroscopic uptake in pesticide granules
• Materials science: characterizing water sorption hysteresis in polymer films, calibrating humidity sensors against primary standards

FAQ

What is the fundamental measurement principle of the LabMaster-aw neo?
It employs NOVASINA’s proprietary NOVALYTE® electrolytic conductivity method—measuring ionic current induced by water vapor in a solid-state electrolyte film, providing direct, absolute a_w without empirical correlation.
How does temperature control improve measurement reliability?
Precise isothermal conditioning eliminates thermal gradients that distort vapor pressure equilibrium, especially critical for thermolabile compounds and low-a_w samples where small ΔT induces significant Δa_w.
Can the instrument be used for regulatory submissions?
Yes—when operated with validated methods, calibrated standards, and Novalog MC audit-trail logging, it meets evidentiary requirements for FDA, EMA, and PMDA filings.
Is routine maintenance required for the NOVALYTE® sensor?
No. The sensor contains no consumables, moving parts, or replaceable membranes; only periodic verification with certified salt standards is recommended per ISO/IEC 17025.
Does the system support Good Manufacturing Practice (GMP) workflows?
Yes—password-protected user roles, electronic signatures, calibration lockout, and tamper-evident data export ensure alignment with Annex 11 and EU GMP Chapter 4 requirements.
