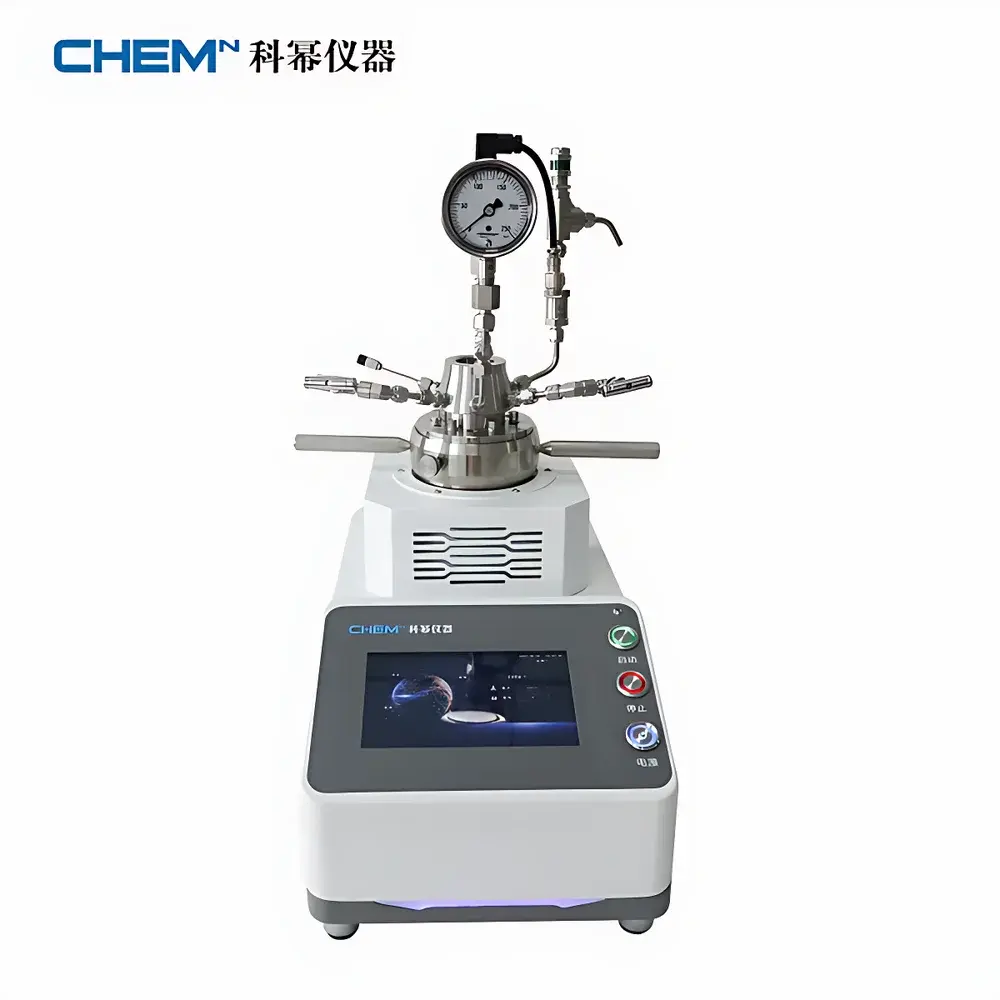

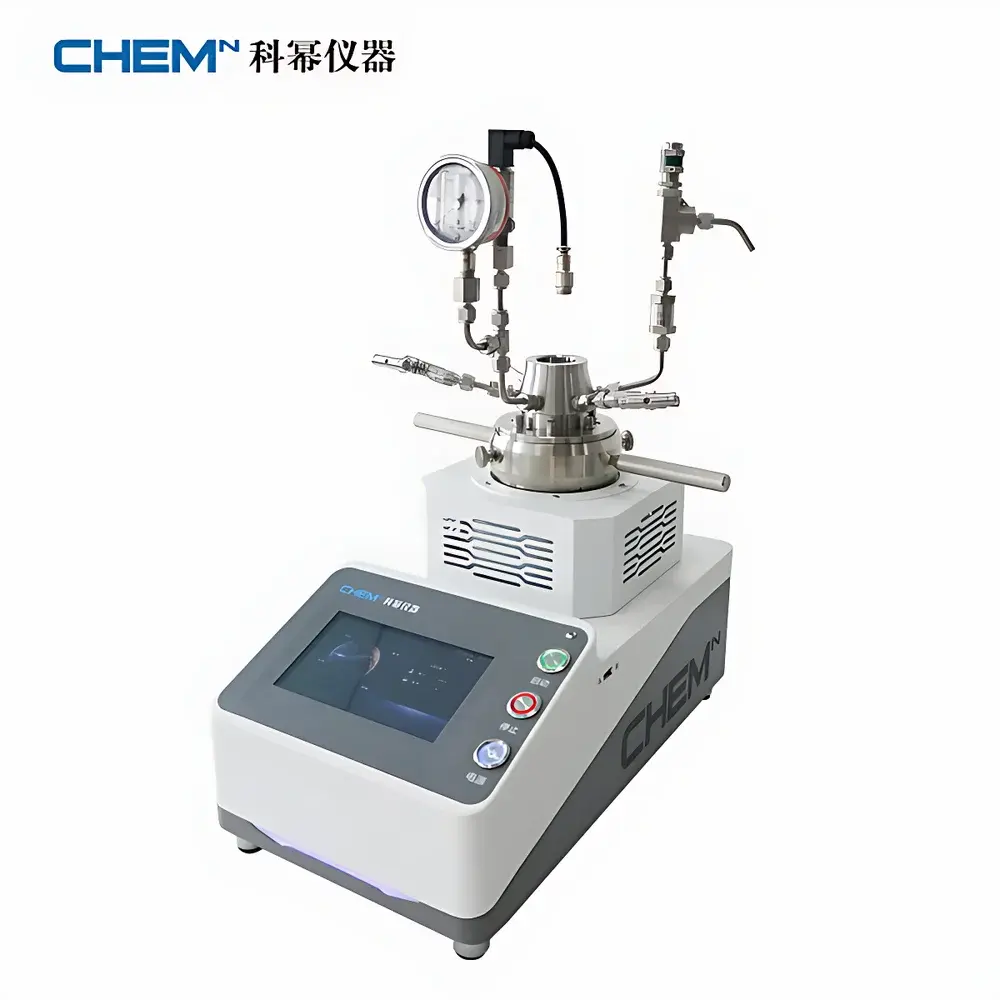

NSV Plus Photocatalytic Magnetic Stirring High-Pressure Reactor
| Brand | Ahkemi |
|---|---|
| Origin | Anhui, China |
| Model | NSV Plus |
| Vessel Capacity | 25 mL, 50 mL, 100 mL, 300 mL, 500 mL |
| Maximum Operating Pressure | 10 MPa |
| Maximum Operating Temperature | 300 °C |
| Heating Method | Embedded Stainless Steel Heating Module (1 kW) |
| Stirring Speed Range | 100–1200 rpm |
| Stirring Type | Internal Magnetic Stirring |
| Construction Material | Standard 316L Stainless Steel (Hastelloy C-276, Titanium TA2, Zirconium 702, Inconel 600, and other alloys available upon request) |
| Viewport | Sapphire Crystal Window (26 mm clear aperture for 25–50 mL |
| Sealing System | Dual-axis sealing with DuPont Kalrez perfluoroelastomer O-rings |
| Safety Systems | Integrated MEAS pressure transducer, Ashcroft analog pressure gauge, Swagelok inlet/outlet needle valves, Fitok safety relief valve + custom rupture disc, overtemperature cutoff, audible overpressure alarm |
| Control Interface | 7-inch capacitive touchscreen (real-time display of temperature, pressure, stirring speed, elapsed time) |
| Compliance | Designed to meet ASME BPVC Section VIII Div. 1 design principles |
Overview
The NSV Plus Photocatalytic Magnetic Stirring High-Pressure Reactor is an engineered laboratory-scale reaction system designed for rigorous photocatalytic synthesis under controlled elevated temperature and pressure conditions. It operates on the principle of simultaneous photoirradiation and homogeneous mixing within a sealed, optically accessible vessel—enabling precise kinetic studies, catalyst screening, and mechanistic investigations in heterogeneous and homogeneous photocatalysis. The reactor integrates magnetic stirring, embedded resistive heating, real-time pressure and thermal monitoring, and high-integrity optical access via sapphire viewport—making it suitable for reactions requiring UV–visible light penetration (e.g., TiO₂-, g-C₃N₄-, or MOF-mediated transformations) at up to 300 °C and 10 MPa. Its monolithic construction, dual-seal architecture, and redundant mechanical safety systems ensure structural integrity and operational reliability during extended high-pressure photolysis experiments.
Key Features
- Optically optimized sapphire viewport with standardized clear apertures (26 mm for 25–50 mL vessels; 35 mm for 100–500 mL), enabling quantitative in situ observation of reaction homogeneity, phase behavior, and catalyst dispersion under irradiation.
- Dual-axis sealing using DuPont Kalrez perfluoroelastomer O-rings—chemically inert across broad pH, solvent, and temperature ranges; validated for continuous operation up to 300 °C and 10 MPa.
- Embedded 1 kW stainless steel heating module with PID-controlled thermal regulation, delivering rapid, uniform heat transfer and ±1 °C temperature stability over full operating range.

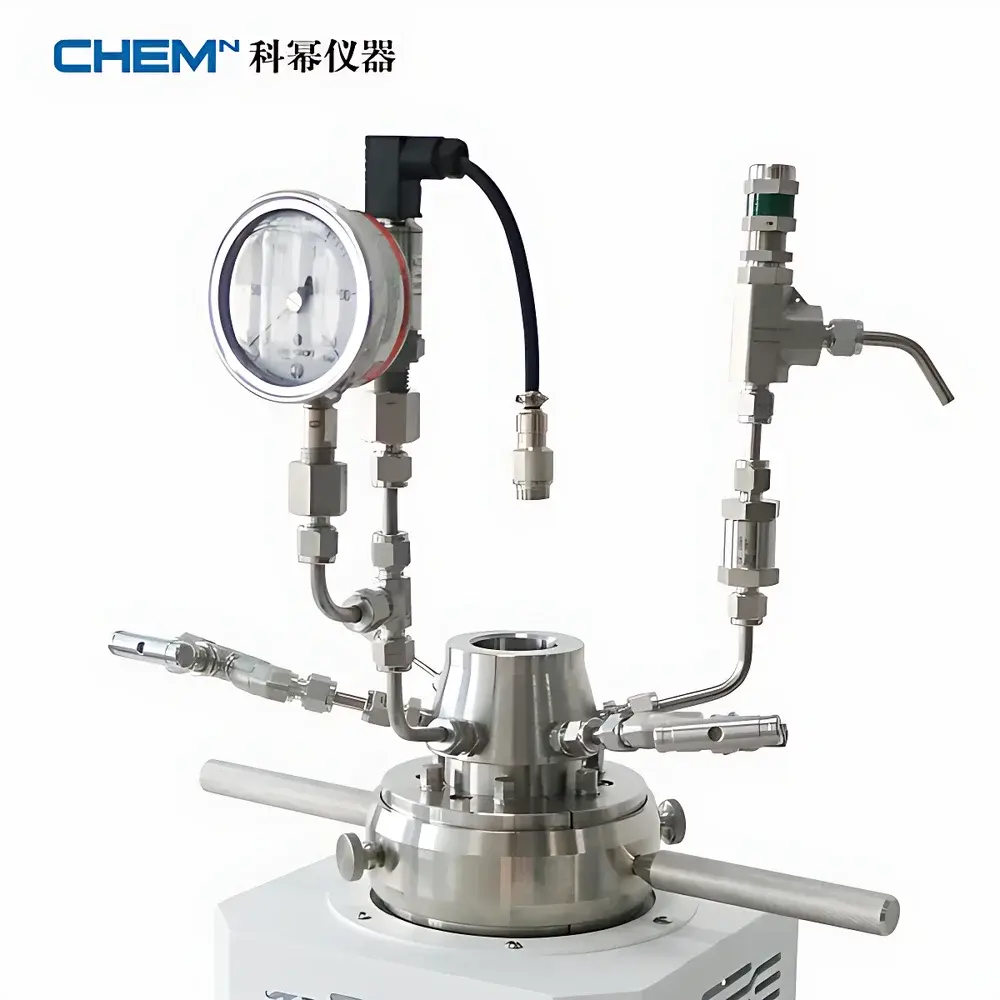

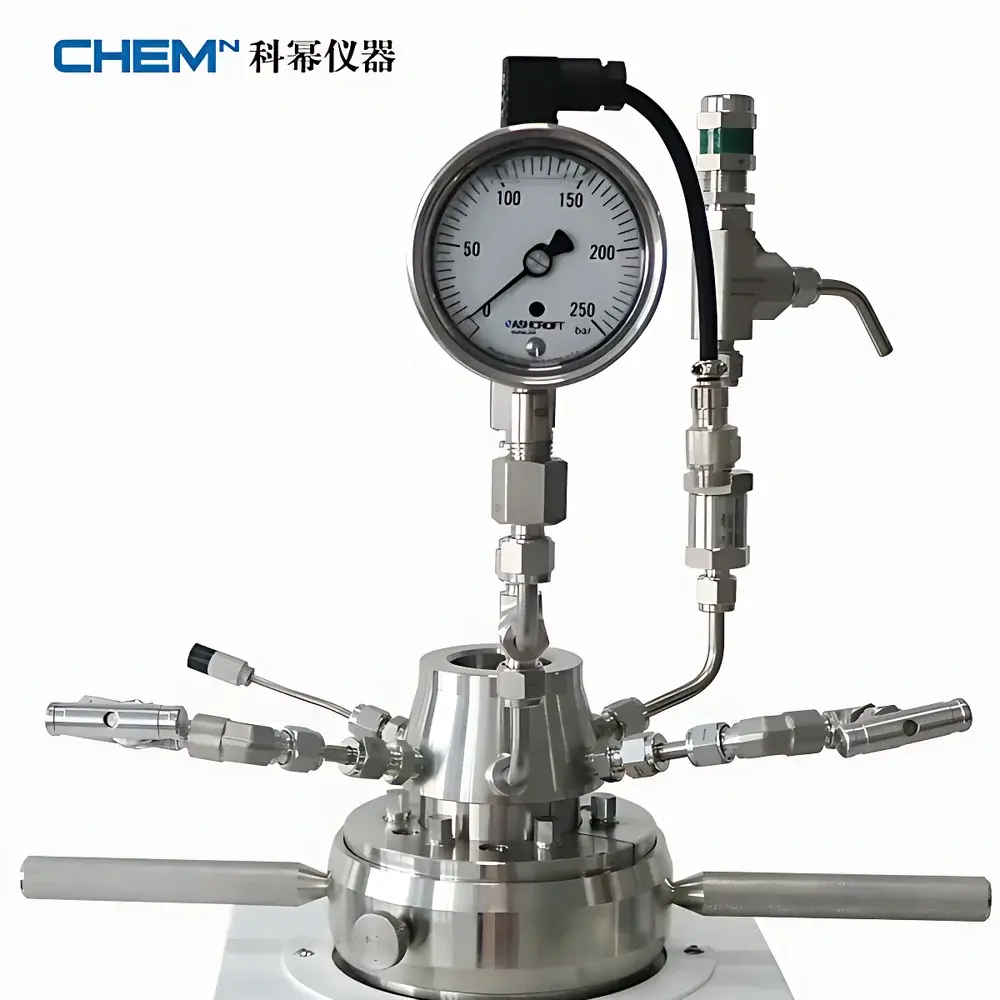

- Integrated safety suite: MEAS piezoresistive pressure transducer (0–15 MPa range, 0.25% FS accuracy), Ashcroft analog pressure gauge (dual-readout redundancy), Swagelok stainless steel needle valves, Fitok-certified safety relief valve, and field-replaceable rupture disc—all mounted directly on the reactor head.

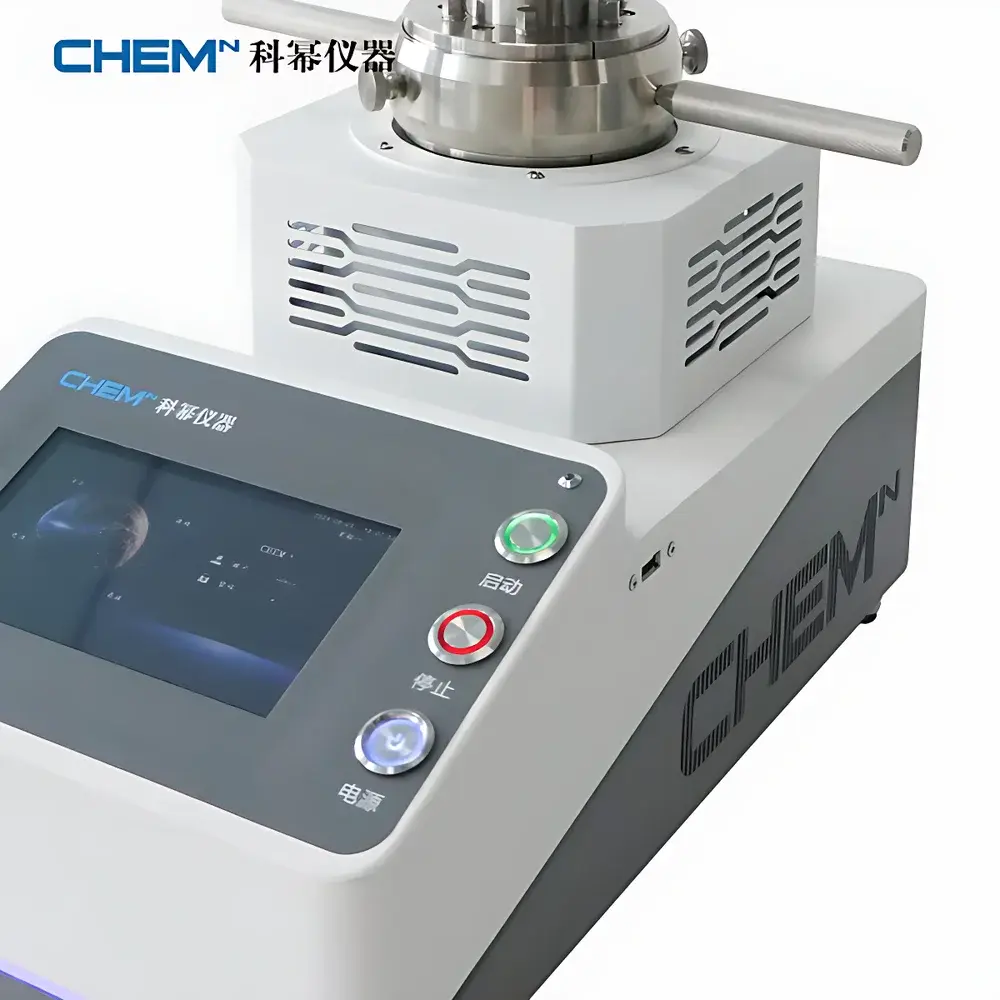

- 7-inch industrial-grade capacitive touchscreen controller supporting multi-parameter real-time visualization (temperature, pressure, stir speed, runtime), programmable ramp/soak profiles, and timestamped data export via USB mass storage mode.
- Modular configuration flexibility: selectable vessel capacities (25–500 mL), alloy options (316L SS, Hastelloy C-276, Ti-Gr2, Zr-702), and add-on modules including sampling valves, condenser jackets, catalyst baskets, and external cooling loops.
Sample Compatibility & Compliance
The NSV Plus accommodates diverse sample chemistries—including aqueous, organic, supercritical, and corrosive media—when matched with appropriate material selections (e.g., Hastelloy C-276 for HCl/HF-containing systems; Zirconium 702 for hot alkali environments). Its pressure containment design adheres to ASME Boiler and Pressure Vessel Code Section VIII Division 1 guidelines for Class I pressure equipment. While not CE-marked as a standalone unit, the reactor is supplied with documentation supporting integration into ISO/IEC 17025-accredited laboratories and FDA 21 CFR Part 11–compliant workflows when used with validated data acquisition software. All wetted components are electropolished to Ra ≤ 0.4 µm and passivated per ASTM A967 for enhanced corrosion resistance and reduced catalytic surface contamination.
Software & Data Management
The onboard controller logs all operational parameters at user-defined intervals (1–60 s) and stores them in CSV format on removable USB drives. Timestamped datasets include absolute pressure (MPa), vessel temperature (°C), stir speed (rpm), and cumulative runtime (hh:mm:ss). Optional firmware upgrades support Modbus RTU communication for integration with LabVIEW, MATLAB, or SCADA-based central monitoring systems. For regulated environments, third-party compliant software (e.g., ahkemi DataTrace Pro) enables electronic signatures, role-based access control, and ALCOA+–aligned audit trails—meeting requirements for GLP audits and pharmaceutical process development documentation.
Applications
- Photocatalytic hydrogen evolution and CO₂ reduction under simulated solar irradiation
- High-pressure photo-oxidation of persistent organic pollutants (e.g., pharmaceuticals, dyes)
- Light-driven C–C coupling and asymmetric synthesis in sealed batch mode
- Thermo-photo synergistic catalysis evaluation (e.g., plasmonic Au/TiO₂ systems)
- Accelerated aging studies of photocatalysts under combined thermal and radiative stress
- In situ Raman/FTIR spectroscopic monitoring through sapphire viewport (with external fiber-optic probe coupling)
FAQ
What light sources are compatible with the NSV Plus reactor?
The reactor is engineered for integration with externally mounted broadband or monochromatic light sources—including Kessil LED arrays (365–470 nm), custom UV–Vis fiber-coupled lamps, and collimated xenon arc systems. Optical alignment fixtures and water-cooled quartz light guides are available as accessories.
Can the NSV Plus be used for gas-phase photocatalysis with continuous flow?
Yes—when equipped with optional mass flow controllers, back-pressure regulators, and gas-sampling valves, the NSV Plus supports semi-batch and continuous-flow photochemical operation up to 10 MPa, provided residence time and photon flux are appropriately calibrated.
Is third-party calibration documentation available for pressure and temperature sensors?
Factory calibration certificates (traceable to NIST standards) are included for all primary sensors. On-site recalibration services and ISO/IEC 17025–accredited calibration reports are available upon request.
How is maintenance performed on the magnetic drive and sealing assembly?
The magnetic coupling uses rare-earth NdFeB magnets housed in hermetically sealed stainless steel casings; no scheduled lubrication is required. Kalrez O-rings are rated for >500 thermal cycles at 300 °C and are replaced only after visual inspection or leakage testing per ASTM E429.
Does the reactor support automated reaction termination upon parameter deviation?
Yes—the controller supports configurable safety interlocks: automatic heater shutdown on temperature overshoot (>±5 °C), emergency stir stop on pressure excursion (>95% of setpoint), and audible/visual alarms with latching status retention until manual reset.
