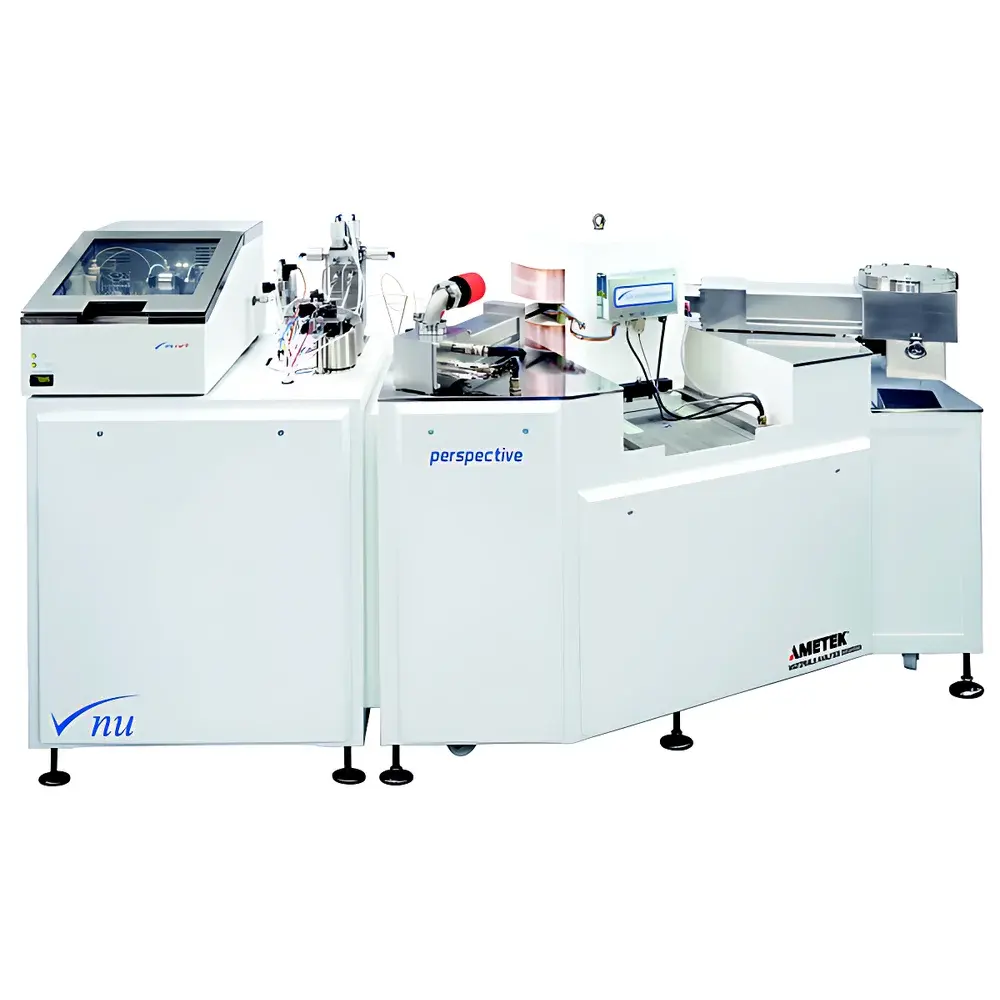

NU Perspective High-Performance Sector Field Isotope Ratio Mass Spectrometer
| Brand | NU |
|---|---|
| Origin | United Kingdom |
| Model | Perspective |
| Instrument Type | Stable Gas Isotope Ratio Mass Spectrometer |
| Mass Dispersion | Up to 600 mm |
| Mass Resolution (m/Δm) | >200 for CNOS and H |
| Collector Configuration | Up to 12 fixed, high-precision Faraday and/or multi-collector arrays |
| Ion Source | High-efficiency electron impact ion source |
| Optics | Patented zoom optics system |
| Compatible Interfaces | NU Dual Inlet, NU GasBench, NU Carbonate Device |
Overview
The NU Perspective is a high-performance sector field isotope ratio mass spectrometer (IRMS) engineered for ultra-precise measurement of stable isotope ratios in light elements—specifically carbon (¹³C/¹²C), hydrogen (²H/¹H), oxygen (¹⁸O/¹⁶O), nitrogen (¹⁵N/¹⁴N), and sulfur (³⁴S/³²S). Operating on the principle of magnetic sector mass separation, the Perspective employs a double-focusing geometry combining electrostatic and magnetic fields to achieve exceptional mass dispersion (up to 600 mm) and high mass resolution (m/Δm > 200 for CNOS and hydrogen species). This architecture minimizes peak tailing, reduces interferences from molecular isobars, and ensures long-term signal stability—critical for achieving reproducible δ-value measurements at sub-0.1‰ level precision under routine laboratory conditions. Designed for both dual-inlet and continuous-flow configurations, the instrument serves as a reference-grade platform for laboratories requiring compliance with international isotopic standards (e.g., V-PDB, V-SMOW, AIR-N₂, V-CDT).
Key Features
- Double-focusing sector field mass analyzer with optimized ion optical path for maximum transmission and signal-to-noise ratio
- Patented zoom optics system enabling dynamic adjustment of ion beam focus across multiple masses without mechanical realignment
- Up to 12 fixed-position Faraday and/or discrete-dynode electron multiplier collectors, configurable for simultaneous multi-isotope detection (e.g., ¹²C, ¹³C, ¹⁶O, ¹⁸O, ¹⁴N, ¹⁵N)
- High-efficiency electron impact ion source with low-energy spread and extended filament lifetime
- Modular interface compatibility: fully integrated with NU Dual Inlet for high-precision gas standard referencing; NU GasBench II for automated online CO₂, N₂, CO, H₂, SO₂, and CH₄ analysis; and NU Carbonate Device for acid digestion and isotopic analysis of carbonate minerals
- Rugged vacuum architecture with turbomolecular pumping and differential pumping stages ensuring stable base pressure (<5 × 10⁻⁹ mbar) during extended acquisition
Sample Compatibility & Compliance
The Perspective supports analysis of gaseous samples (CO₂, N₂, CO, H₂, SO₂, CH₄, O₂), water-derived H₂ and CO gases, and solid carbonates via offline or online acid digestion. It meets performance requirements for ISO 13879 (carbon isotopes in CO₂), ASTM D7504 (δ¹³C in hydrocarbons), and USP <1225> method validation guidelines. Data acquisition and reporting comply with GLP and GMP principles, including full audit trail support, user access control, and electronic signature capability per FDA 21 CFR Part 11 when used with NU’s certified software suite. All calibration protocols are traceable to IAEA and NIST isotopic reference materials.
Software & Data Management
Control, data acquisition, and reduction are managed through NU’s proprietary NuScript software—a Windows-based application featuring intuitive workflow configuration, real-time mass calibration, automatic peak centering, and built-in δ-value calculation using standardized bracketing algorithms. The software supports batch processing of hundreds of samples, automatic drift correction via internal reference gas pulses, and export of raw intensity data, corrected ratios, and uncertainty estimates in CSV, Excel, and LIMS-compatible formats. Version-controlled method templates ensure inter-laboratory comparability and facilitate regulatory submissions.
Applications
The Perspective delivers high-fidelity isotopic data for interdisciplinary research and applied testing: paleoclimate reconstruction via δ¹⁸O in foraminifera and ice cores; tracing nutrient cycling and food web dynamics using δ¹⁵N and δ¹³C in ecological studies; forensic identification of origin and adulteration in food and beverages; groundwater recharge and contamination assessment via δ²H and δ¹⁸O in water; provenance analysis of minerals and ores using δ³⁴S and δ¹⁸O in sulfates and silicates; and metabolic flux analysis in biomedical research through ¹³C-labeled tracer studies.
FAQ
What sample introduction systems are compatible with the Perspective?
The instrument natively supports NU Dual Inlet, NU GasBench II, NU Carbonate Device, and NU Elemental Analyzer (EA) interfaces—all designed for seamless integration and optimal ion beam stability.
Does the Perspective meet regulatory requirements for environmental or clinical testing?
Yes—when configured with validated methods and operated under documented SOPs, it satisfies data integrity requirements of ISO/IEC 17025, EPA Method 9070A, and CLIA-compliant workflows.
Can the collector array be reconfigured for different element suites?
Collector positions are fixed but user-selectable per analysis; hardware reconfiguration requires factory service, while software-defined collection windows allow flexible multi-element scheduling within a single run.
Is remote monitoring and diagnostics supported?
Yes—NuScript includes secure remote access capabilities for real-time status monitoring, error logging, and predictive maintenance alerts via encrypted network connection.
