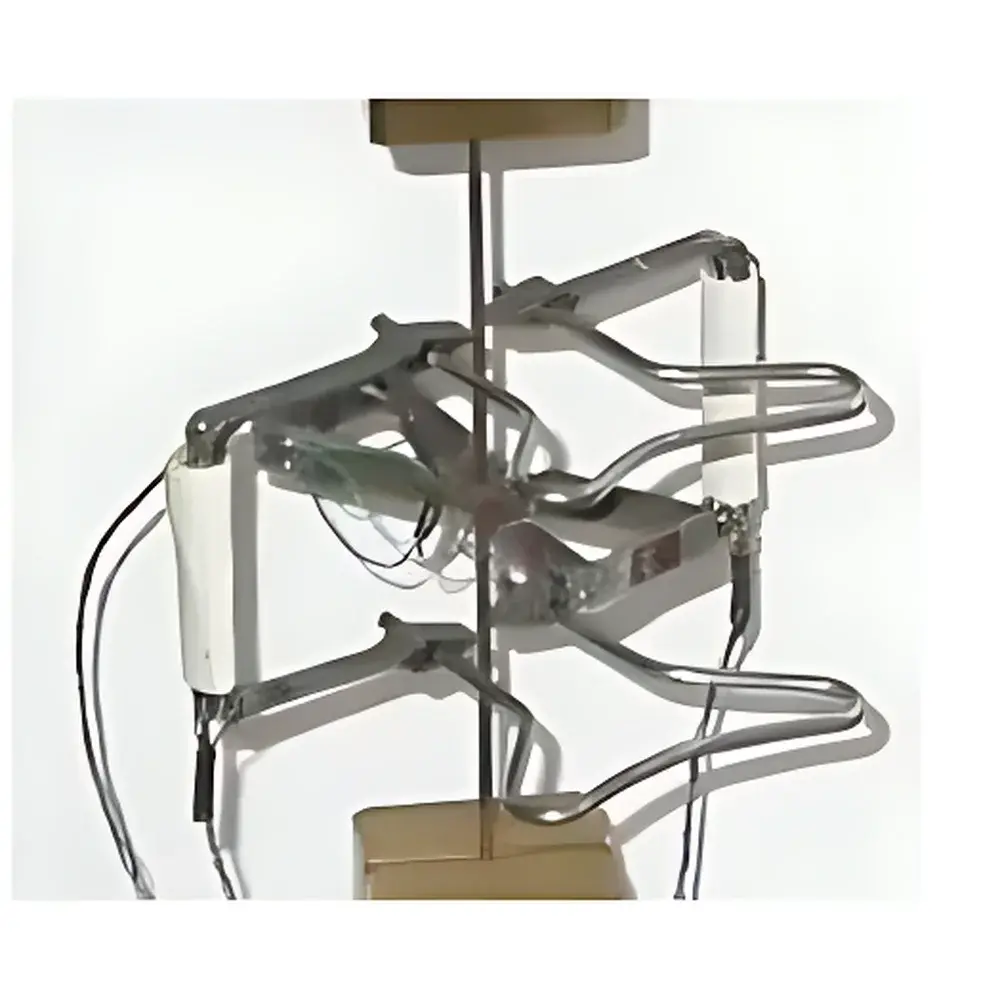

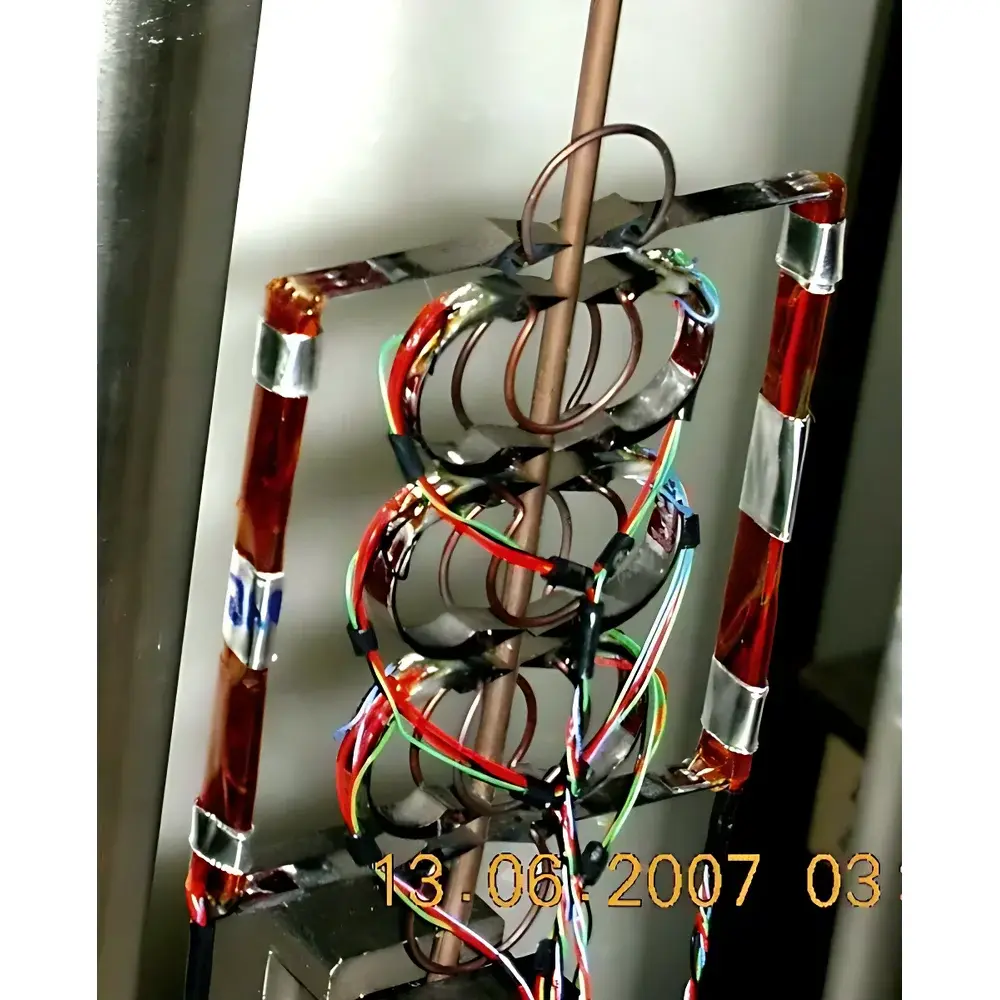

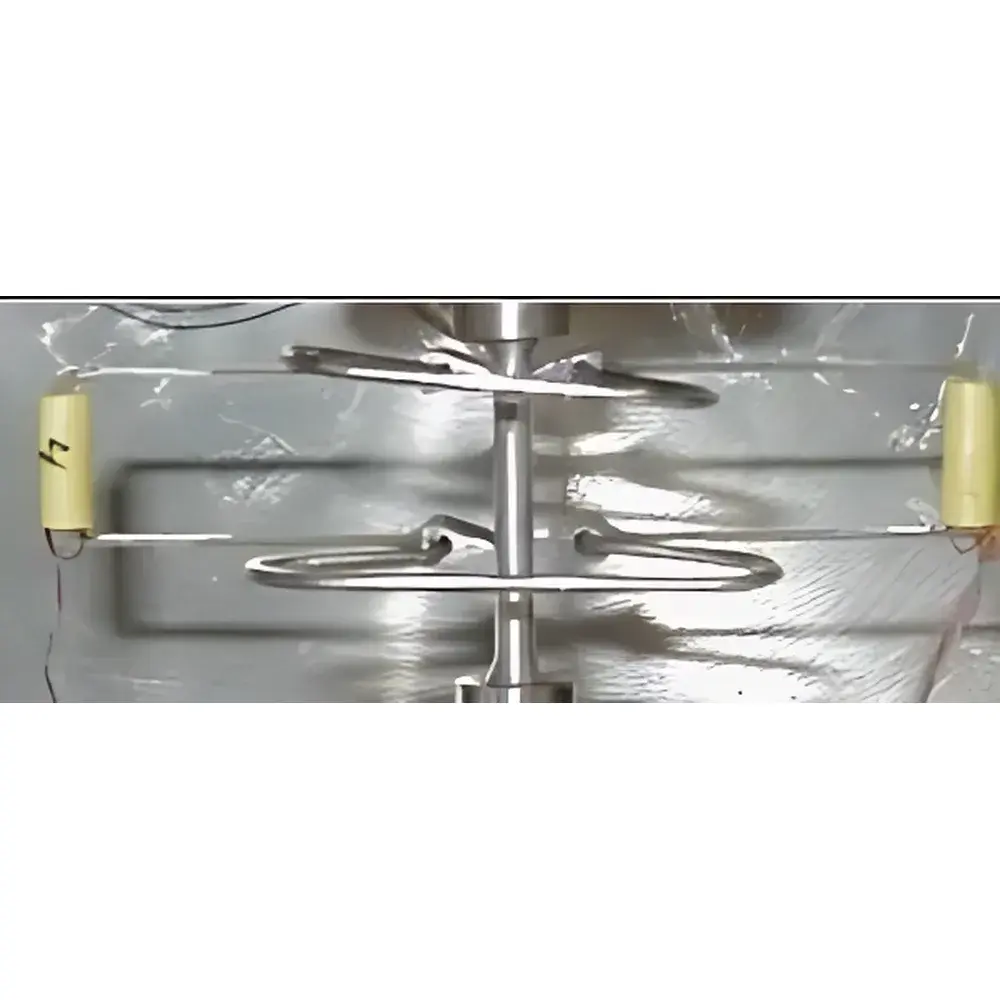

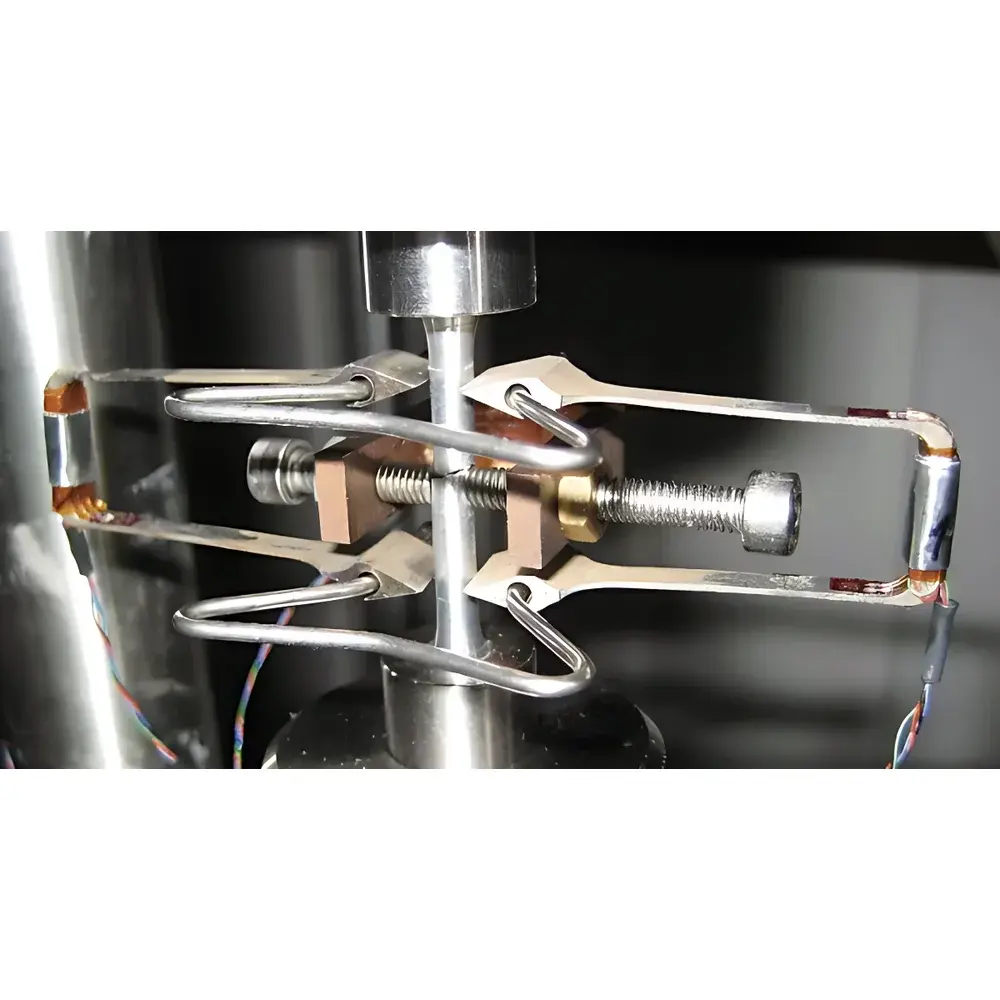

Nyilas Ultra-Lightweight Cryogenic Extensometers NRT/NLN/NLH Series

Overview

The Nyilas Ultra-Lightweight Cryogenic Extensometers (NRT/NLN/NLH Series) are precision-contact displacement transducers engineered for high-fidelity strain and axial deformation measurement under extreme thermal conditions. Developed by Prof. Arman Nyilas at the Karlsruhe Institute of Technology (KIT), these extensometers operate on a robust mechanical lever-amplification principle coupled with high-stability LVDT or strain-gauge sensing elements—ensuring minimal thermal drift and negligible mass loading during cryogenic tensile, compressive, and fracture toughness testing. Unlike conventional extensometers, the Nyilas design eliminates parasitic thermal contraction effects through symmetric kinematic mounting and zero-CTE composite linkages, enabling traceable, in-situ strain acquisition from 4 K (liquid helium temperatures) up to +100 °C without recalibration. This makes them indispensable for characterizing advanced materials used in fusion energy systems (e.g., ITER-grade superconductors), spaceflight structures, quantum computing hardware, and low-temperature superconducting magnets.

Key Features

• Ultra-low mass architecture (0.6–10 g) minimizes inertial loading and dynamic interference—critical for high-strain-rate and resonant-frequency-sensitive tests
• Continuous operational capability across 4 K to 373 K with no thermal hysteresis or zero-shift between temperature cycles
• Gauge length selection from 2 mm to 100 mm—configurable for micro-scale specimens (e.g., thin films, HTS tapes) and standard round/flat coupons
• ±10 mm full-scale displacement range with absolute resolution ≤0.1 µm and linearity maintained within 0.1–0.15% FS across entire thermal envelope
• Modular mechanical interface compatible with universal testing machines (UTMs) from Instron, Zwick/Roell, MTS, Shimadzu, and Tinius Olsen—no proprietary adapters required
• Non-magnetic construction (Inconel 718, titanium alloys, fused silica flexures) suitable for MRI-compatible and high-field magnet environments

Sample Compatibility & Compliance

The NRT/NLN/NLH series supports axial strain measurement on cylindrical rods (diameter ≥0.5 mm), flat plates (thickness ≥0.1 mm), notched fracture specimens (SE(B), CT), and custom geometries—including fiber-reinforced composites and brittle intermetallics. Mounting is achieved via reversible spring-loaded knife-edge clamps or vacuum-compatible adhesive tabs, ensuring repeatable positioning without surface damage. All models conform to ASTM E8/E21 (tensile testing of metallic materials), ISO 6892-1 (room- and low-temperature tensile methods), and ISO 15630-1 (reinforcing steels). When integrated with validated software platforms, the system satisfies GLP/GMP data integrity requirements per FDA 21 CFR Part 11—including electronic signatures, audit trails, and secure user access controls.

Software & Data Management

Extensometer output is delivered as analog voltage (±10 V) or digital RS-422/USB-C signals, fully synchronized with UTM controller clocks via TTL trigger inputs. Native drivers support integration into Bluehill 3, TestXpert II, and MTS TestSuite environments. Optional Nyilas DataBridge™ firmware enables real-time calibration certificate embedding, temperature-compensated strain calculation (using embedded Pt100 or Cernox® sensor feedback), and automatic metadata tagging (specimen ID, test protocol, cryostat status). Raw time-series data is exported in HDF5 or ASTM E1435-compliant ASCII formats, preserving traceability for third-party review and regulatory submissions.

Applications

• ITER and DEMO blanket material qualification: J_IC, R-curve, and crack-tip opening displacement (CTOD) testing at 4–20 K
• Characterization of Nb₃Sn, MgB₂, and REBCO superconductors under combined thermal–mechanical–electromagnetic loading
• Mechanical property mapping of aerospace alloys (e.g., Ti-6Al-4V, Inconel 718) across cryogenic-to-ambient transitions
• Low-temperature fatigue and creep behavior of polymer matrix composites in LEO-relevant thermal cycling profiles
• In-situ strain monitoring during pulsed-field magnetization of bulk HTS materials
• Validation of multiscale constitutive models via direct comparison between DIC and point-wise extensometry at sub-Kelvin temperatures

FAQ

Can the NRT/NLN/NLH extensometers be used in liquid nitrogen (77 K) without additional shielding?
Yes—each model is pre-conditioned and certified for direct immersion or vapor-phase operation at 77 K. No external thermal shrouds or radiation shields are required.
Is gauge length change possible during an ongoing test?
No—gauge length is mechanically fixed at installation. For variable-gauge applications, multiple units with different base lengths must be pre-mounted and switched via quick-release fixtures.
How is calibration traceability maintained across temperature?
Each unit ships with NIST-traceable calibration certificates at three reference temperatures (4 K, 77 K, and 293 K), verified using KIT’s primary cryogenic interferometric test bench per ISO/IEC 17025.
Are there options for non-contact alignment verification?
Yes—optional laser alignment jigs (part #NY-ALG-785) provide sub-10 µm visual centering accuracy prior to cryostat insertion.
Does the system support automated test sequences per ASTM E1820?
When paired with compliant UTM controllers and Nyilas DataBridge™, full compliance with ASTM E1820 Annex A5 (J-integral testing) workflows—including auto-crack extension detection and load-point displacement correction—is achievable.
