OEM-Branded Oscillating Pipe Rain Test Chamber

Overview

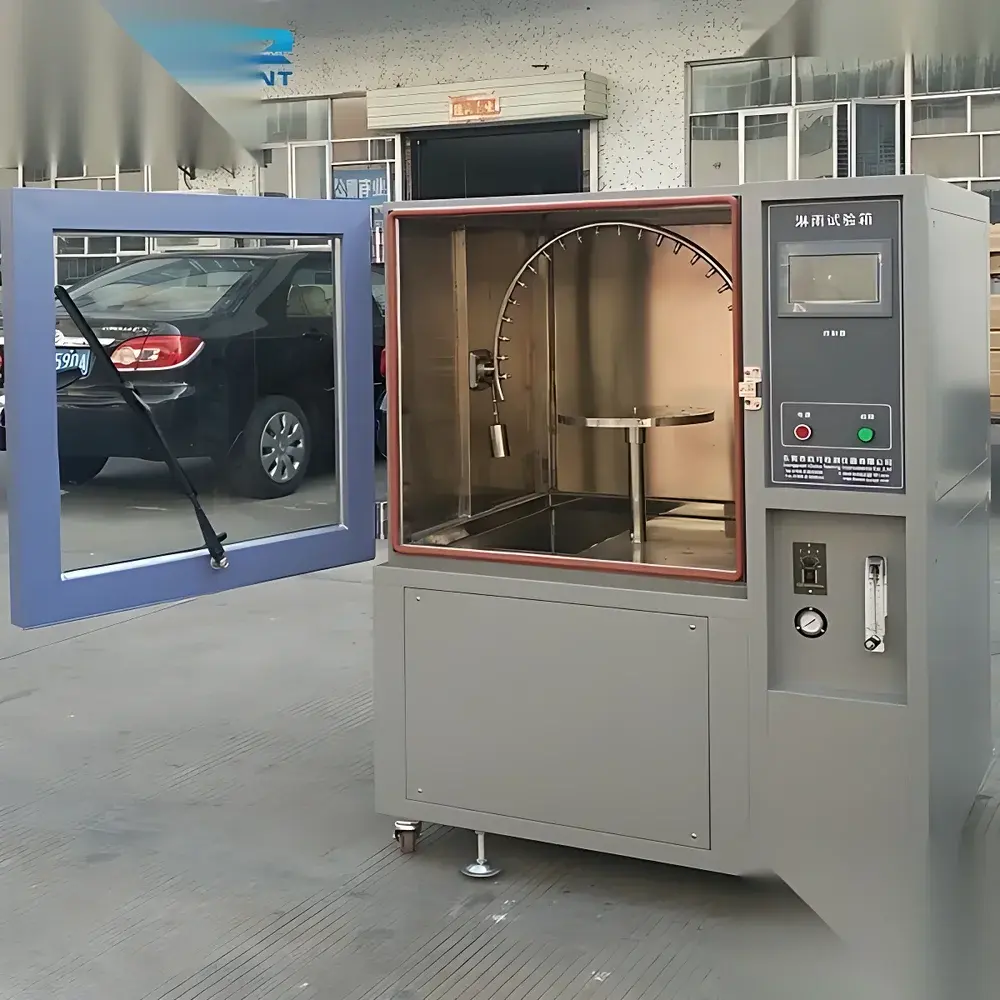

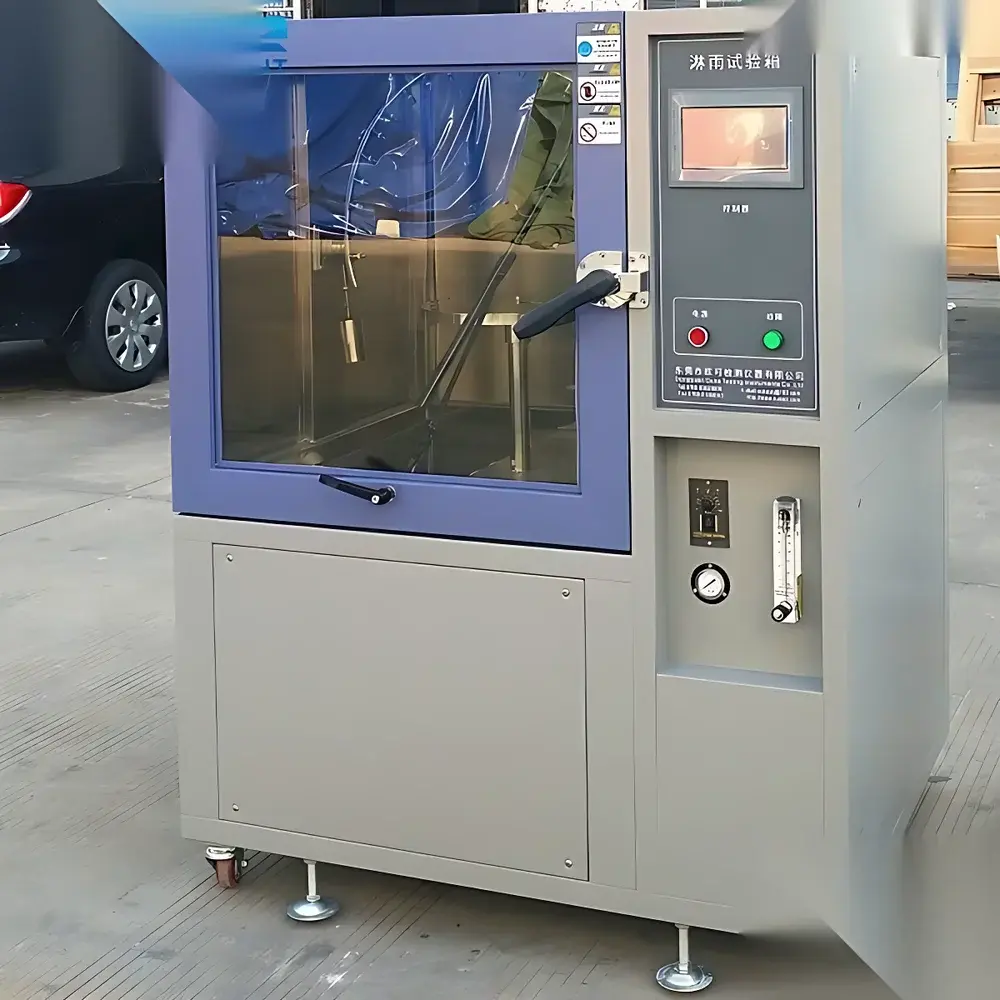

The OEM-Branded Oscillating Pipe Rain Test Chamber is an engineered environmental simulation system designed to evaluate the ingress protection (IP) rating—specifically IPX3 and IPX4—of electrical enclosures, automotive lighting assemblies, outdoor sensors, and industrial control housings. It operates on the oscillating pipe principle defined in IEC 60529 and ISO 20653: water is delivered via a calibrated, motor-driven arc-shaped pipe that sweeps horizontally across a fixed test specimen mounted on a rotating turntable. This configuration replicates natural rainfall and splashing conditions encountered during transportation, storage, or operational exposure—enabling quantitative assessment of sealing integrity, gasket performance, and housing design robustness under controlled, repeatable, and auditable test conditions.

Key Features

• Structural integrity: Outer enclosure fabricated from 1.2 mm cold-rolled A3 steel with electrostatic powder coating; inner chamber constructed from SUS304 stainless steel for corrosion resistance and long-term stability.
• Thermal insulation: Dual-layer insulation comprising rigid polyurethane foam (≥30 mm thick) and fiberglass matting, minimizing thermal bridging and supporting stable ambient operation.
• Oscillation mechanism: Precision stepper-motor-driven oscillating pipe (Ø16 mm stainless steel tubing) with adjustable sweep angles (±45°, ±60°, ±90°, or ±180°), enabling compliance with multiple test profiles per IEC 60529 Annex B and ISO 20653 Table 2.
• Nozzle system: 375 mm radius spray ring fitted with 0.4 mm precision-drilled stainless-steel nozzles spaced at 50 mm intervals; each nozzle includes independent angular adjustment and anti-clogging geometry.
• Water management: Integrated high-pressure German pump (rated ≥3.0 bar), inline dual-stage filtration (5 µm + activated carbon), automatic post-test compressed-air purge cycle, and programmable water-level elevation system to maintain consistent head pressure.
• Control architecture: Optional selection between a basic programmable logic controller (PLC) interface or a full-color 7-inch capacitive touchscreen HMI developed in-house—supporting multi-step test sequencing, real-time parameter logging, password-protected user levels, and USB data export.
• Safety & observability: Tempered glass viewing door (≥12 mm thickness) with silicone-sealed perimeter; comprehensive protection circuitry including earth-leakage detection, motor overheat cutoff, short-circuit interruption, and dry-run prevention.

Sample Compatibility & Compliance

The chamber accommodates specimens up to 1000 × 1000 × 1000 mm (W × D × H) within its largest configuration (OK-LY-1000-C). The rotating turntable (1 rpm standard, optional continuously variable speed) ensures uniform exposure across asymmetric or irregularly shaped devices—including headlamps, junction boxes, marine electronics, and EV battery enclosures. All test protocols align with internationally recognized standards: IEC 60529 (IPX3 drip box alternative / IPX4 splash resistance), ISO 20653 (road vehicles – degrees of protection against water ingress), MIL-STD-810H Method 506.7 (rain), GB/T 4208 (Chinese national IP code standard), and GJB 150.8 (Chinese military environmental test method). Calibration documentation and traceable verification reports are available upon request to support GLP/GMP audit readiness.

Software & Data Management

The proprietary touchscreen controller logs time-stamped records of water pressure (bar), oscillation angle (°), sweep frequency (Hz), turntable RPM, elapsed test duration (min), and system fault events. Exported CSV files include ISO 8601 timestamps and are compatible with LIMS integration. Audit-trail functionality meets FDA 21 CFR Part 11 requirements when configured with electronic signature modules and role-based access control. Firmware updates are performed via secure USB transfer; no cloud connectivity or remote telemetry is embedded—ensuring data sovereignty and network isolation per laboratory IT security policies.

Applications

This rain test chamber serves quality assurance laboratories in automotive Tier-1 suppliers (e.g., lighting module validation per SAE J575), industrial automation OEMs (control cabinet IP certification), renewable energy equipment manufacturers (solar inverter housing testing), and defense contractors performing MIL-STD qualification. It is routinely deployed for pre-compliance screening prior to third-party IP certification, root-cause analysis of field water intrusion failures, and design verification of ingress-resistant interfaces in harsh-environment electronics.

FAQ

What IP ratings can this chamber validate?
It is validated for IPX3 (oscillating pipe, 60° sweep) and IPX4 (oscillating pipe, 180° sweep) per IEC 60529 and ISO 20653.
Is calibration certification included with delivery?
Yes—NIST-traceable pressure transducer and timer calibration certificates are supplied; on-site verification by accredited metrology labs is recommended annually.
Can the system be integrated into an existing lab automation network?
RS-485 Modbus RTU and dry-contact relay outputs enable connection to SCADA or MES platforms; Ethernet/IP or Profibus require optional gateway modules.
What maintenance is required for long-term reliability?
Monthly inspection of nozzle orifices and filter elements; quarterly lubrication of stepper motor gear train; annual recalibration of pressure and timing subsystems.
Does the chamber support custom test profiles beyond standard IP methods?
Yes—the touchscreen HMI allows user-defined sequences including variable sweep angles, dwell times, pressure ramps, and multi-phase cycles compliant with internal corporate test specifications.
