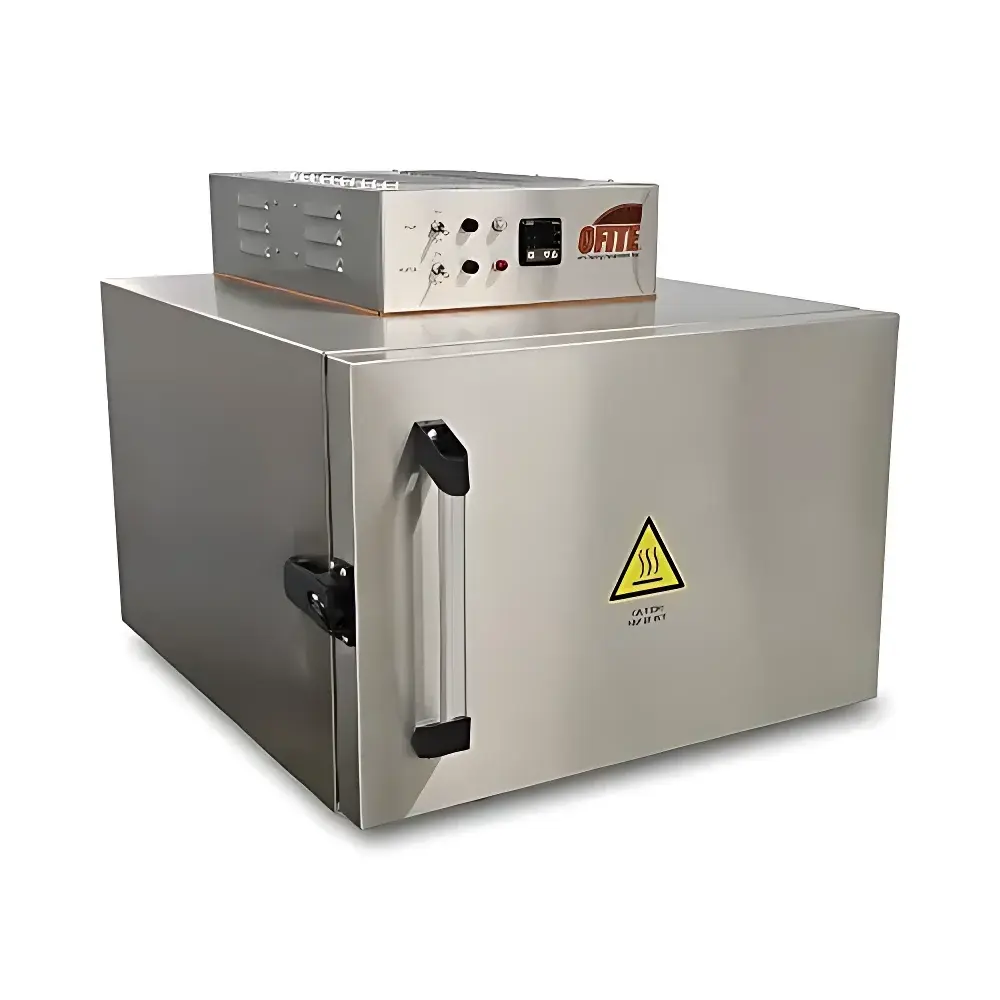

OFITE Model 183-00-1 Static Drying Oven

Overview

The OFITE Model 183-00-1 Static Drying Oven is a precision-engineered laboratory oven designed for consistent thermal processing in research, quality control, and production environments. Operating on the principle of natural convection (static air circulation), this oven delivers stable, uniform heat distribution without forced airflow—making it ideal for applications where sample integrity, minimal oxidation, or gentle moisture removal is critical. Unlike forced-air ovens, static ovens eliminate turbulence-induced particle displacement, ensuring reliable drying, curing, sterilization, and thermal stability testing of powders, granules, filters, glassware, and temperature-sensitive materials. Its robust stainless-steel interior chamber, heavy-duty insulation, and microprocessor-based temperature controller support repeatable operation across extended duty cycles in compliance with ASTM D1654, ISO 5725, and USP guidelines for thermal validation.

Key Features

• Microprocessor-controlled digital temperature regulation with ±1.0°C accuracy over the full operating range (ambient +10°C to 288°C)
• Stainless-steel interior chamber (304 grade) and reinforced aluminized steel exterior for corrosion resistance and long-term thermal stability
• Double-wall construction with high-density mineral fiber insulation to minimize external surface temperature rise and energy consumption
• Dual-voltage compatibility: factory-configurable for either 110 V / 15 A or 220 V / 8 A, 50/60 Hz operation—enabling global deployment without modification
• Large-view tempered glass door with dual-layer sealing and mechanical latch for safe observation and pressure equilibrium during heating cycles
• Over-temperature protection circuit with independent mechanical safety cutoff (set at 315°C) compliant with UL 61010-1 and IEC 61010-1 safety standards

Sample Compatibility & Compliance

The 127 L chamber accommodates standard laboratory racks, multiple Petri dishes, desiccators, crucibles, and bulk sample trays up to 45 cm (W) × 45 cm (D) × 35 cm (H). The static air design ensures compatibility with moisture-sensitive pharmaceutical intermediates, polymer pellets, ceramic green bodies, soil samples per ASTM D2216, and residual solvent analysis workflows. All electrical and thermal performance data are traceable to NIST-calibrated reference instruments. The oven supports GLP/GMP documentation requirements through optional calibration certificate packages (per ISO/IEC 17025) and is routinely validated using thermocouple mapping per FDA Process Validation Guidance (ICH Q7, Annex 15).

Software & Data Management

While the Model 183-00-1 operates via an intuitive front-panel interface with LED display and push-button navigation, it integrates seamlessly with external data acquisition systems via RS-232 serial output (optional adapter). Real-time temperature logging, setpoint history, and alarm event timestamps can be exported for audit-ready records. When deployed in regulated environments, the unit supports 21 CFR Part 11-compliant electronic signatures when paired with validated third-party software platforms—enabling secure user access control, change tracking, and electronic batch record generation.

Applications

• Moisture content determination (ASTM D4442, ISO 4611) in wood, plastics, and composites
• Pre- and post-weighing drying of filter media in environmental particulate analysis (EPA Method 201A)
• Thermal aging studies of elastomers and adhesives per ASTM D573 and ISO 188
• Residue-on-ignition (ROI) preparation in geochemical and metallurgical labs
• Curing of coatings and thin-film substrates under inert or ambient atmospheric conditions
• Stabilization of reference standards and hygroscopic reagents prior to analytical weighing

FAQ

What is the difference between static and forced-air drying ovens?
Static ovens rely on natural convection, producing gentler, more uniform thermal exposure—ideal for delicate samples where airflow could cause loss or redistribution. Forced-air ovens use blowers to accelerate heat transfer but may introduce variability in volatile or lightweight specimens.
Is the OFITE 183-00-1 suitable for GMP-regulated pharmaceutical labs?
Yes—when equipped with optional IQ/OQ documentation packages and calibrated per USP , it meets baseline qualification requirements for stability chambers and drying steps in API manufacturing.
Can the oven be used for sterilization?
It is not classified as a sterilizer per ISO 17665; however, dry-heat sterilization protocols (e.g., 160°C for 120 min) may be executed within its operational envelope for glassware and metal instruments, subject to internal validation.
Does the unit include a data logger?
No built-in data logger is included, but the RS-232 port enables connection to external validated loggers meeting 21 CFR Part 11 requirements.
What maintenance is required for long-term reliability?
Routine inspection of door gaskets, verification of temperature uniformity (per ASTM E2209), and annual calibration using NIST-traceable thermocouples are recommended to maintain specification compliance.
