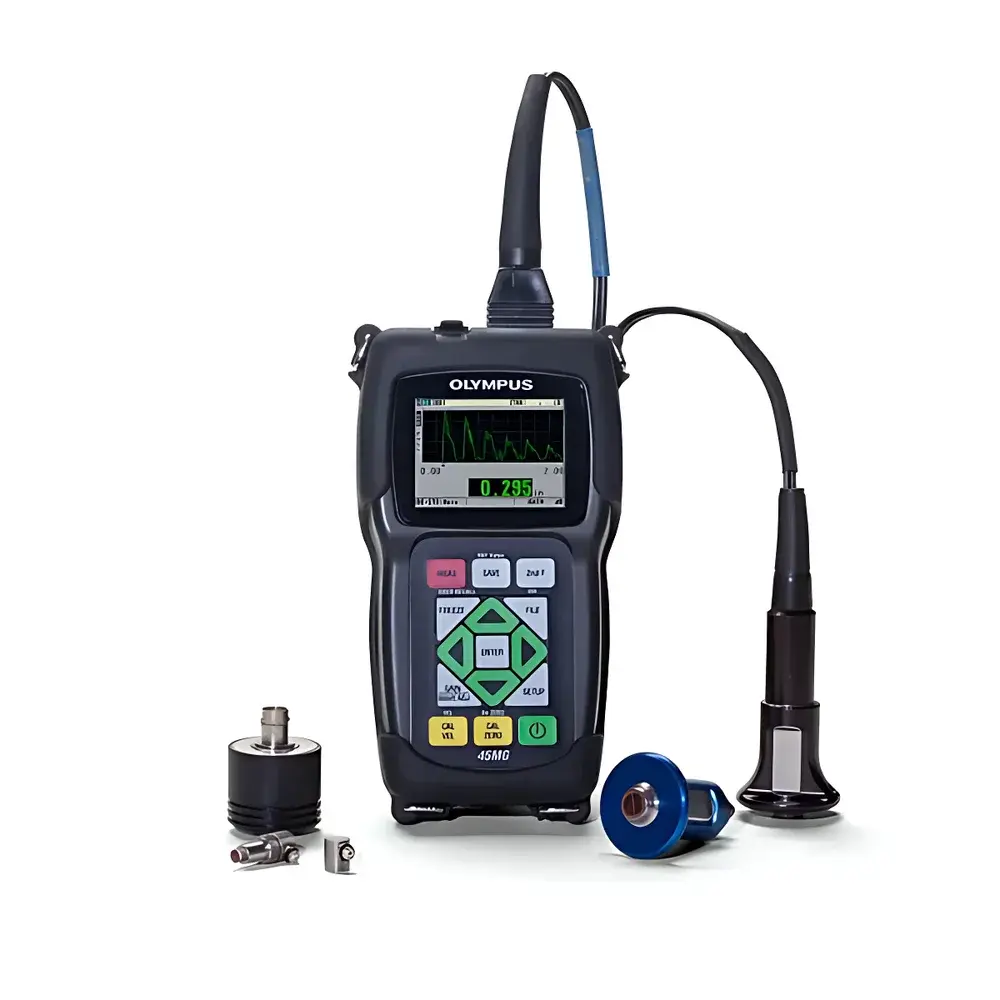

Olympus 45MG Ultrasonic Thickness Gauge
| Brand | Olympus |
|---|---|
| Origin | USA |
| Manufacturer Type | Authorized Distributor |
| Product Origin | Imported |
| Model | 45MG |
| Pricing | Upon Request |
Overview
The Olympus 45MG Ultrasonic Thickness Gauge is an engineered-for-precision instrument designed for non-destructive evaluation (NDE) of material thickness using pulse-echo and through-coating ultrasonic measurement principles. Based on time-of-flight (TOF) analysis of high-frequency sound waves (typically 1–30 MHz), the 45MG determines thickness by measuring the acoustic transit time between the transducer and the backwall interface — corrected for material-specific sound velocity. Its architecture integrates dual-element (pitch-catch) transduction for corrosion monitoring in metals and single-element transduction for high-resolution metrology across diverse substrates including plastics, composites, glass, ceramics, and rubber. The device complies with ASTM E797/E1065 standards for ultrasonic thickness measurement instrumentation and supports traceable calibration protocols required under ISO/IEC 17025-accredited laboratories.
Key Features
- Standard dual-element probe compatibility with Olympus D79X series transducers for corrosion mapping of pipes, pressure vessels, ship hulls, and structural steel
- Two independent alarm modes (thickness upper/lower limits) with audible and visual indicators
- Real-time B-scan imaging with time-based cross-sectional visualization; freeze-min function captures minimum thickness within scanned area
- Adjustable gain settings (Low / Standard / High) and blanking controls (first echo blank, extended delay) for signal optimization in noisy or attenuative environments
- Password-protected firmware lockout to prevent unauthorized configuration changes—essential for GLP/GMP-regulated environments
- Temperature-compensated high-temperature measurement capability up to 500 °C using D790-series probes with zero-offset thermal drift correction
- Integrated alphanumeric data logger supporting up to 10,000 readings per B-scan session and waveform capture
Sample Compatibility & Compliance
The 45MG accommodates a broad spectrum of industrial materials without surface preparation: coated steels (paint, enamel, polymer layers), aluminum alloys, stainless steel, titanium, fiberglass-reinforced polymers (FRP), cast iron, rubber compounds, borosilicate glass, and ceramic tiles. Dual-element mode enables reliable remaining-wall-thickness assessment in internally corroded assets per API RP 579-1/ASME FFS-1 guidelines. Through-coating measurement utilizes dual-velocity algorithms—assigning distinct sound velocities to substrate and coating layers—to report both metal thickness and coating thickness independently. For single-element applications, the instrument supports velocity calibration against known reference standards (e.g., V1 blocks per ASTM E127), ensuring compliance with USP <1058> analytical instrument qualification (AIQ) requirements for pharmaceutical manufacturing equipment verification.
Software & Data Management
The 45MG features a Windows-compatible GageView™ software suite enabling bidirectional data transfer, report generation, and statistical process control (SPC) charting. All stored measurements include metadata: date/time stamp, probe ID, material velocity, temperature compensation status, and operator ID (when configured). Audit trails are maintained for all parameter modifications, satisfying FDA 21 CFR Part 11 electronic record integrity requirements. Optional A-scan display mode provides full waveform visualization for manual gate placement, echo amplitude analysis, and validation of measurement validity—particularly critical when evaluating laminated composites or multi-layered coatings. Firmware updates are delivered via secure USB interface with version-controlled release notes and change logs.
Applications
- Remaining wall thickness assessment of carbon steel piping systems in oil & gas refineries (per NACE SP0106)
- In-service inspection of aircraft fuselage skins and wing spars using high-frequency Microscan probes (≥10 MHz)
- Quality control of thin-walled plastic containers (down to 0.08 mm) and precision-machined metallic components (e.g., turbine blades, cylinder bores)
- Density monitoring of ductile iron castings via longitudinal sound velocity correlation to nodularity (ASTM A536)
- Thickness uniformity mapping of FRP storage tanks and marine hulls using low-frequency (0.5–1 MHz) high-penetration probes
- Automotive sheet metal forming analysis via reduction ratio calculation during stamping process validation
FAQ
Does the 45MG require annual recalibration?
Yes—calibration must be performed at least annually against certified thickness standards traceable to NIST or equivalent national metrology institutes, especially when used for regulatory reporting or safety-critical assessments.
Can the 45MG measure through thick epoxy coatings?
Yes, when equipped with the Through-Coating software option and appropriate dual-element probes (e.g., D7906-SM), it resolves metal and coating thickness independently using material-specific sound velocities.
Is the data logger compliant with 21 CFR Part 11?
GageView software supports electronic signatures, audit trails, and role-based access control—enabling full Part 11 compliance when deployed in validated environments.
What is the minimum measurable thickness with the Single-Crystal option?
With 30 MHz Microscan probes and optimized couplant application, resolution reaches 0.001 mm for thin plastics and foils; practical lower limit depends on surface finish and acoustic impedance matching.
How does the Echo-to-Echo mode improve accuracy in pitted surfaces?
By referencing only the first and second backwall echoes—excluding near-surface interference from corrosion pits or scale—it eliminates errors caused by variable front-surface echo timing in degraded conditions.
