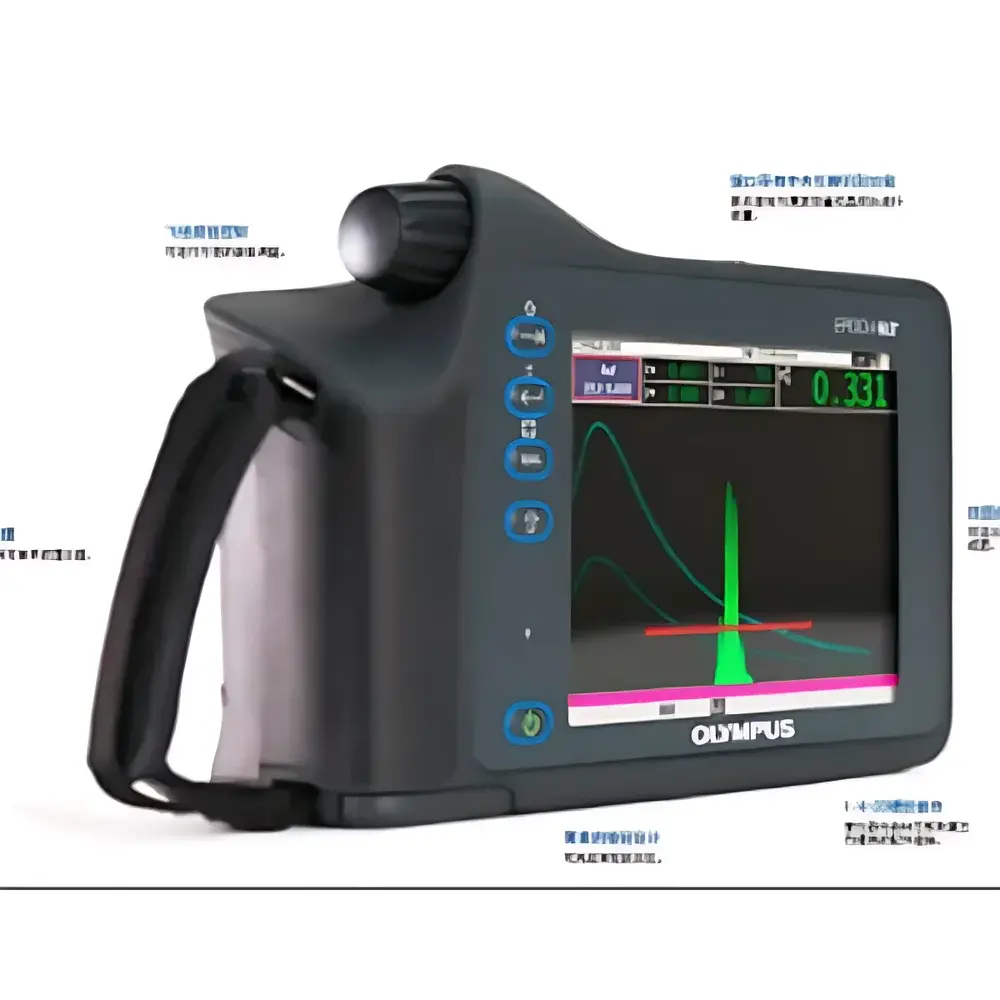

Olympus EPOCH 6LT Portable Ultrasonic Flaw Detector

Overview

The Olympus EPOCH 6LT Portable Ultrasonic Flaw Detector is an engineered solution for high-reliability pulse-echo ultrasonic testing in field-critical environments. Based on the same digital pulser-receiver architecture as the EPOCH 650, it delivers full-spectrum ultrasonic flaw detection performance—without compromise—within a compact, ergonomically optimized form factor. Its core measurement principle relies on time-of-flight analysis of high-frequency acoustic pulses (typically 0.2–26.5 MHz bandwidth) reflected from material discontinuities or interfaces. The instrument generates square-wave excitation via PerfectSquare™ technology, enabling precise control over pulse energy (100–400 V), width (25 ns–5 µs), and damping (50 Ω / 400 Ω), ensuring optimal penetration and resolution across diverse materials including steel, composites, aluminum, and austenitic welds. Designed explicitly for rope-access NDT technicians, aerospace maintenance crews, and infrastructure inspectors, the EPOCH 6LT meets stringent operational requirements for portability, single-hand operability, and environmental resilience—while maintaining full compliance with EN 12668-1:2010 for ultrasonic instrument performance verification.

Key Features

• Ergonomic, palm-sized chassis weighing only 890 g (1.95 lb), with weight distribution optimized for vertical or horizontal grip orientation
• Full VGA (640 × 480) transflective color LCD display with 60 Hz refresh rate—visible under direct sunlight and low-light conditions
• Dual independent gates with fully adjustable start, width, and height (2–95% FSH); configurable alarm thresholds (positive/negative, minimum depth)
• Advanced digital signal processing: 8 programmable digital filters, ±0.25% amplitude linearity, 1.25–110% FSH measurement range
• Ruggedized construction certified to IP65/IP67 per IEC 60529-2004; MIL-STD-810F compliant for shock (15 g, 11 ms half-sine), vibration, and explosive atmosphere safety (Method 511.4)
• Intuitive icon-driven dual-screen interface supporting nine UI languages (English, Spanish, French, German, Japanese, Chinese, Portuguese, Russian, Italian)
• Single-handed operation enabled by tactile flywheel knob, glove-friendly button layout, and vertical A-scan rotation mode for leg-mounted use

Sample Compatibility & Compliance

The EPOCH 6LT supports standard contact, angle-beam, dual-element, and immersion transducers via LEMO 00 connectors. It accommodates material sound velocities from 635 m/s (e.g., polyethylene) to 15,240 m/s (e.g., beryllium), with depth ranges extending from 4.31 mm to 6,700 mm (at 5,900 m/s). Calibration routines include automatic velocity/zero-offset calibration for straight-beam (first backwall or backwall-to-backwall) and angle-beam (sound path or depth) setups. The instrument satisfies EN 12668-1:2010 requirements for sensitivity, linearity, and repeatability. Optional software modules enable AWS D1.1/D1.5 weld evaluation, corrosion mapping with automatic probe recognition and real-time V-path correction, and bottom echo attenuation. All configurations support traceable data capture required for GLP/GMP-aligned workflows and audit readiness under ISO 17025 and ASNT SNT-TC-1A frameworks.

Software & Data Management

The EPOCH 6LT integrates seamlessly with Olympus GageView Pro PC software for report generation, waveform analysis, and configuration management. Onboard storage retains up to 100,000 inspection records with embedded A-scan, parameter sets, and gate measurements. Data export is supported via USB 1.1 host port (to flash drives), USB 2.0 client port (for PC synchronization), or optional Wi-Fi dongle. Export formats include BMP (screen captures), CSV (tabular measurement logs), and PDF (formatted reports). When connected to the Olympus Scientific Cloud via Wi-Fi, users gain access to remote firmware updates, encrypted cloud backup, cross-device configuration deployment, and centralized archive management—all compliant with FDA 21 CFR Part 11 requirements for electronic records and signatures when configured with audit trail logging.

Applications

• Aerospace Maintenance: Detection of disbonds, delaminations, and impact damage in composite airframes and honeycomb structures; high-SNR pulse output supports thin-skinned aluminum and CFRP inspections.
• Offshore Energy Infrastructure: Rope-access inspection of corroded risers, subsea welds, and platform leg joints; corrosion software module enables rapid thickness profiling with automated zero compensation.
• Rail & Pipeline Integrity: High-speed scanning of in-service rail head defects and girth welds; dynamic DAC/TCG and DGS/AVG support variable geometry and attenuation compensation.
• Wind Turbine Assets: Assessment of tower weld integrity and blade root bonding using high-power pulsing and advanced gating strategies for near-field resolution.
• Bridges & Structural Steel: AWS D1.1-compliant weld evaluation with integrated rating calculator; full support for shear-wave sizing per ASTM E164 and E317.

FAQ

Does the EPOCH 6LT meet EN 12668-1:2010 certification requirements?
Yes—the base instrument and all standard configurations are verified per EN 12668-1:2010 for electrical performance, linearity, and repeatability. Optional EN-compliant filter settings (0.2–26.5 MHz) and calibration protocols ensure ongoing conformance.
Can the EPOCH 6LT be used for corrosion mapping in offshore environments?
Yes—when equipped with the optional Corrosion Software Module, it provides automatic probe identification, AGC, true V-path correction, and real-time thickness calculation optimized for marine-grade steel and pitting assessment.
Is wireless data transfer secure and audit-ready?
With the optional Wi-Fi module and Scientific Cloud integration, all file transfers are TLS 1.2 encrypted. Audit trails—including user login, configuration changes, and report generation—are retained for regulatory review per ISO 17025 and FDA 21 CFR Part 11.
What accessories enable hands-free operation during rope access?
Olympus offers a dedicated Rope Access Kit featuring adjustable thigh straps and carabiner-compatible lanyards with 1/4-20 threaded mounting points—fully compatible with the instrument’s integrated tripod socket.
How does the EPOCH 6LT compare to the EPOCH 650 in terms of functionality?
It shares identical core ultrasonic performance specifications—including PerfectSquare pulsing, digital receiver architecture, DAC/TCG, DGS/AVG, and AWS tools—but implements them in a reduced footprint optimized for mobility and single-hand manipulation without sacrificing measurement fidelity or workflow efficiency.
