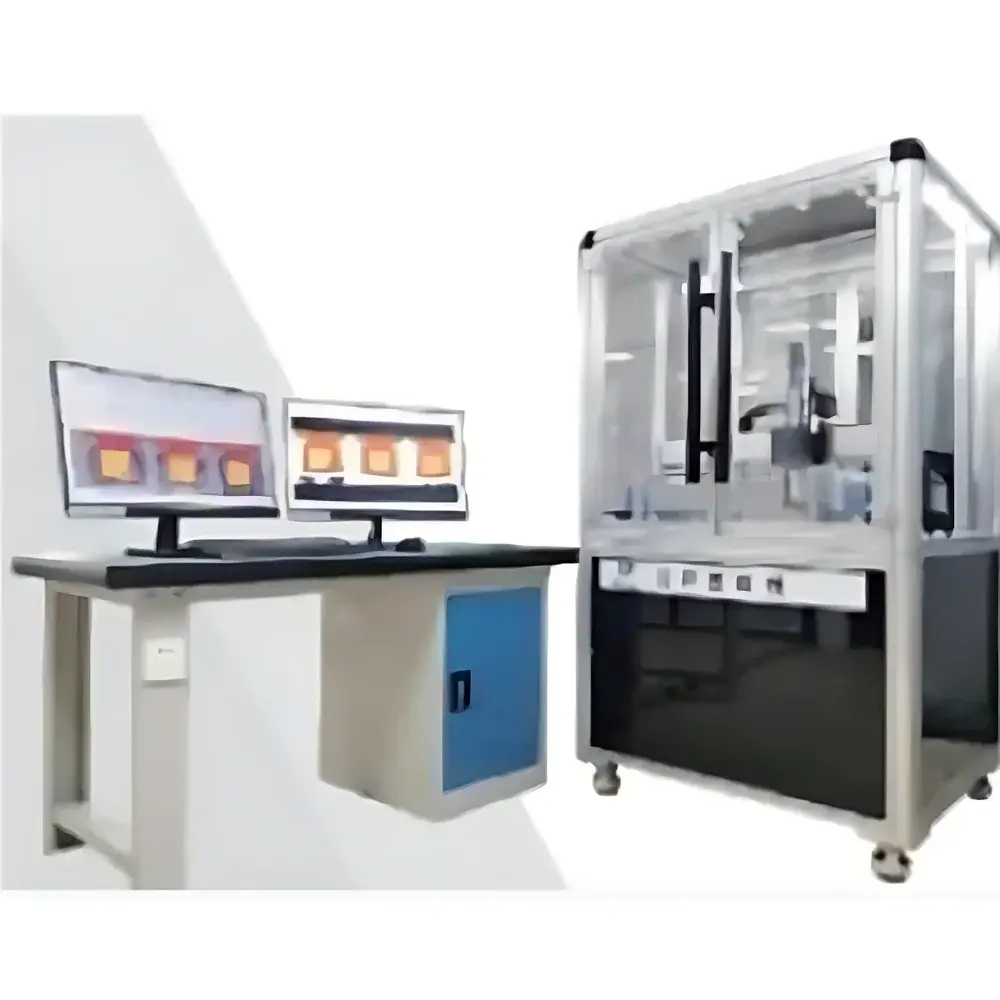

Olympus SAM-1000 Scanning Acoustic Microscope

Overview

The Olympus SAM-1000 Scanning Acoustic Microscope is a high-frequency, non-destructive imaging system engineered for subsurface defect characterization in solid materials. Operating on the principle of pulse-echo ultrasonic microscopy, it employs focused transducers with center frequencies ranging from 10 MHz to 200 MHz to generate acoustic impedance contrast maps at micron-scale lateral resolution. Unlike optical or electron microscopy, the SAM-1000 penetrates optically opaque, electrically non-conductive, and multi-layered structures—enabling quantitative evaluation of internal interfaces, delaminations, voids, microcracks, and solder joint integrity without sample sectioning or metallization. Its design adheres to fundamental acousto-mechanical principles defined in ASTM E1781 (Standard Practice for Ultrasonic Testing Using Scanning Acoustic Microscopy) and supports traceable calibration protocols per ISO 18563-1 for ultrasonic equipment performance verification.

Key Features

• 6-axis precision motion control (X, Y, Z linear axes + A/B tilt axes + T rotational axis), enabling full volumetric scanning of disk-shaped, cylindrical, and freeform curved components—including stacked die packages and molded interconnect devices (MIDs).
• Programmable water-coupled immersion scanning with temperature-stabilized coupling medium (±0.1 °C), minimizing acoustic refraction artifacts and ensuring repeatable signal-to-noise ratio across extended acquisition sequences.
• Dual-mode imaging capability: C-scan (cross-sectional plane), B-scan (vertical slice), and envelope-detected through-transmission mode for layered structure analysis.
• Real-time acoustic impedance mapping with dynamic range >80 dB and axial resolution down to 1.2 µm (at 100 MHz in epoxy resin), calibrated using NIST-traceable reference standards (e.g., VAMAS Ti–6Al–4V step wedge).
• Robust mechanical architecture featuring granite base, air-damped isolation platform, and servo-controlled stage positioning with ±0.5 µm repeatability—optimized for cleanroom-compatible deployment (ISO Class 5 compliant enclosures available).

Sample Compatibility & Compliance

The SAM-1000 accommodates specimens up to Ø300 mm × 50 mm height, including silicon wafers (200 mm / 300 mm), ceramic substrates, metal-composite laminates, and flexible printed circuit boards (FPCBs). It supports both flat and contoured geometries via adaptive focus tracking algorithms. All hardware and software modules comply with electromagnetic compatibility (EMC) requirements per IEC 61326-1 and safety standards IEC 61010-1. Data acquisition workflows are structured to support GLP and GMP environments: user access levels, electronic signatures, and audit trails conform to FDA 21 CFR Part 11 requirements when configured with optional Olympus SAMSecure™ module.

Software & Data Management

Olympus SAMView™ v4.2 provides integrated acquisition, reconstruction, and analysis tools. Core functionalities include automated defect thresholding (Otsu’s method), layer-by-layer thickness measurement, void area quantification (% porosity), and interface adhesion scoring based on echo amplitude decay profiles. Raw RF data is stored in HDF5 format with embedded metadata (transducer ID, gain settings, time-of-flight calibration parameters). Export options include CSV (for statistical process control integration), multi-channel TIFF stacks (for third-party tomographic reconstruction), and annotated PDF reports compliant with ISO/IEC 17025 documentation standards. Remote diagnostics and firmware updates are performed over TLS-encrypted Ethernet connections.

Applications

• Semiconductor packaging: Detection of die attach voids (>25 µm), underfill delamination, wire bond lift-off, and TSV (through-silicon via) integrity assessment in 2.5D/3D IC stacks.
• Power electronics: Evaluation of solder fatigue in IGBT modules, copper sinter bond quality, and thermal interface material (TIM) uniformity in EV traction inverters.
• Aerospace composites: Identification of disbonds in carbon-fiber-reinforced polymer (CFRP) skin–core interfaces and impact-induced matrix cracking beneath surface paint layers.
• Medical device manufacturing: Verification of hermetic seal integrity in implantable housing assemblies and ultrasonic weld quality in polymeric fluidic manifolds.
• Research & development: In situ monitoring of thermal cycling-induced microstructural evolution in thermally aged intermetallic compounds and low-k dielectric film cracking kinetics.

FAQ

What is the minimum detectable defect size in silicon wafers using the SAM-1000?
Detection limit depends on transducer frequency and material properties; typical resolution for sub-surface voids in Si is ~3–5 µm laterally and ~1.5 µm axially at 150 MHz.
Does the system support automated batch inspection for production line integration?
Yes—via OEM API (C++/Python SDK) and SECS/GEM protocol support for factory automation systems; recipe-based scanning and pass/fail decision logic can be deployed without operator intervention.
Can SAM data be correlated with X-ray CT or SEM cross-sections?
Yes—SAMView™ supports spatial registration of acoustic C-scans with coordinate-mapped X-ray or FIB-SEM images using fiducial marker alignment and affine transformation matrices.
Is calibration traceable to national metrology institutes?
Transducer sensitivity and time-of-flight calibration are validated annually against NIST SRM 2241 (ultrasonic reference blocks) and UK NPL-accredited acoustic velocity standards.
What maintenance is required for long-term operational stability?
Scheduled quarterly verification of coupling water conductivity (<2 µS/cm), transducer lens cleanliness, and stage encoder linearity; no consumables beyond deionized water and ultrasonic transducer gel.
