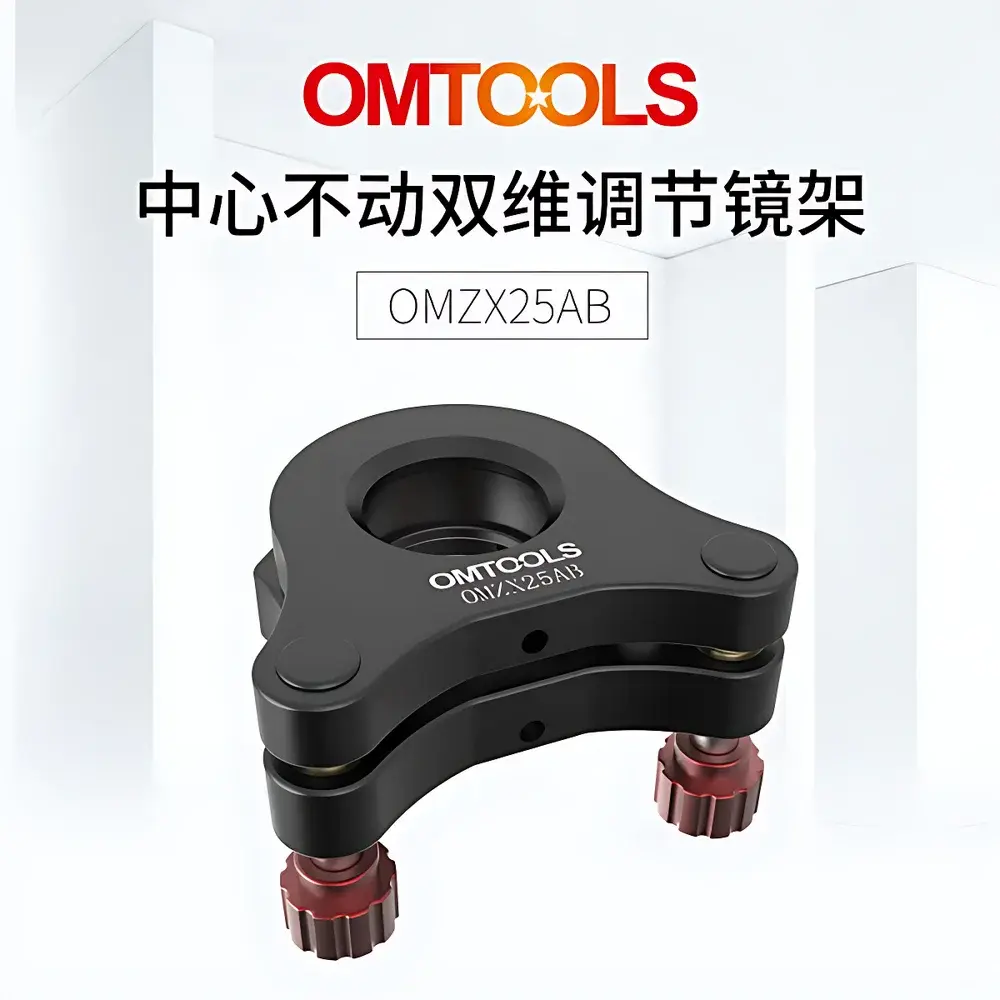

OMTOOLS OMZX25AB Center-Fixed Two-Axis Kinematic Mirror Mount

Overview

The OMTOOLS OMZX25AB is a precision-engineered, center-fixed two-axis kinematic mirror mount designed for high-stability optical alignment in research-grade laser systems, interferometers, and beam steering assemblies. Unlike conventional tip-tilt mounts that induce lateral displacement of the optical element’s center during angular adjustment, the OMZX25AB employs a geometrically constrained kinematic design where the optical surface center coincides precisely with the instantaneous axis of rotation for both pitch and yaw motions. This eliminates parasitic translation—critical for maintaining beam path integrity in multi-element collimation chains, cavity alignment, and polarization-sensitive setups. The mount operates on the principle of coupled differential motion: two orthogonal fine-pitch screws actuate opposing flexure pivots, ensuring pure rotational compliance without hysteresis or backlash. Its mechanical architecture conforms to fundamental optomechanical design tenets defined in ISO 10110-7 for mounting-induced wavefront error minimization.

Key Features

• Center-fixed kinematic geometry: Optical center remains stationary (<±0.5 µm radial deviation) during full ±4° pitch/yaw adjustment—essential for retro-reflection stability and cavity mode matching.
• High-resolution angular control: 0.41° per full revolution (360°) achieved via dual 0.25 mm pitch stainless steel screws paired with phosphor bronze bushings—optimized for low-friction, repeatable motion with <0.005° repeatability under 1 N·m torque.
• Structural rigidity: Machined from stress-relieved 6061-T6 aluminum alloy; finite-element validated natural frequency >1.2 kHz in free-standing configuration—resistant to acoustic and mechanical vibration coupling.
• Modular locking interface: Standard configuration includes two setscrews for primary clamping; optional -S variant integrates a knurled lock nut for long-term drift suppression in thermal cycling environments (e.g., vacuum chambers or temperature-controlled optics benches).
• Universal mechanical compatibility: Integrated M4 threaded base enables direct integration with industry-standard Ø12 mm or Ø25 mm stainless steel optical posts per ANSI/OPI 1.0-2018 dimensional specifications.

Sample Compatibility & Compliance

The OMZX25AB accommodates circular optics up to Ø25.4 mm (1 inch) with thicknesses ranging from 1.0 mm to 12.0 mm. It supports fused silica, BK7, CaF₂, and coated dielectric mirrors—including those with delicate metallic or multilayer AR/HR coatings. Mounting force is distributed via three-point contact with elastomer-tipped clamps (included), limiting surface pressure to <3 MPa—well below ISO 10110-7 thresholds for coating delamination risk. The mount is compatible with cleanroom Class 1000 handling protocols and may be baked to 80°C for UHV applications when equipped with vacuum-rated lubricants (optional). Documentation includes traceable dimensional inspection reports per ISO 9001:2015 manufacturing controls.

Software & Data Management

While the OMZX25AB is a passive mechanical mount, its angular position can be quantified and logged using external metrology tools including autocollimators (e.g., Teledyne DALSA AC-100), digital inclinometers (e.g., Spectra Physics 5000 series), or camera-based beam centroid tracking systems. For automated alignment workflows, the mount is compatible with motorized actuator add-ons (e.g., Newport TRA25 series stepper-coupled drives) and integrates seamlessly into LabVIEW™, MATLAB® Instrument Control Toolbox, or Python-based PyVISA frameworks via standard RS-232 or USB-to-serial interfaces. All calibration data—including screw pitch verification and angular response linearity maps—is archived in NIST-traceable format upon request for GLP/GMP audit readiness.

Applications

• Laser cavity alignment in Ti:sapphire, fiber, and diode-pumped solid-state oscillators
• Interferometric reference arm stabilization in Michelson and Mach-Zehnder configurations
• Polarization state control in ellipsometry and Mueller matrix instrumentation
• Beam pointing correction in adaptive optics testbeds and space-qualified optical benches
• Multi-axis alignment of dichroic filters, waveplates, and grating compressors in ultrafast laser systems

FAQ

Does the OMZX25AB introduce beam displacement during adjustment?
No. Its center-fixed architecture ensures zero net lateral shift of the optical center point across the entire ±4° range—verified by interferometric displacement mapping per ISO 10110-7 Annex B.
Can it be used in vacuum environments?
Yes—when specified with vacuum-compatible lubricant (option code “VAC”) and assembled with non-outgassing fasteners; maximum bakeout temperature: 80°C at 1×10⁻⁶ mbar.
What is the maximum optic weight supported?
Up to 120 g at room temperature with ≤0.1° static tilt drift over 24 hours, as validated under ASTM E177-22 environmental stability testing.
Is angular calibration data provided with each unit?
Yes—each mount ships with a certificate of conformance including measured angular response curves, screw pitch verification, and centering error report (traceable to NPL UK standards).
How does the -S lock nut variant differ mechanically?
The -S version adds a secondary M4×0.7 lock nut adjacent to each adjustment screw, enabling torque-independent positional retention—critical for applications requiring >10⁴ thermal cycles without recalibration.
