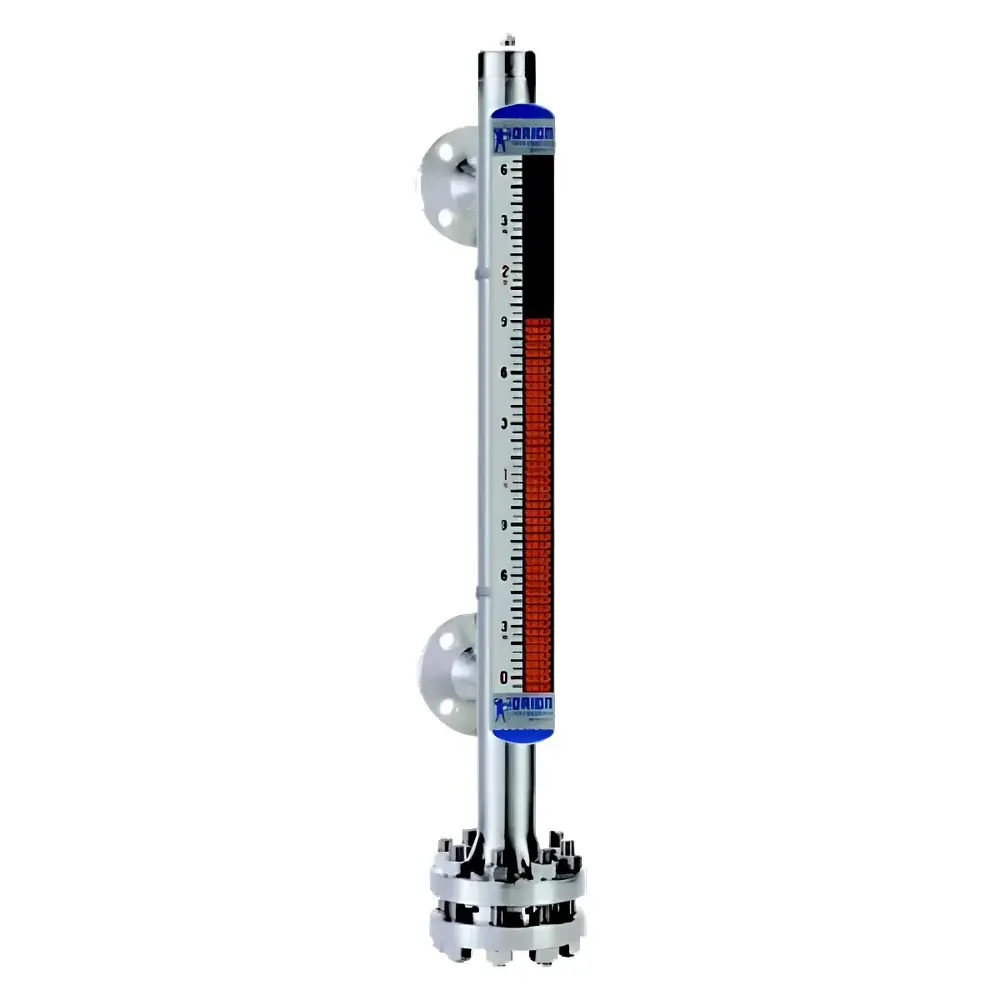

Orion Instruments Atlas™ Magnetic Level Indicator
| Brand | Magnetrol |
|---|---|
| Origin | Shanghai, China |
| Manufacturer Type | Authorized Distributor |
| Product Category | Level Meter |
| Model | Atlas™ Magnetic Level Indicator |
| Pricing | Upon Request |
| Housing Options | Standard, Non-Magnetic, ASME/EN Flanged |
| Float Type | High-Precision Magnetic Float |
| Indicator Types | Flip-Flag, Float Gauge, Reveal™ Wide-Angle Display |
| Optional Accessories | Custom Range Calibration, Process Connection Adaptation (e.g., NPT, DIN, ANSI), Unit Scale Customization (mm, in, %), High-Temperature & Cryogenic Extensions, External Reed Switch Mounting, Pneumatic/Electric Switch Integration |
Overview
The Orion Instruments Atlas™ Magnetic Level Indicator is an engineered solution for continuous, direct-reading liquid level measurement in demanding industrial process environments. Based on the proven principle of buoyancy and magnetic coupling, the device employs a hermetically sealed, magnet-equipped float that rises and falls with the liquid surface inside a non-magnetic chamber (typically stainless steel 316 or Hastelloy C-276). As the float moves, its embedded magnets actuate external visual indicators—either flip-flag elements or magnetically coupled float gauges—without physical penetration of the vessel wall. This design eliminates dynamic seals, mechanical linkages, or pressure boundary compromises, ensuring intrinsic safety, long-term reliability, and compliance with ASME BPVC Section VIII and PED 2014/68/EU requirements for pressure-retaining applications.
Key Features
- Robust dual-chamber construction with optional non-magnetic outer housing for high-corrosion or magnetic-interference environments
- ASME B16.5 Class 150–2500 and EN 1092-1 PN10–PN400 flange interfaces, supporting weld-neck, socket-weld, and threaded connections
- High-reproducibility float assembly manufactured to ±0.5% full-scale density tolerance, optimized for specific gravity ranges from 0.4 to 2.0
- Reveal™ wide-angle indicator system providing ≥170° viewing arc with UV-stabilized acrylic lenses and corrosion-resistant aluminum or stainless steel housings
- Modular mounting architecture enabling field-installable reed switches (SPST/SPDT), proximity sensors, or pneumatic transmitters without process shutdown
- Temperature-rated variants available for service conditions from –196°C (liquid nitrogen) to +450°C (high-pressure steam applications)
Sample Compatibility & Compliance
The Atlas™ series accommodates a broad spectrum of process media—including saturated steam, hydrocarbons, caustic solutions, amine solvents, and cryogenic LNG—provided fluid compatibility is verified against wetted materials (e.g., SS316 float body, PTFE-sealed gaskets, borosilicate glass sight tubes where applicable). All units comply with IEC 61508 SIL 2 functional safety requirements when integrated with certified switch modules. Pressure containment designs conform to ASME Section VIII Div. 1 and EN 13445, with third-party certification documentation (e.g., TÜV, Lloyds) available upon request. For pharmaceutical or food-grade installations, electropolished finishes and 3A-sanitary options meet FDA 21 CFR Part 11 traceability prerequisites when paired with compliant data loggers.
Software & Data Management
While the core Atlas™ indicator operates as a self-contained mechanical-optical device, optional electronic interface modules support integration into distributed control systems (DCS) and supervisory control and data acquisition (SCADA) platforms. Reed switch outputs are compatible with PLC input cards meeting IEC 61131-2 Type 1/3 specifications. When configured with HART-enabled transmitters or Foundation Fieldbus modules, real-time level data—including diagnostic flags for float hang-up, magnet degradation, or chamber fouling—is accessible via standard engineering workstations. Audit trails, calibration history, and configuration changes adhere to ISO 9001:2015 and GAMP 5 guidelines for regulated industries.
Applications
- Boiler drum level monitoring in power generation plants per ASME PTC 4.2
- Interface level detection in oil/water separators under API RP 12R1
- Condensate level control in feedwater heaters operating at >10 MPa and 300°C
- Flash drum inventory management in petrochemical fractionation trains
- Buffer tank level verification in biopharmaceutical clean steam distribution networks
- Cryogenic liquid level indication in LNG storage and vaporization skids (EN 1473 compliant)
FAQ
Can the Atlas™ be installed on existing vessels retroactively?
Yes—flanged, welded, or threaded configurations allow retrofit installation without vessel modification, provided nozzle dimensions and pressure ratings align with specified mounting standards.
Is recalibration required after thermal cycling?
No—magnetic coupling and buoyancy-based measurement are inherently temperature-stable; however, density compensation must be applied if process fluid specific gravity shifts significantly across operating bands.
What certifications accompany the unit for hazardous area use?
ATEX II 2G Ex db IIB T4 Gb and IECEx DBI19.0023X explosion-proof approvals are available for models equipped with intrinsically safe reed switch assemblies.
How does the Reveal™ indicator improve operator situational awareness?
Its optically engineered lens array reduces parallax error by >60% versus conventional flat-glass sight glasses and maintains legibility under low-light or high-glare conditions common in refinery control rooms.
Are digital output options compatible with legacy DCS protocols?
HART 7 and Modbus RTU implementations support backward compatibility with Emerson DeltaV, Honeywell Experion, and Yokogawa CENTUM VP systems without gateway hardware.
