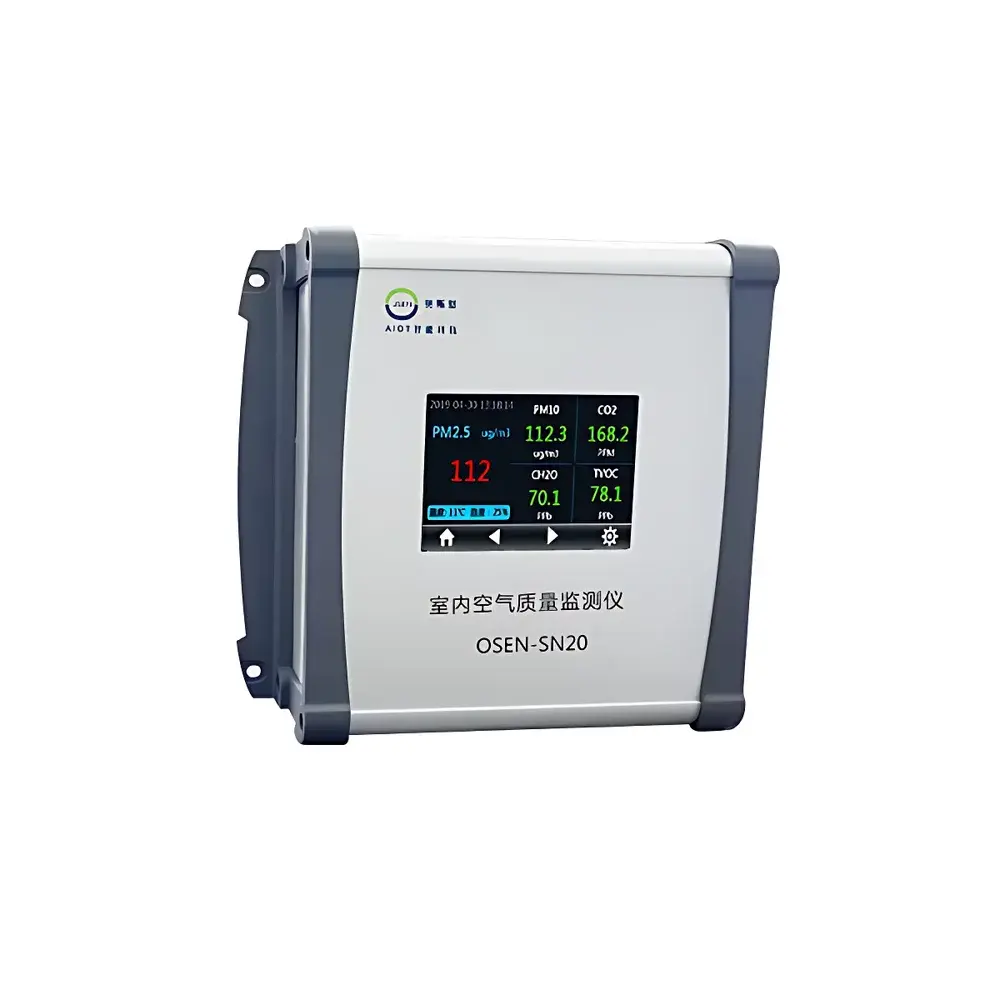

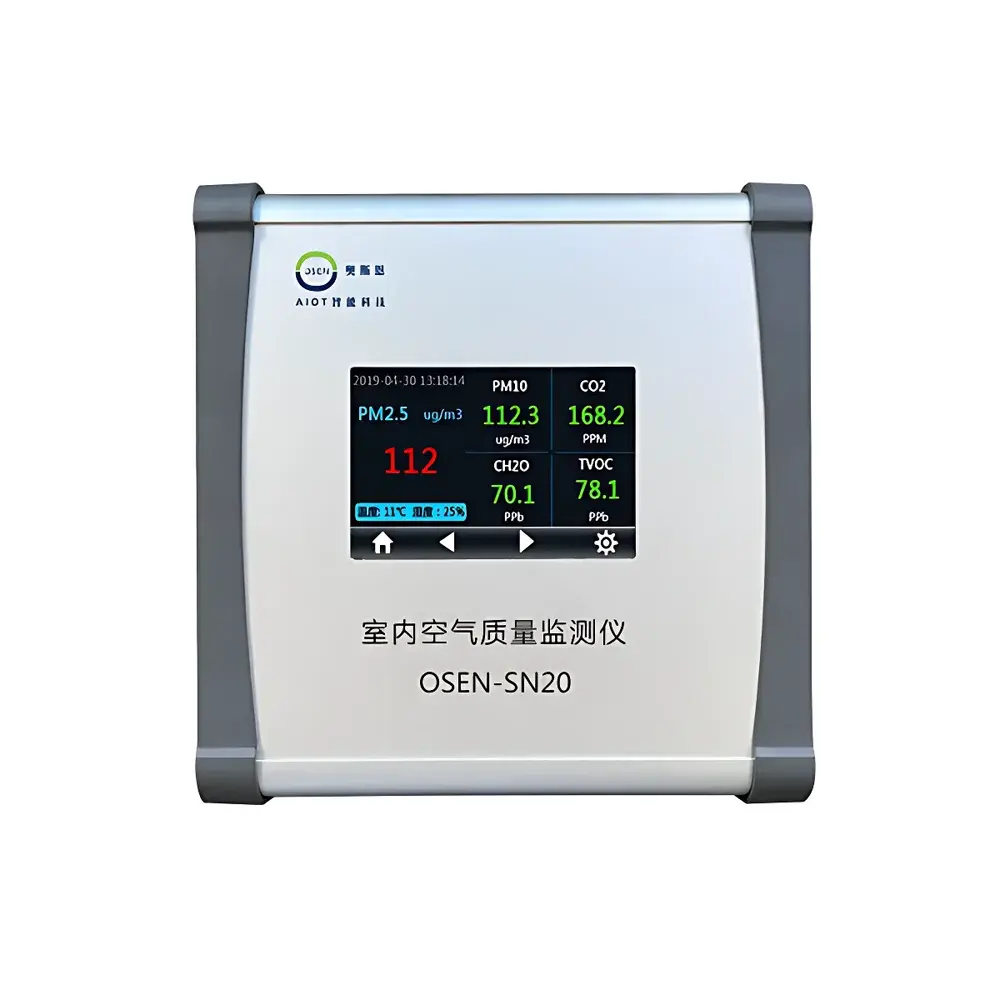

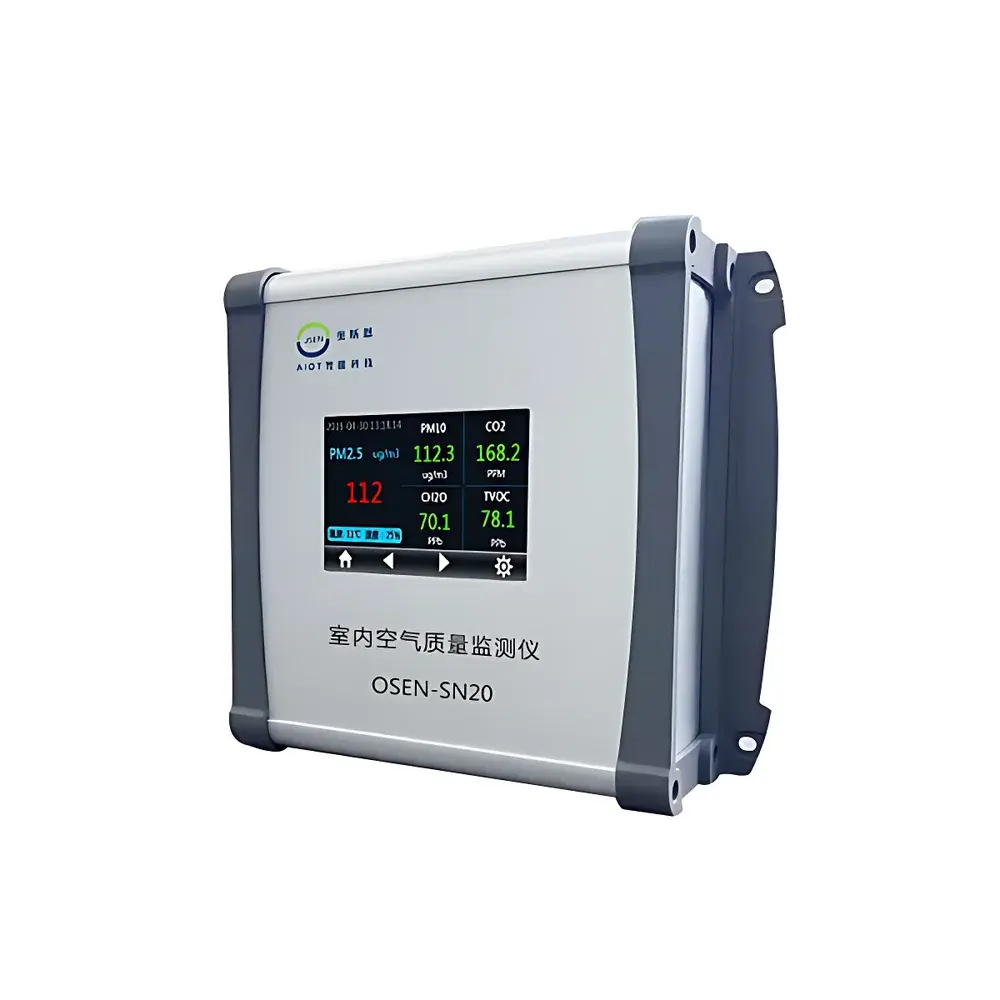

OSEN-SN20 Indoor Air Quality Monitor

Overview

The OSEN-SN20 Indoor Air Quality (IAQ) Monitor is an industrial-grade, wall-mountable online sensing system engineered for continuous, real-time monitoring of critical gaseous pollutants in climate-controlled indoor environments. Designed specifically for mission-critical applications in cultural heritage facilities—such as museums, art galleries, and archival storage rooms—as well as public assembly spaces including cinemas, theaters, and conference centers, the OSEN-SN20 employs certified electrochemical sensor modules to deliver stable, low-drift measurements of carbon monoxide (CO), nitrogen dioxide (NO₂), sulfur dioxide (SO₂), ozone (O₃), and hydrogen sulfide (H₂S). Its architecture adheres to the fundamental principles of amperometric electrochemical detection: target gases diffuse through a selective membrane into an electrolyte-filled cell, where oxidation or reduction reactions generate a current linearly proportional to gas concentration. This principle ensures high specificity, minimal cross-sensitivity, and suitability for long-term unattended operation under stable temperature and humidity conditions (15–30 °C, 30–70% RH non-condensing).

Key Features

• Modular electrochemical sensor design with individually replaceable, factory-calibrated gas-specific cartridges—enabling field maintenance without full-system recalibration.
• Integrated environmental compensation: onboard temperature and relative humidity sensors feed real-time data to the microcontroller for automatic signal correction, improving measurement fidelity across seasonal indoor climate variations.
• RS485 Modbus RTU and optional Ethernet (TCP/IP) interfaces support seamless integration into existing BMS (Building Management Systems) and SCADA platforms—compliant with ISO 16484-5 (BACnet MS/TP) and EN 15232 energy performance standards.
• IP54-rated enclosure with corrosion-resistant aluminum alloy housing—certified for indoor installation in low-dust, non-explosive atmospheres per IEC 60529.
• On-device data logging (up to 32,000 records) with timestamped UTC synchronization via NTP server—ensuring audit-ready traceability for GLP-compliant facility documentation.
• Configurable alarm thresholds with dry-contact relay outputs (NO/NC) and visual LED status indicators—supporting immediate local response to exceedance events per ASHRAE Standard 62.1 ventilation guidelines.

Sample Compatibility & Compliance

The OSEN-SN20 is validated for use in non-corrosive, particle-free indoor air streams with typical particulate concentrations below ISO 14644-1 Class 8. It is not intended for outdoor deployment, high-humidity zones (>80% RH), or environments containing volatile organic compounds (VOCs) above 10 ppm total hydrocarbon equivalent, which may interfere with electrochemical sensor stability. The system conforms to electromagnetic compatibility requirements per EN 61326-1 (industrial environment) and meets RoHS Directive 2011/65/EU restrictions on hazardous substances. Sensor modules carry CE marking under the EU Measuring Instruments Directive (MID) Annex MI-005 for gas analyzers used in environmental monitoring.

Software & Data Management

The OSEN-SN20 operates with OSEN IAQ Manager v3.2—a Windows-based configuration and visualization tool supporting firmware updates, zero/span calibration procedures, and sensor lifespan tracking. Raw analog output (4–20 mA per channel) and digital Modbus registers are fully mapped for third-party integration. For enterprise-scale deployments, the device supports secure MQTT publishing (TLS 1.2) to cloud platforms compliant with ISO/IEC 27001 information security management. All data exports include ISO 8601 timestamps and adhere to ASTM D6245-22 standard reporting formats for indoor air quality assessments—facilitating direct import into EPA AIRNow-IAQ or EU AirBase databases.

Applications

• Museum conservation environments: continuous monitoring of NO₂ and SO₂ to prevent acid-induced degradation of parchment, pigments, and metal artifacts per CEN/TS 16103:2010 recommendations.
• Cinema auditoriums: real-time CO and CO₂ trending to validate HVAC ventilation rates against ISO 16814:2021 indoor air quality design criteria.
• Corporate office buildings: integration with demand-controlled ventilation (DCV) logic to optimize energy consumption while maintaining occupant health thresholds defined in WHO Air Quality Guidelines (2021).
• Historic library archives: low-concentration H₂S detection to safeguard silver-based photographic materials and cellulose acetate film stocks.

FAQ

What gases does the OSEN-SN20 measure by default?
The base configuration includes electrochemical sensors for CO, NO₂, SO₂, O₃, and H₂S. Optional VOC and CO₂ infrared modules are available as configurable add-ons.
Is factory calibration traceable to national standards?
Yes—each sensor cartridge is calibrated against NIST-traceable gas standards (NIST SRM 1968, 1970) and supplied with individual calibration certificates valid for 12 months.
Can the system operate without network connectivity?
Yes—the device functions autonomously with local display, relay alarms, and internal data logging. Network connectivity is required only for remote monitoring, cloud sync, or centralized fleet management.
Does it meet FDA or ISO 13485 requirements for healthcare facility use?
While not classified as a medical device, the OSEN-SN20 satisfies environmental monitoring prerequisites outlined in ISO 14644-2:2015 Annex B for cleanroom support areas and USP <1116> guidance for non-sterile pharmaceutical manufacturing environments.
