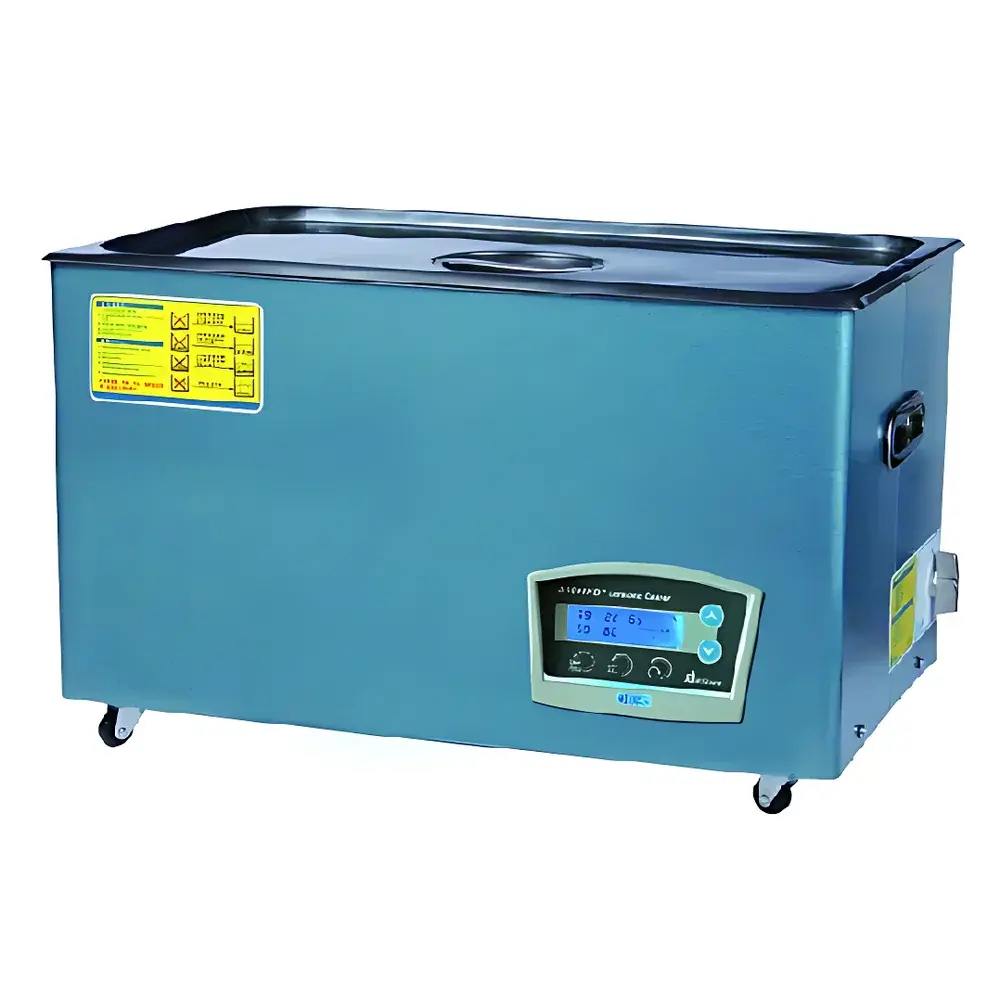

Otisience AS-30600B Industrial Ultrasonic Cleaner

Overview

The Otisience AS-30600B is a heavy-duty industrial ultrasonic cleaner engineered for high-throughput, reproducible cleaning of large or complex components in regulated laboratory and manufacturing environments. It operates on the principle of acoustic cavitation—where high-frequency sound waves (35 kHz primary frequency, supplemented by 28 kHz transducers) generate transient microbubbles in aqueous or solvent-based cleaning media. The rapid implosion of these bubbles produces localized shockwaves and microstreaming, delivering mechanical energy to surfaces without abrasion or chemical aggression. This physical cleaning mechanism ensures removal of particulate contaminants, oils, flux residues, and biofilms from blind holes, threaded features, and intricate geometries—making it suitable for pre-analytical sample preparation, component deburring prior to metrology, and cleaning of reusable labware in GLP-compliant workflows.

Key Features

• Modular transducer architecture: 112 piezoelectric transducers distributed across dual frequency bands (12 × 35 kHz + 100 × 28 kHz), each rated at 50 W nominal power, delivering a total acoustic output of 5600 W with active frequency tracking and real-time power stabilization.
• Large-capacity stainless steel tank (625 L internal volume; 1100 × 800 × 710 mm internal dimensions) constructed from 316L-grade stainless steel for corrosion resistance and long-term structural integrity under thermal and acoustic stress.
• Dual independent load-bearing slide rails with reinforced carriage system—rated for 300 kg total static load—enabling safe, ergonomic handling of oversized parts such as reactor vessels, filtration housings, or chromatography columns.
• Multi-point water level sensing network that dynamically activates transducer zones based on liquid depth, preventing dry-run damage and optimizing energy efficiency across variable fill levels.
• Integrated sound-dampening lid with interlocked safety cutoff and quick-release clamping mechanism, reducing ambient noise to ≤75 dB(A) at 1 m distance while maintaining operator safety during operation.
• Full digital control interface per module, displaying real-time parameters including elapsed time, active frequency band, power output percentage, and fault status—supporting traceable operation in auditable environments.

Sample Compatibility & Compliance

The AS-30600B accommodates a broad range of substrates—including stainless steel, titanium alloys, borosilicate glass, PTFE-lined components, and ceramic filters—without surface etching or dimensional alteration when operated within recommended temperature and dwell-time limits. Its non-contact cleaning process eliminates mechanical wear associated with brushing or jet washing, preserving calibration-critical tolerances on precision instruments. While the unit itself does not include integrated heating, its design conforms to IEC 61000-6-3 (EMC emission standards) and IEC 61000-6-2 (immunity). For applications requiring validation, the timer-adjustable operation supports protocol definition per ISO 13485 Annex A (cleaning process validation) and ASTM D2603 (ultrasonic cleaning performance testing). Optional documentation packages are available for IQ/OQ execution in pharmaceutical or medical device manufacturing settings.

Software & Data Management

The AS-30600B operates via embedded firmware with no external PC dependency. All operational parameters—including timer setting (1–999 min), power level (20–100% in 10% increments), and transducer zone selection—are stored in non-volatile memory and retain configuration after power cycle. Each module’s digital display logs cumulative operating hours and records up to 10 recent fault codes (e.g., overtemperature warning, transducer impedance deviation, lid-open interruption), supporting preventive maintenance planning. Though not FDA 21 CFR Part 11 compliant out-of-the-box, the unit can be integrated into validated cleaning workflows via external PLC-controlled sequencing and manual logbook entry—consistent with GMP Annex 15 requirements for equipment qualification.

Applications

• Pretreatment of HPLC/UHPLC column hardware, injector valves, and autosampler vial trays to eliminate carryover between analytical runs.
• Cleaning of reusable bioreactor manifolds, stainless-steel filter housings, and tangential flow filtration cassettes prior to sterilization cycles.
• Removal of solder paste residues and conformal coating overspray from PCB assemblies in electronics QA laboratories.
• Decontamination of surgical instrument trays and reusable endoscope components in hospital central sterile supply departments (CSSD), when used with EPA-registered disinfectant solutions.
• Preparation of metallurgical samples for SEM/EDS analysis where particulate contamination must be eliminated without altering surface morphology.

FAQ

Is the AS-30600B suitable for cleaning delicate optical components?

Yes—when operated at reduced power (≤40%) and with low-surface-tension, non-ionic surfactant solutions, it effectively removes sub-micron particles from lenses and mirrors without inducing microscratches.
Can the unit be operated continuously for extended periods?

It is rated for duty cycles up to 8 hours per day under standard ambient conditions (20–25°C, 40–60% RH); continuous operation beyond this requires scheduled cooling intervals to maintain transducer longevity.
Does the system support integration with facility water or solvent recirculation loops?

Yes—the integrated drain and fill ports accept standard 1/2″ NPT fittings, enabling connection to closed-loop solvent recovery systems or deionized water distribution networks.
What maintenance is required for long-term reliability?

Quarterly inspection of transducer mounting bolts, annual verification of grounding continuity, and biannual replacement of O-rings on the lid seal are recommended per the manufacturer’s service schedule.
Is technical support available outside China?

Otisience provides remote diagnostics and English-language engineering documentation; field service partners are available in North America, EU, and APAC regions under contractual service agreements.
