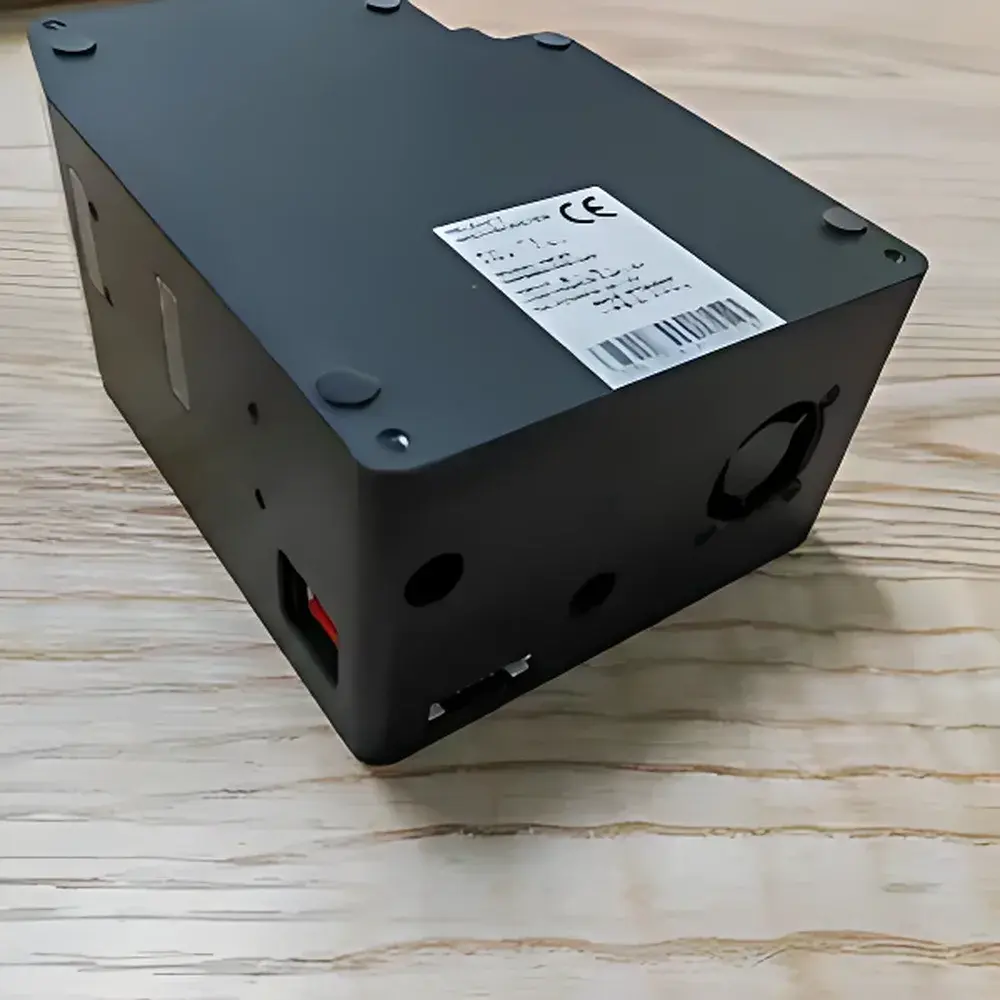

OtO SW2860-050 Cooled Near-Infrared Spectrometer

Overview

The OtO SW2860-050 is a thermoelectrically cooled near-infrared (NIR) spectrometer belonging to OtO’s Rattlesnake series — a line engineered for high signal-to-noise ratio (SNR), spectral stability, and long-term reliability in demanding industrial and laboratory environments. Operating on the principle of diffraction grating-based dispersive spectroscopy, the SW2860-050 utilizes a fixed optical bench architecture with an optimized Czerny-Turner configuration to deliver consistent spectral resolution across its full 900–1700 nm range. The instrument integrates a 256-pixel extended-range InGaAs linear photodiode array, enabling precise quantification of overtone and combination bands critical for organic compound analysis — particularly in pharmaceutical raw material identification, agricultural product moisture/protein assessment, and polymer composition verification. Its TE-cooled detector reduces dark current by >90% compared to uncooled counterparts, significantly improving measurement reproducibility over extended acquisition periods and under ambient temperature fluctuations.

Key Features

• Thermoelectric (Peltier) cooling system maintaining detector temperature at –10 °C ± 0.5 °C for enhanced SNR and baseline stability
• 256-pixel extended InGaAs detector with high quantum efficiency (>80%) across 900–1700 nm
• Ruggedized aluminum optical housing with anti-vibration mounting and sealed optical path to minimize environmental drift
• Integrated USB 2.0 interface with native support for Windows/Linux via SDK and LabVIEW-compatible drivers
• Fully refurbished unit with OEM-certified calibration traceable to NIST-traceable standards; includes post-refurbishment performance validation report
• Optimized slit design and collimating optics yielding typical optical resolution (FWHM) of ≤8 nm across the spectral range

Sample Compatibility & Compliance

The SW2860-050 is compatible with standard fiber-optic coupling (SMA 905 connector), supporting both reflectance (diffuse or specular) and transmission measurements using commercially available probes and cuvette holders. It meets mechanical and electromagnetic compatibility requirements per IEC 61326-1:2013 for laboratory use. While not supplied with pre-installed chemometric models, the instrument supports integration into GLP/GMP-compliant workflows when paired with validated third-party software platforms (e.g., Unscrambler®, Pirouette®). Data acquisition logs include timestamped metadata required for audit trails under FDA 21 CFR Part 11 when used with compliant software and user access controls.

Software & Data Management

The spectrometer ships with OtO’s SpectraView Pro v4.x — a feature-rich application supporting real-time spectrum acquisition, baseline correction (asymmetric least squares), peak integration, and export in CSV, TXT, and JCAMP-DX formats. A comprehensive SDK (C/C++, Python, MATLAB APIs) enables custom automation, including batch spectral collection synchronized with external triggers (TTL input/output). All firmware and driver packages are version-controlled and digitally signed. Raw spectral data retains full 16-bit dynamic range; processed outputs include integrated absorbance/transmittance values with associated uncertainty estimates derived from pixel-level noise statistics.

Applications

• Pharmaceutical: Identification and assay of active pharmaceutical ingredients (APIs) and excipients using NIR fingerprinting per USP and EP 2.2.40
• Agriculture: Non-destructive quantification of moisture, starch, oil, and protein content in grains, seeds, and forage
• Chemical manufacturing: In-line monitoring of reaction endpoints and blend uniformity in solid-dose production
• Polymers & plastics: Qualitative sorting of recyclable thermoplastics (e.g., PET, PP, PE) and detection of additive concentrations
• Food safety: Rapid screening for adulteration (e.g., melamine in milk powder, olive oil dilution) via spectral deviation analysis

FAQ

Is this unit factory-refurbished or dealer-refurbished?
This SW2860-050 has undergone full refurbishment at OtO’s authorized service center in Hsinchu, Taiwan, including optical recalibration, thermal cycling validation, and firmware update to the latest stable release.
Does it include a calibration certificate?
Yes — each unit ships with a NIST-traceable wavelength and radiometric calibration certificate, valid for 12 months from date of shipment.
Can it be integrated into an automated production line?
Absolutely. The device supports hardware triggering (TTL), programmable integration time (1 ms to 10 s), and zero-latency spectrum streaming via USB bulk transfer mode — all documented in the SDK.
What is the expected lifetime of the InGaAs detector after refurbishment?
Based on accelerated life testing and field data from OtO’s installed base, the TE-cooled 256-pixel InGaAs array maintains >95% initial responsivity after 50,000 hours of cumulative operation under specified thermal conditions.
Are spare parts and technical support available outside Taiwan?
OtO provides global warranty service through its network of certified partners; detector modules, grating assemblies, and control boards are stocked in EU and North American distribution hubs.
