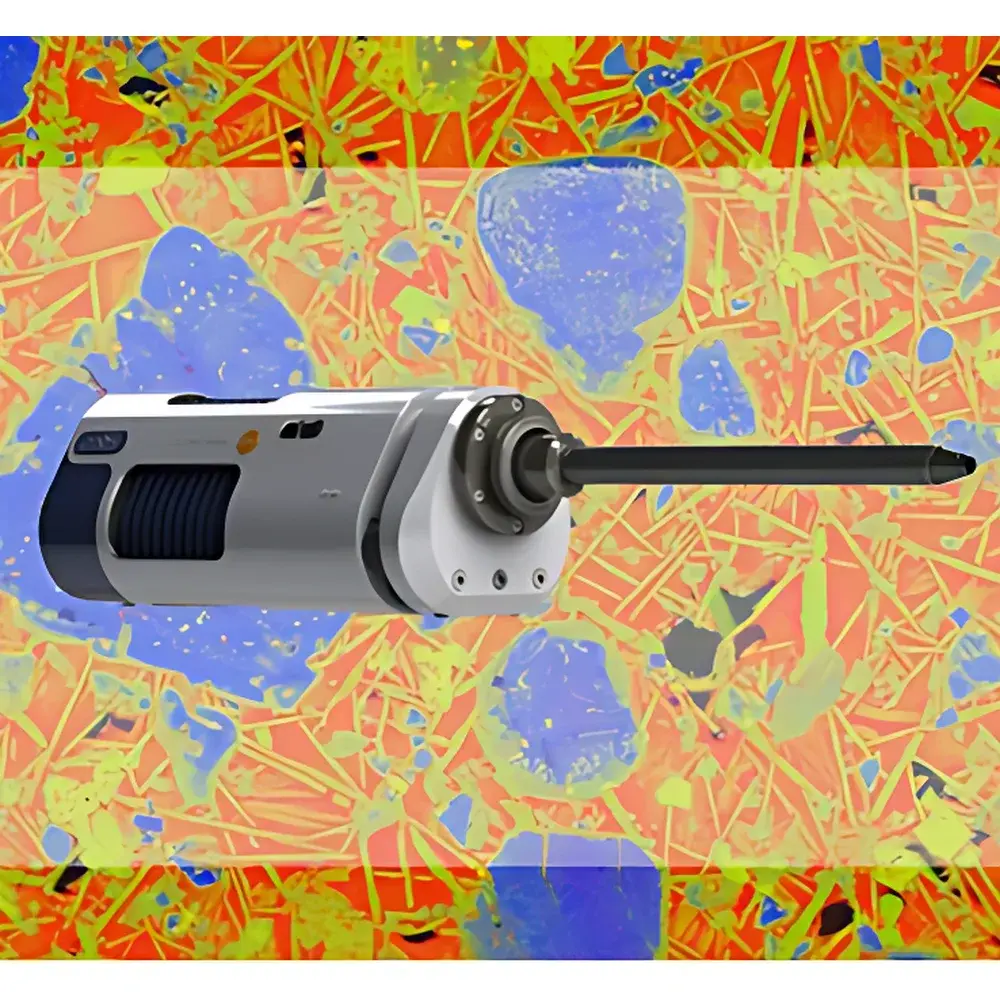

Oxford Instruments Ultim Max Silicon Drift Detector (SDD) Energy Dispersive X-ray Spectrometer for SEM

Overview

The Oxford Instruments Ultim Max is a high-performance silicon drift detector (SDD)-based energy dispersive X-ray spectrometer (EDS or EDX) engineered specifically for integration with scanning electron microscopes (SEM). It operates on the principle of energy-dispersive X-ray spectroscopy: when a focused electron beam interacts with a conductive or coated sample in the SEM chamber, characteristic X-rays are emitted. The Ultim Max captures and resolves these X-rays by energy, enabling qualitative and quantitative elemental analysis at micron- to sub-micron spatial resolution. Its design prioritizes high count-rate capability without spectral degradation, low electronic noise, and robust thermal stability—critical for reliable microanalysis in demanding research and industrial quality control environments.

Key Features

• Large-Area SDD Architecture: Available with active detector areas of 40 mm², 65 mm², 100 mm², and 170 mm²—enabling higher solid-angle collection efficiency and improved detection limits, especially for trace elements and low-kV analyses.
• Ultra-Low Noise Electronics: Integrated front-end preamplifier and X4 digital pulse processor deliver exceptional signal-to-noise performance, preserving spectral fidelity even at count rates up to 1.5 million counts per second (cps).
• High Energy Resolution: Achieves ≤127 eV full width at half maximum (FWHM) at Mn Kα (5.89 keV), ensuring clear separation of overlapping peaks (e.g., S Kα/Pb Mα, Ti Kβ/V Kα) for accurate phase identification.
• Super-Atmospheric Thin Window (SATW): Enables detection of light elements from beryllium (Be, Z=4) through to californium (Cf, Z=98), with optimized transmission for Be–F while maintaining mechanical integrity under high vacuum.
• Tilting Insertion Mount Design: Optimized for minimal shadowing and maximum working distance flexibility; compatible with standard SEM stages and multi-detector configurations including EBSD synchronization.
• Thermal Stability: Peltier-cooled detector maintains stable operating temperature (−20 °C typical) without liquid nitrogen, eliminating dew-point risks and enabling uninterrupted long-duration mapping sessions.

Sample Compatibility & Compliance

The Ultim Max supports analysis of diverse solid-state specimens—including metals, ceramics, geological thin sections, semiconductor wafers, polymers (with conductive coating), and biological tissues (cryo- or metal-coated). Its SATW window and low-voltage optimization (down to 5 kV) facilitate light-element quantification in beam-sensitive or insulating materials. The system complies with ISO 14971 (risk management for medical devices), meets electromagnetic compatibility requirements per EN 61326-1, and supports audit-ready data acquisition workflows aligned with GLP and GMP principles. When used with AZtec software, it enables 21 CFR Part 11-compliant electronic signatures, secure user access control, and full audit trail logging for regulated laboratories.

Software & Data Management

Controlled via Oxford Instruments’ AZtec platform, the Ultim Max integrates seamlessly with major SEM manufacturers (Thermo Fisher Scientific, Zeiss, JEOL, Hitachi). AZtec provides real-time spectrum acquisition, automated peak identification (including L- and M-series lines), matrix correction algorithms (ZAF and φ(ρz)), and advanced hyperspectral mapping with pixel-by-pixel deconvolution. Data export supports industry-standard formats (e.g., .eds, .msa, .csv, .tif) and interoperability with third-party tools such as MATLAB, Python (via NumPy/Pandas), and Thermo Avizo for 3D reconstruction. All raw spectra, processing parameters, and metadata are stored in a structured SQLite database with versioned backups and timestamped acquisition logs.

Applications

• Phase identification and distribution mapping in metallurgical alloys and weld zones
• Inclusion analysis in steel and aluminum casting quality assurance
• Contamination forensics on semiconductor packaging and PCB surfaces
• Mineralogical quantification in petrographic thin sections and ore samples
• Nanoparticle composition profiling in catalytic and battery electrode materials
• Failure analysis of MEMS devices and thin-film stack delamination
• Regulatory compliance testing for RoHS, REACH, and ELV directive screening

FAQ

What is the minimum detectable element using the Ultim Max with SATW?
Beryllium (Be, Z=4) is routinely detected under optimal conditions (low kV, high current, clean surface); detection sensitivity depends on matrix absorption and acquisition time.
Can the Ultim Max be retrofitted onto older SEM models?
Yes—Oxford Instruments provides custom mounting kits and interface modules for legacy SEMs from Zeiss, JEOL, and Hitachi, subject to chamber port geometry and vacuum compatibility assessment.
Does the system support automated drift correction during long-duration mapping?
Yes—AZtec’s StageDrift compensation algorithm uses fiducial markers or image correlation to dynamically adjust stage position and maintain spatial registration over hours-long acquisitions.
How is energy calibration maintained over time?
The system performs automatic internal calibration using Mn Kα reference peaks before each session; optional external standards (e.g., Cu, Co, Fe) can be used for extended verification and inter-laboratory traceability.
Is offline spectral reprocessing supported?
Yes—All raw spectra retain full pulse-height information; users may reapply background subtraction, peak deconvolution, and quantification models post-acquisition without signal loss.
