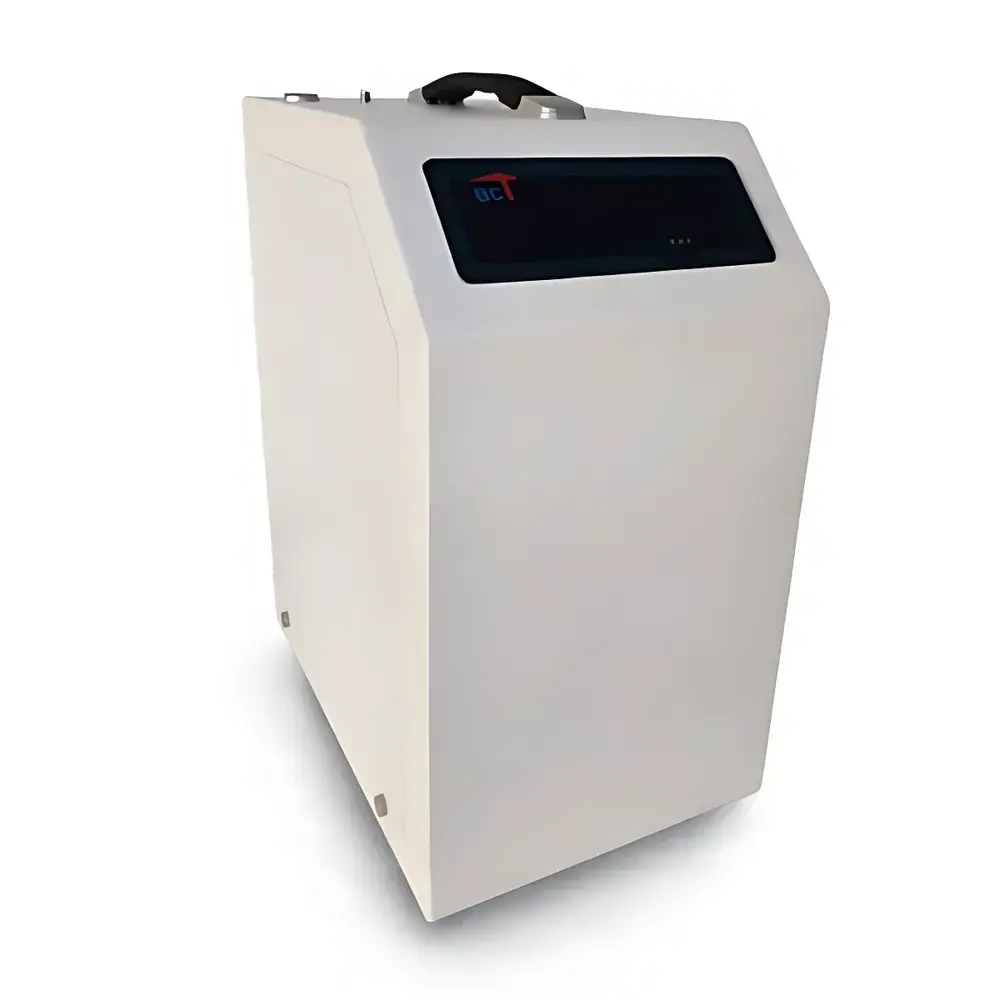

P500 Cloud-Based Emission Source Sampling System
| Brand | BCT |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Regional Classification | Domestic (China) |
| Model | P500 |
| Pricing | Available Upon Request |
Overview
The P500 Cloud-Based Emission Source Sampling System is an engineered solution for automated, intelligent, and remotely operable sampling of gaseous emissions from stationary industrial sources. Designed in accordance with the functional requirements of environmental monitoring laboratories and regulatory compliance programs, the system implements a thermally controlled, inert-flow architecture to preserve sample integrity during collection, transport, and pre-concentration. It operates on a validated principle of dynamic dilution coupled with heated-line sampling—ensuring representative capture of volatile organic compounds (VOCs), semi-volatile organic compounds (SVOCs), and reactive inorganic gases (e.g., NOx, SO2, HCl) without adsorption loss or condensation artifact. The system integrates embedded microprocessor logic for event-driven sampling protocols—including time-scheduled, trigger-activated, centralized command, and remote-controllable operation—enabling unattended deployment over extended durations in stack or duct environments.
Key Features
- Unmanned sampling capability via multiple activation modes: programmable timer, external digital/analog trigger input, centralized SCADA integration, and secure cloud-based remote control through authenticated HTTPS interface.
- Modular thermal management system: entire gas pathway—from probe tip to pre-concentrator inlet—is constructed from fused-silica-coated stainless steel tubing and maintained at user-defined temperatures (typically 120–180 °C) to prevent analyte condensation, wall adsorption, or polymerization.
- Wide-range dynamic dilution module with precision mass flow controllers (MFCs), enabling adjustable dilution ratios from 1:1 to 1:1000 (v/v) with ≤±1.5% full-scale repeatability—critical for high-concentration stack gas analysis and method flexibility across EPA Method 18, TO-17, and ISO 16017-1 applications.
- Integrated purge-and-clean sequence: automated nitrogen or zero-air flush before and after each sampling cycle ensures minimal carryover (<0.5% relative) and eliminates manual maintenance intervals between samples.
- Compact, field-rugged enclosure rated IP54, with internal power conditioning and surge protection suitable for industrial plant environments.
Sample Compatibility & Compliance
The P500 system is compatible with standard EPA-compliant sorbent tubes (e.g., Tenax TA, Carbopack X, graphitized carbon black), cryogenic traps, and thermal desorption autosamplers. Its heated sampling train meets ASTM D6348–22 requirements for gaseous emission sampling integrity and supports GLP/GMP-aligned data traceability when paired with compliant software. The system architecture allows configuration for use in conjunction with GC-MS, GC-FID, or PTR-MS analytical platforms. All firmware and control logic are designed to support audit-ready logging per 21 CFR Part 11 (electronic records and signatures) when deployed with validated software modules.
Software & Data Management
The P500 is managed via the BCT CloudLink™ Supervisory Interface—a browser-based application supporting real-time telemetry (temperature, flow, pressure, valve status), historical event logging, and alarm notification via email/SMS. Raw operational metadata—including start/stop timestamps, dilution factor, line temperature profiles, and purge cycle duration—is embedded into each sample record as structured JSON metadata. Export formats include CSV, XML, and vendor-neutral .tdf (Thermal Desorption Format) for direct ingestion into LIMS or chromatography data systems (CDS). Remote firmware updates and configuration backups are performed over TLS 1.2–secured channels.
Applications
- Continuous or intermittent monitoring of VOC and SVOC emissions from chemical process vents, incinerators, and coating operations.
- Method validation and routine QA/QC sampling per EPA Methods 18, 25A, TO-15A, and TO-17.
- Source apportionment studies requiring synchronized multi-point sampling across facility stacks.
- Pre-concentration of low-level analytes prior to thermal desorption–gas chromatography analysis.
- Integration into ambient air quality networks where source-specific emission characterization is required alongside background measurements.
FAQ
Does the P500 support integration with third-party data acquisition systems?
Yes—the system provides Modbus TCP and OPC UA server interfaces for seamless connectivity with existing DCS, PLC, or enterprise LIMS platforms.
What is the maximum allowable operating temperature of the sampling line?
The fused-silica-coated tubing and associated heating elements are rated for continuous operation up to 200 °C; typical setpoints range from 120 °C to 180 °C depending on target analyte volatility.
Can the dilution ratio be adjusted during an active sampling sequence?
No—dilution ratio is fixed per sampling event to ensure metrological consistency; however, users may define distinct dilution profiles for different scheduled jobs.
Is calibration verification supported within the system firmware?
Yes—built-in span-check functionality allows periodic introduction of certified calibration gas via auxiliary port, with results logged and reportable alongside sample metadata.
What cybersecurity standards does the cloud interface comply with?
CloudLink™ implements role-based access control (RBAC), TLS 1.2+ encryption, session timeout enforcement, and optional two-factor authentication (2FA) aligned with NIST SP 800-53 Rev. 5 controls for industrial IoT devices.
