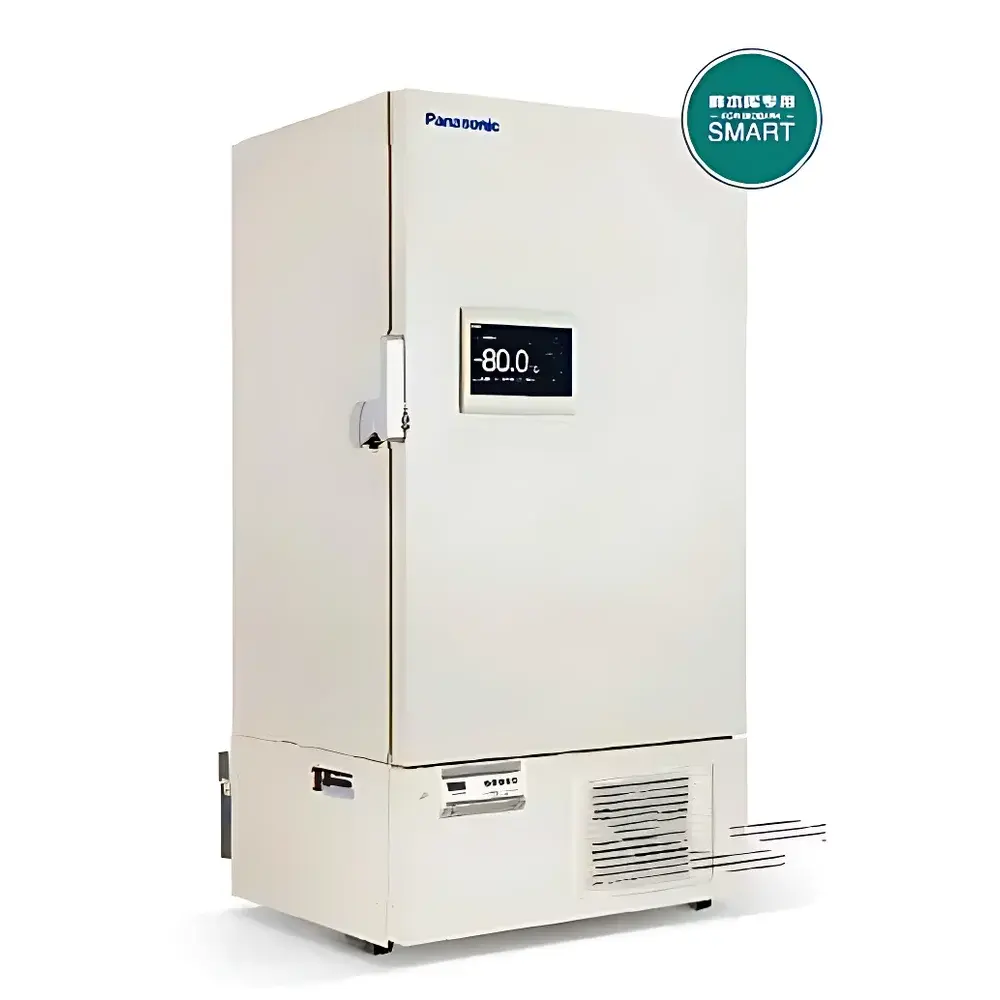

Panasonic MDF-682S Intelligent Ultra-Low Temperature Freezer

Overview

The Panasonic MDF-682S Intelligent Ultra-Low Temperature Freezer is an upright, dual-compressor ULT freezer engineered for long-term, high-integrity cryopreservation of biological specimens in academic research laboratories, biobanks, clinical diagnostics centers, and pharmaceutical development facilities. Operating within a stable temperature range of −50 °C to −86 °C (under ambient conditions of 10–30 °C), the system employs an environmentally optimized refrigerant blend (R404A/R508B) and high-efficiency hermetic compressors to maintain thermal uniformity and minimize temperature fluctuation across its 603 L effective storage volume. Its architecture follows ISO 13485-aligned design principles for medical device storage systems and supports compliance with Good Laboratory Practice (GLP), Good Manufacturing Practice (GMP), and FDA 21 CFR Part 11 requirements when integrated with validated software workflows.

Key Features

• Intelligent Sample Space Optimization: Redesigned internal configuration accommodates standardized 1 mL cryovials (replacing legacy 2 mL formats), enabling up to 5,000+ human-equivalent molecular biology sample units per unit—verified through ergonomic workflow analysis and cryo-storage density validation.
• Role-Based Access Control System: Integrated smart password lock enforces granular permission tiers: administrators view diagnostic logs and system status but cannot access samples; authorized users authenticate via unique credentials before initiating any sample retrieval or deposit operation.
• Real-Time Dual-Channel Temperature Monitoring: Onboard chamber sensor plus standard-fit third-party calibrated probe (NIST-traceable) provide redundant, time-stamped temperature logging. Data export supports CSV and PDF formats; network-enabled upload enables integration with centralized environmental monitoring platforms (e.g., Vaisala viewLinc, SensiNet).
• Visualized Self-Diagnostic Interface: Replaces conventional alphanumeric error codes with intuitive graphical indicators showing real-time operational status of compressors, fans, condensers, and door seals—enabling rapid root-cause identification without technical training.
• Audit-Ready Operational Logging: Automatically records every sample movement event—including timestamp (hh:mm:ss), user ID, action type (ingress/egress/transfer/relocation), and destination rack position—generating immutable, searchable digital audit trails compliant with ISO 20387 biobanking standards.
• Proactive Maintenance Alerts: System monitors filter saturation, UPS battery health, and door seal integrity; triggers visual and audible notifications prior to performance degradation, extending mean time between failures (MTBF) and reducing unplanned downtime.

Sample Compatibility & Compliance

The MDF-682S supports storage of primary human tissues, PBMCs, stem cells, genomic DNA/RNA extracts, recombinant proteins, and viral vectors under ICH M7 and WHO TRS No. 961-recommended cryogenic conditions. Internal dimensions (770 × 600 × 1280 mm) accommodate industry-standard cryoboxes (e.g., Nunc™, Thermo Scientific™) and custom-configurable aluminum racks. All structural materials comply with RoHS Directive 2011/65/EU and REACH Regulation (EC) No. 1907/2006. Electrical safety conforms to IEC 61010-1:2010 and GB 4793.1–2007. The unit is CE-marked for use in EU member states and certified by China’s CCC program (CNCA-C10-01:2020).

Software & Data Management

Equipped with a 13-inch capacitive touchscreen interface, the MDF-682S runs embedded firmware supporting local configuration, real-time parameter visualization (setpoint, ambient, probe, compressor discharge), and event-driven alerts. It provides native RS-485, Ethernet (TCP/IP), and optional Wi-Fi connectivity for integration into enterprise laboratory information management systems (LIMS) and electronic lab notebooks (ELN). Data export protocols include HTTP POST, FTP, and Modbus TCP. Audit logs retain ≥12 months of history locally and support automated cloud backup when paired with Panasonic’s optional CloudLink Gateway module. Firmware updates are delivered via secure HTTPS with SHA-256 signature verification.

Applications

• Long-term archival of clinical trial biospecimens in biorepositories meeting ISBER Best Practices (2022 edition)
• Cryopreservation of induced pluripotent stem cell (iPSC) lines requiring strict thermal stability (±0.5 °C over 24 h)
• Storage of thermolabile monoclonal antibodies and ADC intermediates prior to formulation
• Supporting CAP-accredited molecular pathology labs performing NGS library prep and QC
• Backup cold chain node in multi-site vaccine development consortia operating under WHO PQ guidelines

FAQ

What is the minimum ambient temperature required for stable −86 °C operation?
The unit achieves and maintains −86 °C only when installed in environments between 10 °C and 30 °C. Operation outside this range may compromise temperature stability and void warranty coverage.

Can the MDF-682S be integrated with existing LIMS platforms?
Yes—via open communication protocols (Modbus TCP, HTTP REST API), it supports bidirectional data exchange with major LIMS vendors including LabVantage, Thermo Fisher SampleManager, and STARLIMS.

Is the external temperature probe included as standard equipment?
Yes—a NIST-traceable Class A PT100 probe is supplied with calibration certificate and pre-installed mounting hardware.

Does the system support 21 CFR Part 11-compliant electronic signatures?
When deployed with Panasonic’s validated CloudLink Gateway and associated audit trail software package, full Part 11 compliance—including electronic signatures, audit trail review, and record retention—is achievable.

How often must the condenser filters be cleaned?
The system issues automated alerts based on actual airflow resistance measurements—not fixed time intervals—ensuring maintenance is performed only when empirically necessary.
