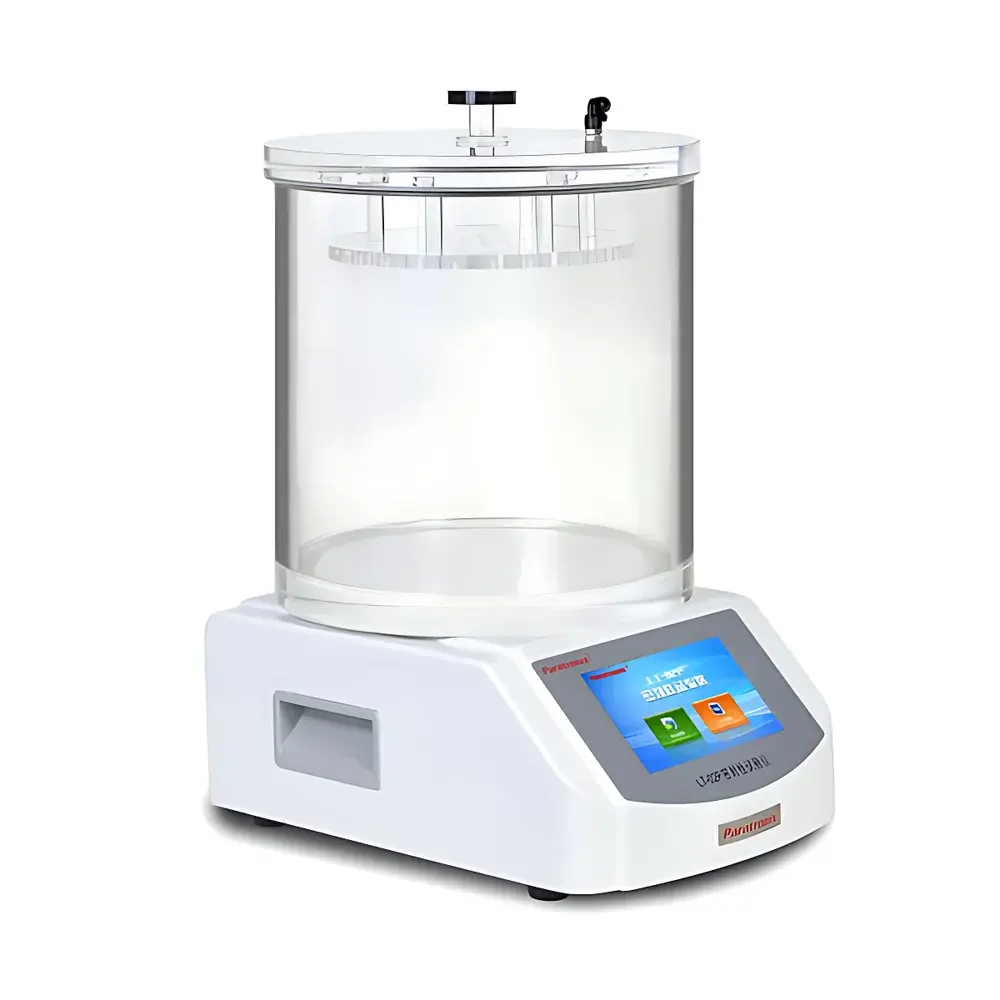

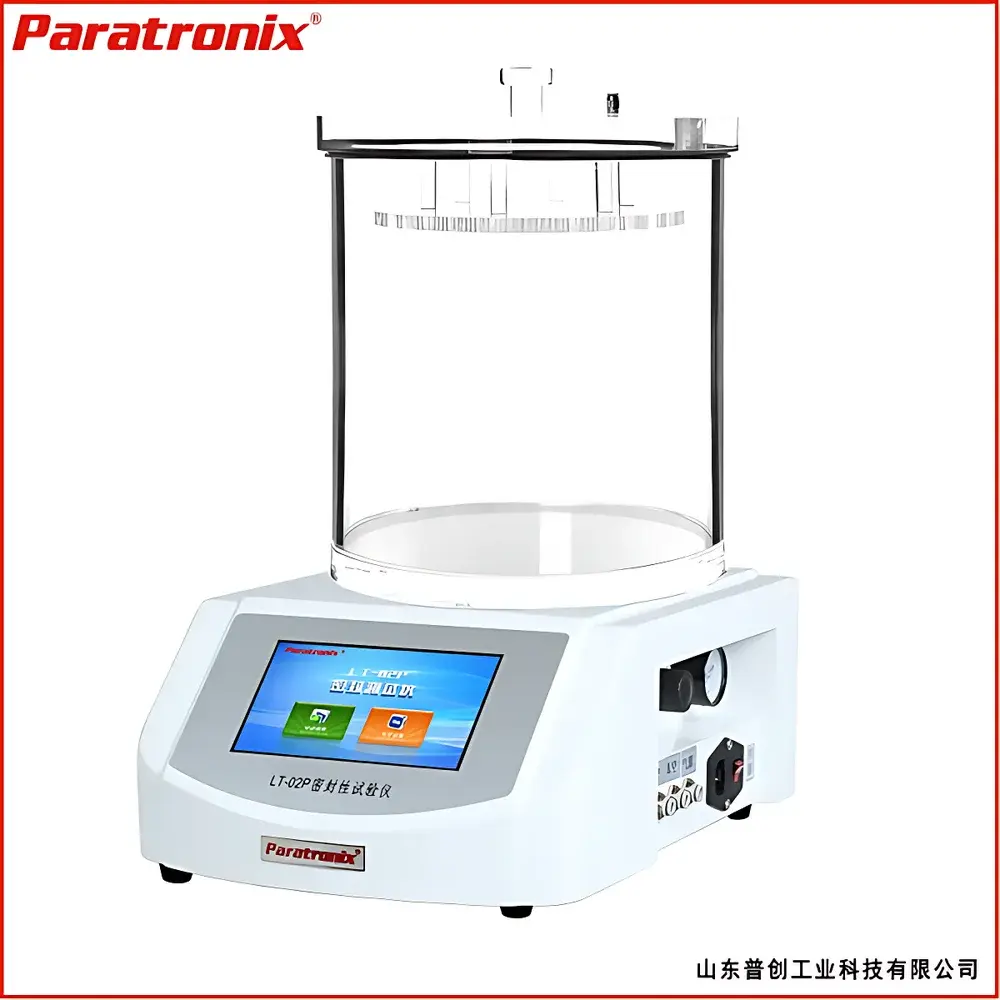

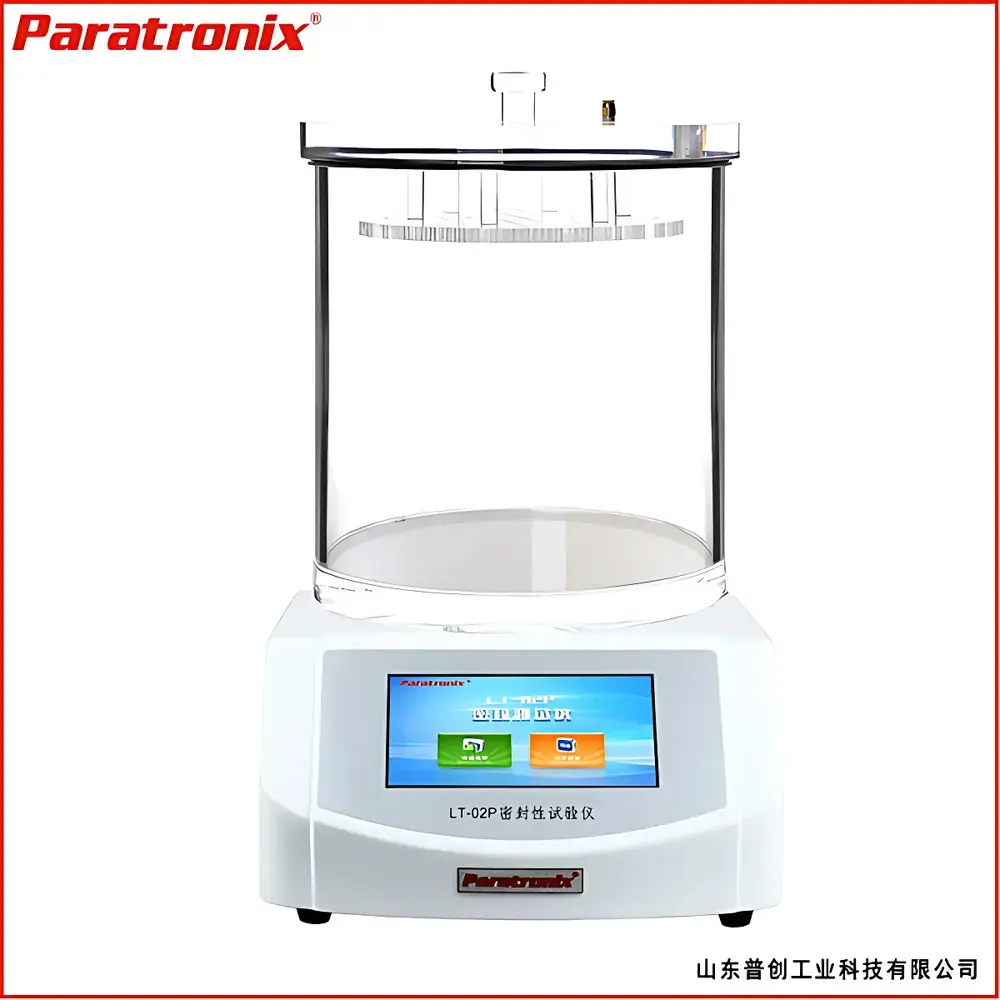

Paratronix LT-02P Seal Integrity Tester for Powder Packaging

Overview

The Paratronix LT-02P Seal Integrity Tester is an engineered solution for quantitative assessment of package seal integrity in flexible packaging—specifically designed for powdered dairy products, infant formula, pharmaceutical powders, and other moisture- and oxygen-sensitive commodities. It operates on the principle of vacuum decay testing, a non-destructive, deterministic method standardized under ASTM D3078 and widely accepted in regulated environments for detecting gross leaks (≥5–10 µm equivalent hole size) and evaluating seal robustness under controlled negative pressure. Unlike subjective bubble-emission tests, the LT-02P delivers traceable, repeatable data by monitoring real-time pressure decay profiles within a sealed chamber, enabling objective pass/fail decisions aligned with USP & ISO 11607-2 validation requirements.

Key Features

• Fully automated test cycle—single-button initiation with programmable start/stop logic and auto-shutdown upon completion
• Dual-pneumatic-circuit architecture isolates vacuum generation from pressure sensing, minimizing cross-talk and enhancing measurement fidelity
• Three operational modes: Single-point vacuum hold (for pass/fail screening), stepwise pressure ramping (to assess creep deformation and burst threshold), and dynamic vacuum decay (for high-sensitivity leak quantification)
• High-resolution pressure transducer (0.01 kPa resolution, ≤Class 0.5 accuracy) with sub-5 ms response time ensures precise capture of transient leakage events
• Reinforced acrylic vacuum chamber (standard Φ270 × 210 mm H; optional larger configurations available) rated for continuous operation at –90 kPa with integrated anti-static coating
• Onboard 7-inch capacitive touchscreen interface with intuitive icon-driven navigation and multilingual UI support (English, Spanish, Portuguese)
• Real-time pressure curve visualization during test execution, with configurable autoscale and manual zoom functions
• Integrated pressure regulation system (0.2–0.7 MPa input range) with precision needle valve and digital feedback control for stable vacuum ramping
• Auto-compensated vacuum hold and controlled purge/bleed function for safe sample unloading and chamber recovery

Sample Compatibility & Compliance

The LT-02P accommodates a broad spectrum of soft-packaged formats including laminated pouches, aluminum foil sachets, stand-up pouches, stick packs, and flow-wrap tubes—commonly used for infant formula, nutritional supplements, powdered pharmaceuticals, and specialty food ingredients. Its chamber dimensions are configurable to accommodate stacked or oversized samples without compromising vacuum uniformity. The instrument complies with multiple international and industry-specific standards: ASTM D3078 (leak detection via bubble emission correlation), GB/T 15171 (flexible packaging seal strength), YBB00052005-2015 and YBB00122002-2015 (Chinese pharmaceutical packaging standards), and GB/T 27728-2011 (moisture barrier performance). For GMP/GLP environments, optional audit-trail firmware supports 21 CFR Part 11-compliant user authentication, electronic signatures, and immutable test record storage.

Software & Data Management

Embedded firmware enables local storage of up to 500 complete test records—including timestamp, operator ID, chamber pressure profile, pass/fail status, and user-defined batch/lot identifiers. Data export is supported via USB flash drive in CSV format for integration into LIMS or statistical process control platforms. Optional thermal or dot-matrix printer provides hard-copy output of summary reports with QR-coded traceability links. Firmware supports three-tier access control (Operator, Supervisor, Administrator), with password-protected parameter modification and calibration lockout—essential for quality assurance workflows requiring procedural governance.

Applications

• Verification of heat-seal integrity post-form-fill-seal (FFS) production
• Comparative evaluation of sealing parameters (temperature, dwell time, pressure) across material batches
• Post-distribution integrity testing after simulated transport conditions (drop, vibration, compression)
• Stability studies assessing seal degradation under accelerated aging (e.g., 40°C/75% RH)
• Supplier qualification and incoming inspection of pre-made pouches
• Root-cause analysis of field failures through controlled re-creation of failure thresholds

FAQ

What types of packaging defects can the LT-02P detect?
It identifies gross leaks (typically >5 µm), channel leaks along seal interfaces, incomplete heat seals, and micro-perforations induced by handling or environmental stress—provided they result in measurable pressure decay under defined vacuum conditions.

Is compressed air supply included with the instrument?
No. A clean, dry, oil-free compressed air source (minimum 0.8 MPa, ISO 8573-1 Class 2:2:2) must be provided by the user. An inline coalescing filter and pressure regulator are recommended upstream of the Φ6 mm inlet.

Can the LT-02P be validated per IQ/OQ/PQ protocols?
Yes. Documentation packages—including factory calibration certificates, traceable pressure standard references, and URS-aligned test scripts—are available upon request to support installation qualification (IQ), operational qualification (OQ), and performance qualification (PQ) activities.

Does the device support network connectivity or remote monitoring?
Standard configuration includes only local USB and printer interfaces. Ethernet or RS-485 modules are available as custom-engineered add-ons for centralized fleet management in multi-unit installations.

What maintenance is required for long-term reliability?
Routine checks include vacuum chamber O-ring inspection every 500 cycles, periodic verification of sensor zero drift using atmospheric reference, and annual recalibration against NIST-traceable pressure standards—per ISO/IEC 17025 guidelines.
