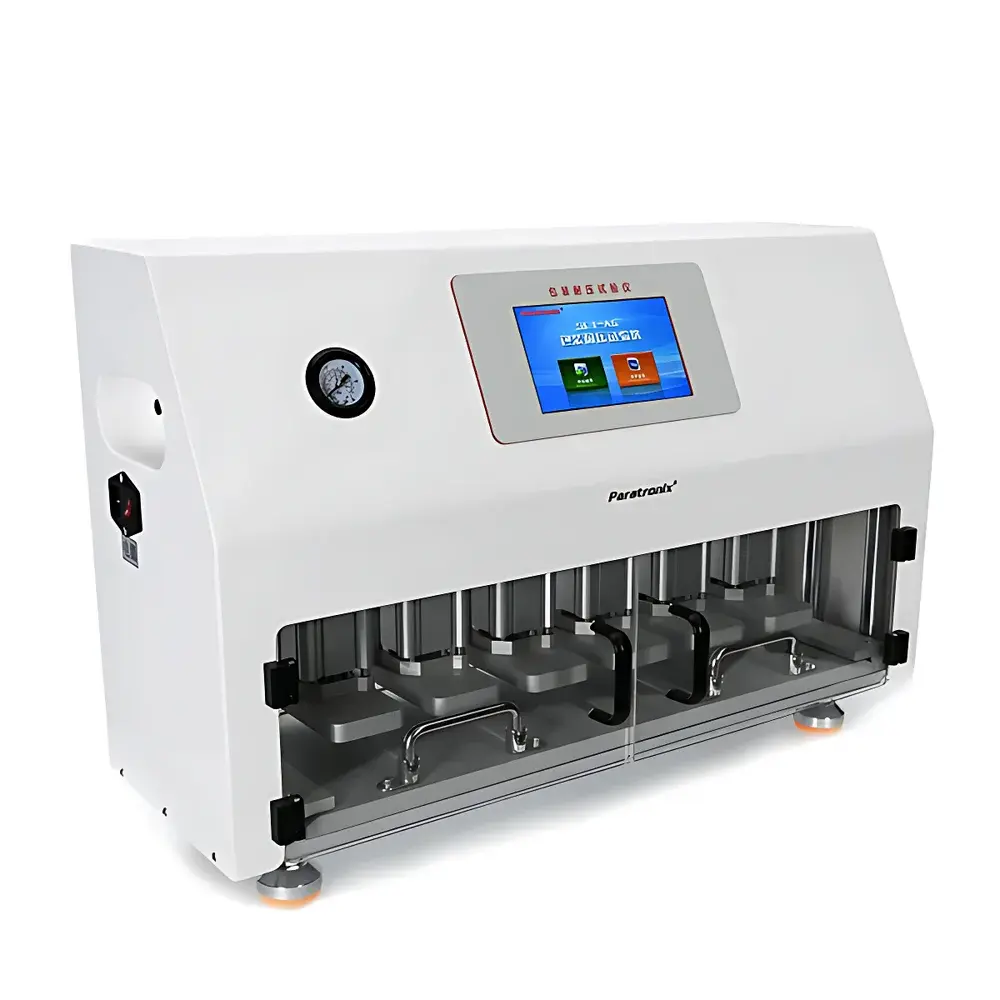

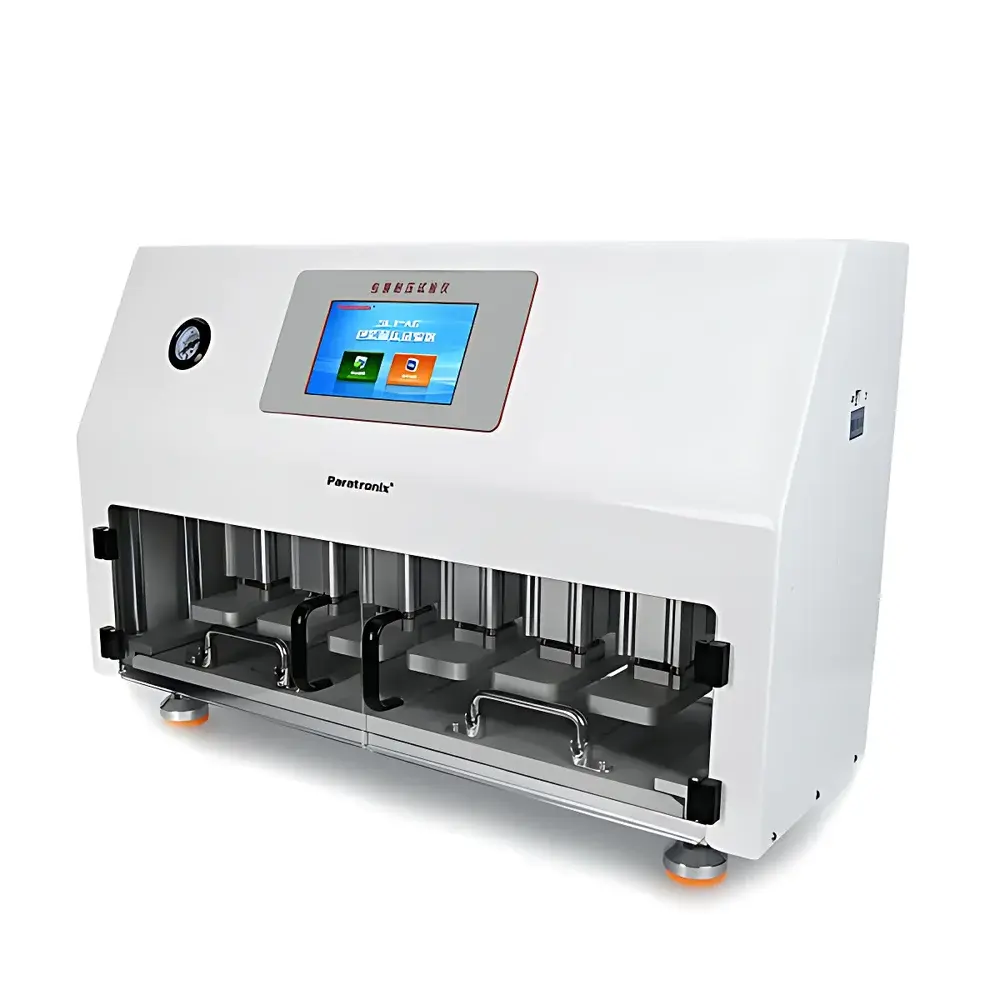

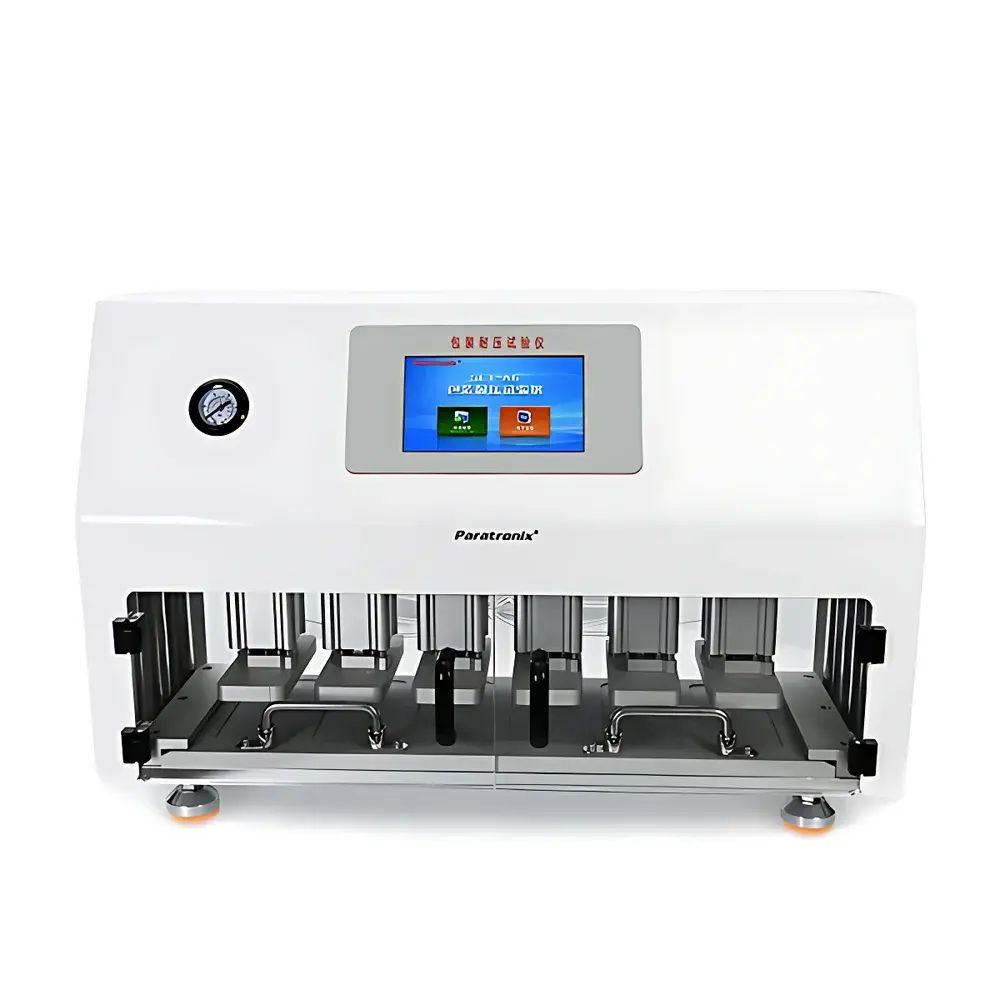

Paratronix SCT-A6 Sauce Pouch Compression Tester

Overview

The Paratronix SCT-A6 Sauce Pouch Compression Tester is an engineered solution for quantitative mechanical integrity assessment of flexible food pouches under controlled compressive loading. Designed specifically for sealed sauce packets—including instant noodle seasoning sachets, ketchup pouches, salad dressings, vegetable puree packs, fruit spreads, and whipped cream containers—the instrument applies uniform static pressure via pneumatic actuation to simulate real-world stacking, transport, and storage stresses. Its core operating principle relies on regulated compressed-air-driven vertical displacement of six independent compression platens, each aligned with a test specimen. The system maintains precise pressure setpoints (0.1–0.7 MPa) over user-defined durations (1.0 s to >11.5 days), enabling objective evaluation of seal failure modes such as leakage, burst, delamination, or micro-perforation. Unlike generic universal testers, the SCT-A6 integrates purpose-built fixturing, synchronized multi-station control, and regulatory-aligned timing resolution—making it suitable for routine QC screening, shelf-life validation, and packaging development in food manufacturing environments.

Key Features

• Six parallel test stations with individual platen alignment—enables high-throughput comparative analysis without cross-contamination or load interference.
• Microprocessor-based control system with 7-inch capacitive touchscreen HMI—supports intuitive parameter entry, real-time pressure monitoring, and timestamped test logging.
• Pneumatically actuated compression mechanism with precision pressure regulation via integrated proportional relief valve—ensures stable force application within ±1% of setpoint across full range.
• Programmable dwell time from 1.0 seconds to 999,999.9 seconds (≈11.57 days)—facilitates both rapid pass/fail checks and extended stress testing per ASTM F2054 and ISO 11607-2 protocols.
• Modular fixture design with standardized Φ8 mm polyurethane air interface—compatible with standard industrial air supplies (0.7–0.8 MPa required; not included).
• Robust aluminum frame and tempered glass observation panels—provides structural stability and unobstructed visual inspection of seal integrity during compression.

Sample Compatibility & Compliance

The SCT-A6 accommodates standard retail-format sauce pouches up to 120 mm wide × 80 mm tall × 30 mm thick (maximum compressed height). Its six-position layout supports identical or mixed sample types within a single run, provided dimensional consistency allows uniform platen contact. The instrument complies with functional requirements outlined in ASTM F1140/F1140M (Internal Pressurization of Flexible Packages) and ISO 11607-2 (Packaging for Terminally Sterilized Medical Devices – Part 2: Validation Requirements), though its primary validation scope targets food-grade laminated structures (e.g., PET/AL/PE, CPP/PE, and metallized OPP composites). All timing and pressure data are traceable to internal clock calibration; for GLP/GMP environments, users may implement external audit logs or integrate with LIMS via RS232 output (optional firmware upgrade available).

Software & Data Management

The embedded control firmware records test parameters (set pressure, duration, start/stop timestamps) and operator ID (via manual entry) for each cycle. Data export is supported via USB flash drive in CSV format—structured with columns for test ID, date/time, station number, applied pressure (MPa), elapsed time (s), and pass/fail annotation (manually entered post-inspection). While the base configuration does not include network connectivity or electronic signature capability, the system architecture permits future compliance with FDA 21 CFR Part 11 through third-party middleware integration for audit trail generation, role-based access control, and electronic record retention—subject to site-specific validation protocols.

Applications

• Quality assurance of heat-sealed flexible packaging in food production lines—particularly for low-acid, high-moisture, or oil-containing sauces where seal degradation risks microbial ingress.
• Comparative evaluation of new sealant formulations, film laminations, or sealing equipment parameters (e.g., temperature, dwell time, pressure) during R&D.
• Validation of packaging performance under simulated distribution conditions—aligned with ISTA 3A or ASTM D4169 load profiles when combined with environmental chamber staging.
• Contract testing services offered by certified food laboratories seeking ISO/IEC 17025-compliant mechanical integrity reporting.
• Educational use in food science and packaging engineering curricula for hands-on demonstration of package failure mechanics and accelerated aging principles.

FAQ

Does the SCT-A6 include an integrated air compressor?
No. The instrument requires an externally supplied clean, dry compressed air source delivering 0.7–0.8 MPa at minimum 10 L/min flow rate. Users must provide appropriate filtration (5 µm) and moisture removal.
Can test results be automatically classified as pass/fail?
The system logs raw parameters but does not perform automated optical or sensor-based leak detection. Pass/fail determination remains visual and operator-assigned post-test, consistent with ASTM F2096 bubble emission methodology.
Is calibration certification included with shipment?
A factory calibration report verifying pressure transducer linearity (NIST-traceable reference) and timer accuracy is provided. Annual recalibration is recommended per ISO/IEC 17025 guidelines.
What maintenance is required for long-term reliability?
Monthly inspection of pneumatic seals, quarterly lubrication of cylinder rods with food-grade silicone grease, and annual verification of HMI touchscreen responsiveness and button actuation thresholds.
Are custom platen geometries available?
Yes. Paratronix offers OEM-designed platens (e.g., contoured, perforated, or heated variants) under NRE agreement—subject to minimum order quantity and lead time confirmation.
