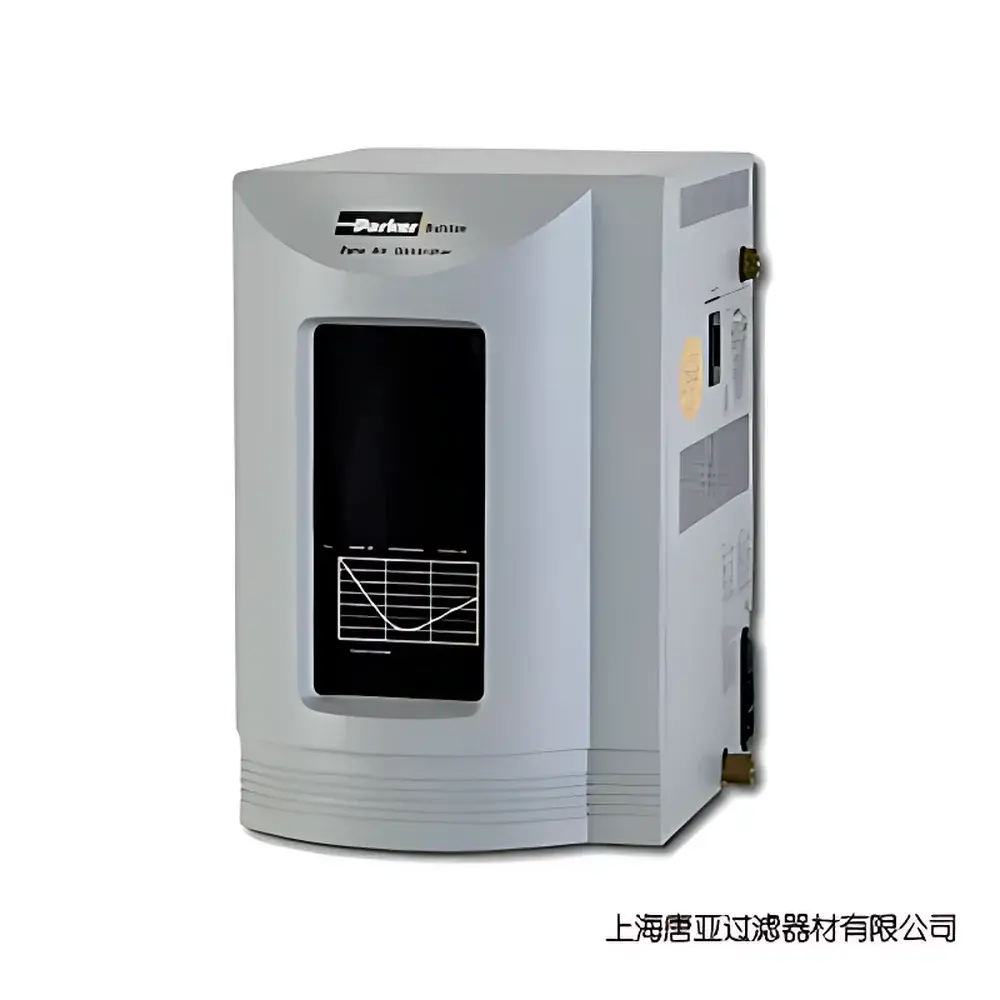

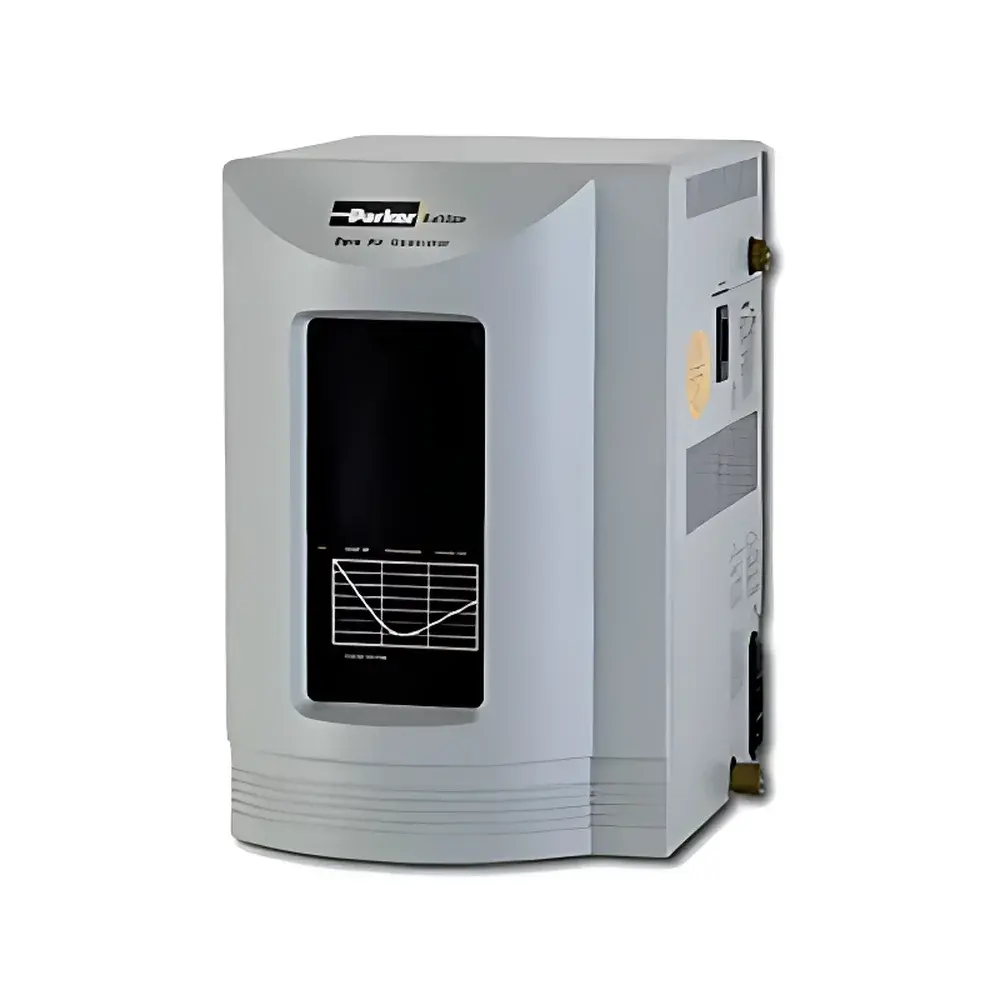

Parker TOC-1250 Hydrocarbon- and CO₂-Free Gas Generator

Overview

The Parker TOC-1250 is an engineered gas generation system designed exclusively to supply ultra-pure, hydrocarbon-free and carbon dioxide-free compressed air or nitrogen-enriched gas to Total Organic Carbon (TOC) analyzers. Unlike conventional high-pressure gas cylinders—whose purity degrades over time and introduces risk of contamination—the TOC-1250 employs a dual-stage purification architecture: catalytic oxidation followed by selective adsorption and membrane-based CO₂ removal. This ensures continuous delivery of gas meeting or exceeding the stringent purity specifications mandated by leading TOC instrument manufacturers (e.g., GE Analytical Instruments, Shimadzu, Systec, and Hach). The system operates on-line without interruption, eliminating cylinder changeovers, pressure fluctuations, and associated downtime—critical for laboratories performing regulated water quality testing in pharmaceutical, biotechnology, and power generation applications.

Key Features

• Integrated catalytic converter and high-efficiency CO₂ scrubber delivering sustained purity of < 0.1 ppm total hydrocarbons and < 0.5 ppm CO₂—validated per ISO 8573-1 Class 1 requirements for hydrocarbon and CO₂ content
• Real-time operational status display with LED indicators for inlet pressure, catalyst temperature, desiccant saturation, and flow stability—enabling immediate visual verification of system readiness
• Compact footprint (320 × 500 × 580 mm) optimized for benchtop integration in space-constrained analytical labs; no external ventilation or exhaust ducting required
• Robust architecture featuring stainless-steel gas pathways, corrosion-resistant internal components, and fail-safe pressure regulation compliant with UL 61010-1 safety standards
• Low-maintenance design with service intervals exceeding 12 months under typical usage; only two consumables—oxidation catalyst cartridge and CO₂ adsorption module—require scheduled replacement
• Automatic self-diagnostics at startup and during operation, logging event timestamps and fault codes accessible via front-panel interface for GLP-compliant troubleshooting

Sample Compatibility & Compliance

The TOC-1250 is compatible with all commercially available TOC analyzers requiring carrier or oxidant gas with ≤ 0.1 ppm hydrocarbon and ≤ 0.5 ppm CO₂ specifications—including combustion-based, UV-persulfate, and electrochemical detection platforms. It supports both ambient air intake and optional nitrogen-inlet configurations (via external N₂ supply), enabling seamless adaptation to instrument-specific gas architecture. The system conforms to ISO 8573-1:2010 Class 1 for gaseous contaminants, meets CE marking requirements for electromagnetic compatibility (EMC Directive 2014/30/EU) and low-voltage safety (LVD Directive 2014/35/EU), and is validated for use in environments governed by FDA 21 CFR Part 11 when paired with compliant TOC data systems. Its design facilitates audit-ready documentation for GMP, GLP, and ISO/IEC 17025-accredited laboratories.

Software & Data Management

While the TOC-1250 operates as a standalone hardware system without embedded software, its operational parameters—including runtime hours, catalyst thermal profile, and pressure deviation logs—are stored locally in non-volatile memory and retrievable via the front-panel interface. For laboratories requiring electronic record retention, Parker provides a USB export utility (included with firmware v2.3+) that generates timestamped CSV files containing maintenance alerts, system health snapshots, and calibration history—supporting traceability requirements under 21 CFR Part 11 when used in conjunction with validated laboratory information management systems (LIMS). Audit trails are immutable and include user ID, action type, and system-generated digital signature.

Applications

• Pharmaceutical water systems: Purified Water (PW), Water for Injection (WFI), and Clean Steam condensate monitoring per USP <643>, EP 2.2.44, and JP 2.59
• Biotechnology process water validation: Feedwater, buffer preparation, and final rinse monitoring across upstream and downstream unit operations
• Nuclear power plant primary coolant and secondary loop water chemistry control
• Environmental compliance testing: EPA Method 415.3 and ASTM D7573-21 for drinking water, wastewater, and surface water TOC analysis
• Microelectronics ultrapure water (UPW) qualification per SEMI F63 standards

FAQ

What gas purity levels does the TOC-1250 guarantee, and how are they verified?
The system delivers ≤ 0.1 ppm total hydrocarbons and ≤ 0.5 ppm CO₂ continuously, validated using certified gas chromatography–flame ionization detection (GC-FID) and non-dispersive infrared (NDIR) CO₂ analyzers calibrated per ISO 6141. Certificate of Conformance with batch-specific test data is provided with each unit.
Can the TOC-1250 replace both oxygen and nitrogen cylinders?
Yes—it generates purified compressed air suitable as carrier gas for UV-persulfate TOC analyzers and, when configured with optional nitrogen feed, supplies CO₂-free N₂ for high-temperature combustion instruments.
Is annual maintenance mandatory, and what does it entail?
Annual preventive maintenance is recommended but not strictly mandatory; it includes catalyst activity verification, CO₂ adsorbent capacity assessment, and pressure regulator calibration—all documented in the service log per ISO/IEC 17025 clause 7.7.
Does the TOC-1250 require external cooling or exhaust venting?
No. The system is air-cooled and operates silently at < 55 dBA; all reaction byproducts (e.g., trace CO₂, H₂O vapor) are retained internally via integrated desiccant and adsorption media.
How does the TOC-1250 support regulatory audits?
It provides timestamped operational logs, maintenance records, and certificates of conformance—fully compatible with ALCOA+ data integrity principles and readily importable into LIMS or electronic lab notebooks (ELN) for audit trail reconstruction.
