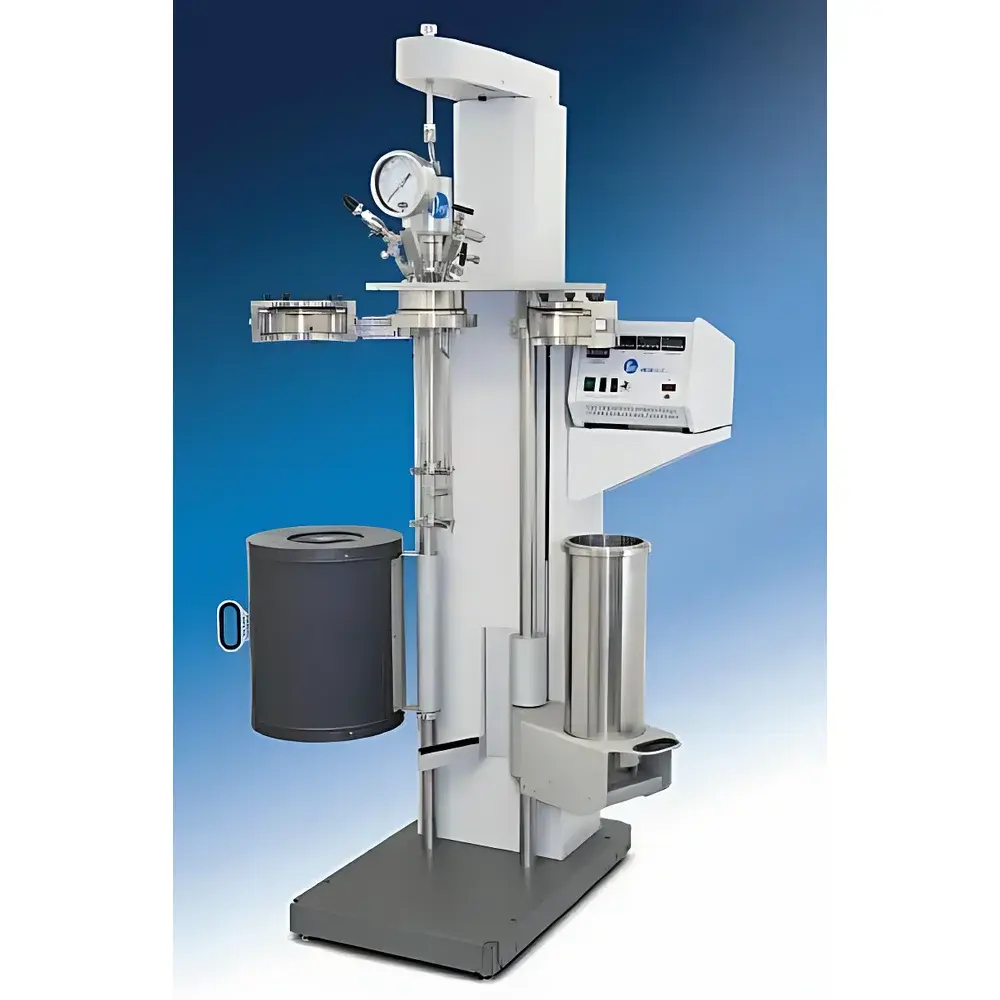

Parr 4550 Series High-Pressure Laboratory Reactor
| Brand | Parr |
|---|---|
| Origin | USA |
| Model | 4550 Series |
| Volume Options | 3.75 L (1 gal) and 7.5 L (2 gal) |
| Max Operating Temperature | 350 °C |
| Max Operating Pressure | 130 atm |
| Construction Materials | 316 Stainless Steel, Hastelloy® C-276, Hastelloy® C-2000 |
| Certifications | ASME BPVC Section VIII Div. 1, CSA, CE, uV, ISO 9001 |
Overview
The Parr 4550 Series High-Pressure Laboratory Reactor is an engineered platform for controlled, scalable chemical synthesis under elevated temperature and pressure conditions. Designed and manufactured by Parr Instrument Company—a U.S.-based leader in high-pressure reaction systems since 1916—the 4550 Series implements a robust stirred-tank architecture based on proven Couette-flow agitation, precision temperature control via electric cartridge heaters and thermocouple feedback loops, and redundant mechanical and electronic pressure regulation. Its modular design supports both benchtop and floor-standing configurations, enabling seamless transition from discovery-phase screening to process development-scale experiments. The reactor operates within a validated envelope of up to 350 °C and 130 atm, making it suitable for demanding applications including hydrogenation, hydrothermal synthesis, supercritical fluid reactions, and catalytic kinetics studies where reproducibility, material compatibility, and long-term operational integrity are critical.
Key Features
- ASME-certified pressure vessel construction with full traceability of materials, weld procedures, and non-destructive testing (NDT) records per Section VIII Div. 1 requirements
- Dual-stage pressure control system comprising a primary rupture disk and secondary pressure relief valve, integrated with real-time digital pressure monitoring and programmable overpressure shutdown
- High-torque magnetic drive agitator (up to 50 N·cm torque) with ceramic bearing support and gas-tight shaft seal, eliminating leakage pathways while maintaining rotational stability at high viscosities
- Modular heating/cooling jacket with independent PID-controlled zones—enabling rapid ramp rates (up to 10 °C/min) and sub-±0.5 °C temperature uniformity across the reaction volume
- Interchangeable liner options including glass-lined, Hastelloy® C-276, and Hastelloy® C-2000 alloys to ensure compatibility with highly corrosive reagents (e.g., HF, hot HCl, molten salts)
- Standardized 1/4″ NPT and 3/8″ VCR ports for integration with external gas manifolds, liquid dosing pumps, sampling loops, and online analytical interfaces (e.g., FTIR, Raman, or GC sampling valves)
Sample Compatibility & Compliance
The 4550 Series accommodates heterogeneous, multiphase, and viscous reaction mixtures—including slurries, suspensions, and polymer melts—without compromising mixing efficiency or thermal homogeneity. Its pressure-rated view port (optional quartz or sapphire) allows visual monitoring and in situ spectroscopic observation. All standard configurations comply with international safety and quality frameworks: ASME BPVC Section VIII Div. 1 (U Stamp), CSA B51, PED 2014/68/EU (CE marking), and ISO 9001:2015 certified manufacturing processes. For regulated environments (e.g., pharmaceutical process validation), optional audit-trail-enabled controllers meet FDA 21 CFR Part 11 requirements when paired with Parr’s compliant data acquisition software.
Software & Data Management
Parr’s proprietary Reactor Control Software (RCS v5.x) provides full remote operation via Ethernet or USB interface, supporting multi-parameter logging (T, P, RPM, torque, heater power) at user-defined intervals down to 100 ms resolution. Data files are exported in CSV and XML formats compatible with LIMS and ELN platforms. The software includes preconfigured method templates aligned with ASTM E2074 (kinetic analysis), ISO 11224 (pressure system safety), and USP (analytical instrument qualification). Optional GMP-compliant mode enables electronic signatures, role-based access control, and immutable audit trails for GLP/GMP audits.
Applications
- Catalytic hydrogenation and hydrotreating under syngas or pure H₂ atmospheres
- Hydrothermal carbonization and biomass liquefaction
- High-pressure polymerization of olefins and dienes
- Solvothermal synthesis of MOFs, perovskites, and nanomaterials
- Corrosion testing of alloys in simulated geothermal or refinery service environments
- Kinetic modeling of exothermic nitration, oxidation, and esterification reactions
FAQ
What safety certifications apply to the Parr 4550 Series?
The reactor carries ASME U-Stamp certification, CSA B51 registration, CE marking under PED 2014/68/EU, and UL/cUL recognition for electrical components.
Can the 4550 Series be integrated into automated reaction screening platforms?
Yes—standard digital I/O and Modbus TCP protocols enable synchronization with robotic liquid handlers, gas delivery modules, and third-party process analyzers.
Is custom engineering available for non-standard pressure/temperature envelopes?
Parr offers qualified design extensions up to 500 °C and 200 atm upon request, subject to ASME code case approval and additional NDE verification.
How is temperature calibrated and verified during operation?
Each unit ships with NIST-traceable calibration certificates for all embedded RTDs and thermocouples; users may perform in-situ verification using dual-sensor comparison or external reference probes.
What maintenance intervals are recommended for the magnetic drive and pressure seals?
Magnetic coupling inspection is advised annually or after 2,000 operating hours; static O-rings are replaced per preventive maintenance schedule (typically every 18 months), while dynamic shaft seals require replacement only following documented performance deviation or leak test failure.
