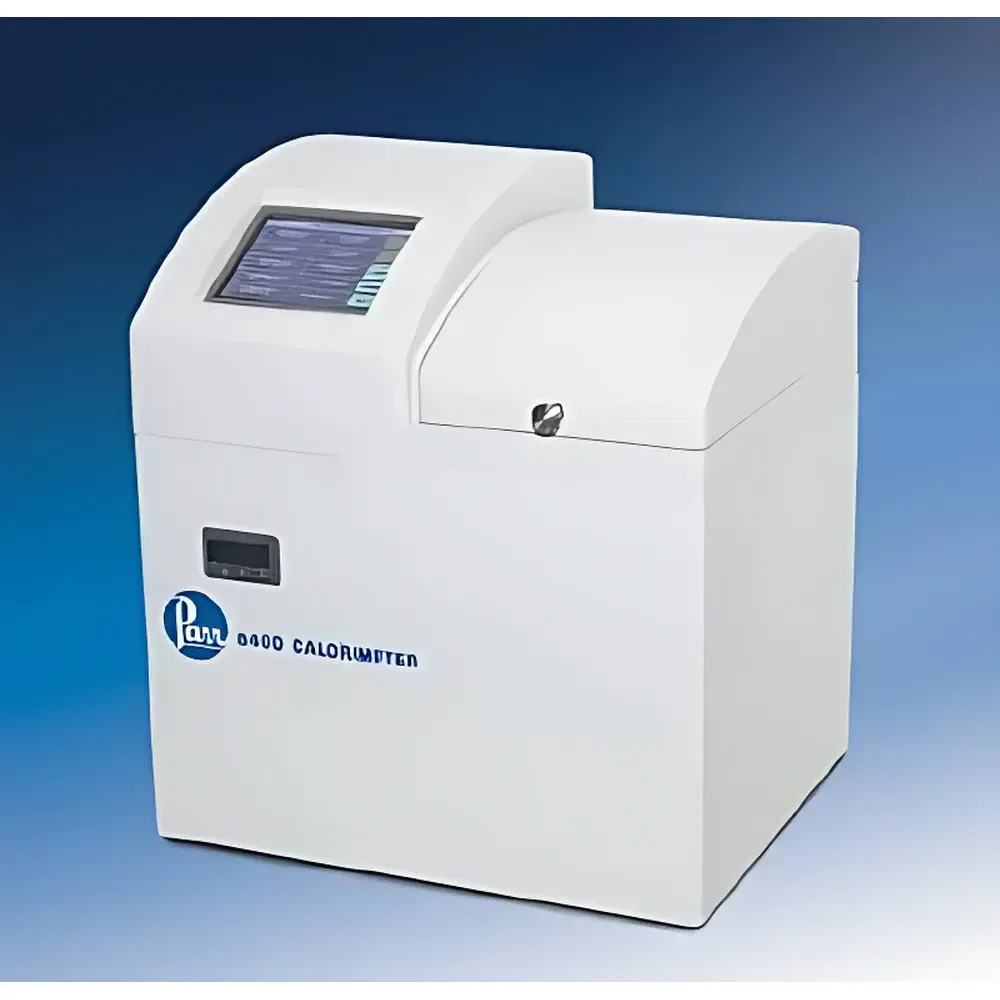

Parr 6400 Isoperibol Oxygen Bomb Calorimeter

Overview

The Parr 6400 Isoperibol Oxygen Bomb Calorimeter is a fifth-generation high-precision instrument engineered for accurate determination of gross calorific value (GCV) in solid, liquid, and slurry fuels, foodstuffs, waste materials, and energetic compounds. Operating on the isoperibol principle, it maintains a constant-temperature outer water jacket—thermally isolated from the inner combustion chamber—enabling highly reproducible heat transfer measurements during exothermic combustion reactions. The system utilizes a fixed-jacket oxygen bomb design with automated pressurization to 30 bar using high-purity oxygen, ensuring complete and consistent sample oxidation. Its core architecture integrates a platinum resistance thermometer (PRT) with 0.0001 °C resolution, coupled with proprietary thermal compensation algorithms that correct for heat exchange with the environment, electrical calibration drift, and stirring-induced thermal effects. Designed for compliance with ASTM D240, D4809, D5865, ISO 1928, and GB/T 213, the 6400 delivers traceable, audit-ready results suitable for quality control laboratories, regulatory submissions, and R&D environments requiring GLP/GMP alignment.

Key Features

• Fully automated workflow: integrated control of oxygen charging, jacket water filling, pressure release, post-combustion bomb rinsing, and result reporting—eliminating manual intervention and operator-induced variability.
• Touchscreen LCD interface with intuitive menu navigation, real-time status monitoring, and context-sensitive error diagnostics—including self-test routines for temperature sensor verification, stirrer motor function, and valve actuation integrity.
• High-resolution thermal measurement: 0.0001 °C temperature resolution enables detection of minute thermal changes, supporting sub-0.1% relative standard deviation (RSD) precision across repeated determinations of homogeneous reference materials (e.g., benzoic acid NIST SRM 39j).
• Dual-volume water system: 2 L outer jacket volume ensures thermal stability; 342 mL inner bucket volume optimizes response time while maintaining sufficient thermal mass for low-noise signal acquisition.
• Ethernet-enabled connectivity for remote configuration, firmware updates, and secure data export—compatible with LIMS integration and compliant with FDA 21 CFR Part 11 requirements when deployed with validated software configurations.
• Flash memory-based firmware architecture allows rapid program recovery in case of corruption—ensuring operational continuity without service downtime or external reprogramming tools.

Sample Compatibility & Compliance

The Parr 6400 accommodates a broad range of sample matrices including coal, biomass pellets, petroleum coke, municipal solid waste, pharmaceutical excipients, and nutritional standards. Optional specialized bombs—including sulfur-resistant nickel-chromium alloy variants and halogen-trapping configurations—are available to mitigate corrosion and ensure quantitative capture of acidic combustion products. All configurations comply with ISO/IEC 17025 method validation requirements and support full uncertainty budgeting per GUM (Guide to the Expression of Uncertainty in Measurement). Instrument qualification documentation includes IQ/OQ protocols aligned with ASTM E1509 and USP , facilitating installation in regulated environments subject to FDA, EPA, or EU Notified Body audits.

Software & Data Management

The embedded operating system provides local data storage for up to 1,000 test records, each containing raw temperature-time profiles, calibration coefficients, operator ID, date/time stamps, and environmental metadata (ambient temperature, barometric pressure). Export formats include CSV and XML for seamless ingestion into statistical analysis platforms (e.g., JMP, Minitab) or enterprise QA systems. Audit trail functionality logs all user actions—including parameter modifications, calibration events, and report generation—with immutable timestamps. When paired with Parr’s optional CalWin™ PC software, users gain access to advanced curve-fitting algorithms, multi-point calibration management, and automated report generation conforming to ISO 17025 clause 7.8.2.

Applications

• Fuel certification labs performing routine ASTM D5865 testing on coal and coke samples for energy trading contracts.
• Waste-to-energy facilities validating lower heating value (LHV) inputs for boiler efficiency modeling and emissions reporting.
• Food science departments quantifying metabolizable energy content per AOAC 968.12 and ISO 9831.
• Explosives research groups assessing detonation energy density of novel energetic formulations.
• Academic thermodynamics laboratories conducting fundamental studies on combustion enthalpy and reaction kinetics.

FAQ

What standards does the Parr 6400 support for calorific value determination?
ASTM D240 (petroleum products), D4809 (liquid fuels), D5865 (solid fuels), ISO 1928 (solid mineral fuels), ISO 9831 (food), and GB/T 213 (Chinese national standard for coal).
Can the 6400 be integrated into an existing LIMS environment?
Yes—via Ethernet TCP/IP communication using ASCII-based command protocol or optional OPC UA server module for secure bidirectional data exchange.
Is the temperature sensor NIST-traceable?
Yes—the integrated Pt100 sensor is supplied with individual calibration certificate traceable to NIST Standard Reference Materials (SRMs), with recalibration intervals recommended annually or per 500 test cycles.
What maintenance is required to sustain 0.1% precision over time?
Routine cleaning of the oxygen bomb and inner bucket after each use; quarterly verification of stirrer torque and jacket water level sensors; annual full-system calibration using certified benzoic acid standards.
Does the instrument support dual-bomb operation or parallel testing?
No—the 6400 is a single-bomb platform optimized for sequential high-reproducibility analysis; throughput is maximized via 6–7 minute cycle time rather than hardware parallelism.
