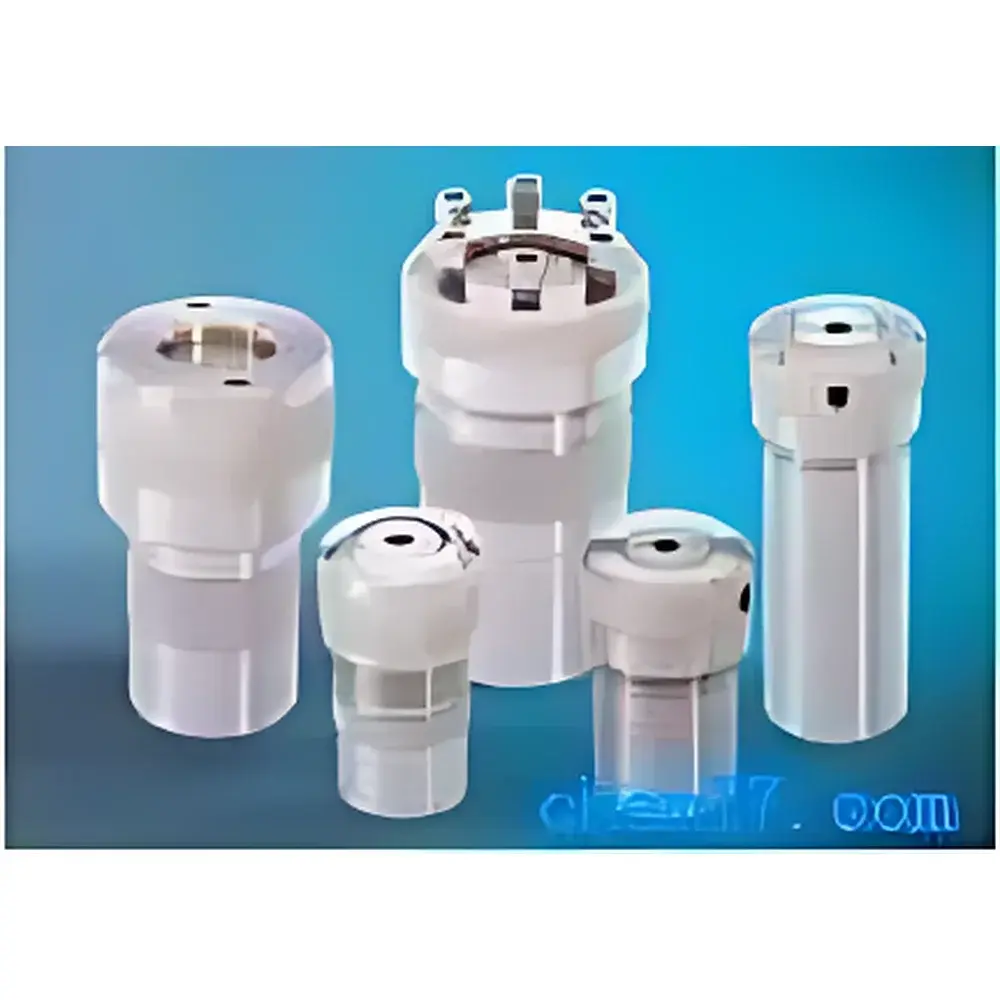

PARR Acid Digestion Bomb

Overview

The PARR Acid Digestion Bomb is a high-pressure, closed-vessel digestion system engineered for the complete mineralization of refractory solid samples prior to elemental analysis by atomic absorption spectroscopy (AAS), inductively coupled plasma optical emission spectrometry (ICP-OES), or inductively coupled plasma mass spectrometry (ICP-MS). It operates on the principle of sealed-vessel acid decomposition under elevated temperature and pressure, enabling rapid and quantitative dissolution of matrices that resist open-beaker digestion—including silicates, metal oxides, ceramics, geological specimens (e.g., ores and sediments), glasses, polymers, biological tissues, and pharmaceutical excipients. The device’s robust stainless steel housing—combined with a chemically inert, high-purity PTFE (polytetrafluoroethylene) liner—ensures compatibility with aggressive reagent combinations such as hydrofluoric acid (HF), hydrochloric acid (HCl), nitric acid (HNO₃), sulfuric acid (H₂SO₄), and aqua regia, while preventing cross-contamination and minimizing blank contributions critical for sub-ppq trace metal quantification.

Key Features

• Pressure-rated stainless steel vessel body with precision-machined sealing interface and dual-safety pressure relief mechanism
• PTFE (Teflon) liner certified to USP Class VI and ASTM D4894 standards, resistant to HF and other strong acids up to 250 °C
• Rated operational envelope: continuous use at ≤250 °C and ≤1800 psig; short-term tolerance up to 5000 psig for controlled ramp-and-hold protocols
• Scalable sample capacity: interchangeable liners support volumes from 23 mL (micro-digestion) to 125 mL (bulk digestion), accommodating both low-mass reference materials and heterogeneous field samples
• Autoclave-compatible design—validated for integration with programmable hot-block heaters, digital ovens, and microwave-assisted digestion platforms meeting IEC 61000-4-3 EMC requirements
• No external power or electronics required; fully passive mechanical operation ensures intrinsic safety and long-term reliability in regulated laboratories

Sample Compatibility & Compliance

The PARR Acid Digestion Bomb supports digestion of diverse sample types across environmental, geochemical, clinical, and industrial quality control laboratories. Certified performance includes complete dissolution of quartz, feldspar, alumina ceramics, stainless steel swarf, coal fly ash, plant tissue, and polymer composites. Its design conforms to key regulatory frameworks governing sample preparation integrity: EPA Methods 3050B (for soils/sediments), 3051A (microwave-assisted), and 3052 (high-pressure digestion); ASTM D5174 (trace metals in water by ICP-MS after digestion); ISO 11466 (heavy metals in soils); and USP (heavy metals limit tests). When used with documented SOPs and calibrated thermocouple monitoring, the system satisfies GLP and GMP audit requirements for traceability, including full batch-level record retention of digestion time, temperature profile, and acid addition sequence.

Software & Data Management

As a hardware-only digestion platform, the PARR Acid Digestion Bomb does not incorporate embedded firmware or proprietary software. However, it is fully compatible with laboratory information management systems (LIMS) and electronic lab notebooks (ELN) via standardized metadata tagging (e.g., ISO/IEC 17025-compliant instrument logs). Users routinely integrate digestion run parameters—including vessel ID, sample weight, acid type/volume, ramp rate, hold duration, and final pressure reading—into validated CSV or XML export pipelines aligned with FDA 21 CFR Part 11 audit trail specifications. Optional third-party thermal profiling modules (e.g., Omega iSeries loggers with NIST-traceable calibration) provide timestamped, encrypted temperature/pressure datasets suitable for regulatory submission.

Applications

• Preparation of certified reference materials (CRMs) for multi-element calibration curves in ICP-MS laboratories
• Digestion of high-silica content samples (e.g., diatomaceous earth, Portland cement) requiring HF-based attack
• Trace metal recovery from airborne particulate filters (PM₂.₅/PM₁₀) for environmental compliance reporting
• Leachate analysis of medical device polymers per ISO 10993-12 extraction protocols
• Decomposition of spent catalysts and battery electrode materials for recycling process development
• Routine QC digestion of pharmaceutical active ingredients and excipients prior to heavy metals testing per ICH Q2(R2)

FAQ

Can the PARR Acid Digestion Bomb be used with hydrofluoric acid (HF)?

Yes—the PTFE liner is specifically selected for HF resistance and validated for repeated exposure at temperatures up to 250 °C. Always follow institutional chemical hygiene plans and use appropriate PPE (e.g., calcium gluconate gel, HF-rated gloves).
What is the recommended cleaning protocol between runs?

Rinse thoroughly with deionized water, followed by 10% HNO₃ soak (60 min), ultrasonic agitation (15 min), and final DI water rinse. Validate cleanliness via blank analysis using ICP-MS detection limits.
Is pressure monitoring possible during digestion?

While the bomb itself lacks integrated sensors, externally mounted pressure transducers (e.g., Keller PA-23Y series) with 0–10,000 psig range can be coupled via threaded port adapters compliant with ASME B16.5 Class 300 flange standards.
How does this compare to microwave digestion systems?

Unlike microwave platforms, the PARR bomb delivers uniform conductive heating without dielectric limitations—enabling consistent digestion of low-loss materials (e.g., graphite, TiO₂) and eliminating arcing risks. It also avoids magnetron aging and cavity calibration drift.
Are replacement liners and O-rings available through authorized distributors?

Yes—genuine PARR PTFE liners (P/N 4949-PTFE), Viton® O-rings (P/N 4949-O-RING), and torque wrench calibration kits are stocked globally and supplied with lot-specific CoA and extractables testing data per USP .
