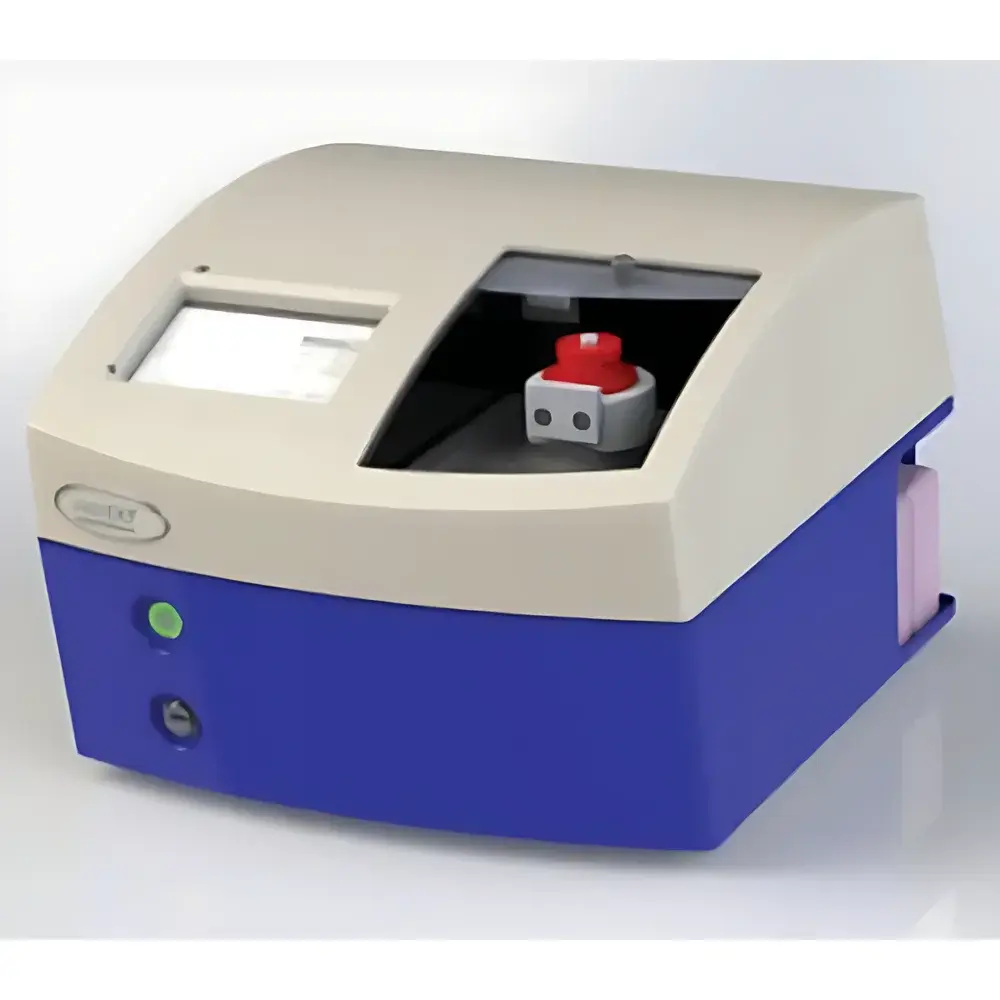

PBI Barocycler® 2320EXT Pressure Cycling Technology (PCT) System
| Brand | PBI |
|---|---|
| Origin | USA |
| Model | Barocycler® 2320EXT |
| Pressure Range | Ambient (14.7 psi) to 45,000 psi (310 MPa) |
| Temperature Control Range | 4 °C to 95 °C |
| Sample Mass Capacity | 0.2–3 mg |
| Throughput | Up to 16 samples per run |
| Actuation Medium | Deionized Water |
| Input Gas Requirement | 110 psi compressed air or nitrogen |
| Interface | Touchscreen with real-time pressure/temperature curve display |
| Pressure Profiles | Pulse, Ramp, Waveform, Static |
| Data Logging | Full parameter recording, method storage, exportable CSV logs |
| Compliance | Designed for GLP-compliant workflows |
Overview
The PBI Barocycler® 2320EXT is an engineered platform for Pressure Cycling Technology (PCT), a patented physical sample preparation methodology that subjects biological specimens to rapid, controlled transitions between ambient hydrostatic pressure (14.7 psi) and extreme pressure (up to 45,000 psi / 310 MPa). Unlike thermal or mechanical lysis methods, PCT exploits reversible pressure-induced perturbations in non-covalent molecular interactions—such as hydrogen bonding, hydrophobic effects, and van der Waals forces—to disrupt cellular membranes, denature protein complexes, and enhance enzymatic accessibility without inducing irreversible chemical modification or thermal degradation. This principle enables highly reproducible, quantitative release of intracellular biomolecules—including proteins, phosphoproteins, membrane receptors, nucleic acids, and lipids—from challenging sample types such as fibrous tissue, formalin-fixed paraffin-embedded (FFPE) sections, and low-abundance clinical biopsies. The system operates under fully programmable, closed-tube conditions, eliminating cross-contamination risk and manual handling variability inherent in bead-beating or sonication protocols.
Key Features
- High-fidelity pressure actuation: Achieves full 45,000 psi cycling in <100 ms with sub-second dwell control, enabling precise kinetic modulation of protein unfolding and protease binding kinetics.
- Dual-mode temperature management: Integrated resistive heating jacket (standard) supports stable isothermal operation from 4 °C to 95 °C; optional water-circulating bath adds active cooling capability for thermosensitive applications.
- 16-position parallel processing: Uses standardized PCT MicroPestles™—disposable, sterile, low-binding stainless-steel pestles—ensuring consistent mechanical coupling and eliminating carryover between runs.
- Comprehensive digital workflow integration: Touchscreen interface displays real-time pressure/temperature curves, stores user-defined methods with versioning, and exports timestamped CSV logs compliant with laboratory information management system (LIMS) ingestion standards.
- Engineered safety architecture: Insulated reaction chamber lid prevents operator contact with heated surfaces; pressure vessel meets ASME BPVC Section VIII Div. 1 certification requirements; automatic pressure decay interlock halts operation if seal integrity is compromised.
- Flexible pressure profiling: Supports pulse (on/off), ramp (linear ascent/descent), waveform (sinusoidal or custom-defined), and static hold modes—enabling empirical optimization for specific analyte classes or digestion enzymes (e.g., trypsin, Lys-C, Asp-N).
Sample Compatibility & Compliance
The Barocycler® 2320EXT accommodates diverse biological matrices including fresh/frozen mammalian tissues, FFPE cores, microbial pellets, extracellular vesicles, and cryopreserved PBMCs. Sample input ranges from 0.2 mg to 3 mg wet weight per tube, with validated performance across proteomic, phosphoproteomic, and interactomic workflows. The system conforms to ISO 13485 design controls for in vitro diagnostic (IVD) development environments and supports Good Laboratory Practice (GLP) and Good Manufacturing Practice (GMP) documentation requirements. When configured with network connectivity and user-access controls, it provides audit-trail functionality aligned with FDA 21 CFR Part 11 for electronic records and signatures—critical for regulated biomarker discovery and clinical assay development.
Software & Data Management
The embedded firmware enables method creation, execution scheduling, and post-run data review without external software dependencies. Each run automatically archives pressure setpoints, actual pressure trace, temperature profile, cycle count, and elapsed time. Exported datasets include calibrated pressure (psi/MPa) and temperature (°C) values at 100 Hz resolution, facilitating downstream statistical analysis of lysis efficiency or digestion kinetics. Method files are encrypted and digitally signed to prevent unauthorized modification. Optional PBI PCT Manager™ software (Windows-based) extends capabilities with batch method deployment, multi-instrument fleet monitoring, and integration with Thermo Fisher Proteome Discoverer™ and Waters UNIFI™ platforms via API.
Applications
- Rapid, unbiased protein extraction from difficult tissues (e.g., brain, heart, tumor biopsies) prior to LC-MS/MS analysis.
- Accelerated bottom-up proteomics: Complete cell lysis + tryptic digestion achieved in ≤4 hours versus overnight conventional protocols—reducing missed cleavages and oxidation artifacts.
- Enhanced recovery of membrane proteins and protein complexes by transiently disrupting lipid bilayers while preserving native conformational epitopes.
- FFPE-compatible de-crosslinking and antigen retrieval for mass spectrometry imaging (MSI) and targeted MRM assays.
- Controlled activation of latent proteases or kinases in signaling pathway studies through pressure-mediated allosteric modulation.
- Standardized sample prep for longitudinal biomarker validation studies requiring inter-laboratory reproducibility (CV <8% across >50 independent runs).
FAQ
What pressure media does the Barocycler® 2320EXT require?
Deionized or distilled water is the standard and only recommended pressure transmission medium. No oils or organic solvents are compatible with the system’s hydraulic seals or pressure transducers.
Can the system perform simultaneous heating and cooling during a run?
The standard heating jacket provides only heating functionality. Active cooling requires the optional recirculating chiller-compatible water bath accessory, which enables bidirectional temperature control from 4 °C to 95 °C.
Is method transfer between Barocycler instruments supported?
Yes—method files (.pctm) created on the 2320EXT are backward-compatible with all current-generation PBI PCT platforms, ensuring seamless protocol migration across lab sites or instrument upgrades.
How is pressure calibration maintained over time?
The system includes a factory-calibrated, NIST-traceable piezoresistive pressure sensor with annual recalibration guidance. Users may perform field verification using certified deadweight testers connected to the service port.
Does PCT introduce oxidative modifications to cysteine residues?
Published comparative studies (J. Proteome Res. 2021, 20, 1234–1245) demonstrate significantly lower methionine oxidation and disulfide scrambling rates in PCT-processed samples versus sonication or boiling, attributable to absence of localized thermal hotspots and free-radical generation.
