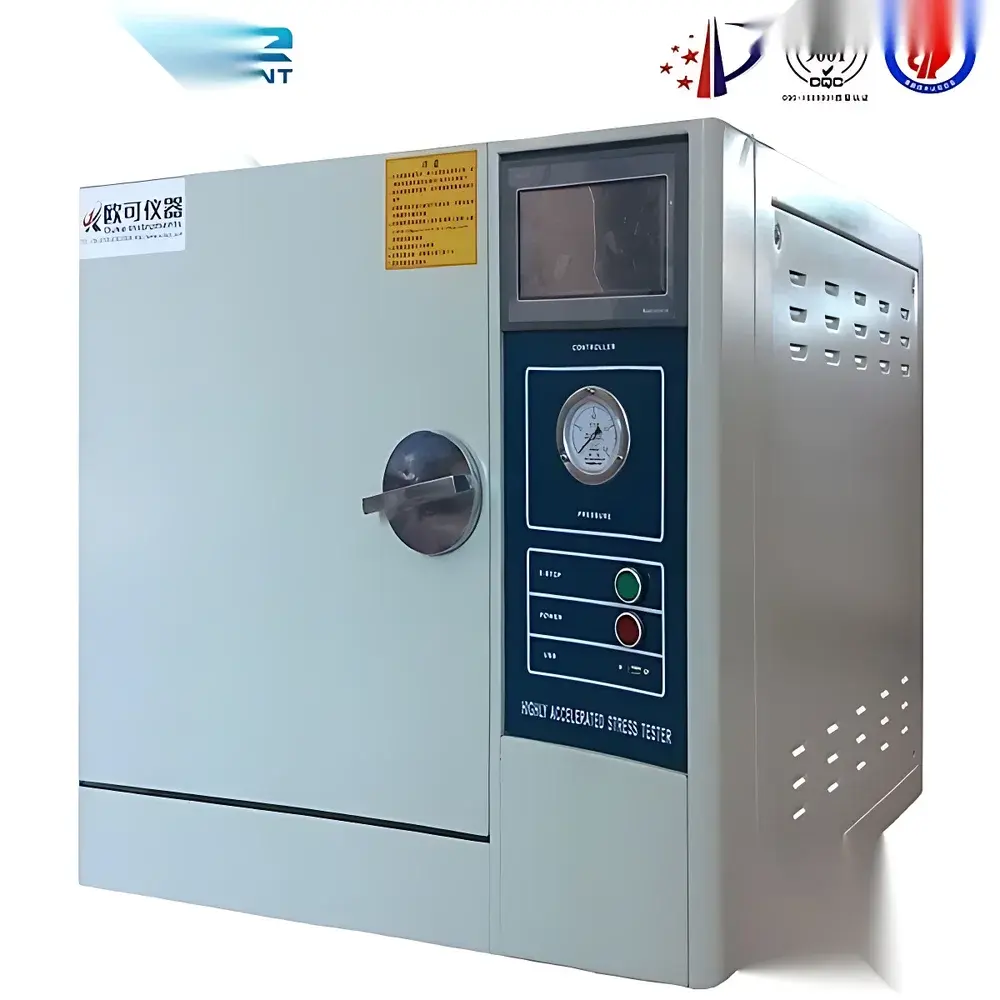

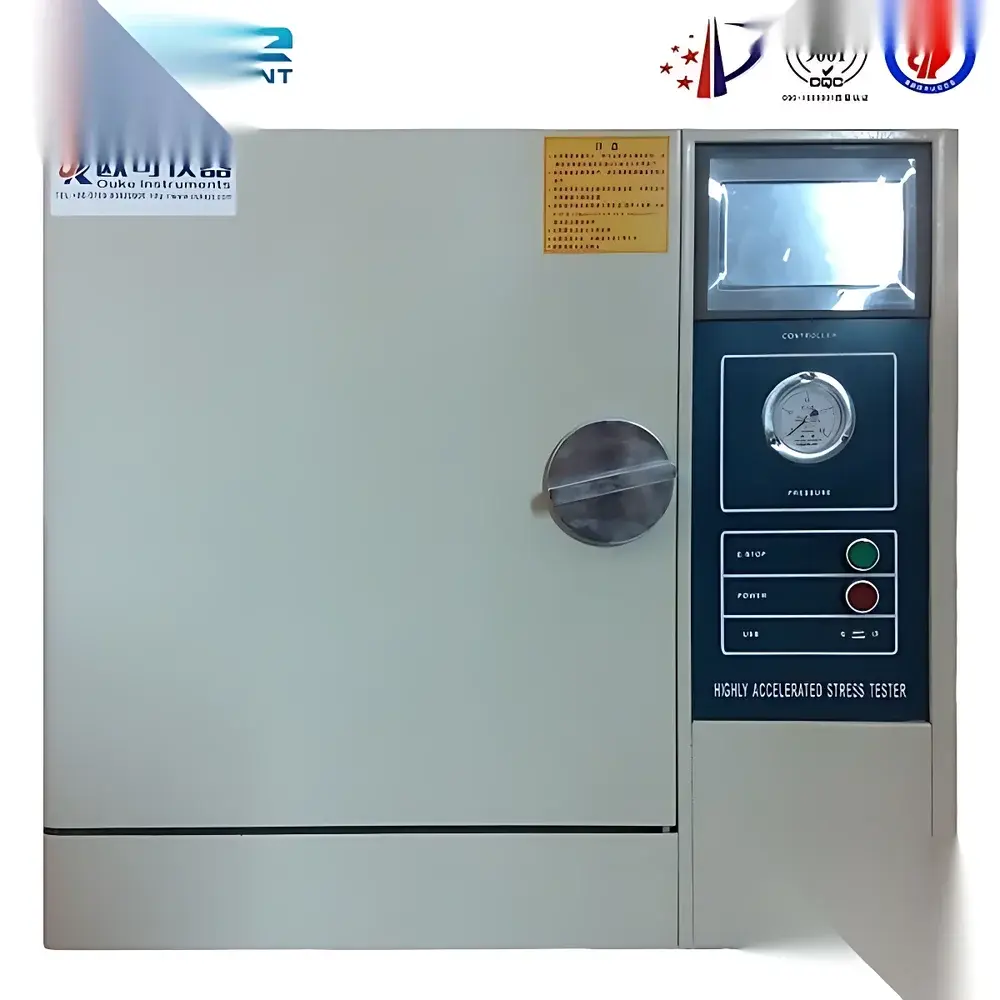

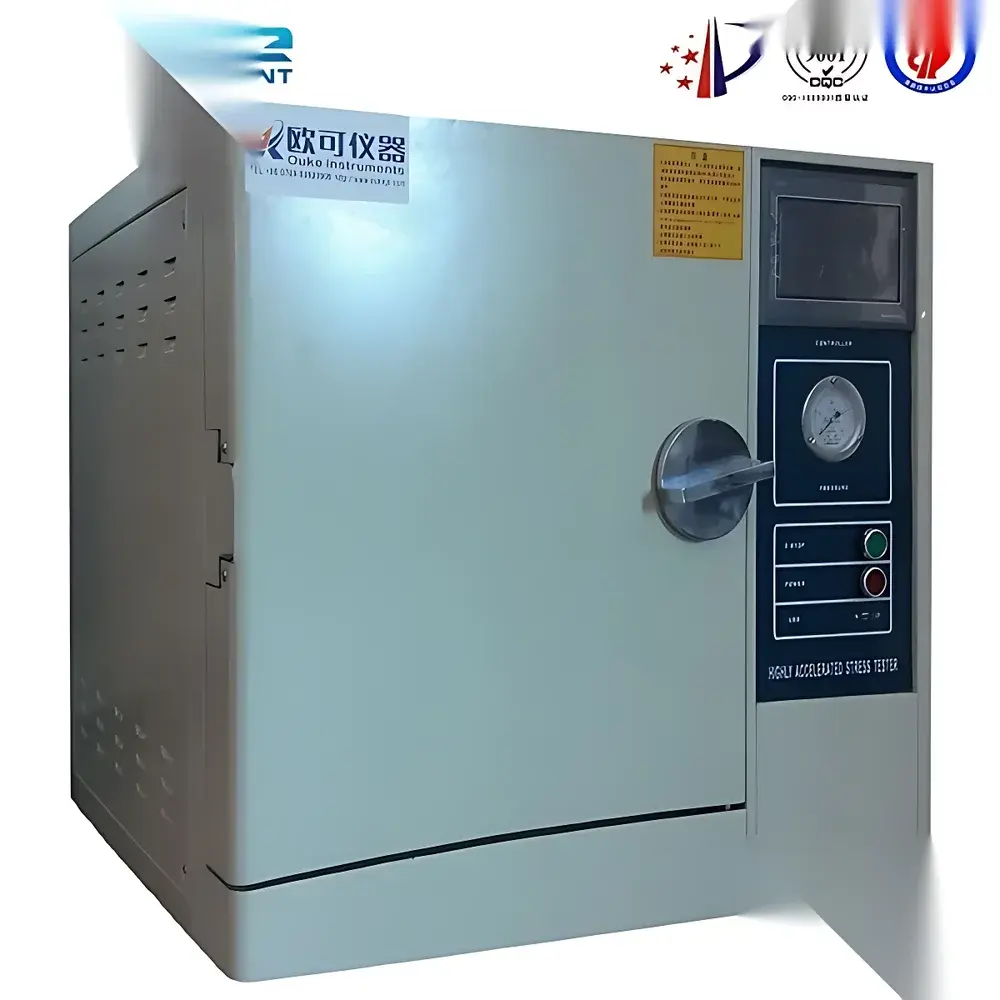

PCT-25 / PCT-30 / PCT-40 / PCT-50 High-Pressure Saturated Steam Aging Chamber (Pressure Cooker Test Chamber)

Overview

The PCT Series High-Pressure Saturated Steam Aging Chamber is an engineered environmental test system designed for accelerated reliability evaluation of electronic components, packaging materials, PCBs, and semiconductor devices under high-temperature, high-humidity, and elevated-pressure conditions. Operating on the principle of saturated steam pressurization—where water is heated beyond its atmospheric boiling point within a sealed chamber—the system achieves thermodynamic equilibrium at temperatures between 100 °C and 132 °C, with corresponding absolute pressures up to ~292–392 kPa (gauge). This replicates and accelerates moisture diffusion, hydrolysis, and interfacial delamination mechanisms that occur during long-term field exposure—enabling qualification testing per JEDEC JESD22-A102 (Pressure Cooker Test), MIL-STD-202 Method 108, and AEC-Q200 stress requirements. Unlike conventional autoclave-style chambers relying on mechanical compression seals, the PCT series employs a self-tightening elastomeric gasket design: increasing internal pressure enhances radial sealing force against the chamber flange, improving long-term integrity and extending gasket service life.

Key Features

• Self-reinforcing silicone door gasket system—pressure-actuated sealing improves leak-tightness and durability versus static compression designs.
• Dual independent overtemperature protection: primary PID-controlled heating cutoff + secondary thermal fuse with audible alarm and power interruption.
• Digital ED-type temperature controller with ±0.1 °C stability and real-time pressure–temperature correlation display.
• Auto-start timer function: initiates countdown only after reaching setpoint temperature—ensuring accurate dwell time compliance.
• Integrated condensate purge circuit: continuously evacuates non-saturated vapor to maintain >99.5% steam quality throughout test cycles.
• Intelligent water level management: automatic makeup reservoir refill prevents cycle interruption due to evaporation loss.
• Interlocked door mechanism: electrical power remains disabled unless door is fully latched and sealed.
• ASME-compliant spring-loaded safety relief valve calibrated to vent at maximum allowable working pressure (MAWP).
• Thermally insulated ABS outer door housing—surface temperature maintained below 45 °C during operation per IEC 61000-4-2 ergonomics guidelines.
• Modular chamber configurations: four standard volumetric options (PCT-25 through PCT-50) support scalability from R&D benchtop validation to production lot sampling.

Sample Compatibility & Compliance

The PCT chamber accommodates a broad range of sample geometries—including bare die, molded IC packages (QFP, BGA, QFN), flex circuits, conformal-coated assemblies, and polymer-based encapsulants—without requiring fixtures or carriers. Internal dimensions are optimized to minimize thermal stratification while ensuring uniform steam penetration. The system supports full traceability in regulated environments: data logging meets FDA 21 CFR Part 11 requirements when paired with validated software (optional), and hardware-level audit trails are retained for GLP/GMP audits. Test execution complies with ISO/IEC 17025 calibration intervals, and thermal performance validation follows GB/T 5170.2 (temperature uniformity) and GB/T 5170.5 (humidity verification) methodologies. All pressure vessels are manufactured to PED 2014/68/EU Category II standards and supplied with CE marking documentation.

Software & Data Management

While the base unit operates via embedded microcontroller with local LED interface, optional PC-based software enables remote monitoring, multi-channel data acquisition (temperature, pressure, elapsed time, fault logs), and automated report generation in PDF/CSV formats. Software modules include configurable alarm thresholds, user-access levels (operator/administrator), electronic signature capture, and exportable metadata compliant with ASTM E2500-13 Annex A3 for equipment qualification records. All recorded parameters are timestamped with NTP-synchronized UTC clocks, and raw data files are write-protected upon completion to satisfy ALCOA+ data integrity principles.

Applications

• JEDEC JESD22-A102 qualification of plastic-encapsulated microcircuits (PEMs) for moisture sensitivity level (MSL) grading.
• Failure analysis root cause determination for popcorning, wire bond lift-off, and mold compound cracking.
• Accelerated aging of medical device packaging per ISO 11607-1 Annex C.
• Reliability screening of automotive electronics per AEC-Q200 Rev H high-humidity stress protocols.
• Validation of conformal coating adhesion and barrier performance under combined thermal–hygric stress.
• Process capability studies for reflow soldering and underfill cure robustness.

FAQ

What standards does this chamber support for qualification testing?
It is configured to execute JEDEC JESD22-A102, MIL-STD-202 Method 108, and AEC-Q200 humidity resistance tests—fully traceable to GB/T 5170.2 and GB/T 5170.5 verification protocols.
Can the chamber be customized for non-standard internal dimensions or pressure ratings?
Yes—OEM engineering support is available for modified chamber volumes, extended pressure ranges (up to 6 kgf/cm²), and integration with external data acquisition systems.
Is the safety valve certified and recalibration required?
Each unit ships with a third-party certified ASME BPVC Section VIII safety valve; annual recalibration and functional verification are recommended per ISO/IEC 17025 maintenance schedules.
How is steam saturation quality verified during operation?
The integrated condensate purge system removes entrained air and subcooled vapor in real time; steam purity is confirmed via dew point measurement at the chamber inlet port using a calibrated chilled-mirror hygrometer.
Does the system support unattended overnight operation?
Yes—auto-water replenishment, dual overheat protection, door interlock, and pressure-relief redundancy enable safe 72-hour continuous operation under supervised laboratory conditions.
