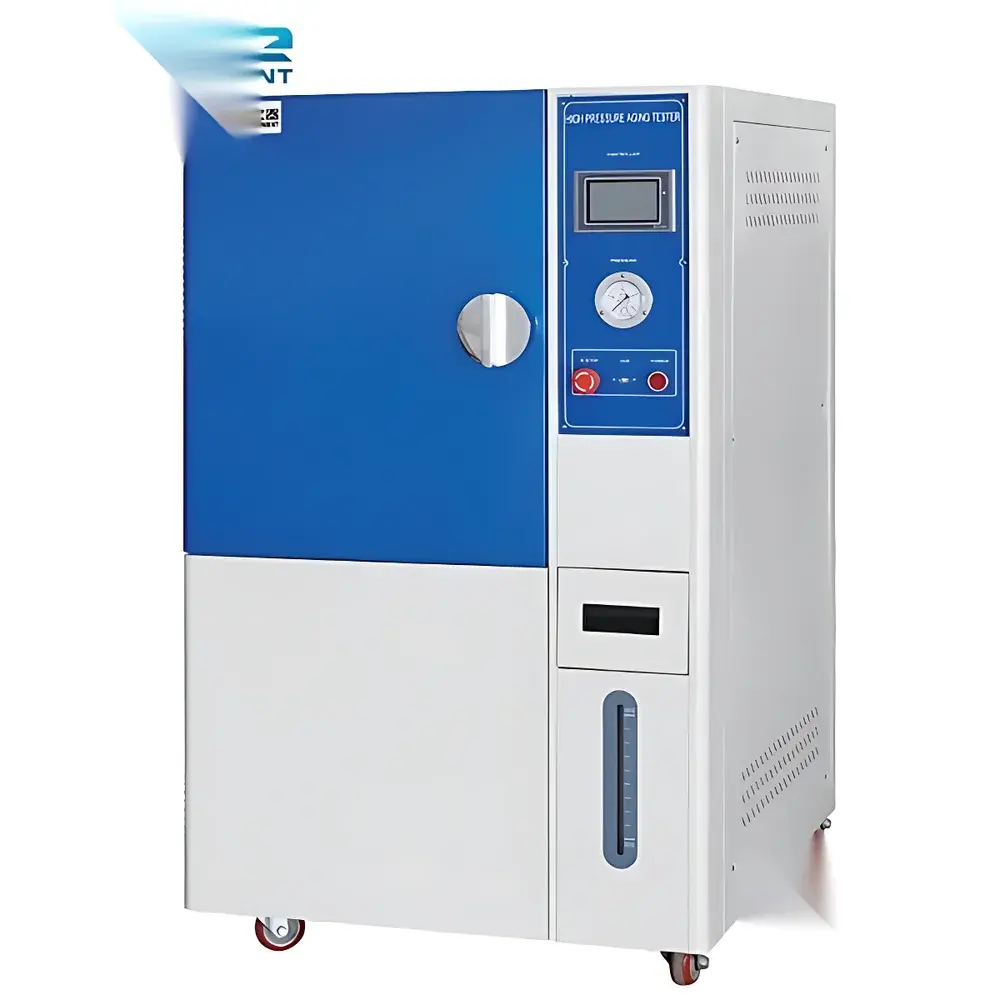

PCT Accelerated Aging Test Chamber
| Brand | Other Brands |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 4,050 (approx. ¥29,000) |
Overview
The PCT Accelerated Aging Test Chamber is a precision-engineered environmental stress test system designed to evaluate the long-term reliability and hermeticity of electronic components, sealed assemblies, and polymer-based products under elevated temperature, high humidity, and saturated steam pressure conditions. Operating on the principle of Pressure Cooker Test (PCT), this chamber subjects samples to accelerated moisture ingress and thermal-mechanical stress—mimicking years of field exposure in days or weeks. It complies with internationally recognized test standards including JESD22-A102 (JEDEC), MIL-STD-202 Method 108, IPC/JEDEC-95, and AEC-Q200 for automotive electronics. The chamber utilizes saturated steam at controlled pressure (typically up to 3 atm absolute) and temperature (up to 130 °C) to drive water vapor through micro-defects in encapsulants, seals, and packaging interfaces—enabling early detection of delamination, corrosion, wire bond degradation, and solder joint failure.
Key Features
- Robust stainless-steel pressure vessel with dual-seal door mechanism and integrated safety interlock system
- Triple-stage over-temperature and over-pressure protection: primary (process control), secondary (independent sensor-based cutoff), and tertiary (mechanical emergency relief valve with manual/auto actuation)
- Real-time monitoring of chamber pressure (0–300 kPa abs), temperature (RT–130 °C), and relative humidity (up to 100% RH at saturation)
- Dedicated deionized water supply interface with low-water-level detection and automatic power cutoff
- Integrated door pressure lock preventing accidental opening during pressurized operation
- Heating element and humidifier circuit protection with thermal fuses and current-limiting logic
- Compliant with IEC 61000-4-11 for voltage fluctuation immunity (±10% tolerance on 380 V AC, 50 Hz, 3 kW supply)
Sample Compatibility & Compliance
The chamber accommodates standard industrial sample racks and trays compatible with JEDEC trays (e.g., 330 × 270 mm footprint). It supports testing of IC packages (QFP, BGA, CSP), PCBAs, LED modules, medical sensors, automotive connectors, molded plastic housings, and hermetically sealed optoelectronic devices. All operational protocols align with GLP documentation requirements and support audit-ready test logging. The system meets CE marking directives (2014/30/EU EMC, 2014/35/EU LVD) and incorporates mechanical fail-safes certified per ASME BPVC Section VIII Division 1 for pressure containment.
Software & Data Management
Equipped with an embedded programmable controller featuring password-protected user profiles and configurable test profiles (e.g., ramp-hold cycles, stepwise pressure/temperature sequences). Data logging records timestamped values of T, P, and RH at user-defined intervals (1–60 s), stored internally for ≥30 days and exportable via USB to CSV format. Optional Ethernet connectivity enables remote monitoring and integration into centralized lab management systems. Audit trail functionality satisfies FDA 21 CFR Part 11 requirements when paired with validated software add-ons, supporting electronic signatures and change history tracking for QA/QC reporting.
Applications
- Failure analysis of moisture-sensitive devices (MSL-rated components per J-STD-020)
- Qualification of conformal coatings and potting compounds for aerospace avionics
- Reliability screening of automotive ECUs prior to AEC-Q100 qualification
- Validation of seal integrity in implantable medical device housings (ISO 11607-1)
- Accelerated life testing of flexible printed circuits and OLED encapsulation layers
- Process development support for wafer-level packaging and MEMS cavity sealing
FAQ
What standards does this PCT chamber support?
It natively supports JESD22-A102, MIL-STD-202 Method 108, IPC/JEDEC-95, and AEC-Q200 Annex G test profiles.
Is deionized water mandatory for operation?
Yes—only purified water with resistivity ≥1 MΩ·cm is permitted to prevent scaling, sensor drift, and chamber corrosion.
Can the chamber be integrated into an automated test lab environment?
Yes—via Modbus RTU (RS-485) or optional Ethernet/IP interface for SCADA and MES platform integration.
What is included upon delivery?
Factory calibration certificate, comprehensive English-language user manual, warranty card, and traceable installation checklist.
Is on-site training provided?
Yes—certified engineers conduct hands-on operator training covering safety procedures, profile programming, routine maintenance, and basic fault diagnostics.
