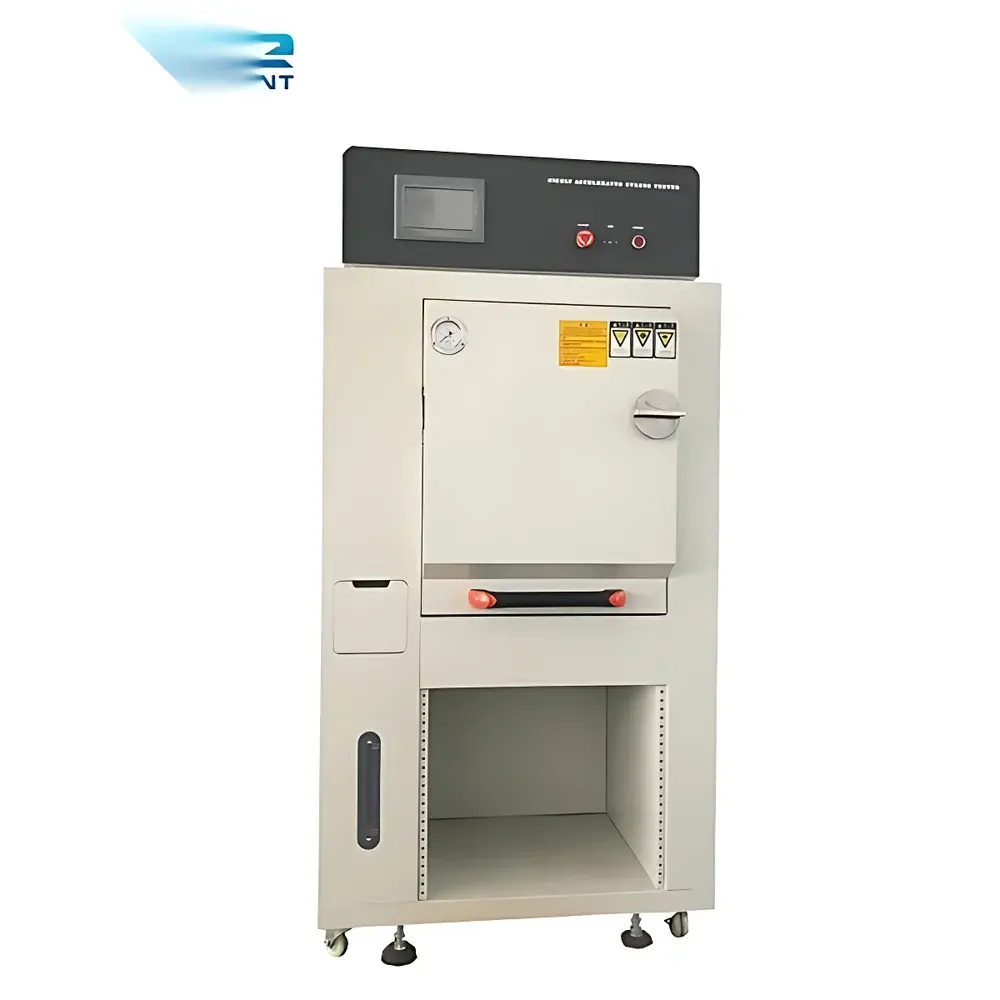

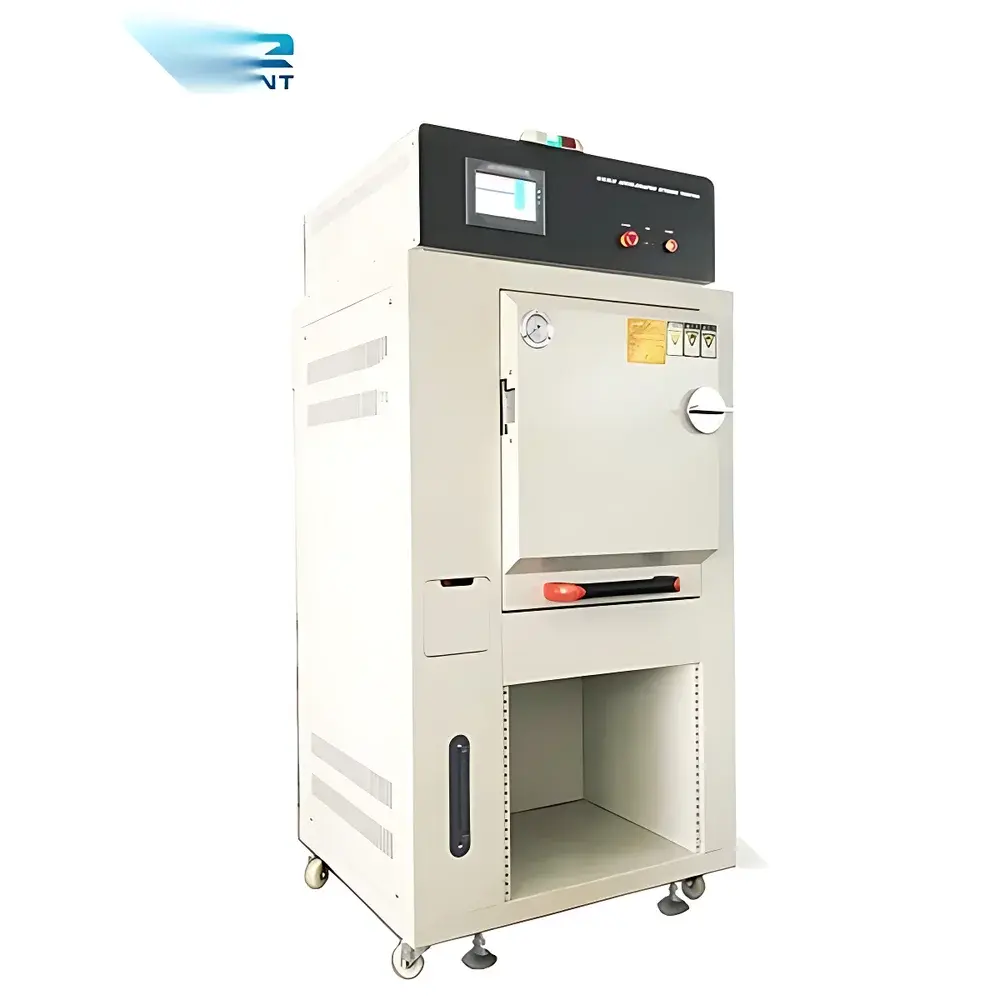

PCT High-Temperature Aging Chamber for Magnetic Materials

Overview

The PCT High-Temperature Aging Chamber for Magnetic Materials is a precision-engineered pressure cooker-type environmental test system designed specifically for accelerated stress testing of soft and hard magnetic materials—including ferrites, NdFeB, SmCo, and amorphous alloys—under combined high-temperature, high-humidity, and elevated-pressure conditions. It operates on the principle of saturated steam pressurization (Pressure Cooker Test, or PCT), where water vapor is heated under controlled overpressure to achieve accelerated moisture ingress into material microstructures. This enables rapid evaluation of long-term reliability parameters such as insulation resistance degradation, intergranular oxidation, and magnetic property drift (e.g., coercivity loss, permeability shift) under thermally accelerated aging conditions compliant with JEDEC JESD22-A102, A110, and MIL-STD-883 Method 1030. The chamber’s thermal architecture ensures stable, uniform steam saturation across the working volume, minimizing thermal gradients that could compromise test reproducibility.

Key Features

• LED digital timer with start-delay logic: initiates timing only after chamber temperature reaches setpoint, eliminating pre-heat phase artifacts and ensuring accurate exposure duration.
• Dual analog gauges for real-time monitoring of internal absolute pressure and corresponding saturation temperature—critical for correlating pressure with dew point and verifying thermodynamic equilibrium.
• Integrated condensate purge system: automatically discharges unsaturated vapor during pressurization to maintain >99.5 % steam quality per ASME PTC 19.5 standards.
• One-piece molded silicone door gasket: engineered for continuous operation at 132 °C and 3 kg/cm² gauge pressure; tested for >5,000 cycles without leakage or compression set.
• Electropolished stainless-steel interior (316L grade): corrosion-resistant, non-magnetic, and compliant with ISO 14644-1 Class 8 cleanroom surface requirements for low particulate generation.
• Auto-refill water reservoir with level sensor: maintains consistent water volume throughout multi-day tests; refill occurs only during depressurized intervals to prevent thermal shock.
• Full-cycle automation: sequential execution of heating → pressurization → dwell → depressurization → cooling without operator intervention, supporting unattended overnight operation.
• Microprocessor-based temperature controller with PID algorithm: provides ±0.5 °C stability and programmable ramp/soak profiles per IEC 60068-3-5.

Sample Compatibility & Compliance

The chamber accommodates standard magnetic component formats—including toroids, E-cores, thin-film wafers (up to 150 mm diameter), and sintered blocks—within its uniformly heated chamber volume. All internal surfaces are non-magnetic (μ_r ≈ 1.002) to prevent field distortion during post-test magnetic characterization. The system meets mechanical safety requirements per EN 13445-1 (Unfired Pressure Vessels) and electrical safety per IEC 61010-1. Pressure relief valves are certified to ASME Section VIII Div. 1 and calibrated annually per ISO/IEC 17025-accredited procedures. Data logging supports GLP/GMP audit trails when paired with optional external recorders compliant with FDA 21 CFR Part 11.

Software & Data Management

While the base configuration features standalone analog/digital controls, optional RS-485 Modbus RTU interface enables integration with LabVIEW™, MATLAB®, or enterprise MES platforms. Real-time pressure, temperature, and elapsed time data can be streamed at 1 Hz resolution and timestamped to UTC. Export formats include CSV and XML, with embedded metadata (operator ID, test ID, chamber serial number, calibration expiry). Audit logs capture all parameter changes, manual overrides, and alarm events—retained for ≥36 months per ISO 17025 clause 7.8.2.

Applications

• Qualification of magnetic cores for automotive power electronics (e.g., EV inverter chokes) per AEC-Q200 Rev H.
• Evaluation of coating integrity on bonded NdFeB magnets exposed to humid tropical environments (IEC 60068-2-30).
• Failure mode analysis of Mn-Zn ferrite transformers subjected to bias-stress PCT protocols.
• Process validation of vacuum impregnation resins used in high-frequency inductors.
• Accelerated life testing of magnetic sensors (Hall effect, AMR) per JEDEC JEP170 guidelines.

FAQ

What is the maximum allowable sample mass per test cycle without compromising temperature/humidity uniformity?

For optimal performance, total sample mass should not exceed 15 % of chamber internal volume (converted to kg using density assumptions for typical magnetic ceramics). Exceeding this may extend pressurization time beyond specification and reduce humidity uniformity.

Does the chamber support ramp-and-soak profiles with variable pressure setpoints?

The standard controller supports single-setpoint dwell only. Multi-step pressure/temperature profiles require optional programmable logic controller (PLC) upgrade with custom firmware.

How often must the pressure relief valve be recalibrated?

Annual recalibration is required per EN 13445-3 Annex C; certificate traceable to NIST or PTB must be retained on file.

Can the system operate continuously for 72+ hours?

Yes—designed for uninterrupted operation up to 999 h. Auto-refill and thermal management systems have been validated for 168 h continuous duty at 132 °C/2.8 kg/cm².

Is the chamber compatible with inert gas purging prior to steam introduction?

Not natively. Optional nitrogen purge kit (model PCT-N2-KIT) is available for oxygen-sensitive materials, enabling <100 ppm O₂ residual before steam injection.
