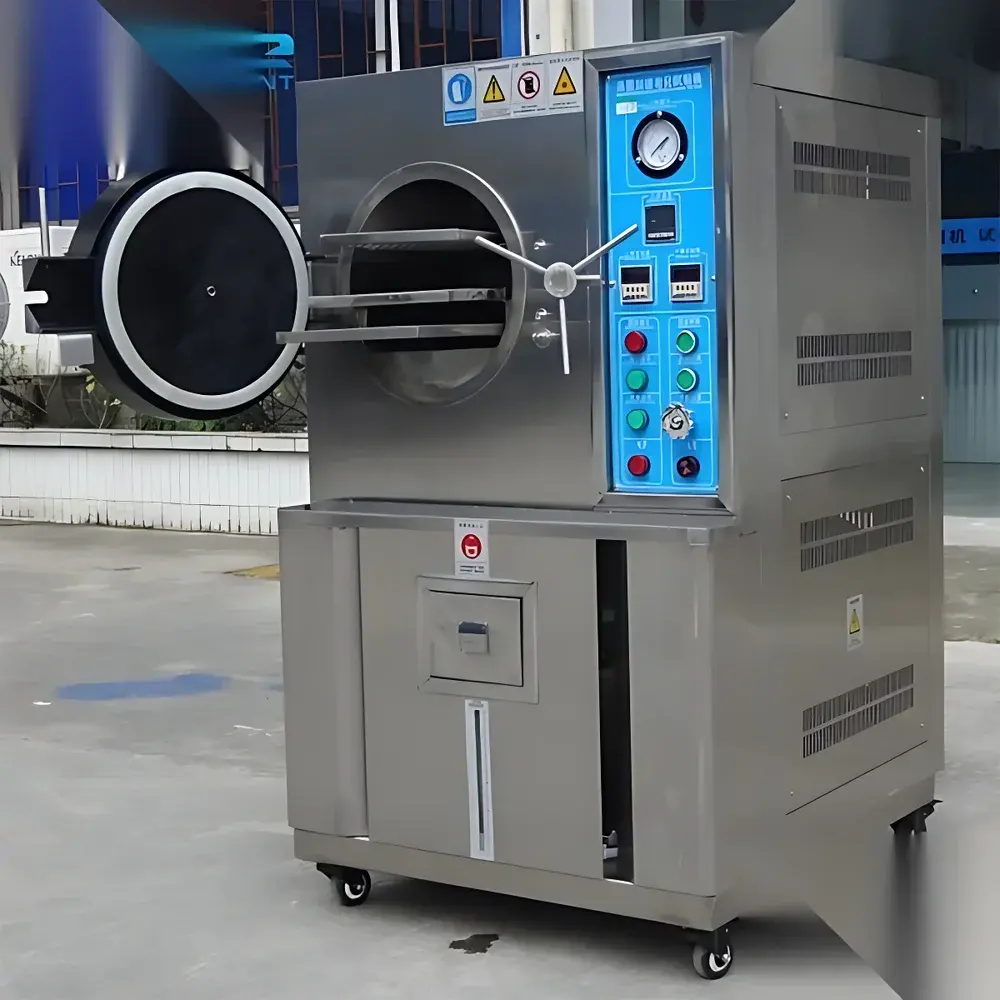

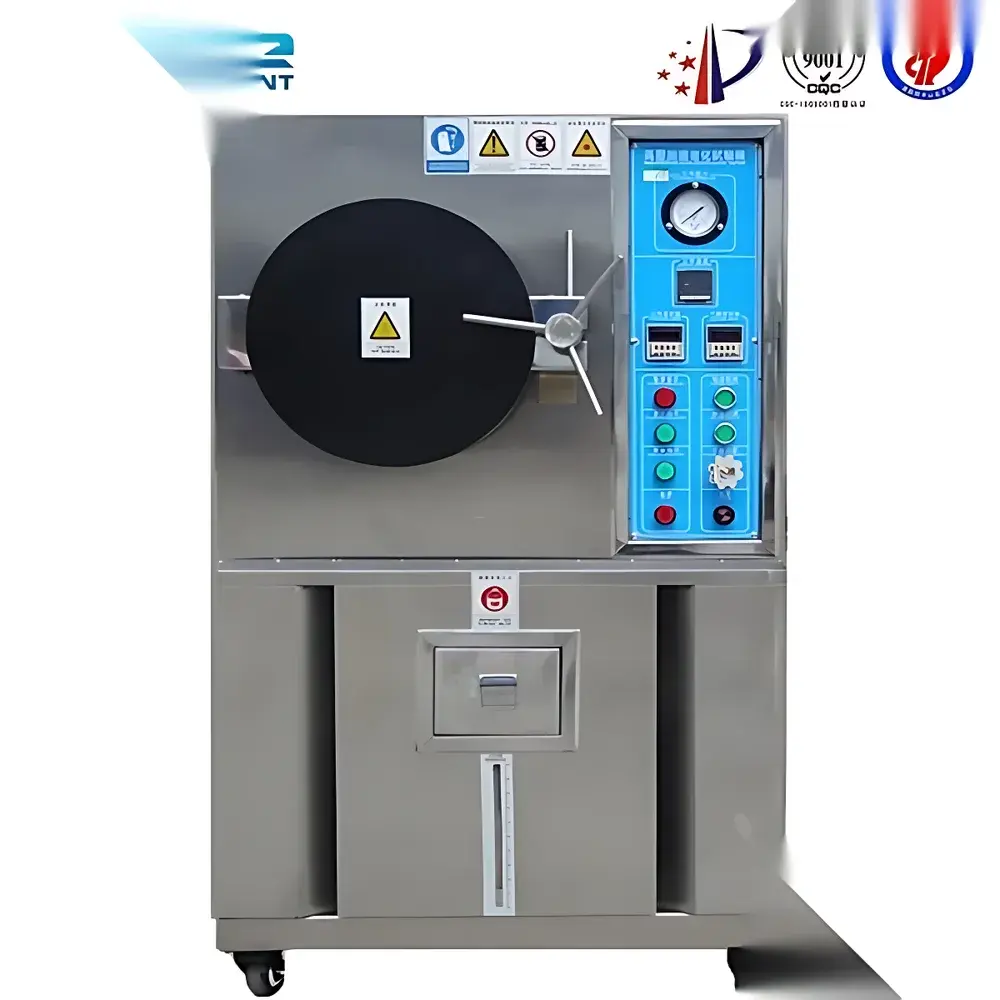

OK-PCT Series High-Pressure Saturated Steam Aging Chamber
| Brand | OK |
|---|---|
| Origin | Imported |
| Manufacturer Type | Authorized Distributor |
| Price | USD 4,100 (FOB) |
| Internal Dimensions (Φ×D, cm) | 30×45 |
| External Dimensions (W×H×D, cm) | 65×100×65 |
| Temperature Range | 121 °C, 132 °C (143 °C optional) |
| Humidity | 100 % RH (saturated steam) |
| Operating Pressure | 0–200 kPa(g) (300 kPa(g) optional) |
| Temperature Uniformity | ≤ ±2 °C |
| Humidity Uniformity | ≤ ±3 % RH |
| Circulation Method | Natural convection of saturated steam |
| Safety Protections | Low-water cutoff, overpressure relief, overtemperature shutdown, automatic/manual water replenishment, pressure-actuated safety interlock |
| Power Supply | AC 220 V ±5 %, 50 Hz ±0.5 Hz |
Overview
The OK-PCT Series High-Pressure Saturated Steam Aging Chamber is an engineered environmental test system designed to accelerate moisture-induced degradation mechanisms in electronic, automotive, aerospace, and medical device components under controlled high-pressure saturated steam conditions. It operates on the principle of pressurized saturated steam exposure—where temperature and partial pressure of water vapor are thermodynamically coupled—to replicate and intensify failure modes such as intermetallic growth, wire bond corrosion, delamination, popcorning, and solder joint fatigue. Unlike conventional humidity chambers or autoclave-style sterilizers, the OK-PCT series maintains precise, stable equilibrium between temperature, pressure, and 100 % RH saturation—enabling reproducible accelerated life testing per industry standards including JESD22-A102 (Failure Mechanism and Dielectric Withstand Voltage of Integrated Circuits), MIL-STD-883 Method 1008 (Moisture Resistance), and AEC-Q200 stress protocols. Its cylindrical stainless-steel pressure vessel architecture conforms to ASME BPVC Section VIII Division 1 design criteria for low-pressure vessels, ensuring structural integrity during repeated thermal–pressure cycling.
Key Features
- Microprocessor-based PID temperature control with real-time saturation point compensation—ensuring accurate setpoint tracking across the full 121–143 °C operating range.
- Dual-sensor pressure–temperature monitoring with LED digital display: simultaneous readout of chamber absolute pressure (kPa(g)) and corresponding saturation temperature (°C), eliminating interpolation errors.
- Cylindrical internal chamber constructed from electropolished 316L stainless steel—optimized for uniform steam distribution, minimal condensate pooling, and resistance to chloride-induced stress corrosion cracking.
- Steam-quality management system: continuous venting of non-condensable gases and unsaturated vapor via a calibrated bleed valve, maintaining >99.5 % dryness fraction throughout operation.
- Self-sealing door mechanism: pressure-actuated silicone gasket compression—increasing sealing force proportionally with internal pressure—extending gasket service life by up to 3× versus static clamping designs.
- Integrated water level management: capacitive low-level detection with auto-refill function; reservoir capacity supports uninterrupted 200-hour continuous operation at standard test profiles.
- Redundant safety architecture: independent mechanical pressure relief valve (set at 210 kPa(g)), electronic overtemperature cutoff (>145 °C), and fail-safe door interlock preventing opening above 20 kPa(g).
Sample Compatibility & Compliance
The OK-PCT chamber accommodates PCBs, IC packages (QFP, BGA, CSP), MEMS sensors, LED modules, automotive ECUs, and hermetically sealed medical electronics. Its uniform steam environment ensures consistent exposure across multi-layer substrates and heterogeneous material stacks. The system complies with requirements for GLP-compliant test documentation: all critical parameters (temperature, pressure, elapsed time, water level status) are logged at user-configurable intervals (1–60 s) with timestamped CSV export. Audit trails meet FDA 21 CFR Part 11 data integrity expectations when paired with optional networked data acquisition software. Test methods executed in this chamber align with JEDEC J-STD-020 (Moisture Sensitivity Levels), IPC-9701 (Performance Test Methods for Printed Board Surface Insulation Resistance), and ISO 9001:2015 clause 8.5.1 (Control of Production and Service Provision).
Software & Data Management
Standard configuration includes embedded firmware with password-protected parameter configuration, event logging, and USB data dump capability. Optional OK-LogPro software enables remote monitoring via Ethernet, real-time graphing of T/P/time trends, automated report generation (PDF/Excel), and integration with LIMS platforms through Modbus TCP. All logged data include digital signatures, operator ID fields, and immutable timestamps—supporting traceability in regulated environments. Calibration records (temperature sensor NIST-traceable RTD, pressure transducer EN 837-1 compliant) are stored within the unit’s secure memory and exportable for quality audits.
Applications
- Qualification of moisture barrier coatings on flexible printed circuits
- Reliability screening of wafer-level chip-scale packages (WLCSP) prior to board assembly
- Evaluation of adhesive bond strength retention in optoelectronic housings under cyclic steam exposure
- Accelerated aging of polymer-based insulators used in EV battery management systems
- Validation of hermetic seal integrity in implantable medical devices per ISO 11607-1
- Process development support for reflow soldering profile optimization under humid preconditioning
FAQ
What is the maximum allowable test duration without manual intervention?
The integrated water reservoir supports up to 200 hours of continuous operation at 132 °C / 200 kPa(g), assuming ambient feed water at 15–25 °C and standard atmospheric pressure.
Can the chamber be validated for IQ/OQ/PQ protocols?
Yes—factory-supplied validation templates (including temperature mapping SOPs, pressure decay test procedures, and sensor calibration certificates) comply with ASTM E2500 and Annex 15 of EU GMP guidelines.
Is third-party pressure vessel certification available?
Each unit ships with ASME U-stamp documentation and CE marking per PED 2014/68/EU; optional TÜV SÜD witnessed factory acceptance testing is available upon order.
How is steam dryness fraction measured and maintained?
Dryness is inferred via differential pressure drop across a calibrated orifice plate and verified using a portable steam quality meter (e.g., Spirax Sarco SQM) during commissioning; continuous bleed flow rate is preset to maintain ≥0.995 dryness fraction.
Does the system support custom ramp-hold profiles?
Yes—the controller supports up to 99 programmable segments with variable ramp rates (0.1–10 °C/min), dwell times (1 min–999 h), and pressure coupling modes (fixed ΔP, fixed T, or saturation-coupled).
