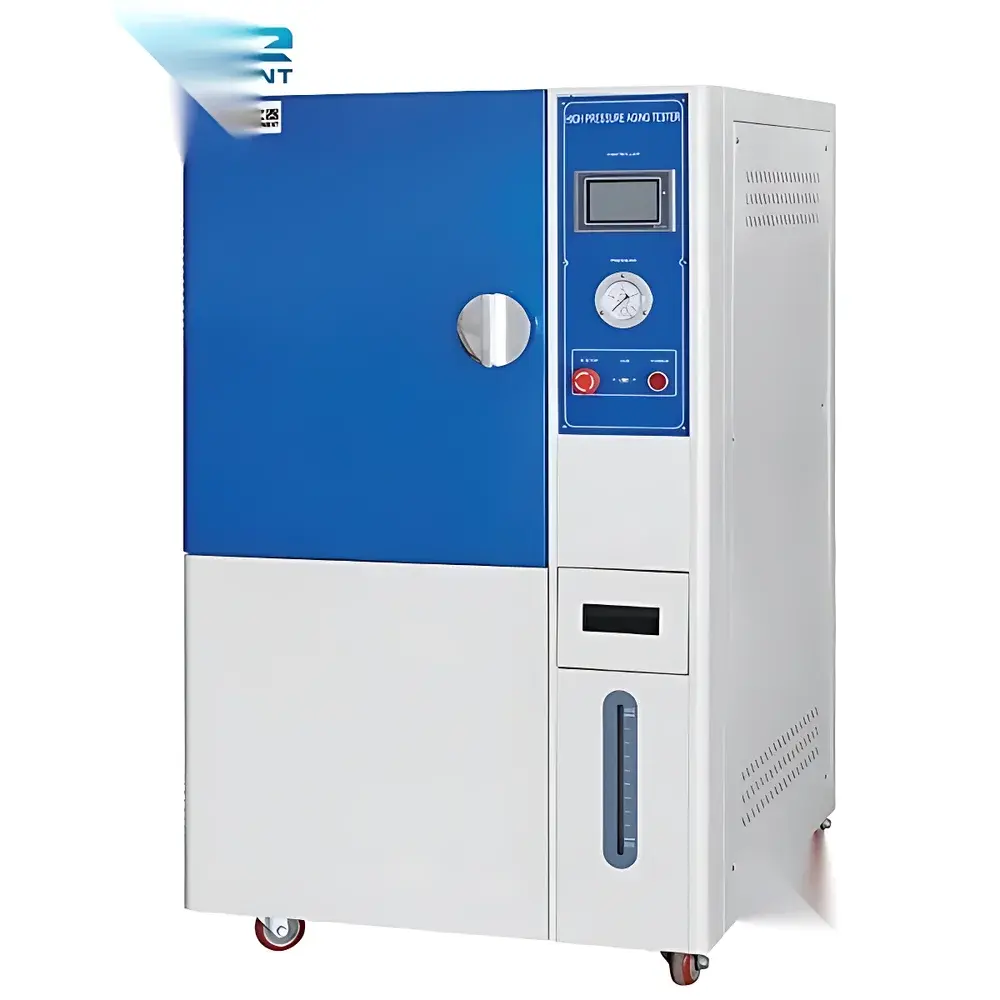

OK-PCT Series Pressure Cooker Test Chamber for Accelerated Moisture Resistance and Hermeticity Evaluation

Overview

The OK-PCT Series Pressure Cooker Test Chamber is an engineered environmental stress test system designed to evaluate the moisture resistance, hermetic seal integrity, and long-term reliability of electronic components, multilayer PCBs, IC packages, LED modules, medical device housings, and automotive sensors under accelerated high-pressure saturated steam conditions. Based on the principle of saturated steam aging—where elevated temperature and pressure synergistically drive moisture diffusion through micro-defects and permeable interfaces—the chamber replicates years of field exposure in days or weeks. It operates strictly within standardized test envelopes defined by JEDEC JESD22-A102 (Pressure Pot Test), MIL-STD-202 Method 108, IPC-TM-650 2.6.25, and IEC 60068-2-66. Unlike conventional humidity chambers, the OK-PCT maintains a true saturated vapor environment at precisely controlled absolute pressures (0–200 kPa gauge), eliminating superheated vapor zones and ensuring thermodynamic consistency across the test volume.

Key Features

• Automated water replenishment system with dual-level float sensor feedback, enabling uninterrupted operation for up to 200 hours per fill cycle.
• ASME-certified safety relief valve with mechanical redundancy, activated at preset pressure thresholds to prevent over-pressurization beyond design limits.
• Digital LED temperature controller with ±0.3 °C setpoint stability and PID-based thermal regulation; integrated real-time display of chamber core temperature and saturation pressure.
• Microprocessor-driven timer that initiates countdown only after stable saturation conditions are confirmed—ensuring accurate test duration compliance per JEDEC and IPC protocols.
• High-fidelity analog pressure/temperature gauges with calibrated NIST-traceable scales for independent verification and audit readiness.
• Condensate purge system that continuously removes non-saturated vapor fractions, preserving steam quality and minimizing condensation variability on test specimens.
• One-piece molded silicone door gasket with compression-set resistance >10,000 cycles, delivering leak rates <1×10⁻⁶ mbar·L/s under full operational pressure.
• Positive-pressure interlocked door mechanism: internal overpressure enhances gasket seating force, improving sealing performance with increasing load—contrasting traditional clamp-style designs.
• Stainless steel interior chamber and dual-tier adjustable stainless racks compliant with ISO 14644-1 Class 7 cleanroom handling requirements.

Sample Compatibility & Compliance

The OK-PCT accommodates standard industry sample formats including JEDEC trays (JEDEC STD-20), 25×25 mm IC carriers, 100 mm × 150 mm PCB panels, and sealed medical packaging pouches. Its cylindrical internal geometry ensures uniform steam distribution without dead zones, validated via thermal mapping per ASTM E2297. The chamber meets functional safety requirements of IEC 61010-1 (Electrical Equipment for Measurement) and incorporates fail-safe logic per EN 60204-1 for emergency shutdown. All pressure-bearing components conform to PED 2014/68/EU Category II design criteria. Documentation includes Factory Acceptance Test (FAT) reports, calibration certificates traceable to NPL/PTB standards, and a full GLP-compliant validation package (IQ/OQ/PQ templates available upon request).

Software & Data Management

While the base configuration features standalone digital controllers, optional RS-485 Modbus RTU interface enables integration into centralized lab data acquisition networks. Logged parameters—including real-time pressure, chamber temperature, elapsed time, and water level status—are timestamped with millisecond resolution and exportable as CSV or Excel-compatible files. Optional software add-ons support FDA 21 CFR Part 11 compliance, providing electronic signatures, audit trails, user access levels, and data integrity checks. All firmware revisions are version-controlled and documented per ISO 13485 Annex A requirements for regulated medical device testing environments.

Applications

• Qualification of moisture-sensitive devices (MSL Level 3–6 per J-STD-020) prior to reflow soldering.
• Failure mode analysis of delamination, popcorning, wire bond lift, and mold compound cracking in plastic-encapsulated microcircuits.
• Validation of hermetic seals in MEMS sensors, implantable electronics, and aerospace-grade connectors.
• Accelerated aging of conformal coatings (e.g., acrylic, silicone, parylene) under combined thermal-moisture stress.
• Reliability screening of automotive ADAS modules exposed to under-hood humidity cycling.
• Process qualification of wafer-level packaging and fan-out wafer-level packaging (FOWLP) technologies.

FAQ

What standards does the OK-PCT chamber comply with?

It supports JEDEC JESD22-A102, MIL-STD-202 Method 108, IPC-TM-650 2.6.25, IEC 60068-2-66, and ASTM E2297 for thermal mapping validation.

Can the chamber operate at 143 °C?

Yes—143 °C is available as a factory-configured option requiring reinforced pressure vessel certification and upgraded gasket material (FFKM).

Is remote monitoring supported?

Standard RS-485 Modbus interface allows connection to SCADA or LIMS systems; optional Ethernet gateway enables web-based status viewing and alarm notification via SMTP/SNMP.

How is calibration maintained?

Annual recalibration services include NIST-traceable pressure transducer verification, thermocouple drift assessment, and safety valve functional testing—with full documentation provided in accordance with ISO/IEC 17025.

What is the maximum allowable test specimen height?

Internal depth ranges from 45 cm to 65 cm depending on model; vertical clearance between shelves is adjustable to accommodate stacked assemblies up to 15 cm tall.
