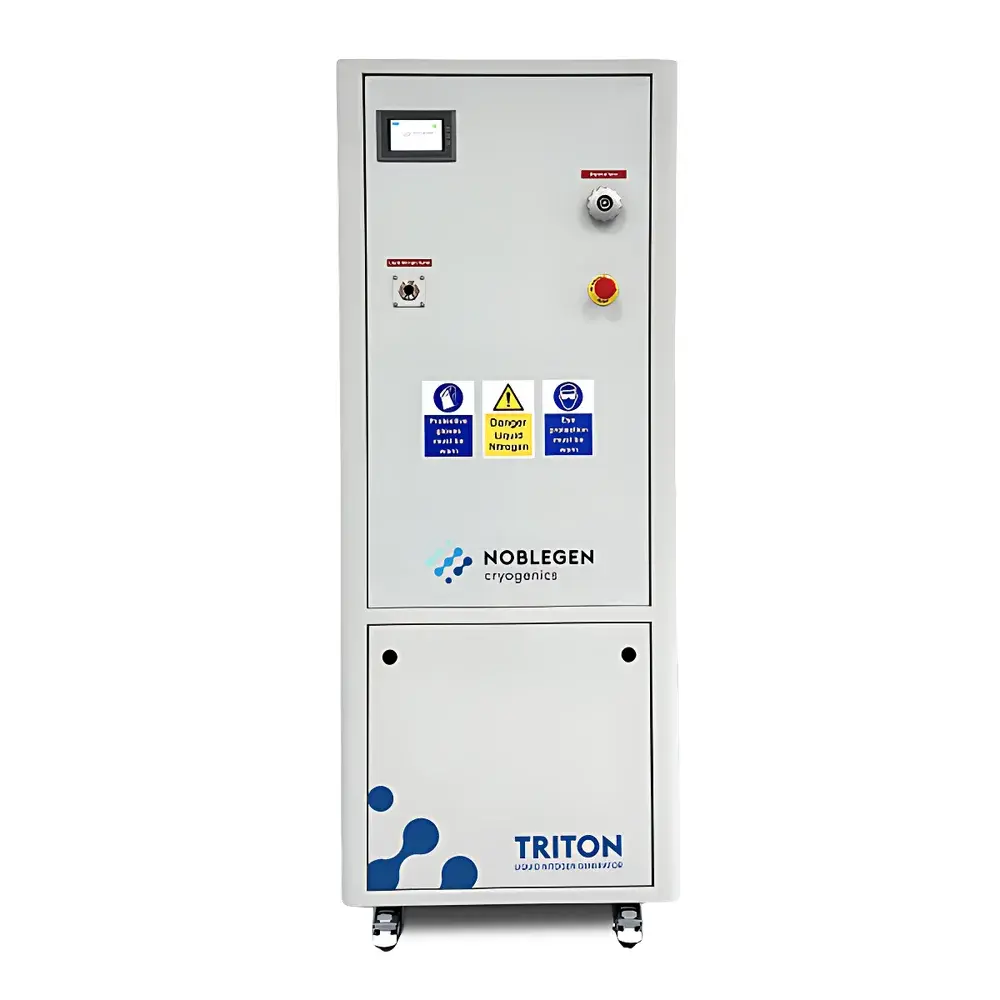

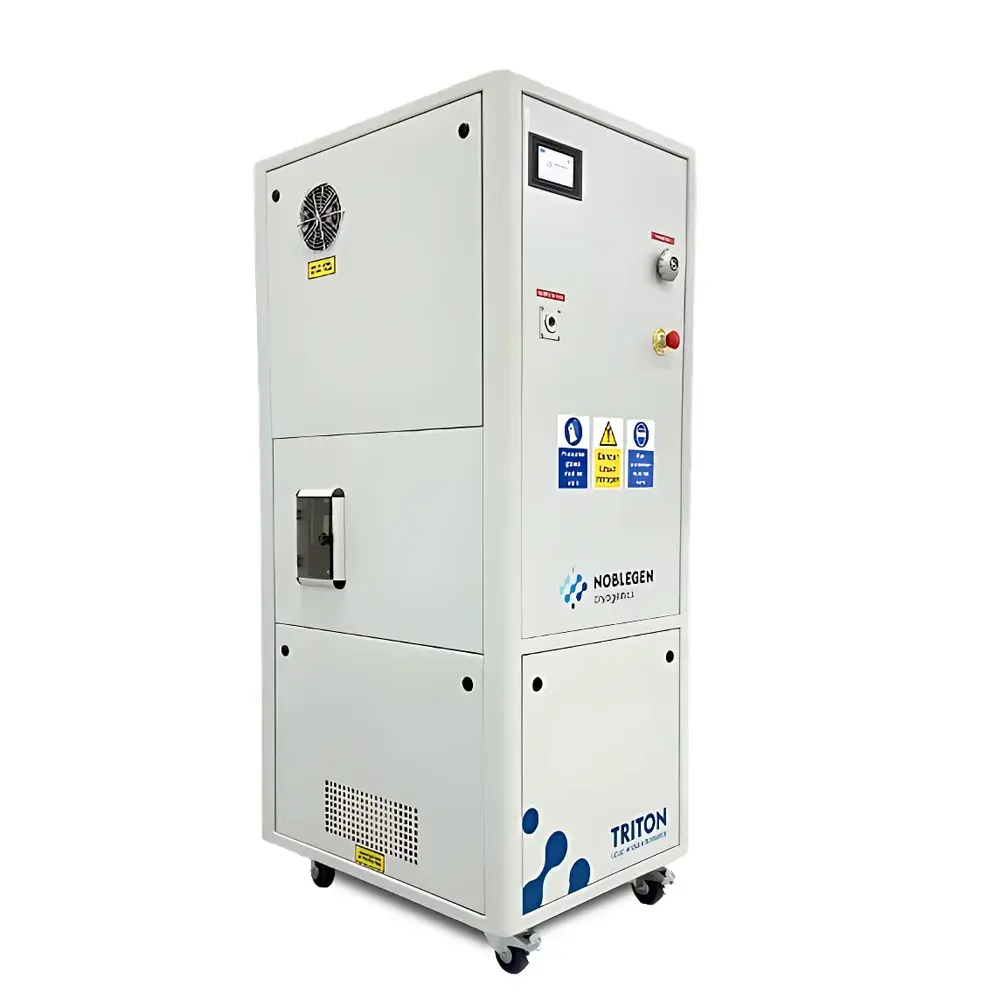

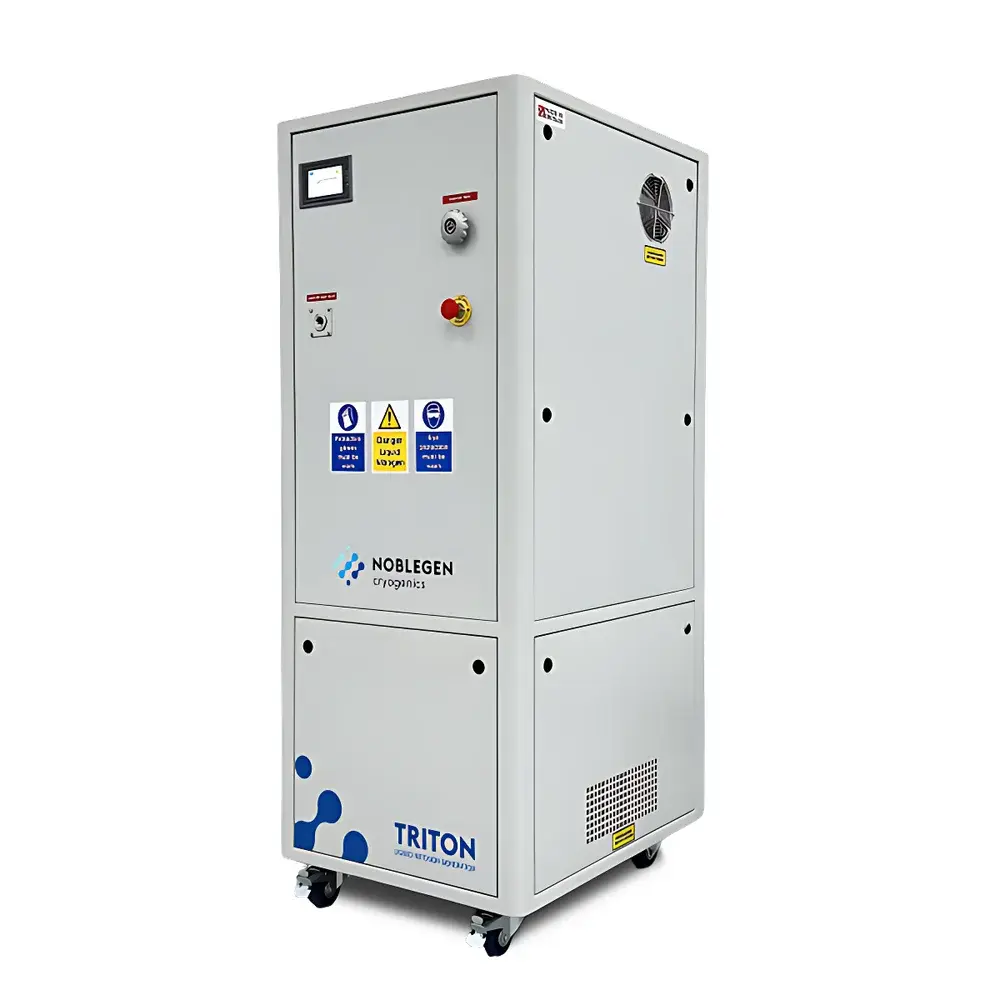

PEAK Noblegen Triton Series High-Purity On-Site Liquid Nitrogen Generator

Overview

The PEAK Noblegen Triton Series is an on-site, membrane- and pressure-swing adsorption (PSA)-integrated liquid nitrogen generation system engineered for continuous, high-purity N₂ liquefaction at ambient conditions. Unlike conventional dewar-based supply chains, the Triton platform employs a two-stage cryogenic process: first, compressed air is purified and fractionated to produce ≥99.5% pure gaseous nitrogen via integrated PSA modules; second, the purified N₂ stream is cooled through a closed-cycle helium-refrigerated Joule–Thomson expansion system to achieve liquefaction at −196 °C. This architecture eliminates dependency on bulk deliveries, reduces logistical risk, and ensures stable, on-demand liquid nitrogen production with zero boil-off during standby—enabled by active vacuum-jacketed storage and NPFS™ (Nitrogen Pulse Flow Stabilization) technology. Designed for ISO Class 5–7 cleanroom-compatible environments, the Triton series meets stringent requirements for biological sample integrity, pharmaceutical cold-chain continuity, and semiconductor process gas purity.

Key Features

• On-demand, plug-and-play operation: Start-up initiated via single-button interface; fully automated commissioning sequence including purge, cooldown, and stabilization
• Integrated NPFS™ nitrogen pulse flow stabilization system for consistent mass flow delivery and minimized thermal shock during transfer
• Real-time color touchscreen HMI with intuitive graphical interface displaying liquefaction rate (L/hr), tank level (%), inlet pressure (bar), dew point (°C), and system status alarms
• Vacuum-insulated stainless-steel liquid nitrogen storage vessel with active vacuum monitoring and automatic re-evacuation cycle
• Medical-grade sterile filtration: 0.01 µm absolute-rated coalescing filter upstream of liquefaction stage, compliant with ISO 8573-1:2010 Class 1 particulate and Class 2 oil/water specifications
• Low-noise operation (<62 dB(A) at 1 m) achieved via vibration-damped compressor mounts and acoustic enclosure design
• Energy-efficient architecture: LN10 models consume ≤4.8 kW; LN20 variants operate at ≤8.2 kW under full-load liquefaction conditions

Sample Compatibility & Compliance

The Triton series delivers liquid nitrogen meeting ASTM D1946-21 specifications for gaseous nitrogen purity (≥99.5% N₂, O₂ < 500 ppm, H₂O < 5 ppm, hydrocarbons < 0.1 ppm), with post-liquefaction verification confirming residual oxygen content < 10 ppm in liquid phase. All wetted components comply with USP Class VI biocompatibility standards and FDA 21 CFR Part 11–ready audit trail logging for electronic records. System design adheres to IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), and is CE-marked per Machinery Directive 2006/42/EC and Pressure Equipment Directive 2014/68/EU. Optional validation packages support IQ/OQ/PQ documentation aligned with GLP and GMP Annex 15 requirements.

Software & Data Management

Embedded firmware supports remote monitoring via Ethernet or optional Wi-Fi module, enabling integration into facility-wide BMS platforms using Modbus TCP or OPC UA protocols. Data logging captures timestamped parameters at 1-second intervals, stored locally on encrypted microSD card (retention ≥30 days) and exportable as CSV or PDF reports. Audit trail functionality records all operator actions—including mode changes, alarm acknowledgments, and calibration events—with immutable user ID and time stamp. Optional PEAK Connect cloud service provides secure TLS 1.2–encrypted data transmission, configurable email/SMS alerts for low-level or temperature excursion events, and historical trend visualization across multiple units.

Applications

• Cryopreservation of stem cells, oocytes, and embryos in IVF clinics and biobanks, where batch-to-batch consistency and sterility are critical
• Long-term archival storage of genomic libraries and primary cell lines in academic and pharmaceutical research laboratories
• Controlled-rate freezing protocols requiring precise thermal ramping and sustained −196 °C hold phases
• Cold trap conditioning and cryo-microscopy sample preparation in structural biology workflows
• Nitrogen blanketing and inerting during lyophilization, solvent recovery, and API crystallization in cGMP manufacturing suites
• On-site cooling for superconducting magnet quench protection and quantum device testing in advanced physics laboratories

FAQ

What is the typical liquefaction capacity range across Triton models?

The Triton LN10 F achieves up to 10 L/day; the LN10 standard variant delivers 10–12 L/day depending on ambient inlet air conditions; the LN20 model sustains 20–22 L/day under ISO 8573-1 Class 4 inlet air (≤3 µm particles, 7 bar, 25 °C).
Does the system require external cooling water or chilled air?

No—Triton operates with ambient air cooling only; no chiller or water connection is needed.
How is sterility maintained throughout the nitrogen path?

Sterility is ensured via redundant filtration: pre-PSA coalescing filter (0.1 µm), post-PSA ultra-low particulate filter (0.01 µm), and sterilizing-grade membrane vent filter on the storage tank headspace.
Can the unit be integrated into existing laboratory nitrogen infrastructure?

Yes—standard 1/2″ VCR or Swagelok fittings enable direct connection to existing liquid nitrogen distribution manifolds; optional vaporizer kits support gaseous nitrogen take-off.
What maintenance intervals are recommended?

Compressor oil and coalescing filter replacement every 2,000 operating hours; PSA desiccant cartridge replacement every 18 months; full system performance verification annually per ISO/IEC 17025-accredited protocol.
