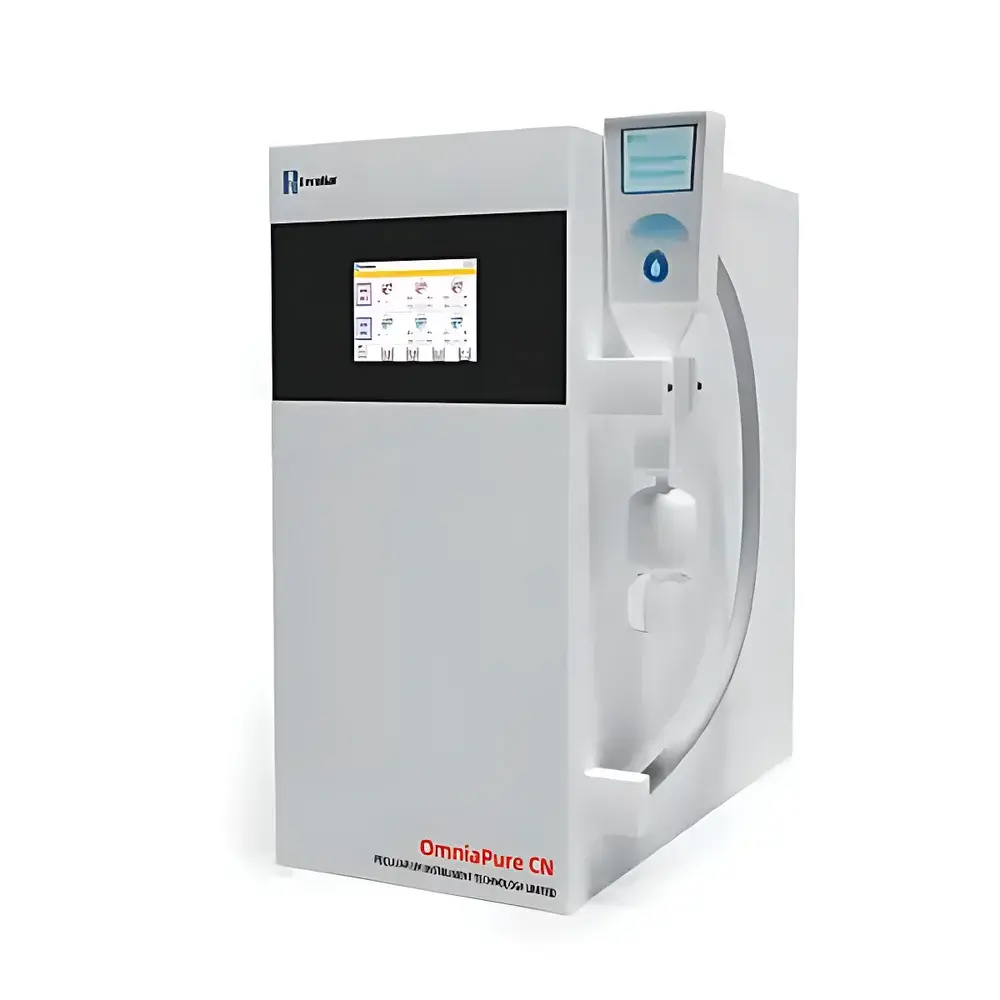

PECULIAR Omniapure CN Ultra Pure Water System

Overview

The PECULIAR Omniapure CN Ultra Pure Water System is an integrated, multi-stage laboratory water purification platform engineered for consistent production of Type I ultrapure water per ASTM D1193–20 and ISO 3696:1987 standards. It employs a sequential purification architecture comprising pretreatment (activated carbon + dual-stage sediment filtration), reverse osmosis (RO), electrodeionization (EDI), and final polishing via dual-wavelength UV oxidation (185/254 nm) coupled with a 0.1 µm hydrophilic polyethersulfone (PES) membrane filter and a high-efficiency ion-exchange cartridge. This configuration ensures removal of ions, organic contaminants, microorganisms, endotoxins, colloids, and submicron particles—meeting stringent requirements for HPLC mobile phase preparation, cell culture media formulation, molecular biology assays (e.g., PCR, qRT-PCR), and trace elemental analysis (ICP-MS, AAS). The system operates under continuous recirculation mode with real-time resistivity monitoring and automatic sanitization cycles, minimizing stagnation-related biofilm formation and ensuring long-term stability of water quality.

Key Features

• OptiFill™ digital dispensing arm with programmable volume delivery (0.1–99.9 L), touch-free infrared activation, and integrated air-gap anti-siphon design to prevent back-contamination.
• Tool-free, rapid-swap modular cartridge architecture: prefilter, RO membrane, EDI stack, and final polishing unit are independently replaceable in under 90 seconds without system shutdown or manual calibration.
• Integrated leak detection sensor with automatic shutoff valve (ASV) actuation upon moisture detection at base pan or tubing junctions—compliant with IEC 61000-6-3 EMC safety guidelines.
• Pressure-regulated feedwater management system featuring dual-stage mechanical pressure reduction and flow-balanced inlet control to maintain stable RO recovery rates across variable municipal supply pressures (1.5–6.0 bar).
• Demand-based operation logic: pump and UV lamp power states dynamically adjust to real-time draw rate, reducing energy consumption by up to 38% during low-usage periods while preserving TOC suppression performance.
• Factory-preconfigured with all critical consumables: activated carbon block, RO membrane, EDI module, 185/254 nm UV lamp, and final 0.1 µm PES + mixed-bed ion-exchange cartridge—ready for immediate commissioning.

Sample Compatibility & Compliance

The Omniapure CN delivers water meeting or exceeding specifications for ASTM Type I (Ultrapure), including maximum allowable limits for conductivity (≤0.055 µS/cm), TOC (≤3 ppb), bacteria (<0.001 CFU/mL), endotoxin (<0.001 EU/mL), and particulates (<1 particle/mL >0.1 µm). Its output is validated for compatibility with sensitive analytical workflows requiring low-background interference: LC-MS solvent preparation, electrophysiology buffer formulation, semiconductor wafer rinsing, and GLP-compliant stability studies. All wetted materials comply with USP Class VI biocompatibility testing; the system supports audit-ready documentation per FDA 21 CFR Part 11 when paired with optional data logging software (sold separately). It conforms to ISO/IEC 17025 calibration traceability requirements for resistivity and TOC sensors.

Software & Data Management

The embedded controller provides local LCD interface with real-time display of resistivity, TOC, temperature, cumulative volume dispensed, and cartridge service life (% remaining). Optional Ethernet/Wi-Fi connectivity enables remote monitoring via web-based dashboard supporting SNMP v3 and Modbus TCP protocols. Audit trail functionality logs all user actions, alarm events, maintenance interventions, and calibration records with timestamp, operator ID, and digital signature—fully aligned with ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate, Complete, Consistent, Enduring, Available). Data export is supported in CSV and PDF formats compliant with laboratory information management systems (LIMS).

Applications

• HPLC, UHPLC, and LC-MS mobile phase and blank preparation where low ionic background and minimal organic leachables are essential.
• Cell culture and stem cell expansion requiring endotoxin-free, nuclease-free water for media and reagent dilution.
• Next-generation sequencing library preparation and CRISPR-Cas9 editing workflows demanding ultra-low DNase/RNase activity.
• Atomic absorption spectroscopy (AAS), inductively coupled plasma mass spectrometry (ICP-MS), and graphite furnace analysis where trace metal contamination must be below detection limits.
• Pharmaceutical QC testing per USP <1231> Water for Pharmaceutical Purposes and EP 2.2.44 Purified Water monographs.

FAQ

What is the recommended maintenance schedule for the Omniapure CN system?

Pre-filters require replacement every 3–6 months depending on feedwater quality; RO membranes every 24 months; EDI stacks every 36 months; and final polishing cartridges every 12 months or after 2,000 L of dispensed water—whichever occurs first.
Does the system support integration with building automation or central lab networks?

Yes—via optional RS485 Modbus RTU or Ethernet TCP/IP interface, enabling integration with BMS platforms and centralized lab infrastructure monitoring tools.
Can the Omniapure CN be validated for GMP environments?

The system supports IQ/OQ/PQ protocol execution with factory-provided validation templates, as-built schematics, material certifications (3.1), and sensor calibration certificates traceable to NIST standards.
Is there a service contract option with preventive maintenance and emergency response?

PECULIAR offers tiered service agreements (Silver/Gold/Platinum) covering annual qualification, spare parts provisioning, remote diagnostics, and 4-hour onsite response for critical failures within mainland China.
