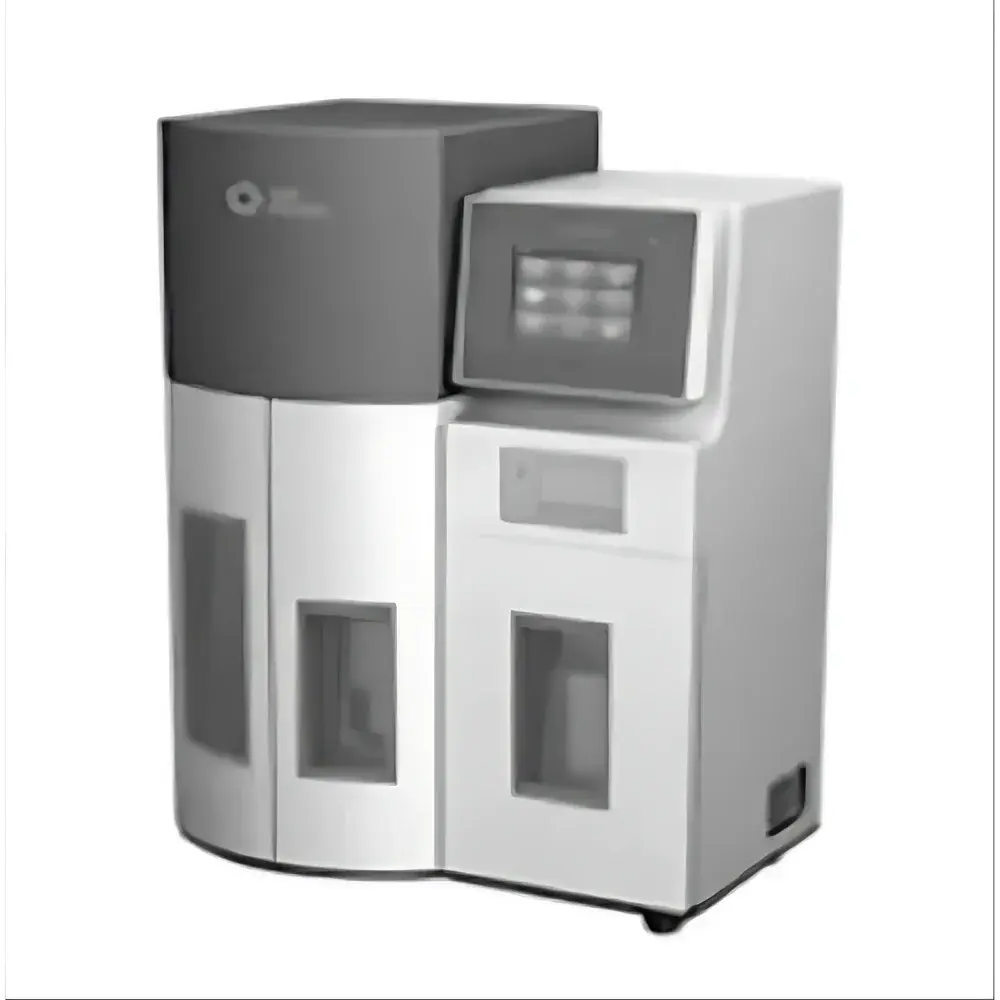

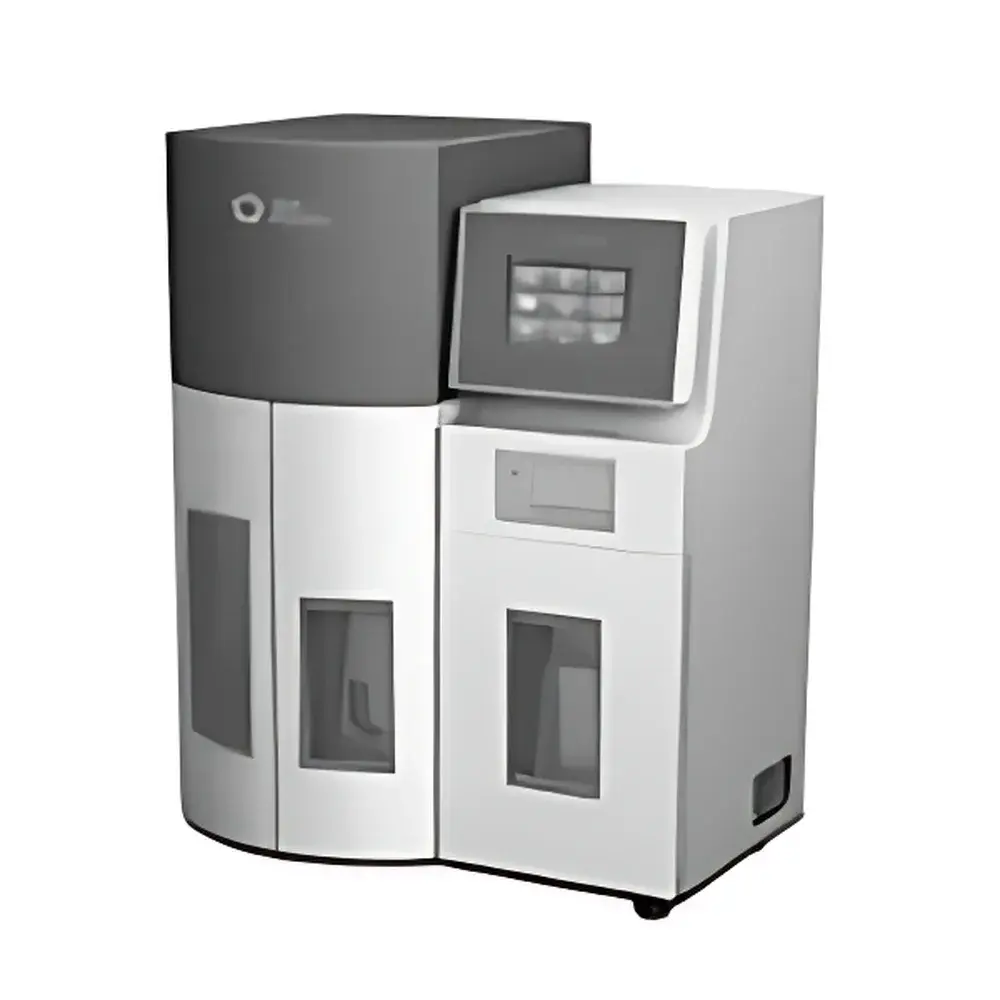

Peiou SKD-2000 Fully Automated Kjeldahl Nitrogen Determinator

Overview

The Peiou SKD-2000 Fully Automated Kjeldahl Nitrogen Determinator is an integrated analytical platform engineered for precise, traceable, and high-throughput nitrogen quantification in accordance with classical Kjeldahl methodology (ISO 8968-1, AOAC 981.10, USP & EP monographs). It implements a closed-loop, sequential workflow comprising digestion-derived sample preparation (performed off-instrument), automated alkaline distillation under controlled steam conditions, real-time acid–base titration via potentiometric endpoint detection, and automatic calculation of nitrogen content — all within a single, unattended operation. The system employs dual-level liquid sensing in the distillation chamber, programmable segmented alkali addition, and continuous steam generation with zero-interruption water replenishment to ensure quantitative ammonia liberation and minimal volatilization loss. Its architecture is optimized for laboratories requiring compliance with GLP/GMP environments, where reproducibility, auditability, and operator safety are paramount.

Key Features

• Triple-color (red/green/blue) real-time spectroscopic endpoint monitoring during titration, displaying concurrent titration curves, acid consumption volume, and calculated nitrogen/protein values.
• Comprehensive hardware interlock system: door position sensor, reagent level detection (acid/alkali/diluent), cooling water flow & pressure monitoring, and real-time distillation vessel temperature control with overheat cutoff.
• Intelligent distillation control: adjustable steam power output ensures optimal recovery across low-concentration samples (e.g., environmental water, feed extracts) while maintaining high precision at upper range.
• Segmented alkali dosing (1–10 steps, 0–15 s interval) prevents exothermic runaway during neutralization, eliminating premature NH₃ loss in absence of steam.
• Dual liquid-level protection in the distillation chamber eliminates dry-burn risk — a critical safety and longevity feature.
• Fully synchronized distillation and titration: ammonia is neutralized immediately upon condensation, minimizing atmospheric exposure and improving accuracy and speed.
• Corrosion-resistant construction: ABS engineering plastic chassis and chemically inert fluidic pathways (PTFE-lined pumps, silicone-free tubing) rated for 3-year warranty under routine use.
• Modular reagent delivery: all liquids dispensed volumetrically (0.1–150 mL, 1 mL resolution) via calibrated peristaltic pumps, supporting traceable calibration and SOP-based method validation.

Sample Compatibility & Compliance

The SKD-2000 accommodates heterogeneous matrices including cereals, dairy products, meat, soil extracts, wastewater, fertilizers, and pharmaceutical excipients. Solid samples (0.1–5 g) and liquid samples (1–50 mL) are processed without manual intervention post-loading. The instrument complies with core regulatory frameworks governing nitrogen analysis: ISO 8968 (milk and milk products), AOAC Official Methods 981.10 and 991.20, ASTM D1142/D5177 (wastewater and fuels), and USP / Ph. Eur. 2.5.11. All operational parameters — including delay time (0–1800 s) — support extended protocols for nitrate/nitrite conversion (e.g., Devarda’s alloy reduction). Data integrity meets ALCOA+ principles, with full electronic records of method parameters, raw titration curves, and audit trails exportable in CSV/PDF formats.

Software & Data Management

The embedded control software provides bilingual (English/Chinese) interface with password-protected user roles (Operator, Supervisor, Administrator). Each analysis generates a timestamped report containing sample ID, reagent lot numbers, distillation/titration curves, acid volume consumed, %N, %Protein (using standard conversion factors), and RSD against reference standards. Raw data files include metadata compliant with 21 CFR Part 11 requirements: electronic signatures, immutable audit logs, and configurable retention policies. Export options include USB storage, network printing, and direct integration into LIMS via TCP/IP or RS232 protocols. Calibration verification routines support daily system suitability checks per ISO/IEC 17025 Clause 7.7.

Applications

• Quality control of protein content in food and feed — from infant formula to animal feed pellets.
• Environmental monitoring of total Kjeldahl nitrogen (TKN) in municipal and industrial wastewater per EPA Method 351.2.
• Pharmaceutical raw material testing per ICH Q5E guidelines for nitrogenous impurities.
• Agricultural soil and fertilizer analysis for ammonium-N, organic-N, and total-N reporting.
• Research laboratories performing method development and validation for nitrogen speciation studies.

FAQ

Does the SKD-2000 support nitrate/nitrite determination?
Yes — using programmable delay time (up to 1800 s) and optional Devarda’s alloy or salicylic acid pretreatment, it enables full TKN + NO₃⁻/NO₂⁻ conversion prior to distillation.
Is the instrument compatible with 0.01 mol/L standard acid solutions?
Yes — the reagent pump and titration module are calibrated and validated for accurate delivery and endpoint detection across the full 0.01–1.0 mol/L HCl/H₂SO₄ range.
How is data integrity ensured for regulated environments?
All analyses generate immutable digital records with electronic signatures, time-stamped audit trails, and exportable PDF/CSV reports meeting FDA 21 CFR Part 11 and EU Annex 11 requirements.
What maintenance is required for long-term reliability?
Routine tasks include monthly cleaning of condenser and distillation chamber, quarterly calibration of reagent pumps, and annual verification of temperature sensors and titration electrode response — all documented in the onboard maintenance log.
Can the SKD-2000 be integrated into a laboratory information management system (LIMS)?
Yes — via configurable TCP/IP or RS232 serial communication, supporting HL7, ASTM E1384, or custom ASCII protocol mapping for bidirectional data exchange.
