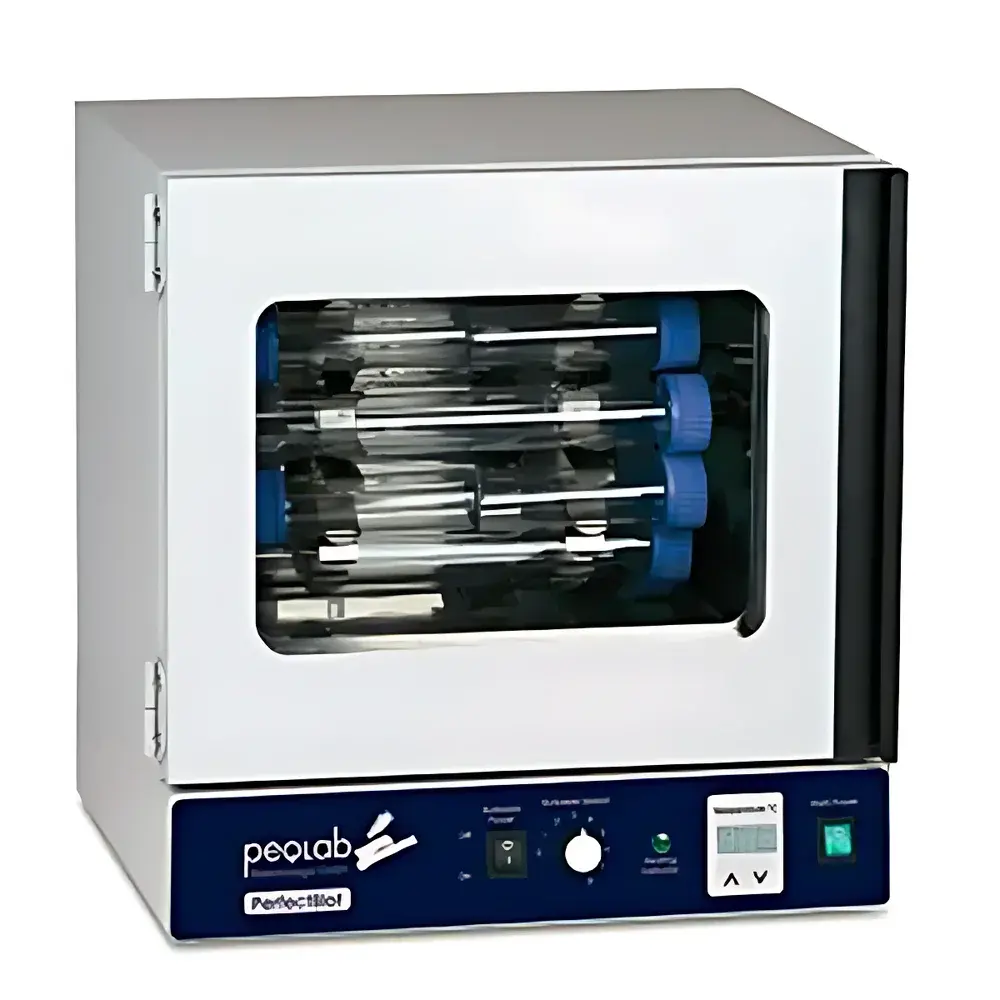

Peqlab Perfect Blot Molecular Hybridization Incubator

Overview

The Peqlab Perfect Blot Molecular Hybridization Incubator is an engineered platform for controlled, reproducible nucleic acid hybridization under precisely regulated thermal and mechanical conditions. Designed around a dual-mode operational architecture—combining static incubation with programmable orbital rotation—the instrument supports both conventional Southern and Northern blotting protocols as well as advanced applications requiring uniform probe binding kinetics, such as DIG- or biotin-labeled hybridizations, high-stringency washes, and low-background detection workflows. Its core thermal regulation system integrates microchip-based PID control with forced-air convection, ensuring spatial temperature homogeneity of ±0.1°C across the entire chamber volume—a critical requirement for minimizing inter-sample variability in downstream quantification (e.g., densitometric analysis or chemiluminescent signal integration). The unit operates without external water baths or oil baths, eliminating contamination risks and simplifying GLP-aligned lab maintenance.

Key Features

• Dual-function design: Combines stationary incubation with adjustable rotational agitation via a motorized tilting axis—enabling simultaneous optimization of hybridization efficiency and probe diffusion kinetics.
• High-fidelity temperature management: Microprocessor-controlled heating elements coupled with internal air circulation deliver stable setpoint adherence (±0.1°C) and rapid thermal equilibration (<15 min from 25°C to 65°C).
• Programmable rotation parameters: Independent adjustment of speed (4–20 rpm) and tilt angle ensures compatibility with diverse tube geometries (e.g., 15 mL conical, 50 mL Falcon, or custom glass hybridization bottles) and viscosity ranges (e.g., formamide-based vs. aqueous hybridization buffers).
• Corrosion-resistant chamber construction: Interior surfaces are fabricated from electropolished, mirror-finish stainless steel (AISI 316), resistant to repeated exposure to alkaline stripping solutions, SDS, and organic solvents commonly used in post-hybridization processing.
• Compact footprint and ergonomic access: Front-loading door with magnetic latch and transparent polycarbonate window allows real-time monitoring without interrupting thermal or rotational cycles.

Sample Compatibility & Compliance

The Perfect Blot accommodates standard molecular biology consumables including polypropylene hybridization tubes (up to 12 × 15 mL or 24 × 5 mL), glass hybridization bottles, and membrane-support cassettes. Its chamber geometry permits unobstructed airflow around vertically oriented membranes during capillary transfer or vacuum blotting setups. From a regulatory perspective, the instrument meets IEC 61010-1 safety standards for laboratory equipment and complies with RoHS 2011/65/EU directives. While not a medical device, its consistent thermal performance supports adherence to ISO/IEC 17025:2017 requirements for method validation in accredited testing laboratories performing nucleic acid detection assays. Data integrity is reinforced by non-volatile memory retention of user-defined protocols—even during brief power interruptions.

Software & Data Management

The Perfect Blot operates via an intuitive front-panel interface with rotary encoder and LCD display; no external PC or proprietary software is required for routine operation. All parameters—including temperature setpoint, ramp rate, hold time, rotation speed, and tilt profile—are stored in onboard memory with timestamped logging (last 50 cycles). For labs implementing electronic record-keeping under FDA 21 CFR Part 11 or EU Annex 11, optional RS-232/USB connectivity enables integration with LIMS or ELN platforms via ASCII-based command protocol. Audit trail functionality (user ID, parameter changes, start/stop timestamps) can be exported in CSV format for QA review and compliance reporting.

Applications

• Southern and Northern blot hybridization using radioactive or non-radioactive probes (e.g., DIG-dUTP, biotin-16-dUTP)
• Pre-hybridization blocking and stringent post-hybridization washes at defined temperatures (e.g., 65°C in 0.1× SSC / 0.1% SDS)
• Antibody-based detection on nitrocellulose or PVDF membranes (e.g., Western blot incubation with primary/secondary antibodies)
• Controlled denaturation and renaturation studies of DNA/RNA secondary structures
• Low-volume hybridization reactions in sealed microtubes where passive diffusion is insufficient

FAQ

Does the Perfect Blot support overnight hybridization protocols?

Yes—the instrument maintains setpoint stability for up to 99 hours and includes automatic shutdown with audible alert upon cycle completion.
Can it be used for antibody incubations in Western blotting?

Absolutely; its precise temperature control and gentle agitation reduce non-specific binding and improve signal-to-noise ratios during primary and secondary antibody steps.
Is calibration traceable to national standards?

Factory calibration uses NIST-traceable reference thermistors; users may perform field verification with Class A platinum RTDs per ISO/IEC 17025 guidelines.
What maintenance is required?

No scheduled servicing is needed beyond periodic cleaning of the chamber interior with 70% ethanol and inspection of door gasket integrity every 6 months.
Is the rotation mechanism compatible with glass hybridization bottles?

Yes—the tilting axis accommodates bottles up to 150 mm in height and 80 mm in diameter, provided they are secured with the optional bottle clamp accessory.
