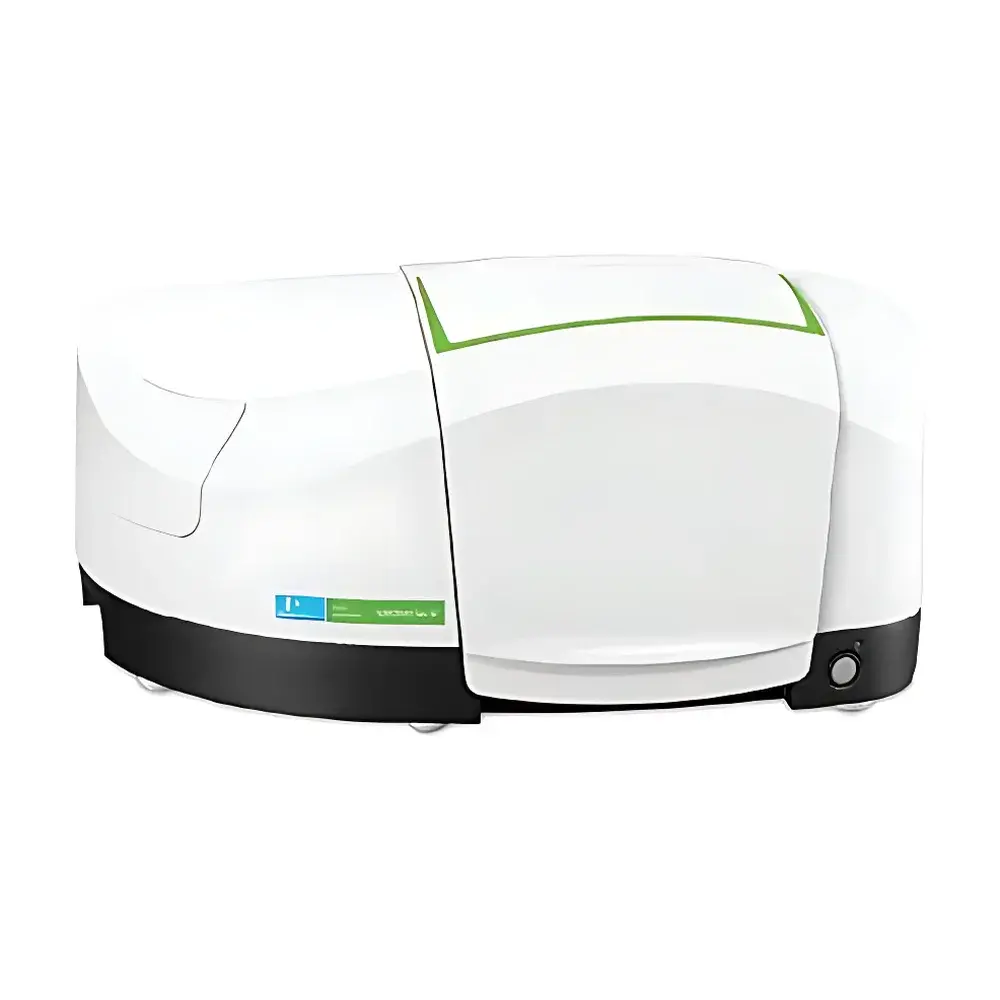

PerkinElmer Spectrum Two N Fourier Transform Near-Infrared Spectrometer

Overview

The PerkinElmer Spectrum Two N is a high-performance, portable Fourier Transform Near-Infrared (FT-NIR) spectrometer engineered for rigorous laboratory and near-laboratory applications across regulated and industrial environments. Based on a robust Dynascan™ rotating interferometer architecture—free of dynamic mirror correction requirements—the instrument delivers exceptional optical stability, long-term wavelength accuracy, and high signal-to-noise ratio (SNR) across its full spectral range of 680–4800 nm. Unlike dispersive NIR systems, the Spectrum Two N employs true interferometric measurement principles compliant with ISO 12099:2017 (Animal feeding stuffs — Guidance on the application of near infrared spectroscopy) and ASTM E1655 (Standard Practices for Infrared Multivariate Quantitative Analysis), ensuring traceable, reproducible spectral acquisition. Its compact, ruggedized chassis supports deployment in QC labs, production floors, receiving docks, and field-mobile setups without compromising analytical fidelity. The system’s core design philosophy centers on method transferability, regulatory readiness, and operational flexibility—enabling identical performance whether operated benchtop in a GMP-compliant pharmaceutical lab or mounted on a mobile cart in an edible oil refinery.

Key Features

• Dynascan™ rotating interferometer with precision ball-bearing mechanism—eliminates need for dynamic phase correction and ensures >10-year mechanical reliability under continuous operation.
• Atmospheric Vapor Compensation™ (AVC) technology—performs real-time water vapor absorption correction using embedded reference spectra, reducing baseline drift and improving quantitative repeatability in ambient lab conditions.
• OpticsGuard™ desiccation system—integrates长效 (long-life) molecular sieve cartridges and sealed optical path to maintain <5% internal RH, enabling stable operation in humid or variable-temperature environments (e.g., food processing facilities, tropical warehouses).
• Absolute Virtual Instrument™ (AVI) calibration—anchors wavenumber scale and line shape to fundamental gas-phase absorption references (e.g., CO, H₂O), guaranteeing inter-instrument spectral equivalence within ±0.05 cm⁻¹ across global fleets.
• Modular, hot-swappable sampling interface—supports three plug-and-play accessories without tools or software reconfiguration: Near-Infrared Reflectance Module (NIRM), Heated Transmission Module (HTM), and Remote Sampling Module (RSM).

Sample Compatibility & Compliance

The Spectrum Two N accommodates diverse physical sample forms—including powders, granules, viscous liquids, films, and packaged goods—via purpose-engineered accessories. The NIRM enables rapid, non-destructive reflectance analysis of solids (e.g., pharmaceutical APIs, cereal grains, polymer pellets) using disposable glass vials or Petri dishes; its magnetic rotary stage and edge-sealed lid minimize cross-contamination and cleaning downtime. The HTM supports temperature-controlled transmission measurements of oils and biofuels (5/8/12 mm pathlength options, up to 80 °C), allowing sequential heating and analysis of three samples to maximize throughput. The RSM permits direct through-packaging analysis of sealed containers (e.g., HDPE bottles, laminated pouches) via trigger-activated fiber-optic probe—ideal for incoming material inspection under ISO 22000 or BRCGS protocols. All configurations comply with FDA 21 CFR Part 11 when used with Spectrum 10 ES software, delivering full audit trails, role-based access control, electronic signatures, and SQL-backed data integrity.

Software & Data Management

Spectrum 10™ software provides a unified platform for instrument control, chemometric modeling, and regulatory reporting. Spectrum 10 ES (Enterprise Security) implements ALCOA+ principles: attributable, legible, contemporaneous, original, accurate, complete, consistent, enduring, and available. It logs all user actions—including method edits, calibration updates, and result approvals—in an encrypted SQL database with immutable audit trail. Pre-validated modules include Spectrum Touch™ (touch-optimized workflows for trans-fat, dairy, lubricants), Spectrum Adulterant Screen (library-matched detection of adulterants at ppm-level sensitivity), Spectrum Quant™ Advanced Algorithms Pack (PLS, PCR, SVM, and nonlinear regression tools), and Spectrum AssureID (SIMCA-based identity verification with macro scripting). Cloud-enabled firmware and method synchronization allows secure remote method validation, calibration transfer, and technical support diagnostics—reducing instrument downtime and supporting distributed QA networks.

Applications

In pharmaceutical manufacturing, the Spectrum Two N performs raw material identification (USP ) and assay quantitation per ICH Q2(R2), with full 21 CFR Part 11 compliance for electronic records. In food safety, it screens for melamine, Sudan dyes, and rancidity markers in edible oils per AOAC 2013.01 and detects moisture, protein, and fat in dairy and nuts per ISO 12099. For petroleum and biofuels, it measures cetane number, biodiesel blend ratios (B5–B20), and oxidation stability per ASTM D7467 and D975. In polymer recycling, it classifies PET, PP, PE, and PS fractions in mixed waste streams using NIRM and RSM—supporting EU Circular Economy Action Plan traceability requirements. Each application leverages AVI-standardized spectra, ensuring method portability between instruments across global supply chains.

FAQ

Does the Spectrum Two N require annual recalibration against NIST-traceable standards?
No—its Absolute Virtual Instrument™ technology maintains long-term wavenumber accuracy without routine external recalibration; however, periodic performance qualification (PQ) per USP is recommended.
Can third-party sampling accessories be integrated?
Yes—the system uses industry-standard optical interfaces (SMA 905, 5 mm core fiber) and supports OEM and custom-built accessories compatible with FT-NIR spectral ranges.
Is method development supported for non-English-speaking laboratories?
Yes—PerkinElmer offers global method development services, including multilingual SOP documentation, PLS model validation reports, and IQ/OQ/PQ protocol templates aligned with ISO/IEC 17025.
What is the typical warm-up time before first measurement?
Less than 15 minutes from cold start, thanks to thermally stabilized laser and detector subsystems.
How is data backup and disaster recovery handled in Spectrum 10 ES?
Automated daily backups to network-attached storage (NAS) or cloud repositories (AWS S3, Azure Blob) are configurable; encrypted database snapshots preserve full chain-of-custody metadata.
