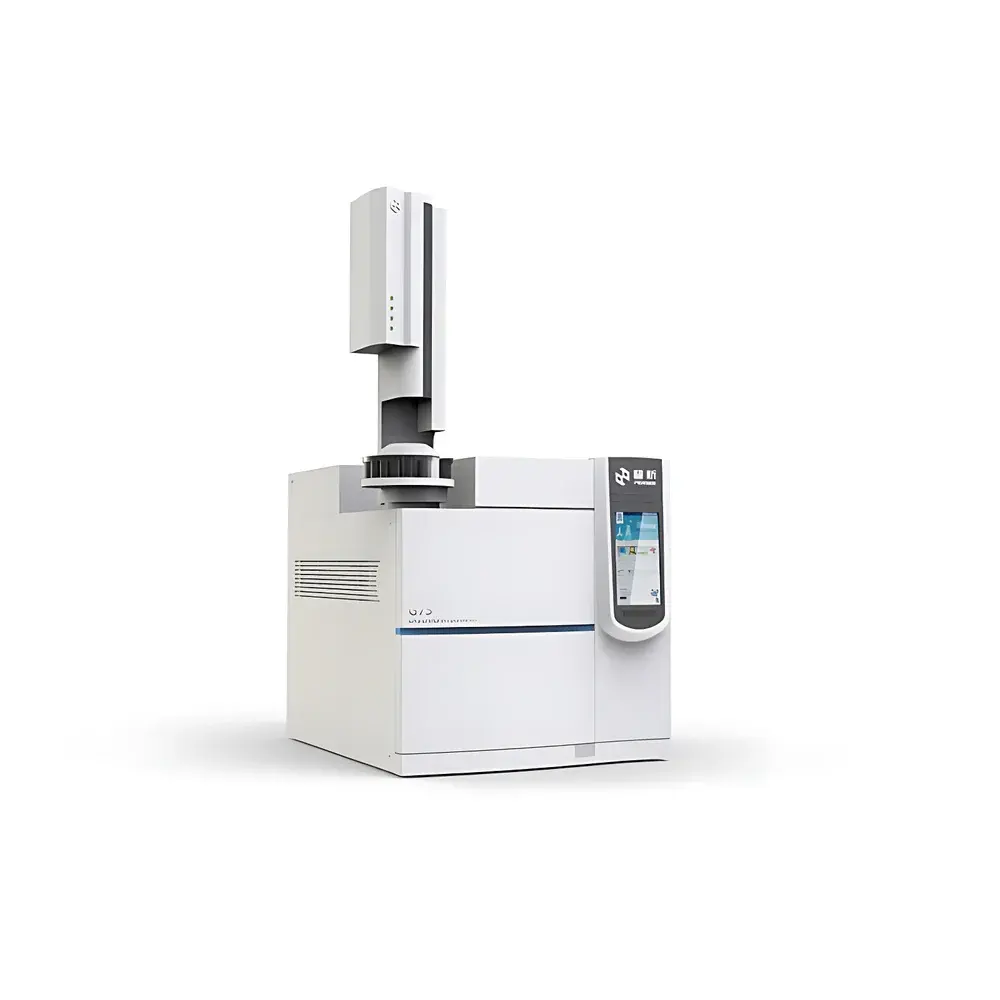

Persee G75 Laboratory Gas Chromatograph

Overview

The Persee G75 is a modular, benchtop laboratory gas chromatograph engineered for high reproducibility and method robustness in routine and research-grade volatile and semi-volatile organic compound analysis. It operates on the fundamental principle of gas–solid or gas–liquid partition chromatography, where analytes are separated based on differential partitioning between a mobile phase (inert carrier gas) and a stationary phase coated inside a fused-silica capillary column. The instrument’s core architecture centers on thermal programmability, precise flow regulation, and detector interoperability—enabling compliance with standard test methods defined in ASTM D3612, ISO 11843, USP , and EPA Methods 8021B, 8260D, and 8270E. Designed for laboratories requiring flexibility without compromise, the G75 supports multi-inlet configurations and seamless integration of seven detector types—including flame ionization (FID), thermal conductivity (TCD), electron capture (ECD), and mass spectrometric (MSD) detection—making it suitable for environmental monitoring, petrochemical QA/QC, pharmaceutical residual solvent testing, and food safety applications.

Key Features

• Smart Flow Control (SFC) system delivering stable, pulse-free carrier gas delivery across full operating ranges; enables retention time locking and method transfer fidelity.
• Intelligent Synchronized Micro-Sensing Technology: compensates for manual injection timing variance by synchronizing oven ramp initiation with syringe plunger displacement detection—achieving ≤0.5% RSD in retention time reproducibility under manual operation.
• Quick-Lock Column Interface: standardized ferruleless connection mechanism reduces column installation/removal time to under 90 seconds while maintaining leak integrity at pressures up to 100 psi.
• Cloud-Integrated Method Development Suite: accesses a centralized, version-controlled repository of validated GC methods; applies constraint-aware optimization algorithms to automatically adjust temperature gradients, flow profiles, and detector parameters based on sample matrix and target analyte elution windows.
• Remote Diagnostic Engine: continuously monitors subsystem health (oven thermocouple drift, detector baseline noise, pressure transducer calibration offset); generates contextual fault reports aligned with ISO/IEC 17025 root-cause classification trees and recommends corrective actions traceable to service bulletins.

Sample Compatibility & Compliance

The G75 accommodates liquid, gaseous, and headspace-derived samples via split/splitless, on-column, or PTV inlets (configurable per installed inlet module). Its universal detector interface complies with IEC 61000-4 electromagnetic compatibility standards and meets mechanical safety requirements per EN 61010-1. All firmware and software modules adhere to ALCOA+ data integrity principles. Audit trail functionality satisfies FDA 21 CFR Part 11 requirements for electronic records and signatures when deployed with optional secure user authentication and role-based access control. System suitability testing protocols align with USP and EP 2.2.46, supporting GLP and GMP-regulated environments.

Software & Data Management

Instrument control, data acquisition, and reporting are managed through Persee ChromaLink v4.x—a Windows-based platform compliant with IEEE 11073-10201 (medical device interoperability framework) and extensible via Python 3.9+ scripting API. Raw data files follow ANDI/NetCDF format for third-party processing in OpenLab CDS, Chromeleon, or MassHunter. The cloud-hosted method library employs TLS 1.3 encryption and OAuth 2.0 authorization; method synchronization occurs over HTTPS with SHA-256 signed manifests. All audit trails—including parameter changes, sequence edits, and reprocessing events—are immutable and timestamped to UTC with NIST-traceable clock sync.

Applications

• Environmental: quantification of BTEX, PAHs, chlorinated hydrocarbons, and pesticides in soil/water extracts per EPA SW-846.
• Pharmaceutical: residual solvent profiling in APIs and excipients per ICH Q3C guidelines.
• Petrochemical: hydrocarbon type analysis (PIONA) and simulated distillation (ASTM D5292, D6352).
• Food & Flavor: volatile aroma compound profiling (e.g., esters, aldehydes, terpenes) using headspace-GC/FID or GC/MSD.
• Forensics: toxicology screening for volatiles including ethanol, acetone, and illicit drug metabolites.

FAQ

Does the G75 support method validation according to ICH Q2(R2)?
Yes—the system provides full documentation packages for specificity, linearity, accuracy, precision, LOD/LOQ, and robustness assessments, including automated system suitability report generation.
Can the G75 be integrated into an existing LIMS environment?
Yes—ChromaLink supports ASTM E1578-compliant instrument interfacing and offers configurable HL7 and CSV export templates for direct ingestion into major LIMS platforms.
Is remote instrument monitoring available without Persee’s cloud subscription?
Local network monitoring is fully functional offline; cloud-based diagnostics and method sharing require an active Persee Connect license.
What maintenance intervals are recommended for the SFC module?
Carrier gas filters should be replaced every 6 months or after 1,000 runs; SFC pressure transducers are calibrated annually per ISO/IEC 17025 accredited procedures.
Are firmware updates provided free of charge during the warranty period?
Yes—all firmware and software updates released during the 24-month standard warranty are included at no additional cost and delivered via secure over-the-air (OTA) channel.
