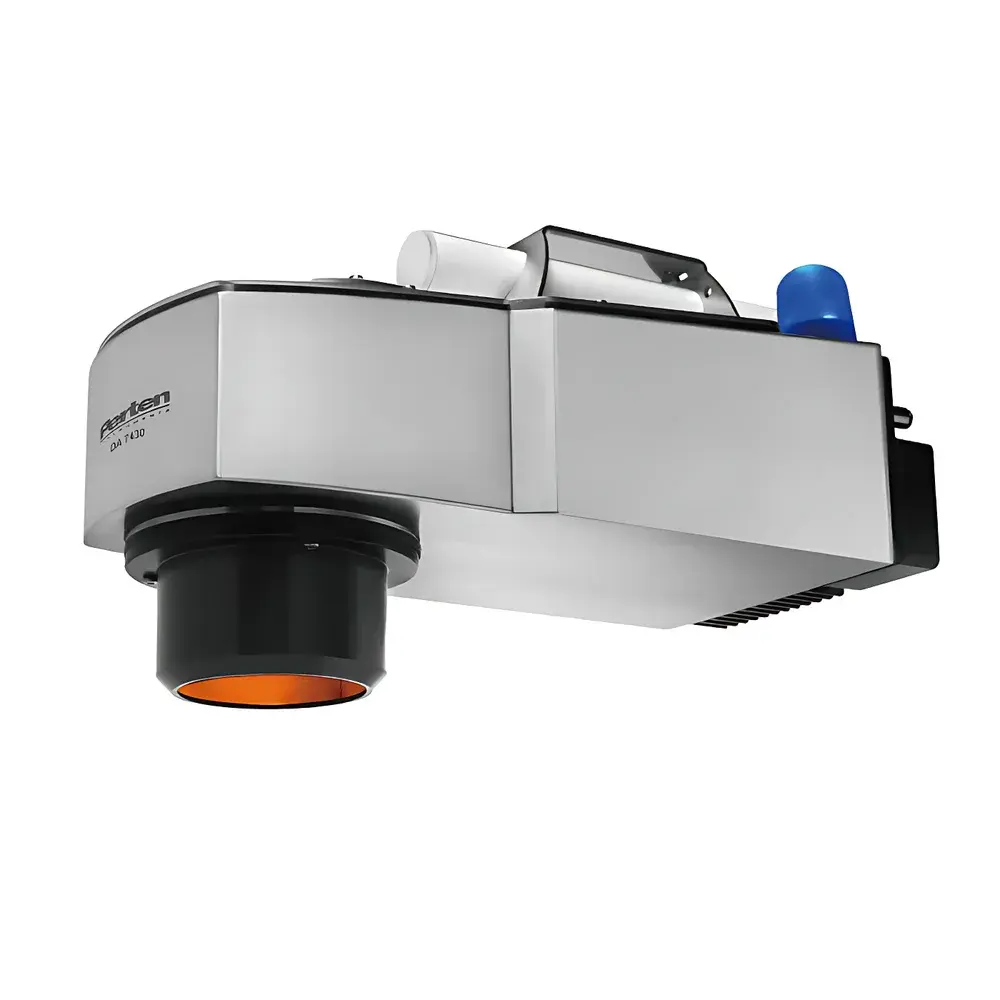

Perten DA7430M Single-Parameter Online Near-Infrared Moisture Analyzer

Overview

The Perten DA7430M Single-Parameter Online Near-Infrared Moisture Analyzer is an industrial-grade, grating-scanning near-infrared spectrometer engineered exclusively for real-time, non-contact moisture quantification in continuous production environments. Unlike multi-parameter NIR systems, the DA7430M employs a purpose-built optical architecture optimized for high signal-to-noise ratio (SNR) at water’s primary absorption bands—specifically the combination band near 1450 nm and the first overtone near 1940 nm (within its operational 950–1650 nm range). Its measurement principle relies on diffuse reflectance and transflectance spectroscopy, enabling robust quantification without sample preparation or physical contact. Designed for 24/7 operation in demanding manufacturing settings—including oilseed crushing, feed milling, starch processing, and tobacco curing—the DA7430M delivers stable, traceable moisture data with minimal drift, supporting both process control and quality assurance objectives under GLP- and GMP-aligned workflows.

Key Features

• Grating-based scanning optics with integrated xenon lamp for automatic, full-spectrum wavelength calibration—ensuring long-term photometric stability and compliance with ISO 12099:2017 for NIR instrument performance verification.
• Large-diameter optical probe (>10 cm spot size) enabling representative sampling of heterogeneous, granular, or particulate materials—critical for accurate moisture assessment in oilseeds, feed pellets, and starch intermediates.
• High-speed spectral acquisition at up to 30 subspectra per second, facilitating rapid response to process transients and supporting statistical process control (SPC) with sub-second data resolution.
• IP67-rated enclosure with sealed optical path and multi-stage slit design—eliminating stray light interference and reducing maintenance frequency in dusty, humid, or vibration-prone environments.
• Integrated computing module running embedded Linux OS; no external PC required for core operation—minimizing latency and eliminating fiber-optic signal degradation associated with remote detector configurations.
• Zero-consumables architecture: xenon lamp lifetime exceeds 10,000 hours; no filters, cuvettes, or reagents needed—reducing total cost of ownership and downtime risk.

Sample Compatibility & Compliance

The DA7430M accommodates solid-phase samples including whole grains, flakes, powders, pellets, and suspensions—as well as semi-transparent liquids containing suspended solids—without requiring homogenization or dilution. Its dual-mode optical interface supports both diffuse reflectance (for opaque or thick-layered materials) and transflectance (for thin-layer or semi-transparent streams), ensuring adaptability across conveyance geometries such as belt surfaces, chutes, screw augers, and mixer discharge zones. The system complies with IEC 61000-6-2 (immunity) and IEC 61000-6-4 (emissions), and its analog and digital outputs meet functional safety requirements for integration into SIL-2-capable control architectures. Data integrity is maintained through audit-trail-enabled software logging, aligning with FDA 21 CFR Part 11 expectations for electronic records in regulated industries.

Software & Data Management

Chemometric modeling is performed using Unscrambler X and Percal—industry-standard platforms supporting PLS regression, outlier detection, spectral preprocessing (e.g., SNV, derivatives, multiplicative scatter correction), and model validation per ASTM E1655 guidelines. Calibration transfer between instruments is facilitated via standardization algorithms and reference-free spectral matching. The web-based user interface operates over standard Ethernet and supports concurrent access by multiple local users via HTTPS-secured HTML5 client. All spectra, predictions, timestamps, and diagnostic logs are stored locally with optional export to SQL databases or MES/SCADA systems via OPC UA or Modbus TCP/IP. Raw spectral archives support retrospective reprocessing and method refinement without hardware intervention.

Applications

• Oils & Oilseeds: Real-time moisture monitoring of soybeans, rapeseed, sunflower seeds, cottonseed, rice bran, and corresponding meals/cakes during drying, storage, and extraction—preventing mold growth and optimizing solvent recovery.
• Starch & Bioproducts: Inline moisture control of corn starch, gluten, germ, and fiber fractions during wet-milling and drying—ensuring consistent rheology and shelf-life stability.
• Animal Feed & Pet Food: Continuous verification of moisture in raw materials, premixes, pelleted feeds, and extruded treats—supporting nutritional labeling accuracy and microbial safety compliance (e.g., EU Regulation 183/2005).
• Tobacco Processing: Moisture profiling across leaf conditioning, threshing, redrying, and cigarette rod formation—maintaining draw resistance, burn rate, and nicotine delivery consistency.
• Pharmaceutical Excipients & Botanicals: Non-destructive batch verification of dried herbs, roots, and plant-derived powders where moisture content directly impacts extract yield and hygroscopic stability.

FAQ

Is the DA7430M suitable for regulatory submissions in food or feed manufacturing?
Yes—its calibration traceability, audit-ready software logs, and adherence to ASTM E1655 and ISO 12099 enable use in validated quality systems compliant with FDA, EFSA, and AAFCO requirements.

Can the DA7430M be retrofitted onto existing conveyor systems?
Yes—it mounts directly to standard industrial frames using universal brackets and integrates with common mechanical interfaces including belt sidewalls, chute walls, and screw conveyor housings without structural modification.

Does the instrument require periodic recalibration with reference standards?
No—wavelength and photometric calibration are fully automated using the internal xenon source; only chemometric model updates (not hardware recalibration) are needed when raw material composition changes significantly.

What level of technical support is available for method development?
Perten provides application engineering support—including sample collection guidance, spectral library development, and PLS model validation—aligned with ISO 21542 for NIR method transfer and ruggedness testing.
