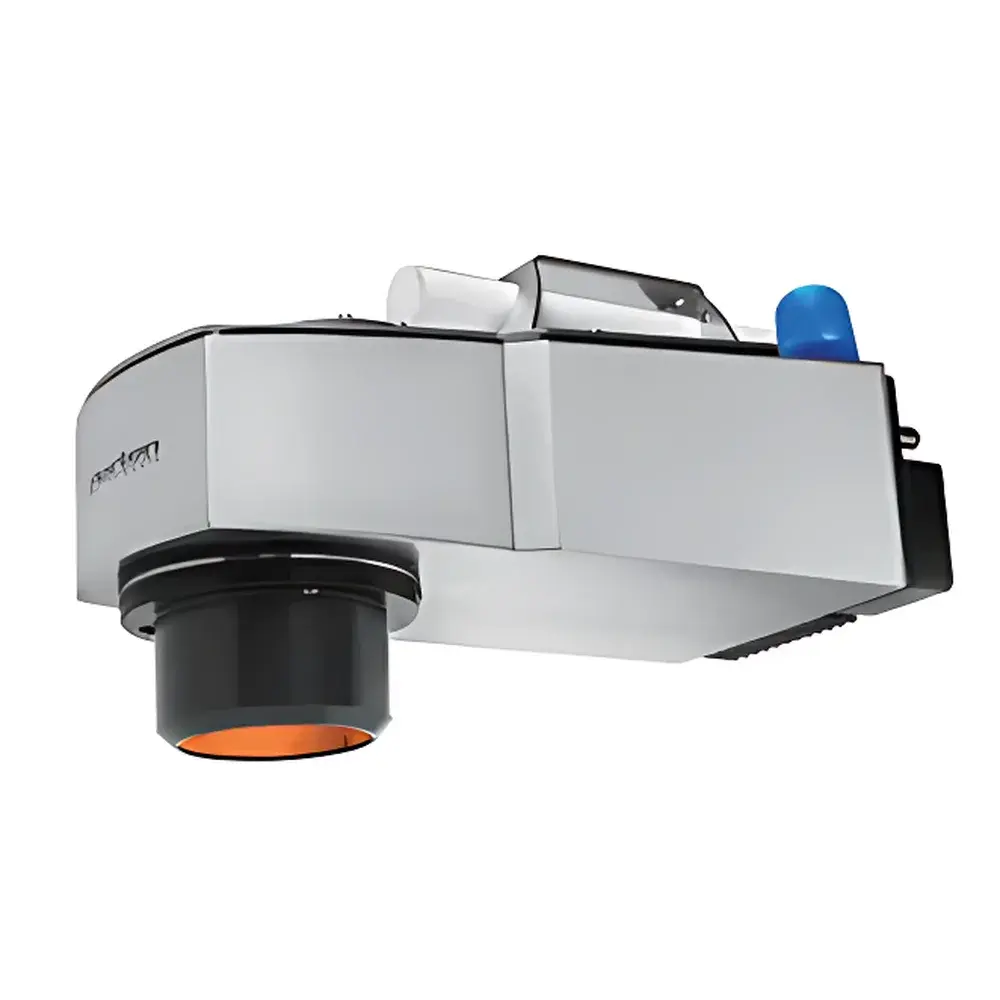

Perten DA7440 Online Near-Infrared Spectrometer

Overview

The Perten DA7440 Online Near-Infrared Spectrometer is an industrial-grade, real-time analytical instrument engineered for continuous compositional monitoring in dynamic production environments. Based on grating-scanning spectroscopy with a 256-element InGaAs diode array detector, the DA7440 captures full-spectrum NIR data (950–1650 nm) in parallel—enabling simultaneous acquisition and processing of all wavelengths without mechanical wavelength scanning delays. Its optical architecture features a gold-coated holographic fixed grating and thermoelectrically cooled detector, ensuring long-term spectral stability, negligible wavelength drift, and intrinsic resistance to thermal and mechanical perturbations. The system employs xenon-lamp-based automated wavelength calibration across the entire spectral range, delivering traceable photometric accuracy required for regulatory-compliant process analytics. Designed as a fully integrated probe—housing light source, optics, dispersion element, detection array, and embedded processing—the DA7440 eliminates signal degradation associated with fiber-optic transmission, achieving superior signal-to-noise ratio (SNR) with low-power illumination.

Key Features

• Stable Optical Architecture: Gold-coated holographic grating and thermoelectrically cooled InGaAs detector maintain spectral fidelity over extended operation; no moving parts in the optical path ensures mechanical robustness.
• High-Speed Spectral Acquisition: Capable of acquiring >30 subspectra per second with user-definable sampling intervals—optimized for fast-moving conveyor belts, pneumatic transport lines, or continuous flow reactors.
• Large-Area Illumination & Detection: 10 cm diameter measurement spot enables representative analysis of heterogeneous materials—including granular feeds, powdered intermediates, and turbid liquids—minimizing bias from particle segregation, air bubbles, or surface irregularities.
• Non-Contact, Environmentally Resilient Design: Sealed optical housing with positive-pressure clean-air purging prevents lens contamination; insensitive to sample temperature, corrosivity, or physical state (solid, semi-solid, or suspension).
• Self-Diagnostic Capability: Real-time health monitoring of lamp intensity, detector response, and spectral baseline integrity supports predictive maintenance and GLP-aligned instrument qualification.
• Integrated Processing Unit: Onboard computation eliminates external PC dependency; raw spectra and calibrated results are output via standardized industrial protocols.

Sample Compatibility & Compliance

The DA7440 accommodates diverse physical forms without sample preparation: free-flowing grains, pelleted feed, viscous oils, emulsions, and particulate-laden suspensions. Its diffuse reflectance and transflectance modes allow flexible deployment—whether mounted above a vibrating chute, integrated into a pipeline flow cell, or installed in a hopper discharge zone. The system complies with IEC 61326-1 (EMC for industrial environments) and meets IP65 enclosure requirements. Calibration models developed per ASTM E1655 (Standard Practices for Infrared Multivariate Quantitative Analysis) and ISO 12099 (Animal feeding stuffs — Guidance on the application of near infrared spectroscopy) ensure method validity. Data integrity aligns with FDA 21 CFR Part 11 requirements when deployed with audit-trail-enabled Process Plus software and appropriate system configuration.

Software & Data Management

Process Plus—a browser-based, multi-user interface—provides real-time visualization of predicted parameters (e.g., moisture, protein, fat), trend charts, batch comparison overlays, and alarm-triggered notifications. It runs natively on Windows 7 Professional or newer server platforms (Windows 10/Server 2016+). Chemometric model development and validation leverage Unscrambler X (CAMO Software) and Percal (Perten), supporting PLS, PCR, and PCA algorithms with cross-validation, outlier detection, and robustness testing. All spectral data, prediction logs, and calibration metadata are stored in structured SQLite or SQL Server databases, enabling traceability, version control, and integration with MES/SCADA systems via OPC UA, Modbus TCP, or RESTful APIs.

Applications

The DA7440 delivers validated quantitative analysis across regulated and high-throughput industries. In oilseed processing, it monitors moisture, crude protein, oil content, acid value, and peroxide value in raw seeds (soybean, rapeseed), meals, cakes, and refined oils. In animal nutrition, it quantifies crude protein, fiber, starch, ash, calcium, phosphorus, and amino acids in compound feeds, premixes, pet food, and fishmeal. In dairy and meat processing, it tracks lactose, fat, salt, and moisture in powders, cheeses, and cured products. Fermentation facilities use it to follow glucose, ammonia nitrogen, and biomass yield in microbial cultures. Additional applications span tobacco (nicotine, reducing sugars, chloride), sugar refining (Brix, Pol, purity), biofuel feedstock screening (cellulose/lignin ratio), and textile fiber identification. Each application relies on factory-developed, transferable calibrations—validated against reference methods per AOAC or ISO standards.

FAQ

Is the DA7440 suitable for hazardous area installation?
The standard DA7440 is rated for non-hazardous industrial zones (Zone 2/Class I Div 2). ATEX/IECEx-certified variants are available upon request with modified housing and purge systems.

Can existing calibration models be transferred from other Perten instruments?
Yes—models built on DA7200 or DA7250 platforms can be ported to the DA7440 with spectral resampling and minor revalidation, leveraging shared chemometric frameworks and hardware-matched spectral response.

What maintenance is required beyond routine lens cleaning?
No optical alignment or lamp replacement is needed during normal operation. The xenon calibration lamp has a rated lifetime exceeding 10,000 hours; the InGaAs array is solid-state with no consumables. Annual performance verification using NIST-traceable standards is recommended for GMP compliance.

Does Process Plus support electronic signatures and audit trails?
When configured with Windows Active Directory authentication and SQL Server logging, Process Plus meets 21 CFR Part 11 requirements for electronic records and signatures—including user-level access control, immutable audit logs, and change history for all calibration and result files.
