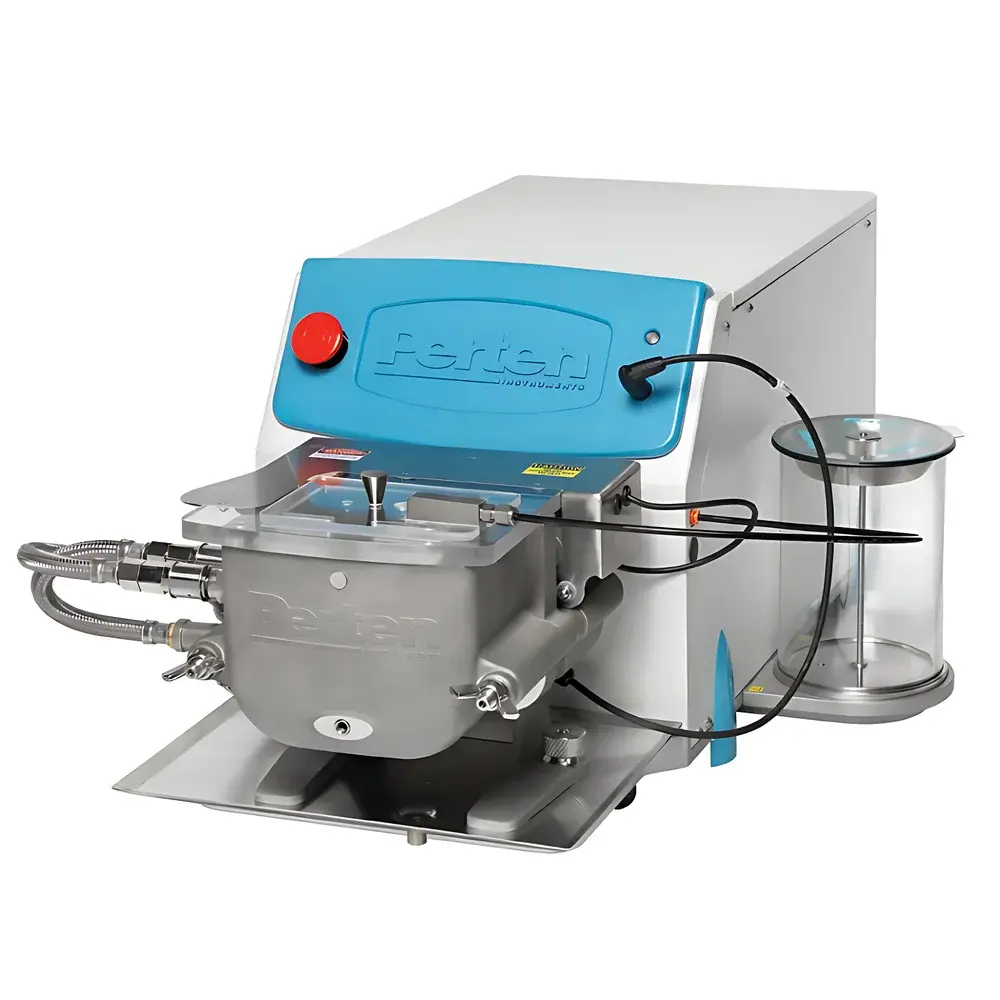

Perten doughLAB™ Automated Farinograph System

Overview

The Perten doughLAB™ Automated Farinograph System is a precision-engineered instrument for comprehensive dough rheological characterization in cereal science and industrial baking laboratories. It operates on the classical farinographic principle—measuring torque resistance of dough under controlled hydration, mixing speed, and temperature profiles—as standardized in ISO 5530-1, AACC Method 54-21, and ICC Standard No. 115. The system employs a Z-arm mixer geometry to replicate shear conditions analogous to commercial spiral or fork mixers, enabling quantitative assessment of flour hydration behavior, gluten network development, and mechanical stability during mixing. Its modular architecture supports both routine quality control and advanced research applications—including high-energy mixing protocols, dynamic speed ramping, and thermal profiling—to model full-scale industrial processing conditions. Designed for traceability and regulatory alignment, doughLAB meets foundational requirements for ISO 9001-compliant environments and provides audit-ready calibration records.

Key Features

• Z-arm mixing geometry: Reproducible mechanical shear profile aligned with traditional farinograph methodology and widely accepted international standards.
• Programmable multi-stage mixing: Independent control over rotational speed (10–200 rpm), water addition (1–300 mL via precision peristaltic pump with drop-wise dispensing), and temperature (10–80 °C; ±0.2 °C stability at setpoint).
• Dual-bowl configuration: Interchangeable 50 g and 300 g mixing bowls—optimized for R&D screening or production-scale validation.
• Real-time torque sensing: High-resolution electronic torque transducer (0–25 N·m range) with N·m traceability to national metrological standards.
• Integrated safety architecture: Emergency stop button, automatic motor shutdown upon bowl access, and soft-start door interlock mechanism.
• Windows-based software platform: doughMAP™ v5.x provides method editor, GLP-compliant data logging, parameter export (CSV, PDF), and automated calculation of Farinograph parameters including water absorption, dough development time, stability, weakening degree (FQN), and pasting profile derivatives.

Sample Compatibility & Compliance

doughLAB is validated for testing milled wheat, rye, durum, and composite flours—both raw and enzyme-modified. It accommodates variations in protein content (8–18% w/w), ash level (0.4–1.2%), and enzymatic activity without recalibration. All measurement outputs comply with ISO/IEC 17025 documentation requirements when used within an accredited laboratory framework. The system supports 21 CFR Part 11 readiness through optional electronic signature modules and audit-trail-enabled software configurations. Calibration certificates reference NIST-traceable torque and temperature standards, and all firmware updates are version-controlled and documented per ISO 9001 clause 7.5.3.

Software & Data Management

doughMAP™ software serves as the central interface for method design, real-time monitoring, and post-acquisition analysis. Users may select pre-validated AACC/ISO methods or construct custom protocols—including variable-speed ramps, segmented hydration steps, and thermal hold phases. Raw torque vs. time curves are stored with full metadata (operator ID, date/time stamp, environmental conditions, calibration status). Export functions support LIMS integration via CSV or XML schema. Version history, user access logs, and electronic signature workflows satisfy GLP and GMP documentation expectations. Data integrity is reinforced by write-protected storage and automatic backup to network drives.

Applications

• Flour mill quality assurance: Determination of water absorption, mixing tolerance, and dough stability for batch release.
• Bakery R&D: Optimization of enzyme dosing, oxidant addition, and multigrain formulation behavior under simulated high-shear mixing.
• Academic cereal science: Investigation of gluten polymerization kinetics, starch gelatinization onset, and retrogradation effects during controlled thermal ramps.
• Regulatory compliance testing: Generation of Farinograph reports required for Codex Alimentarius wheat specifications and EU Regulation (EC) No 152/2009 Annex III.
• Process modeling: Correlation of lab-scale doughLAB curves with industrial mixer energy input (kWh/ton) using proprietary scaling algorithms embedded in doughMAP™.

FAQ

What standards does doughLAB comply with?
doughLAB conforms to ISO 5530-1, AACC 54-21, ICC 115, and ASTM D6186 for farinographic testing. Its torque and temperature subsystems are traceable to national metrology institutes.
Can doughLAB be integrated into a LIMS environment?
Yes—via standardized CSV/XML exports and optional ODBC drivers compatible with major LIMS platforms (e.g., LabWare, Thermo Fisher SampleManager).
Is remote operation supported?
The system supports local Windows-based operation only; remote desktop access is permitted but not officially validated for GxP use.
How often must torque calibration be performed?
Annual calibration is recommended; however, daily verification using certified reference weights and temperature checks against PT100 probe standards are integral to GLP workflows.
Does doughLAB support non-wheat flours such as oat or buckwheat?
Yes—though method adaptation and validation per ISO 21748 are required due to differing hydration kinetics and viscoelastic responses.
