PFA Chromatography Column with Transparent Body, Sintered Frit, and Teflon®-Lined Micro-Column for Electrolyte Preparation and Ion Exchange

Overview

The Binzhenghong ZH-CXZ series PFA chromatography column is an engineered micro-scale separation device designed specifically for high-purity electrolyte formulation, ion exchange, and trace-level sample conditioning in analytical and electrochemical laboratories. Constructed entirely from perfluoroalkoxy alkane (PFA), the column features a fully transparent cylindrical body that enables real-time visual monitoring of fluid flow, bed packing integrity, and potential channeling or clogging during operation. Its integral sintered PTFE frit (typically 10–20 µm pore size) provides uniform flow distribution and robust mechanical support for packed sorbents—including strong/weak acid or base resins, chelating agents, or functionalized silica—without leaching or adsorptive interference. Unlike glass or stainless-steel alternatives, PFA ensures exceptional chemical resistance to concentrated acids (e.g., HF, HNO₃), bases (e.g., NaOH, KOH), oxidizers (e.g., H₂O₂, persulfates), and organic solvents across −200 °C to +260 °C, making it suitable for aggressive electrolyte synthesis (e.g., LiPF₆-based battery electrolytes, PEM fuel cell membrane conditioning, or nuclear waste simulant processing).

Key Features

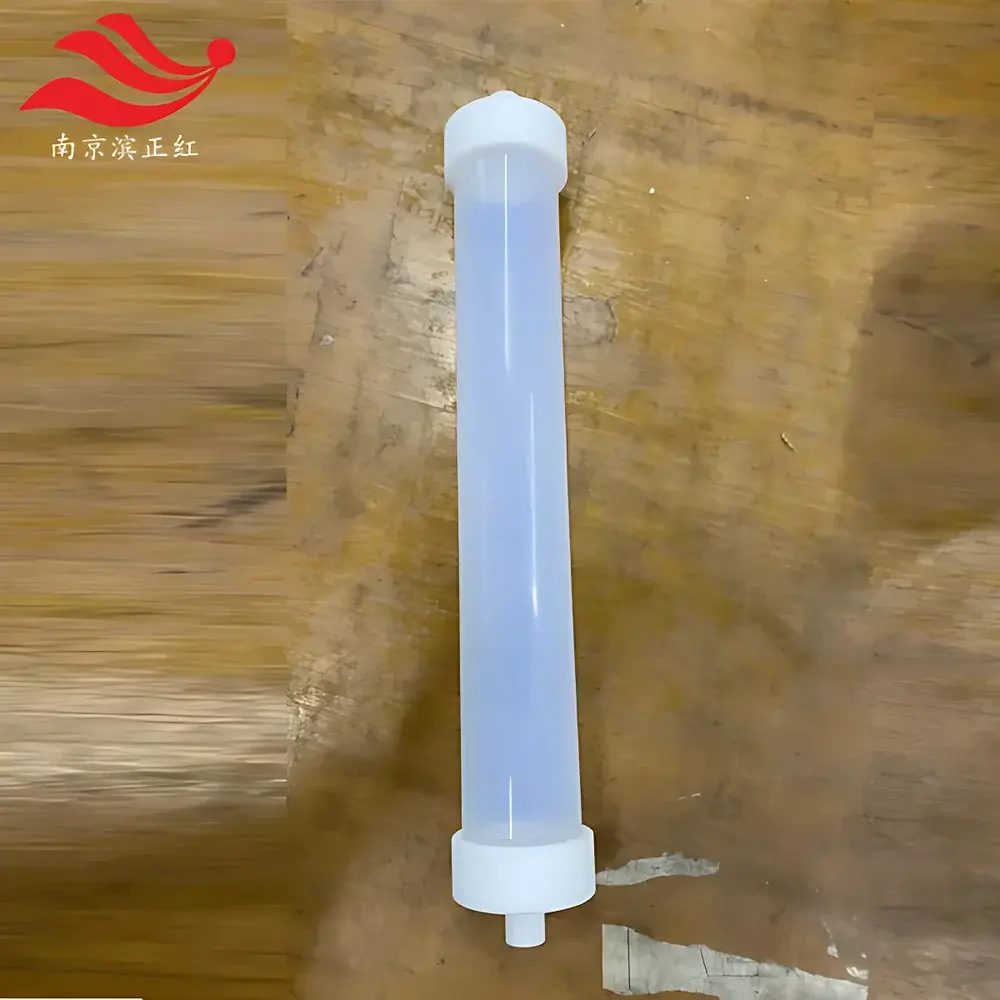

• Fully transparent PFA body for direct visual inspection of column packing, eluent front progression, and phase separation behavior
• Integrated sintered PTFE frit (standard 15 µm nominal pore size) with high compressive strength (>10 MPa) and low extractables profile
• Teflon®-lined internal surface minimizes analyte adsorption and metal ion contamination—critical for ultra-trace metal analysis (e.g., ICP-MS sample prep)
• Modular design supports single-, dual-, or triple-column configurations (ZH-CXZ-1, ZH-CXZ-2, ZH-CXZ-3) mounted on standardized PFA manifolds or custom lab-built manifolds
• Compatible with both gravity-driven and low-pressure (<2 bar) pump-assisted flow; no metallic components ensure ESD-safe handling in cleanroom or battery R&D environments
• Autoclavable (121 °C, 20 min) and compatible with ozone, UV-C, and hydrogen peroxide vapor (HPV) decontamination protocols

Sample Compatibility & Compliance

The ZH-CXZ column accommodates sample volumes of 100 mL, 200 mL, or 500 mL depending on configuration, enabling scalable method development from screening to preparative purification. It is routinely deployed in applications requiring adherence to ISO/IEC 17025 quality systems, ASTM D8084 (for lithium-ion battery electrolyte purity testing), and USP (water conductivity and ionic impurity control). While not certified to FDA 21 CFR Part 11 out-of-the-box, its use in GMP/GLP workflows is supported by full traceability documentation (material certifications, lot-specific extractables data, and dimensional QA reports) provided upon request. All PFA materials comply with USP Class VI and EU Regulation (EC) No 1935/2004 for food contact safety.

Software & Data Management

As a passive hardware component, the ZH-CXZ does not include embedded electronics or firmware. However, it integrates seamlessly into automated liquid handling platforms (e.g., Gilson Pipetman Auto, Hamilton STAR) and chromatographic data systems (CDS) such as Thermo Chromeleon or Waters Empower via standard PFA tubing interfaces (¼”-28 UNF or M6×1 ports). Users may log column usage, regeneration cycles, and batch-specific validation records in LIMS or ELN systems using configurable metadata fields (e.g., “Column_ID”, “Resin_Lot”, “Last_Regen_Date”). Audit trails for calibration and qualification activities align with ALCOA+ principles when paired with documented SOPs.

Applications

• Purification of high-purity electrolytes for lithium-metal, solid-state, and redox-flow batteries
• Removal of transition metals (Fe, Cu, Ni, Co) from semiconductor-grade process chemicals
• In-line conditioning of mobile phases for IC-ICP-MS coupling
• Pre-concentration and matrix removal prior to EPA Method 200.7 or 200.8 analysis
• Small-volume ion exchange for radiolabeling chemistry (e.g., ⁶⁸Ga, ⁸⁹Zr) in PET radiochemistry labs
• Desalting and buffer exchange of protein samples in structural biology workflows where metal-free conditions are mandatory

FAQ

Is the ZH-CXZ column compatible with hydrofluoric acid (HF)?

Yes—PFA exhibits the highest resistance among fluoropolymers to anhydrous and aqueous HF solutions up to 48% concentration at ambient temperature.
Can the sintered frit be replaced or cleaned in situ?

The frit is permanently bonded during PFA molding; however, it can be regenerated via sequential rinses with 1 M HNO₃, DI water, and 0.1 M NaOH, followed by vacuum drying at 60 °C.
What is the maximum operating pressure?

Rated for continuous service up to 2 bar (29 psi); short-term excursions to 4 bar are permissible with appropriate pressure relief.
Does Binzhenghong provide column packing services?

Yes—custom packing with user-specified resins (e.g., AG MP-50, Bio-Rad Chelex 100, or proprietary functionalized polymers) is available under NDA with full QC documentation.
Are dimensional drawings and material certificates available?

Yes—ISO 9001-compliant dimensional inspection reports and USP Class VI biocompatibility certificates are supplied with each shipment.
