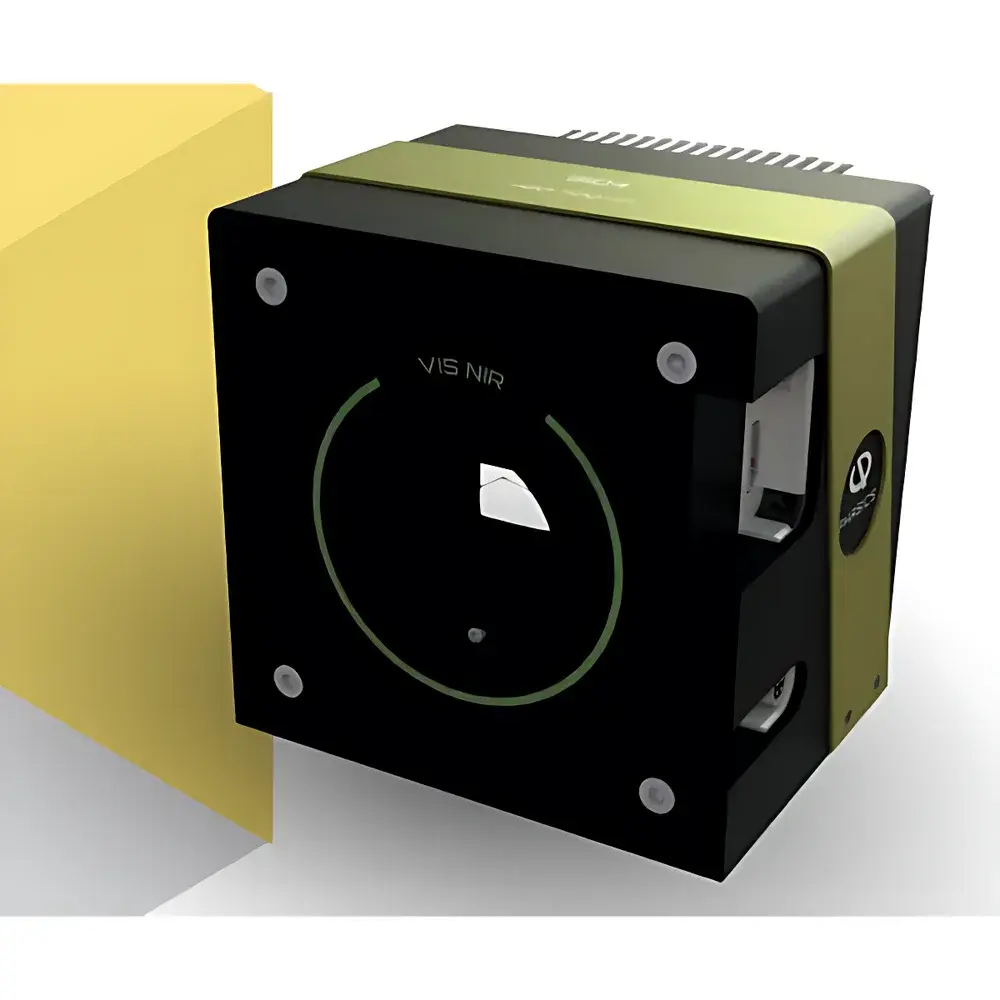

Phasics SID4-Fast KHz High-Speed, High-Resolution Wavefront Sensor

Overview

The Phasics SID4-Fast is a high-performance, quantitative phase imaging sensor engineered for real-time, non-invasive wavefront measurement across demanding optical and laser applications. Unlike conventional Shack-Hartmann sensors that rely on spot centroid detection and suffer from dynamic range limitations and 2π ambiguity, the SID4-Fast employs Phasics’ proprietary QuadriWave Lateral Shearing Interferometry (QWLSI) — a full-field, common-path interferometric technique based on diffraction grating modulation and Fourier-domain phase reconstruction. This principle enables direct, absolute measurement of optical path difference (OPD) with sub-nanometer sensitivity and continuous phase unwrapping over hundreds of micrometers — eliminating reliance on iterative algorithms or spatial assumptions. Designed for integration into industrial laser systems, adaptive optics loops, astronomical instrumentation, and precision optical metrology platforms, the SID4-Fast delivers deterministic, calibration-free wavefront data without requiring reference beams or complex alignment.

Key Features

• Frame rate up to 7,500 fps at full aperture (16 × 16 mm² active area)
• Real-time processing at 1 Hz with full spatial resolution (128 × 128 phase map points)
• Sub-nanometer optical path difference (OPD) sensitivity — enabling detection of surface deformations < 0.5 nm RMS
• Wide dynamic range exceeding ±200 µm OPD — suitable for both low-aberration optics and highly distorted beams
• Compact, monolithic optical architecture with no moving parts — inherently resistant to mechanical vibration and thermal drift
• Integrated USB 3.0 interface with low-latency data streaming and hardware-triggered acquisition
• Robust design compliant with ISO 10110-5 surface irregularity evaluation standards for optical component certification

Sample Compatibility & Compliance

The SID4-Fast supports collimated or convergent beams within visible to near-infrared spectral ranges (400–1100 nm), with optional broadband anti-reflection coatings available per application requirement. It is compatible with continuous-wave (CW) and pulsed laser sources (including ultrafast systems with proper attenuation), as well as incoherent illumination for surface topography mapping. The sensor meets CE marking requirements and conforms to IEC 61000-6-3 (EMC emission) and IEC 61000-6-2 (immunity) standards. Its measurement traceability aligns with ISO/IEC 17025 guidelines when operated within calibrated environmental conditions (23 ± 1°C, <50% RH). For regulated environments, raw phase data export supports audit-ready formats compatible with FDA 21 CFR Part 11-compliant laboratory information management systems (LIMS).

Software & Data Management

The SID4-Fast ships with Phasics’ WFS software suite — a modular, Windows-based application offering real-time visualization, Zernike polynomial decomposition (up to 36 terms), PV/RMS aberration reporting, and custom ROI analysis. APIs are provided for Python (via PySID4), MATLAB, and LabVIEW, enabling seamless integration into automated test benches and closed-loop adaptive optics control systems. All acquired phase maps are stored in HDF5 format with embedded metadata (timestamp, exposure, wavelength, calibration ID), ensuring full experimental reproducibility. Software logging includes operator ID, session notes, and system health diagnostics — supporting GLP/GMP documentation workflows where required.

Applications

• Laser beam characterization in high-power industrial cutting/welding systems — monitoring M², focus shift, and thermal lensing in real time
• Astronomical adaptive optics — wavefront sensing for ground-based telescope secondary mirror correction at kHz rates
• Space-qualified optical component verification — surface figure validation of mirrors, lenses, and EUV optics under vacuum-compatible mounting
• Defense-grade laser weapon system diagnostics — beam quality assurance during rapid thermal transients
• Advanced optics R&D — quantitative metrology of metasurfaces, diffractive optical elements (DOEs), and freeform optics
• Semiconductor lithography tool alignment — wafer-level wavefront monitoring during stepper exposure calibration

FAQ

What is the maximum measurable wavefront slope?

The SID4-Fast has no intrinsic slope limitation due to its full-field interferometric design; it resolves local gradients up to 0.1 rad/mm without aliasing.
Can the sensor be used with femtosecond lasers?

Yes — with appropriate neutral density filtering and pulse energy management to avoid CCD saturation or damage; temporal coherence effects are mitigated by QWLSI’s lateral shearing geometry.
Is factory recalibration required annually?

No — the sensor uses self-referencing interferometry and requires only periodic verification using NIST-traceable flat reference optics; calibration stability exceeds 12 months under controlled lab conditions.
Does the system support synchronization with external equipment?

Yes — via TTL trigger input/output ports supporting hardware-synchronized acquisition with lasers, shutters, or motion stages.
How is data integrity ensured during long-duration acquisitions?

All frames include embedded checksums and timestamped headers; the software implements automatic file segmentation and recovery checkpoints to prevent data loss during multi-hour sessions.
