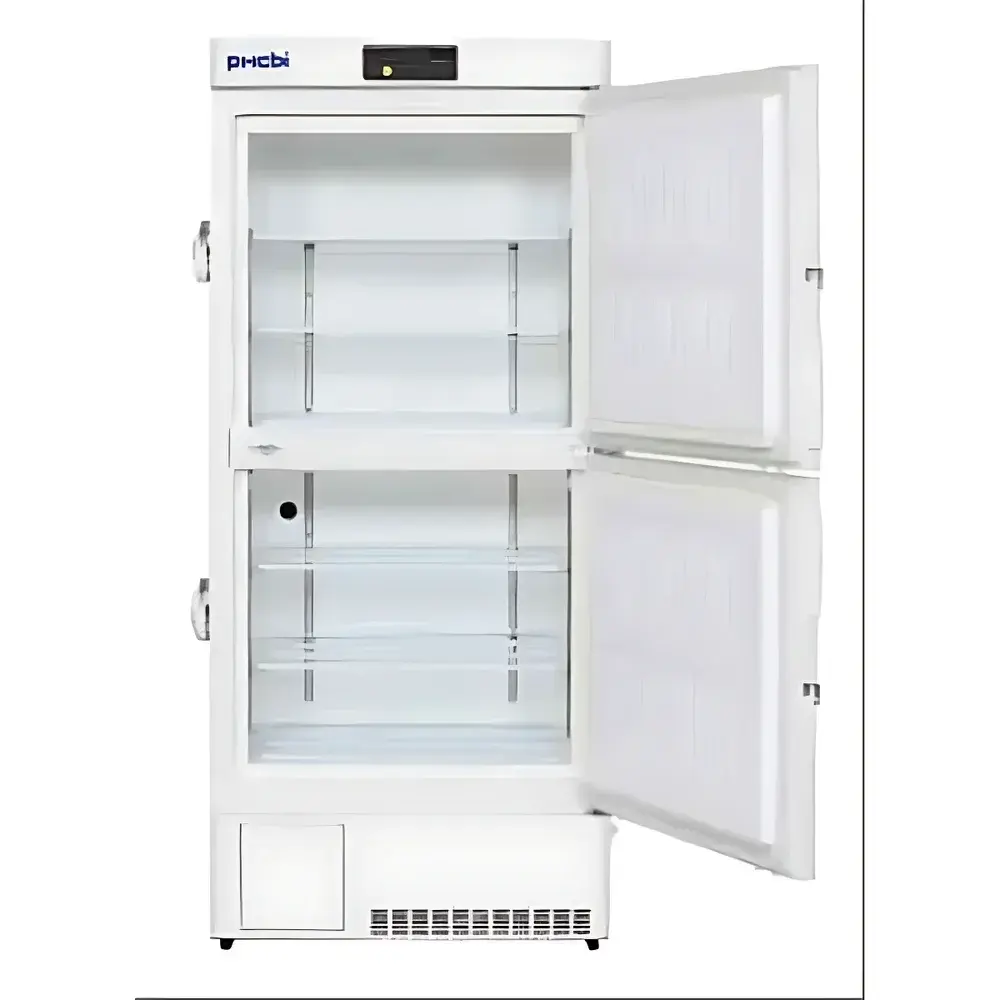

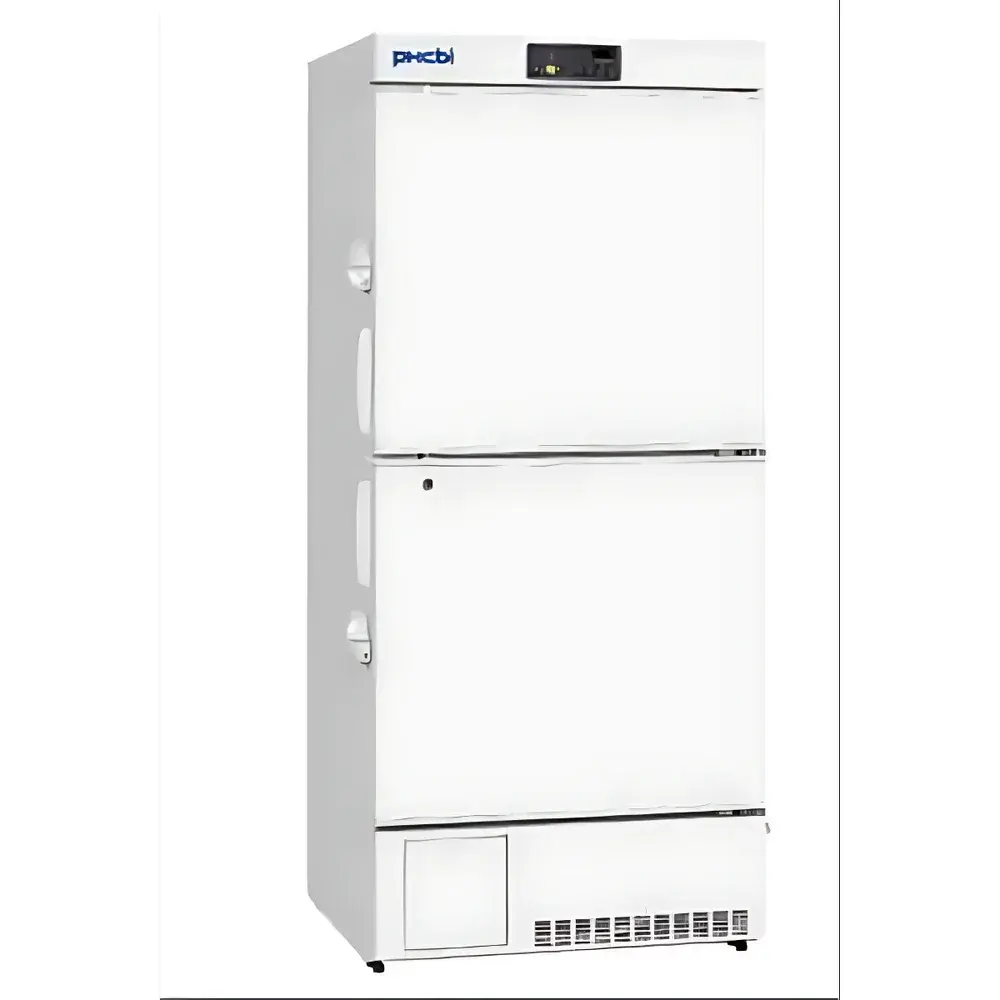

PHCbi MDF-MU339HL / MDF-MU539HL Upright -30°C Ultra-Low Temperature Freezer

Overview

The PHCbi MDF-MU339HL and MDF-MU539HL are upright ultra-low temperature freezers engineered for reliable, energy-efficient storage of biological samples, reagents, vaccines, and pharmaceuticals at sustained temperatures between –20 °C and –40 °C. Designed and manufactured in Japan, these units employ direct-cooling architecture with an inverter-driven compressor system and a natural hydrocarbon refrigerant blend (R290/R600a), enabling precise thermal stability, reduced environmental impact, and compliance with global F-Gas and Montreal Protocol regulatory frameworks. Unlike cascade systems used in –80 °C freezers, the single-stage direct-cooling design delivers optimized efficiency and mechanical simplicity—ideal for laboratories requiring stable sub-zero storage without the operational complexity or maintenance overhead of cryogenic-grade equipment.

Key Features

• Dual-Door Configuration: Independently operated outer doors minimize cold air loss during routine access; each door features magnetic gasket sealing and auto-closing hinges to maintain internal thermal integrity and reduce compressor cycling frequency.
• Natural Refrigerant & Inverter Technology: Utilizes R290 (propane) and R600a (isobutane) — low-GWP, non-ozone-depleting refrigerants — paired with variable-speed compressor control to achieve up to 28% lower energy consumption versus conventional fixed-speed equivalents (per JIS C 9612 test conditions).
• Adjustable Internal Shelving: Stainless steel shelves with height-adjustable support rails allow customizable vertical spacing to accommodate diverse container formats—from 2 mL cryovials and 50 mL conical tubes to stacked microplate racks and standard ISO/ANSI-compliant storage boxes.
• Multi-Level Alarm System: Integrated microprocessor controller monitors cabinet temperature, door status, power supply continuity, and compressor operation. Audible/visual alerts activate on deviation >±3 °C from setpoint, door-open duration >60 seconds, or mains interruption exceeding 5 seconds. Optional remote alarm output supports integration with building management systems (BMS) via dry-contact relay.
• Robust Thermal Insulation: 100 mm thick polyurethane foam insulation with vacuum-panel-enhanced side walls ensures uniform temperature distribution (<±2.5 °C variation across all zones per IEC 61000-4-2 validation protocol) and low heat ingress rates under ambient conditions up to 30 °C / 60% RH.

Sample Compatibility & Compliance

These freezers are validated for long-term storage of primary human biospecimens (e.g., PBMCs, plasma, serum, tissue homogenates), diagnostic reagents, monoclonal antibodies, and temperature-sensitive small-molecule compounds. Units conform to IEC 61010-1 (Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use) and meet electromagnetic compatibility standards per IEC 61326-1. The control firmware supports audit-trail logging (optional upgrade), aligning with GLP and GMP documentation requirements. While not certified for FDA 21 CFR Part 11 out-of-the-box, data export functionality (CSV via USB port) enables traceable recordkeeping compatible with laboratory information management systems (LIMS).

Software & Data Management

The embedded digital controller provides real-time display of setpoint, actual chamber temperature, compressor runtime, and alarm history (last 100 events). Temperature data is logged internally at 10-minute intervals for up to 30 days. A USB port enables manual download of historical logs for external analysis or QA reporting. Optional Ethernet connectivity (via add-on module) permits remote monitoring through PHCbi’s CloudLink platform, supporting SNMP-based alert forwarding and centralized fleet management across multi-site research facilities.

Applications

• Biobanking operations requiring consistent –30 °C stabilization for nucleic acid integrity preservation
• Clinical trial sample repositories adhering to ISBER Best Practices and CAP accreditation guidelines
• Pharmaceutical QC labs storing reference standards and stability-test batches under ICH Q5C conditions
• Academic core facilities supporting high-throughput screening workflows with frequent sample retrieval cycles
• Hospital blood banks and vaccine distribution centers needing WHO-prequalified cold chain reliability at intermediate ultra-low temperatures

FAQ

What is the recommended ambient operating environment?
Units are rated for continuous operation in rooms maintained at 15–30 °C and ≤60% relative humidity. Adequate rear clearance (≥100 mm) and top ventilation space (≥200 mm) are required to ensure condenser airflow and thermal dissipation.
Can these freezers be installed in non-air-conditioned spaces?
Operation above 30 °C ambient may result in elevated internal temperature variance and increased power draw; supplemental cooling or climate-controlled placement is advised for compliance with ISO 15197 or CLSI GP44-A4 thermal stability criteria.
Is remote monitoring supported natively?
Standard configuration includes local display and USB data export; Ethernet-enabled remote access requires optional CloudLink hardware module and site-specific network configuration.
Are replacement parts and service available globally?
PHCbi maintains authorized service partners across North America, EMEA, and APAC regions; genuine consumables—including door gaskets, shelf supports, and controller modules—are stocked with lead times under 10 business days for most territories.
Does the freezer comply with energy efficiency regulations such as ENERGY STAR or EU Ecodesign?
While not ENERGY STAR–certified (which does not currently cover –30 °C appliances), the units exceed EU Ecodesign Lot 20 Tier 2 efficiency thresholds for low-temperature cabinets (Commission Regulation (EU) 2019/2024) by ≥15% based on standardized annual energy consumption (AEC) testing.
