PHOB-9 Right-Angle Mounting Block by ZOLIX
| Brand | ZOLIX |
|---|---|
| Origin | Beijing, China |
| Manufacturer Type | Direct Manufacturer |
| Product Origin | Domestic (China) |
| Model | PHOB-9 |
| Pricing | Available Upon Request |
| Compatible Stage | PSM25(A)-45 Series Precision Translation Stages |
Overview

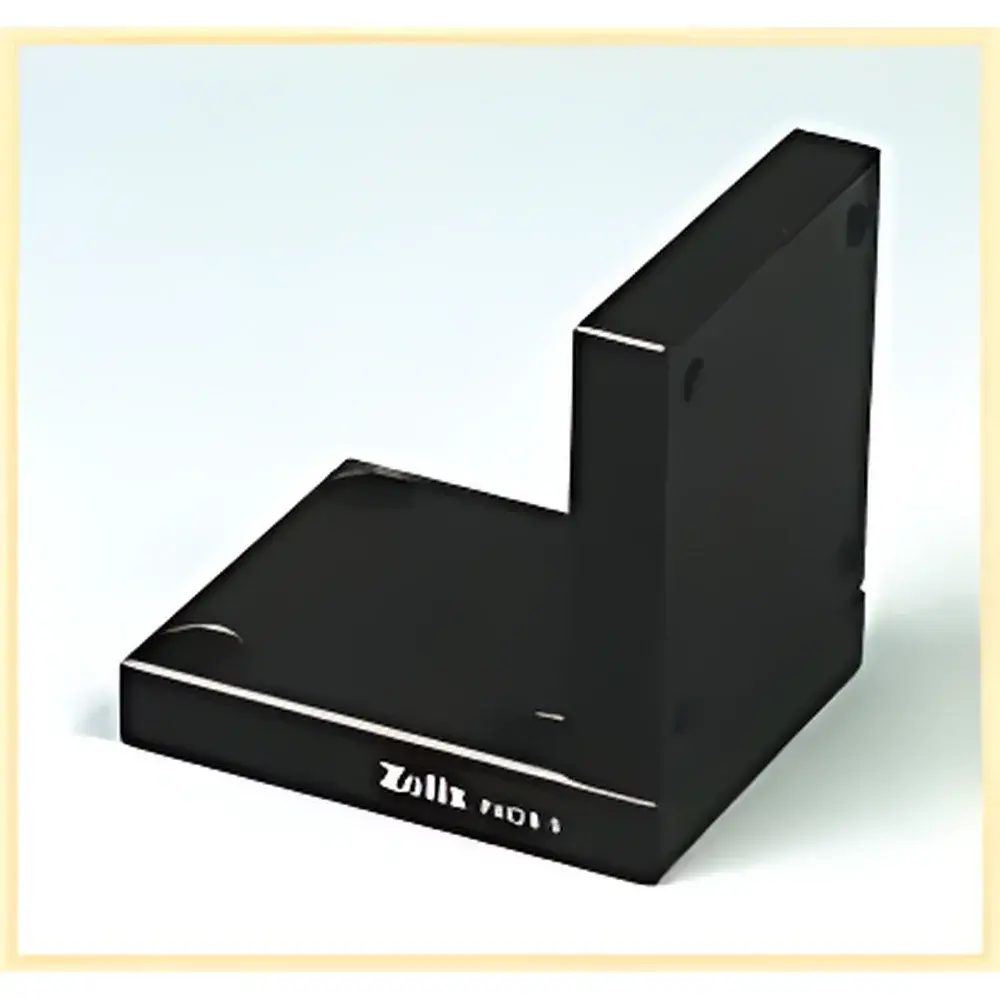

The PHOB-9 Right-Angle Mounting Block is a precision-machined mechanical adapter designed for stable, orthogonal beam path configuration in optical laboratory setups. Engineered for compatibility with standard 25 mm × 25 mm optical breadboard grids and industry-standard kinematic mounting interfaces, the PHOB-9 enables rigid 90° angular alignment between optical components—such as mirrors, detectors, or fiber couplers—and translation stages or baseplates. Its monolithic aluminum construction ensures dimensional stability under thermal cycling and mechanical loading, while the precisely ground perpendicular faces (flatness ≤5 µm over 25 mm) support sub-milliradian angular repeatability when secured with M4 cap screws. The block integrates seamlessly into modular optical systems where compact footprint, mechanical rigidity, and deterministic alignment are critical—particularly in interferometry, laser cavity alignment, and multi-axis optomechanical assemblies.
Key Features
- Monolithic 6061-T6 aluminum body with black anodized finish for corrosion resistance and non-reflective surface properties
- Two mutually perpendicular mounting surfaces, each featuring four M4 threaded holes on 25 mm pitch grid pattern (ISO 8015 compliant)
- Integrated counterbored clearance holes (Ø3.2 mm) aligned with mounting surface centers to accommodate dowel pins for repeatable positioning
- Compact profile: 25 mm × 25 mm base footprint, 25 mm height, enabling dense optical layout without obstructing adjacent components
- Surface finish: Ra ≤0.8 µm on functional faces; perpendicularity tolerance maintained at ≤10 arcseconds (0.05 mrad) per ASME B89.1.12M
- Designed for direct integration with ZOLIX PSM25(A)-45 series precision translation stages via standardized side-mounting interface
Sample Compatibility & Compliance
The PHOB-9 is compatible with all optical elements possessing standard 25 mm mounting footprints—including mirror mounts (e.g., KM100, KCB1), lens holders (e.g., LCP1, SM1-threaded adapters), and photodetector housings. It conforms to international metrological practices for optical mount classification per ISO 10110-7 and supports GLP-compliant experimental documentation when used in traceable alignment procedures. While not an active measurement device, its mechanical specifications align with requirements for Class 2 optical support hardware under ISO 10110-19 (optomechanical component tolerances). No electrical certification (e.g., CE, UL) applies, as the unit is purely passive and non-powered.
Software & Data Management
As a passive mechanical component, the PHOB-9 does not incorporate embedded electronics, firmware, or software interfaces. Its use requires no driver installation, calibration routines, or data logging protocols. However, it is fully compatible with common optical design and alignment software environments—including Zemax OpticStudio, FRED, and Synopsys CODE V—where its geometric model (STEP AP214 format) may be imported for system-level ray tracing and tolerance analysis. Documentation includes CAD models, GD&T drawings, and assembly instructions compliant with ISO 1101 geometric dimensioning standards, supporting digital twin implementation in lab asset management systems.
Applications
- Laser beam steering assemblies requiring fixed 90° deflection with minimal path offset
- Interferometric reference arm routing in Michelson or Mach–Zehnder configurations
- Multi-stage optical train alignment where vertical stacking must preserve collimation integrity
- Integration of side-view imaging optics (e.g., CCD cameras, IR viewers) orthogonal to primary optical axis
- Education and research labs conducting undergraduate optics laboratories involving spatial filtering, polarization analysis, or cavity mode profiling
- Industrial laser processing stations needing robust, maintenance-free angular adapters between motion stages and process optics
FAQ
What is the maximum recommended load capacity for the PHOB-9 when mounted vertically?
The PHOB-9 is rated for static loads up to 2.5 kg when affixed to a rigid baseplate using four M4 × 0.7 screws torqued to 1.2 N·m. Dynamic or cantilevered loading is not recommended without supplemental bracing.
Is the PHOB-9 compatible with non-ZOLIX translation stages?
Yes—its 25 mm grid hole pattern and surface flatness meet ANSI/OPSI OP1.002-2018 standards for interchangeability with most commercially available 25 mm-series optical mounts and stages from Thorlabs, Newport, and Edmund Optics.
Does the PHOB-9 include mounting hardware?
No. M4 × 0.7 cap screws (recommended length: 6–8 mm) and optional dowel pins (Ø2 mm) must be sourced separately per application requirements.
Can the PHOB-9 be used in vacuum environments?
It is suitable for low-vacuum applications (<10⁻² mbar) with proper outgassing pre-treatment; however, anodized aluminum surfaces are not certified for UHV use per ASTM E595.
Where can I obtain the STEP file for mechanical integration?
Native STEP AP214 and IGES files are available for download from the ZOLIX official product portal under “Technical Resources” for registered institutional users.
