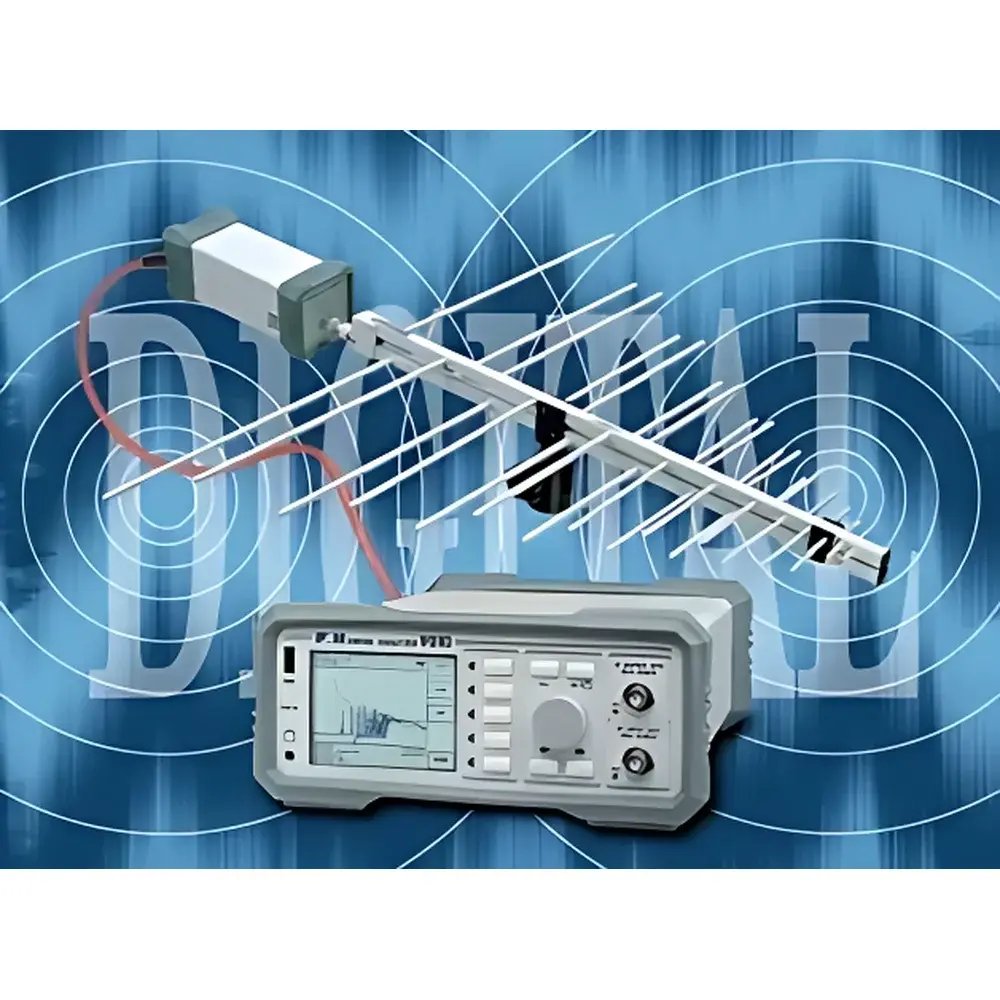

PMM Click4E 4-Channel Automatic Click Analyzer

Overview

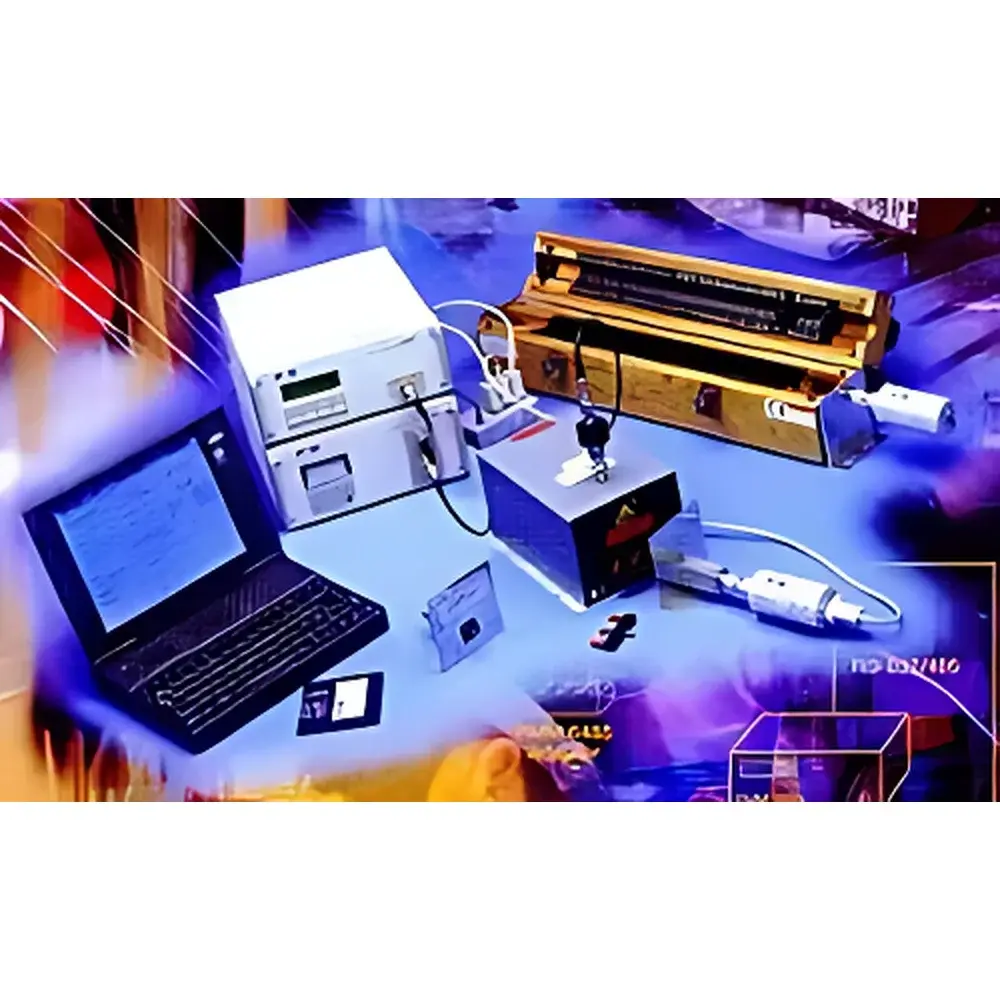

The PMM Click4E is a fully automated, 4-channel digital click analyzer engineered for precise measurement and classification of intermittent radio-frequency disturbances—commonly known as “clicks” or “discontinuous disturbances”—in household appliances, power tools, and other electrically driven equipment. Designed in strict accordance with CISPR 14-1:2005 (identical to EN 55014-1:2005), the instrument implements all mandatory clauses—including newly introduced exceptions E3 and E4—which impose stricter timing resolution, pulse discrimination logic, and real-time quasi-peak (QP) detection fidelity. Unlike legacy analog-based analyzers, the Click4E employs a full-digital, software-defined receiver architecture compliant with CISPR 16-1-1 Ed. 3.1, enabling deterministic signal capture, reproducible IF bandwidth tracking, and sub-millisecond pulse timing resolution. Its core function is to quantify click rate (N, clicks per minute), classify individual pulses by amplitude and duration, and determine compliance status under the statistical upper-quartile method mandated by Clause 6.3 of CISPR 14-1.

Key Features

• Fully automated test execution per CISPR 14-1:2005, including dynamic application of Exceptions E3 and E4 without user intervention
• Scalable channel configuration: base unit supports 1 channel; up to 3 additional channels enabled via external modular expansion (requires prior activation of click analysis firmware)
• Smart Measure™ adaptive algorithm reduces average test time by up to 40% through intelligent dwell-time optimization and event-triggered measurement sequencing
• Real-time display of all pulse-level parameters: amplitude (dBµV), duration (ms), inter-pulse interval (s), QP detector output, and instantaneous IF bandwidth
• Embedded high-speed flash memory logs ≥10⁶ discrete click events with full timestamping, enabling post-test forensic analysis and GLP-compliant data retention
• Integrated CISPR-compliant digital receiver with dual-mode operation: standard EMC receiver functionality + dedicated click analysis mode
• Automatic calculation of click rate (N), upper-quartile amplitude (UQ), and pass/fail determination per Clause 6.3

Sample Compatibility & Compliance

The Click4E is validated for use across Class A and Class B appliances covered under CISPR 14-1 scope—including refrigerators, vacuum cleaners, washing machines, power drills, and dimmer-controlled lighting systems. It supports both mains-powered and battery-operated devices via standardized LISN (Line Impedance Stabilization Network) coupling per CISPR 16-1-2. All measurement algorithms and statistical processing routines are traceable to the normative annexes of CISPR 14-1:2005 and aligned with national transpositions (e.g., EN 55014-1, ANSI C63.4-2022 Annex H). The system satisfies documentation requirements for ISO/IEC 17025-accredited laboratories and supports audit-ready data export for FDA 21 CFR Part 11 and EU MDR Annex II traceability frameworks.

Software & Data Management

The Click4E operates under PMM’s unified EMCoS Control Suite v4.x, a Windows-based platform supporting multi-user role management, electronic signatures, and configurable audit trails. Raw pulse data is stored in binary HDF5 format with embedded metadata (test date, operator ID, calibration certificate ID, DUT identification). Reports are auto-generated in PDF and CSV formats, containing: test setup summary, raw pulse table (amplitude/duration/interval), N-value and UQ-value plots, exception clause evaluation results, and pass/fail statements with clause references. Export modules support direct integration with LIMS and ERP systems via OPC UA and RESTful API interfaces. All software updates are digitally signed and version-locked to calibration certificates.

Applications

• Pre-compliance and certification testing of domestic appliances for CE, UKCA, FCC Part 15B, and KC Mark submissions
• Design validation of motor controllers, triac-based dimmers, and switch-mode power supplies during R&D
• Root-cause analysis of intermittent EMI in production-line quality control environments
• Third-party test laboratory accreditation under ISO/IEC 17025 for CISPR 14-1 testing scope
• Technical training and standards interpretation workshops for EMC engineers

FAQ

Does the Click4E require external calibration to maintain CISPR 14-1 compliance?

No—the instrument includes factory-calibrated digital IF filters and traceable reference sources; annual verification against PMM’s NIST-traceable calibration kit is recommended but not mandatory for routine use.
Can the Click4E be used for measurements beyond CISPR 14-1?

Yes—it functions as a full-featured CISPR 16-1-1 compliant EMI receiver and supports optional add-ons for conducted emissions (CISPR 16-2-1), radiated emissions (CISPR 16-2-3), and automotive EMC (ISO 7637-2, ISO 11452-2).
Is the Smart Measure™ algorithm configurable or locked to default settings?

It is field-adjustable via administrator-level access; users may modify dwell thresholds, minimum detectable amplitude, and statistical confidence intervals while preserving normative compliance paths.
How is data integrity ensured during long-duration tests?

All pulse records include CRC-32 checksums and monotonic timestamps synchronized to GPS-disciplined internal clock; file corruption detection is performed on every read/write cycle.
Does the system support remote operation and unattended testing?

Yes—EMCoS Control Suite supports secure TLS 1.3 remote desktop sessions and scheduled batch testing with email/SNMP alerts upon completion or failure.
