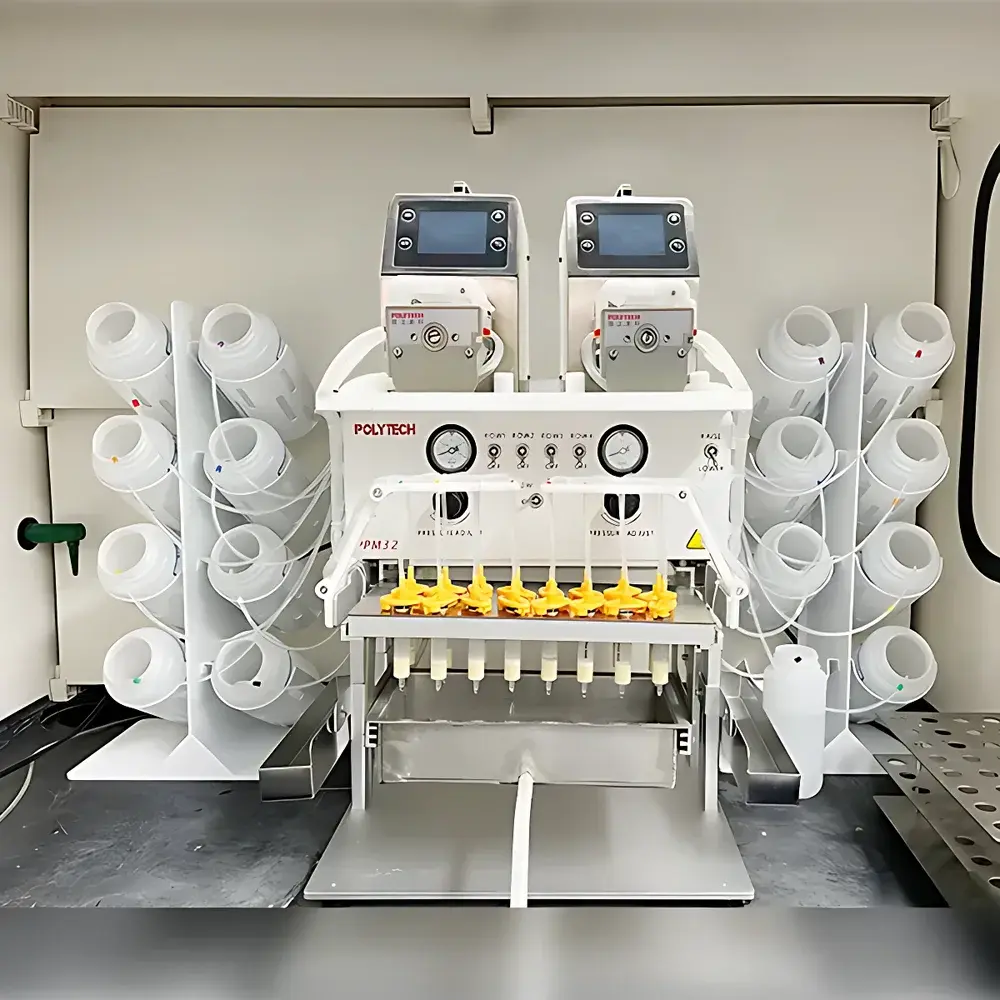

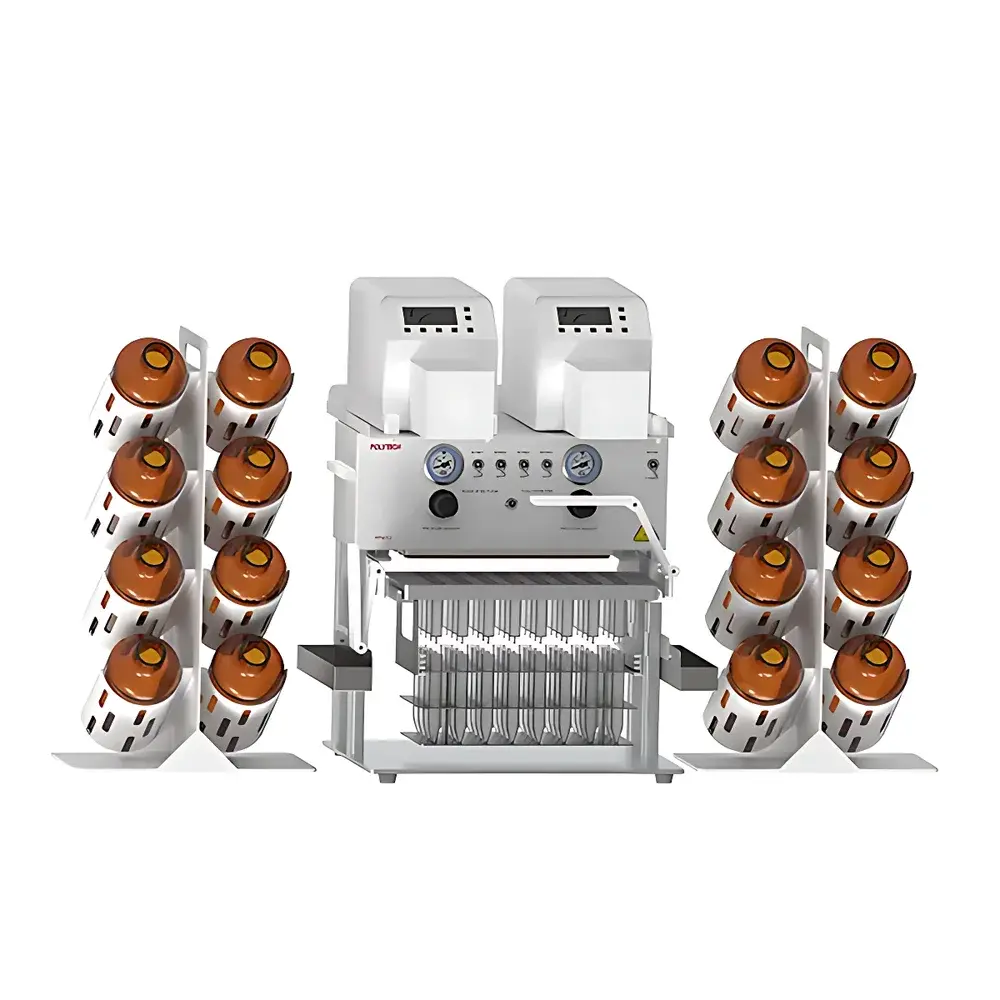

Polytech PPM32x PFAS-Specific Positive-Pressure Solid Phase Extraction System

Overview

The Polytech PPM32x is a dedicated positive-pressure solid phase extraction (SPE) system engineered for the selective enrichment and cleanup of per- and polyfluoroalkyl substances (PFAS) from aqueous environmental matrices—particularly drinking water, surface water, groundwater, and wastewater. Unlike general-purpose SPE workstations, the PPM32x implements a rigorously fluorine-free fluidic architecture across all sample-contacting components—including tubing, manifolds, seals, valves, and sample reservoirs—to eliminate background contamination and ensure trace-level analytical integrity. Its operational principle relies on precise, independent pneumatic pressure control applied uniformly across 16 parallel channels, enabling reproducible, flow-rate-regulated elution through PFAS-optimized sorbents (e.g., weak anion exchange [WAX], mixed-mode cation/anion exchange, or carbon-based media). Designed in full alignment with China’s methodological standards HJ 1333–2023 (“Determination of Perfluoroalkyl Substances in Water by Liquid Chromatography–Tandem Mass Spectrometry”) and DB32/T 4004–2021 (“Technical Specification for PFAS Testing in Drinking Water”), the system supports validated workflows required for regulatory reporting and laboratory accreditation under CNAS-CL01 (equivalent to ISO/IEC 17025).

Key Features

• Fluorine-free wetted path: All fluid-contact materials—including PEEK, polypropylene, stainless steel (passivated), and fluoro-free elastomers—are certified free of fluorinated polymers, preventing leaching and blank elevation during low-ppt PFAS analysis.
• 16-channel parallel processing: Simultaneous conditioning, loading, washing, and elution across 16 independent SPE columns, supporting high-throughput labs handling ≥50 PFAS samples per week.
• Pneumatic pressure regulation: Digital pressure control (0–100 psi, resolution 0.1 psi) per channel ensures consistent flow rates (typically 1–10 mL/min) without mechanical pump pulsation—critical for maintaining column integrity and analyte recovery across diverse water matrices.
• No-transfer concentration capability: Integrated evaporation manifold allows direct nitrogen-assisted solvent removal from eluates collected in 15-mL or 50-mL centrifuge tubes, eliminating intermediate transfer steps that risk PFAS adsorption or loss.
• Modular column compatibility: Accepts standard SPE cartridges (1–12 mL format) and accommodates custom-packed columns; also supports direct eluate collection into GC/LC vials or microcentrifuge tubes.
• Robust mechanical architecture: Aluminum alloy frame with corrosion-resistant coating; sealed electronics compartment; CE-marked power supply and pressure regulators compliant with EN 61000-6-3 (EMC) and EN 61000-6-2 (immunity).

Sample Compatibility & Compliance

The PPM32x is validated for use with natural and treated waters containing suspended solids ≤10 mg/L (pre-filtered through 0.45 µm membranes). It maintains quantitative recovery (>85%) for C4–C14 perfluoroalkyl carboxylic acids (PFCAs), perfluoroalkyl sulfonic acids (PFSAs), and select fluorotelomer sulfonates (FTSs) when paired with EPA Method 537.1–compatible sorbents. All materials contacting samples conform to HJ 1333–2023 requirements for “non-fluorinated construction,” verified via X-ray fluorescence (XRF) screening and extractable organic fluorine (EOF) testing (<0.5 ng F⁻ per channel blank). The system supports GLP-compliant operation: pressure logs, run timestamps, and operator ID can be exported as CSV for audit trails. While not FDA 21 CFR Part 11–certified out-of-box, its digital interface permits integration with LIMS systems supporting electronic signatures and data integrity controls.

Software & Data Management

The PPM32x operates via an embedded 7-inch capacitive touchscreen running real-time Linux-based firmware. No PC dependency is required for routine runs; however, optional USB-C export enables transfer of method files, pressure logs, and session metadata (start time, duration, channel status, error codes). Methods are stored as XML templates—editable offline—and support multi-step protocols (e.g., 3-min equilibration at 15 psi → 30-min load at 5 psi → dual-wash → elute at 30 psi). Audit-ready records include date/time stamps, pressure deviation alerts (±2% setpoint), and automatic detection of cartridge dry-out or blockage. Firmware updates are delivered via secure HTTPS download and require manual validation prior to installation—ensuring version control and traceability per ISO/IEC 17025 Clause 5.9.

Applications

• Regulatory monitoring of PFAS in municipal drinking water supplies per China’s GB 5749–2022 supplementary guidelines.
• Environmental site assessment of groundwater plumes near fire-training areas or industrial discharge zones.
• Method development and validation studies for emerging PFAS analytes (e.g., HFPO-DA, ADONA, 6:2 FTS) requiring ultra-low background instrumentation.
• High-volume contract laboratories performing accredited PFAS testing under CNAS accreditation scope.
• Research applications involving isotopic dilution (e.g., ¹³C-labeled internal standards) where minimal procedural blank contribution is non-negotiable.

FAQ

Does the PPM32x support EPA Method 533 or ASTM D7979 workflows?
Yes—the system’s pressure stability, fluorine-free path, and compatibility with WAX and mixed-mode cartridges enable full implementation of both methods, provided sorbent selection and elution solvents align with published protocols.
Can I use third-party SPE cartridges with the PPM32x?
Absolutely—all standard 1–12 mL cylindrical cartridges (including those from Waters, Agilent, Thermo Fisher, and Restek) mount directly onto the universal column holders without adapters.
What maintenance is required to sustain low PFAS blanks?
Monthly cleaning of the pressure manifold with methanol/water (50:50), quarterly replacement of O-rings (fluoro-free EPDM), and annual calibration of pressure sensors using NIST-traceable deadweight testers are recommended.
Is remote monitoring or network connectivity available?
Not natively—but the USB-C port supports connection to a local PC running custom Python or LabVIEW scripts for automated log parsing and dashboard integration.
How does the PPM32x handle turbid or high-DOM water samples?
Pre-filtration through 0.45 µm PVDF or nylon membranes is mandatory; for samples >10 mg/L TSS, offline centrifugation (3000 × g, 10 min) is advised prior to SPE loading to prevent column clogging and ensure reproducible flow dynamics.
