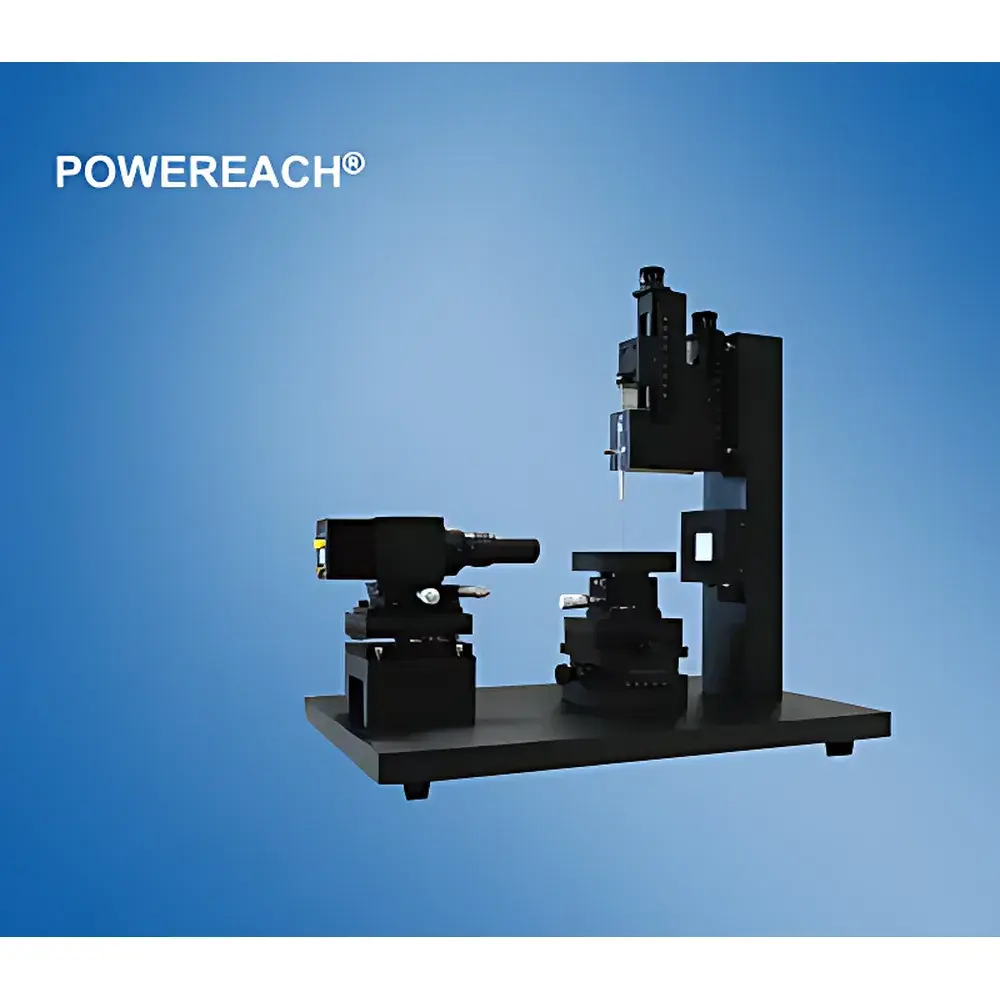

POWEREACH JC2000D1 Dynamic Contact Angle Analyzer

Overview

The POWEREACH JC2000D1 Dynamic Contact Angle Analyzer is a precision benchtop instrument engineered for quantitative characterization of solid–liquid–gas interfacial interactions. It operates on the principle of high-resolution optical imaging combined with advanced digital image analysis to determine contact angles via sessile drop, pendant drop, and captive bubble methodologies. The system captures real-time droplet morphology under controlled environmental conditions and computes contact angle values using multiple validated fitting algorithms—including Young–Laplace curve fitting, circle/ellipse regression, and tangent-based geometric methods. Designed for rigorous academic research and industrial quality control, the JC2000D1 supports dynamic measurements such as advancing, receding, and roll-off angles—enabling comprehensive wetting behavior analysis critical in nanomaterial surface modification, coating development, biomaterial evaluation, and enhanced oil recovery studies.

Key Features

• Modular seven-axis mechanical adjustment system for precise sample and optical alignment (X/Y/Z translation, tilt, rotation, focus, and lighting positioning)
• Continuous zoom optical path (0.7×–4.5×) with calibrated pixel magnification from 70 to 420 pixels/mm
• USB3.0 monochrome industrial camera (standard: 310K pixels, 860 fps; optional upgrades to 5+ MP sensors with frame rates up to 210 fps)
• Manual syringe-based dispensing system with 0.1 µL resolution (automated dispensing modules available as optional add-ons)
• Adjustable LED cold-light source with intensity control for optimal contrast across transparent and reflective substrates
• Robust aluminum alloy chassis (510 × 300 × 440 mm, 12 kg net weight) with vibration-damped base and leveling feet
• Expandable architecture supporting post-purchase integration of temperature control modules (–65°C to +400°C), rotational stages, electric XYZ platforms, and specialized sample holders

Sample Compatibility & Compliance

The JC2000D1 accommodates diverse sample geometries including flat solids (≤100 mm × ∞ × 25 mm), fibers, textiles, pressed powders, and thin films. Its open-stage design permits direct mounting of custom fixtures—such as fabric stretching frames, fiber clamps, or microfluidic chips—without hardware modification. All measurement protocols adhere to internationally recognized standards: ASTM D7334 (surface wettability of coatings), ISO 19403-2/-3 (contact angle determination), and ISO 1409 (interfacial tension by pendant drop). Software audit trails, user access logs, and timestamped raw image archives comply with GLP and FDA 21 CFR Part 11 requirements when configured with optional electronic signature and data integrity modules.

Software & Data Management

POWEREACH V2.11 Imaging Analysis Software provides full workflow automation—from image acquisition to report generation. It supports static and time-resolved contact angle tracking at user-defined intervals (1 s to 3600 s), dynamic video capture at up to 30 fps (standard) or 210 fps (with upgraded camera), and batch processing of multi-sample datasets. Analytical capabilities include left/right asymmetry correction, convex/concave surface compensation, CMC estimation, surface free energy calculation (Zisman, Owens–Wendt, Wu, van Oss–Chaudhury–Good models), and interfacial tension quantification via Young–Laplace equation solving. Data export formats include CSV, PNG, TIFF, and PDF reports with embedded metadata (camera settings, calibration parameters, operator ID, timestamp). Software updates are provided free of charge for the lifetime of the instrument.

Applications

This system serves cross-disciplinary applications requiring surface energetics and wetting dynamics assessment. In materials science, it characterizes plasma-treated polymers, self-assembled monolayers, and hydrophobic/hydrophilic coatings. In pharmaceuticals, it evaluates tablet film coating uniformity and excipient wettability during dissolution testing. In energy research, it assesses electrode wettability in battery electrolytes and catalyst layer infiltration in PEM fuel cells. In textiles and composites, it determines fiber–matrix adhesion potential and sizing effectiveness. Additional use cases span inkjet printing optimization, agricultural spray adhesion modeling, MEMS device packaging validation, and marine antifouling surface screening.

FAQ

What types of contact angles can the JC2000D1 measure?
It measures static, advancing, receding, and (with optional rotational stage) roll-off angles. Captive bubble and tilted-substrate methods support liquid–liquid–solid systems.
Is temperature control integrated into the base model?
No—temperature control is an optional module. Available configurations include Peltier-cooled stages (–65°C to +95°C), resistive heating platforms (up to +400°C), and external circulating bath interfaces.
Can the system analyze irregular or curved surfaces?
Yes—software includes curvature correction algorithms for convex and concave substrates, enabling accurate contact angle determination on lenses, microspheres, and structured surfaces.
What software validation documentation is provided?
A comprehensive IQ/OQ protocol is supplied upon request. Optional third-party calibration certificates (traceable to NIST standards) are available for optical angle verification tools.
Does the instrument require a dedicated computer?
Yes—a Windows 7/10 (32- or 64-bit) PC with one free USB3.0 port is required. POWEREACH provides full driver and software compatibility certification for major OEM platforms.
