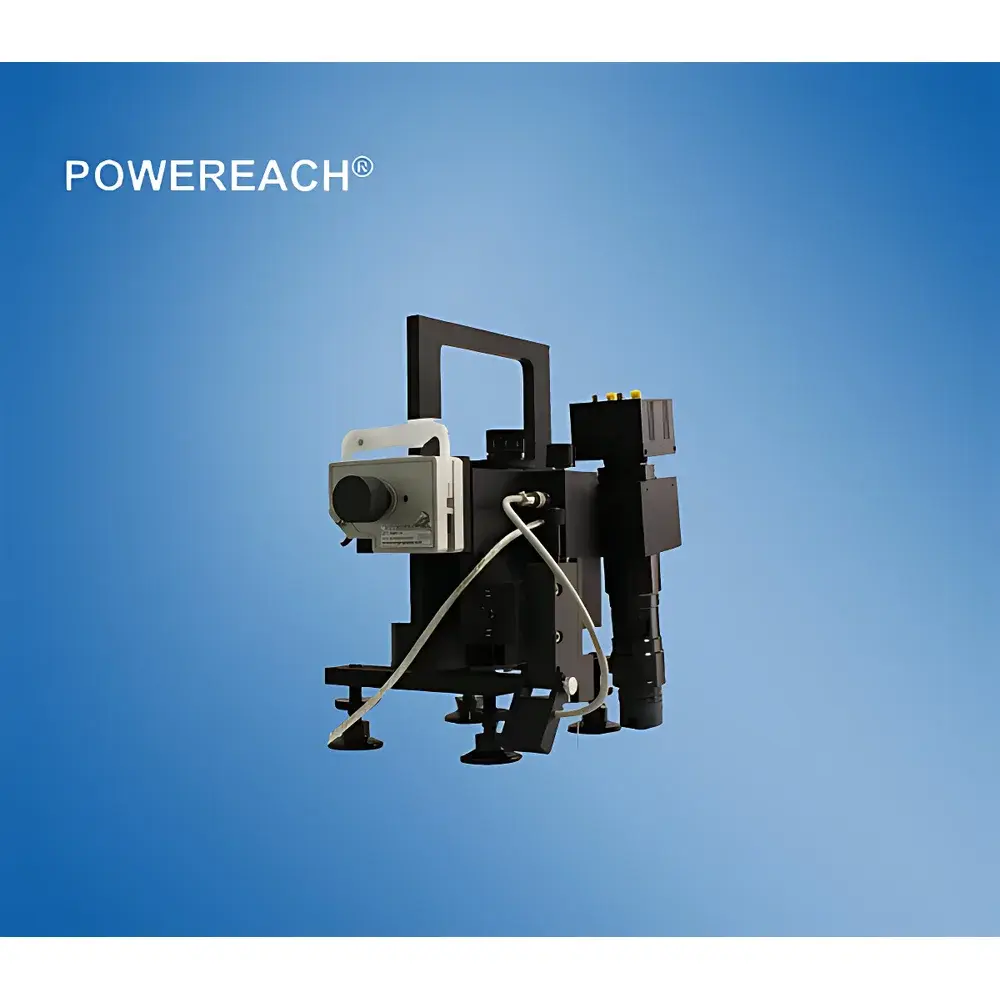

POWEREACH JC2000P Portable Video-Based Contact Angle Analyzer

Overview

The POWEREACH JC2000P Portable Video-Based Contact Angle Analyzer is an engineered solution for in-situ, non-destructive wettability characterization of solid surfaces using the optical sessile drop method. It operates on the fundamental principle of interfacial thermodynamics: contact angle (θ) quantifies the equilibrium geometry at the solid–liquid–vapor triple-phase boundary, directly reflecting surface energy heterogeneity, chemical composition, and topographic effects. Unlike benchtop goniometers requiring sample sectioning or vacuum stages, the JC2000P employs a self-contained, handheld optical platform that rests directly on the sample surface—eliminating size constraints and enabling measurement on substrates up to full-panel TFT-LCD glass, architectural façades, roll-to-roll coated films, or field-deployed composite panels. Its core architecture integrates a high-fidelity 1.3-megapixel USB CCD camera, continuous-zoom optics with infrared filtering, and uniform LED illumination optimized for low-noise droplet contour extraction under ambient lighting conditions. The system captures real-time video at 30 fps, supporting both static and dynamic contact angle analysis—including advancing/receding angles via automated 5-point spline fitting—without operator-dependent tangent placement.

Key Features

• True portable form factor: 4 kg total mass, no external sample stage, no cutting or mounting required—measures directly on intact, oversized, or immobile substrates.
• Automated geometric analysis engine: Eliminates subjective tangent-line drawing through algorithmic edge detection, curvature-aware contour segmentation, and least-squares-based θ/2, height, and polynomial-fitting methods.
• Versatile droplet handling: Integrated peristaltic dosing pump enables precise, contamination-free liquid delivery; supports sequential multi-droplet deposition for spatial mapping.
• High-temporal-resolution imaging: 30 fps capture rate with instantaneous freeze-frame, auto-sequenced, and high-speed burst modes—critical for volatile solvents (e.g., acetone, ethanol) or rapid absorption kinetics.
• USB bus-powered operation: Fully functional via laptop USB 2.0 port; optional AC adapter included for extended lab use—no dedicated power supply or grounding needed.
• Robust environmental adaptability: LED light source with diffusion optics ensures consistent contrast across varied surface reflectivity (e.g., matte polymers, polished metals, anti-reflective coatings).

Sample Compatibility & Compliance

The JC2000P accommodates heterogeneous material classes without preprocessing: rigid plates (glass, silicon wafers, metal sheets), flexible substrates (PET, PI, laminates), fibrous textiles, nonwovens, pressed powders, and patterned microstructures. Its zero-height-restriction design permits measurement on curved or uneven surfaces up to ±0.5 mm local topography deviation when used with manual tilt adjustment. While not certified to ISO 19403 or ASTM D7334 as a standalone unit, the instrument’s measurement methodology aligns with the theoretical framework of these standards. When integrated into validated laboratory information management systems (LIMS), its software-generated audit logs—including timestamped images, raw pixel coordinates, fitted parameters, and user metadata—support GLP/GMP documentation requirements. Data export in BMP/AVI formats facilitates third-party validation against reference methods per USP or ISO/IEC 17025 calibration protocols.

Software & Data Management

The proprietary JC2000 Series Analysis Software provides a deterministic, traceable workflow from image acquisition to quantitative reporting. Each session generates a structured project file containing synchronized video, annotated still frames, numerical outputs (θ_adv, θ_rec, h, d, γ_LV if calibrated), and full parameter history. All measurements are reproducible via embedded calibration routines using standard goniometer reference slides (certified 30°/60°/90°/120°). The software supports batch processing for multi-location surveys, statistical summarization (mean ± SD, min/max), and export to CSV, Excel, or PDF reports with embedded figures. For regulated environments, the system can be configured to enforce electronic signatures, role-based access control, and immutable audit trails compliant with FDA 21 CFR Part 11 when deployed on validated Windows OS platforms with domain authentication.

Applications

The JC2000P serves critical quality and R&D functions across industries where surface energetics dictate performance: evaluating plasma treatment efficacy on automotive interior trim; verifying hydrophobic coating uniformity on photovoltaic encapsulants; assessing inkjet printability on flexible electronics substrates; monitoring cleaning validation on pharmaceutical stainless-steel vessels; characterizing moisture barrier integrity in food packaging films; and quantifying biofouling resistance on marine coatings. In academic research, it supports studies in nanomaterial functionalization, stimuli-responsive polymer swelling, electrowetting-on-dielectric (EWOD) actuation, and biomimetic superhydrophobic surface development. Its portability enables on-site verification during manufacturing line commissioning, cleanroom qualification, or failure analysis in field service operations.

FAQ

Does the JC2000P require a dedicated PC or specific operating system?
It operates on Windows 7/10/11 (64-bit) with a single USB 2.0 port; no additional drivers or runtime dependencies are required.
Can it measure dynamic contact angles on absorbent substrates like paper or fabric?
Yes—using high-speed capture mode and time-resolved droplet profile tracking, it resolves contact angle evolution over 0.1–10 s intervals.
Is surface tension calculation supported out-of-the-box?
Surface/interfacial tension quantification requires separate calibration with known-standard liquids (e.g., water, diiodomethane); the software includes Young–Laplace curve-fitting modules for pendant/sessile drop analysis when configured accordingly.
What maintenance is required for long-term accuracy?
Annual verification using NIST-traceable contact angle reference slides is recommended; optical components require only periodic dust removal with lens-grade air blower.
How is measurement repeatability ensured across operators?
All geometric computations are fully automated—eliminating inter-operator variability inherent in manual tangent placement—while standardized lighting and focus protocols minimize setup-induced drift.
